WKDQ's brand-new JUK 2.5 screw clamping terminal is now available, setting a new standard for electrical connection quality.

WKDQ's newly launched JUK 2.5 screw clamping terminal (model JUK 2.5B) is now available, setting a new benchmark for electrical connection quality. This innovative product, infused with advanced technology, delivers a breakthrough solution for the electrical connection field through its exceptional performance, versatile adaptability, and comprehensive customized services.

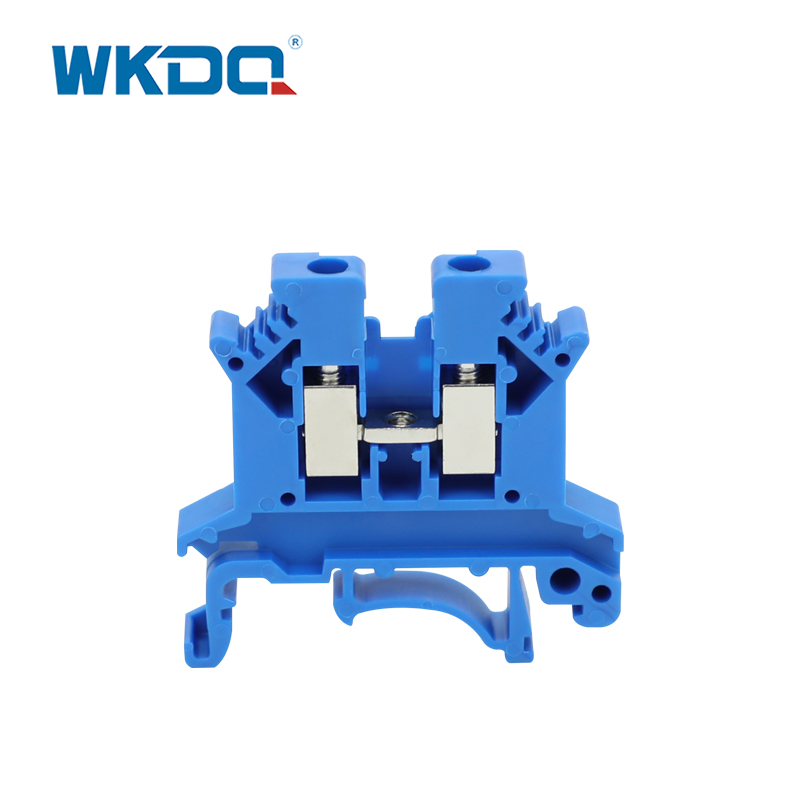

The JUK 2.5B terminal utilizes a globally recognized screw connection structure, enabling it to withstand harsh environments and maintain stable performance in large-conductor cross-section wiring applications. Its main body is crafted from engineering-grade flame-retardant nylon PA66, paired with brass screw components, ensuring superior fire resistance while guaranteeing the reliability and safety of electrical transmission.

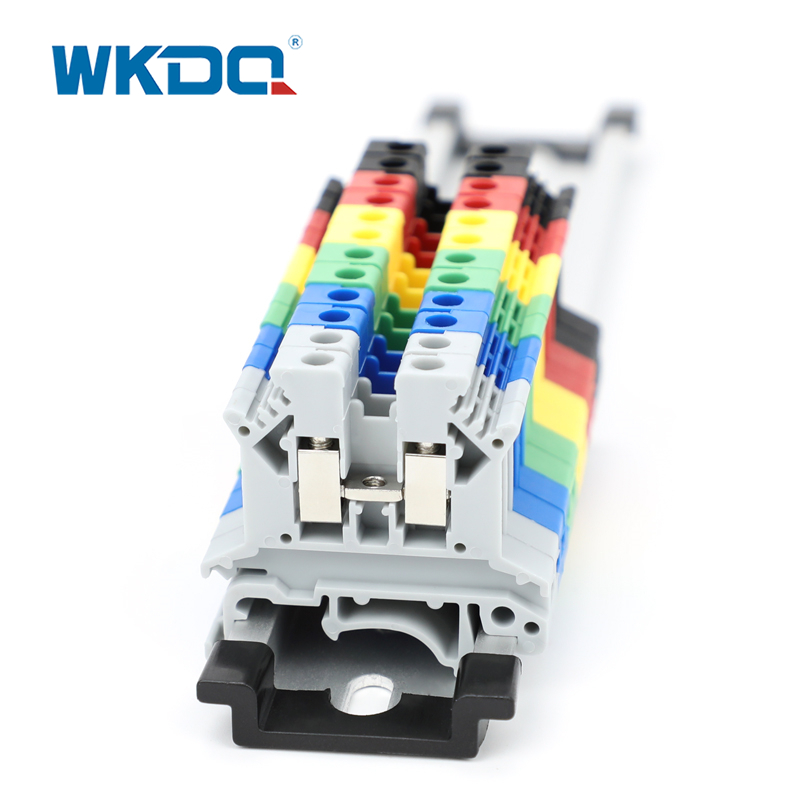

The JUK 2.5B features a user-friendly design. Its universal base is directly compatible with the NS 35 rail, significantly streamlining the installation process. In terms of conductor connectivity, it easily accommodates two wires: solid cables ranging from 0.2–4mm² (24–12 AWG) and flexible cables spanning 0.2–2.5mm² (24–12 AWG). With a rated voltage of 800V and rated current of 32A, it meets the electrical connection demands of diverse scenarios.

The terminal’s electrical potential distribution design is both flexible and efficient, supporting implementation via a fixed bridge at the terminal’s center or an insertable bridge within the clamping area. All necessary accessories—including end covers, terminal blocks, partitions, identification strips, fixed bridges, and insertable bridges—are fully included, providing robust support for system integration.

Aesthetically, the terminal is available in standard gray and blue, with custom color options to accommodate personalized needs. It measures 42.5mm×41mm×6.2mm, is manufactured in strict compliance with the IEC 60947-7-1 standard, and has obtained authoritative certifications such as CE, RoHS, CQC, and ISO 9001, ensuring trusted quality.

Additionally, the JUK 2.5B terminal block supports custom branding (logo), with an individual weight of 6.9g. Packaging options include 50 pieces per box and 3000 pieces per case.

The launch of WKDQ’s JUK 2.5 screw clamping terminal introduces a new connection solution that merges quality and performance for the electrical industry. It will play a pivotal role in the connection systems of various electrical equipment, driving significant progress in industry technological advancement.。Samples can be obtained through the official website of WKDQ (electrical-terminalblock.com).
