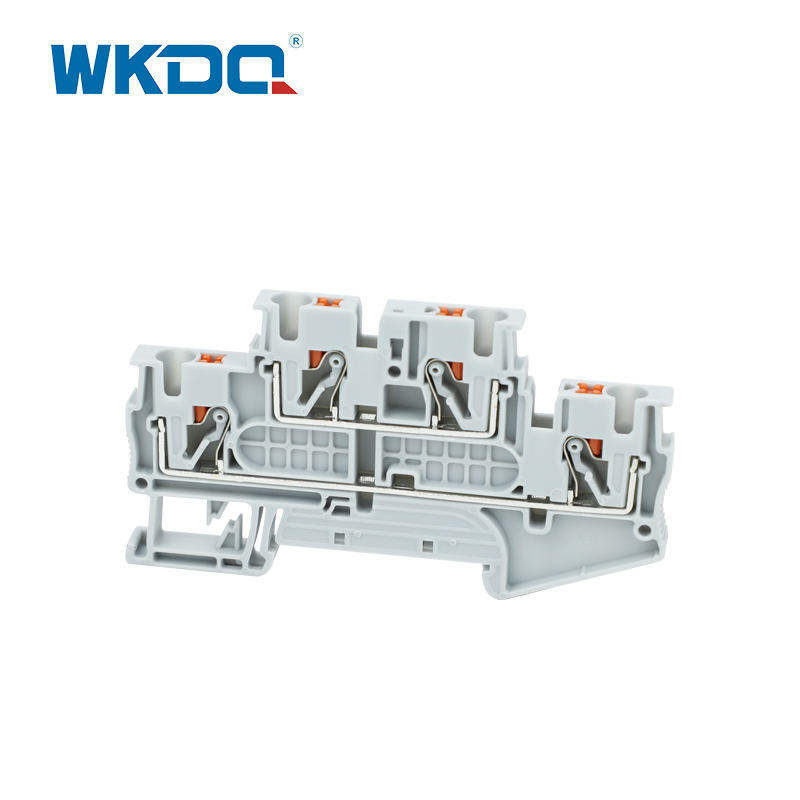

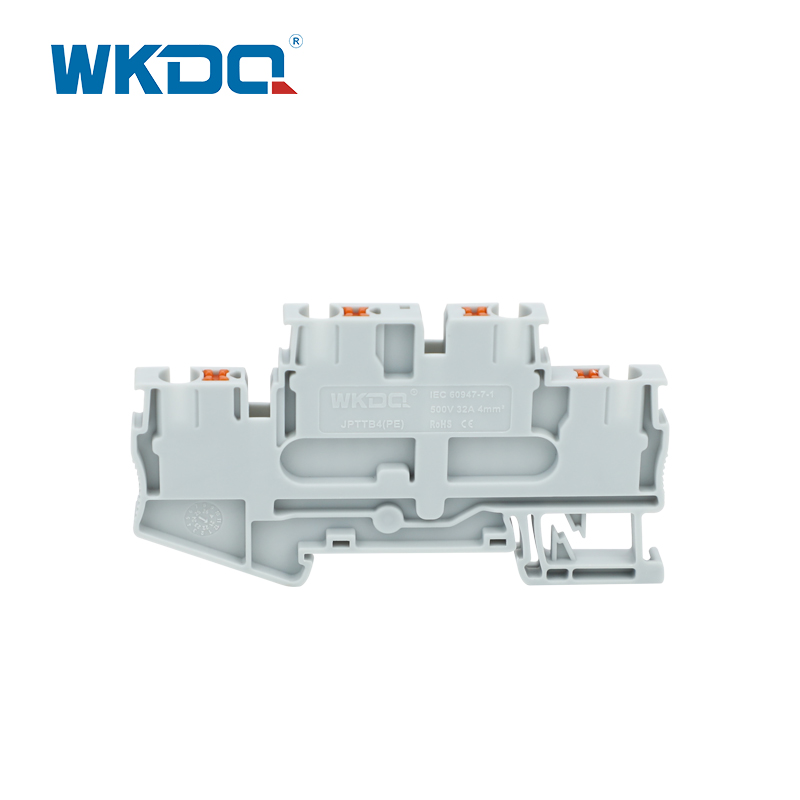

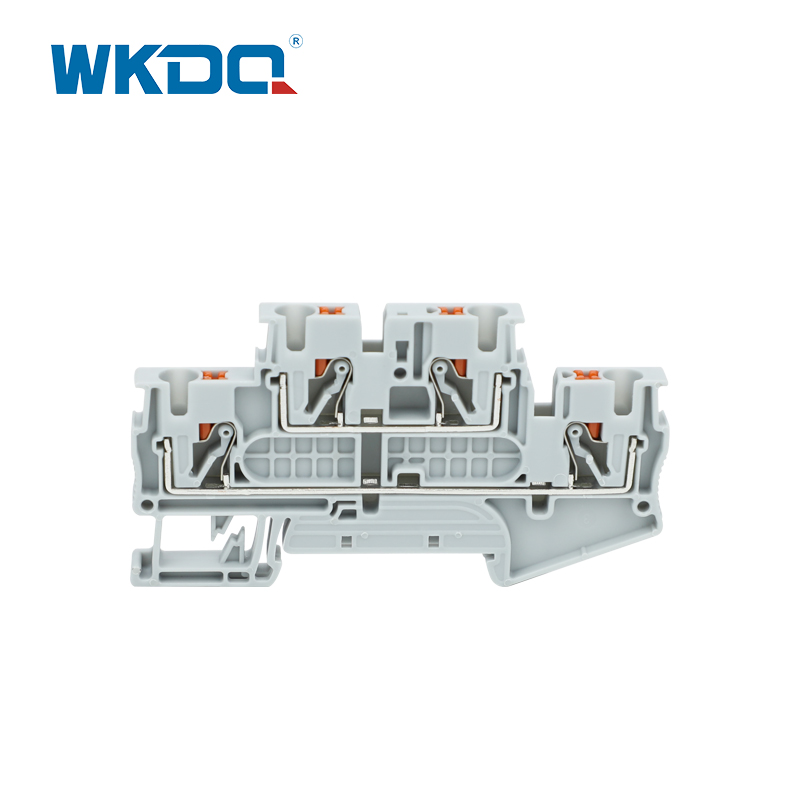

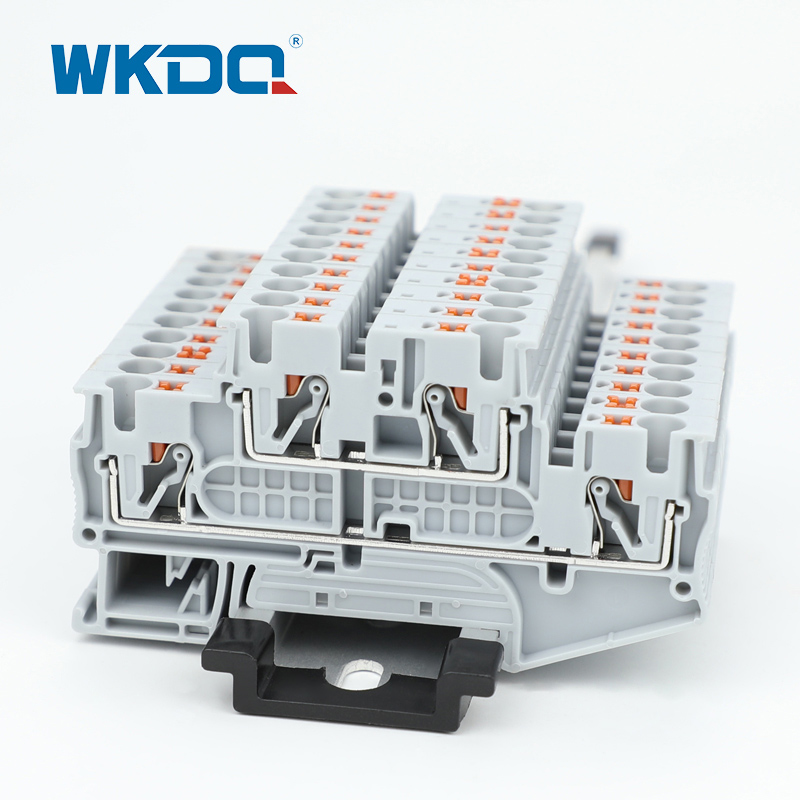

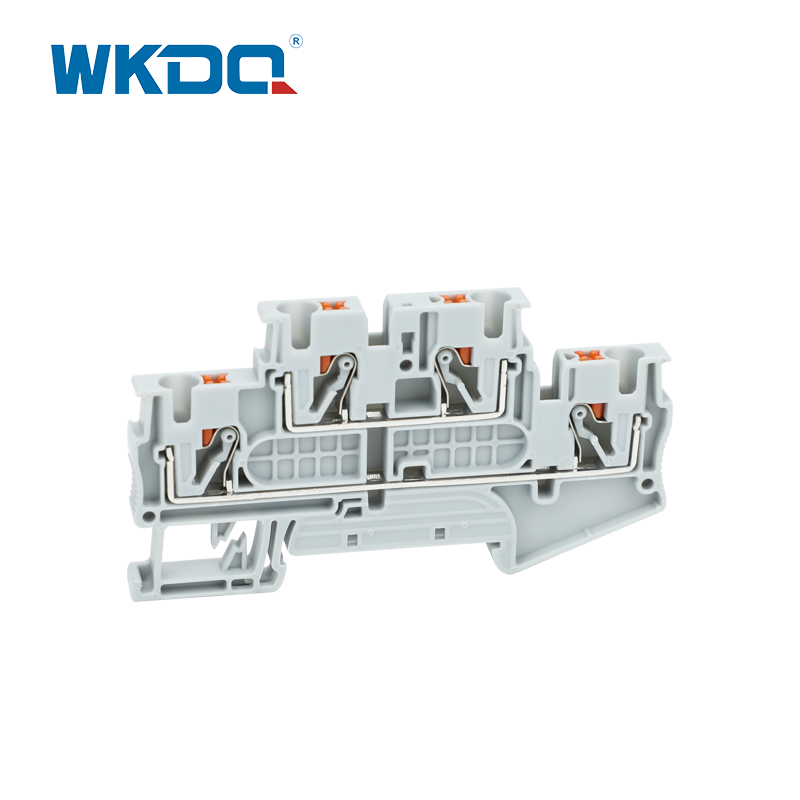

2 Level Push In Type Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 2.5-PV
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPTTB 2.5-PV

Send Inquiry

Product Description

‌PT connection technology ‌ through the multi-country certification, the use of compact in-line modular design, the insertion force can be reduced by 50% to save time; Equipped with color button to identify polarity and safely unlock the wire (no need to touch the live body), ensure error-free wiring and maintenance.

Model No.	JPTTB 2.5-PV

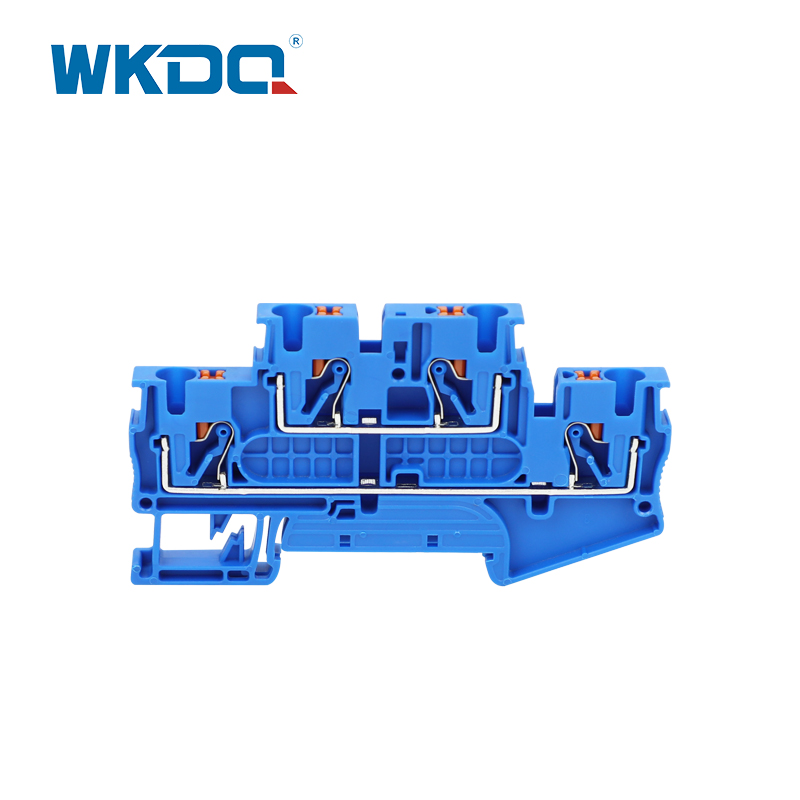

Color	Grey,Blue, other color can be customized
Length/Height/Wide (mm)	68/47.5/5.2
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/22A
Cross section, solid/soft Cable	0.14-4mm²/0.14-2.5mm²
Conductor Size	26-12AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	10.23g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
