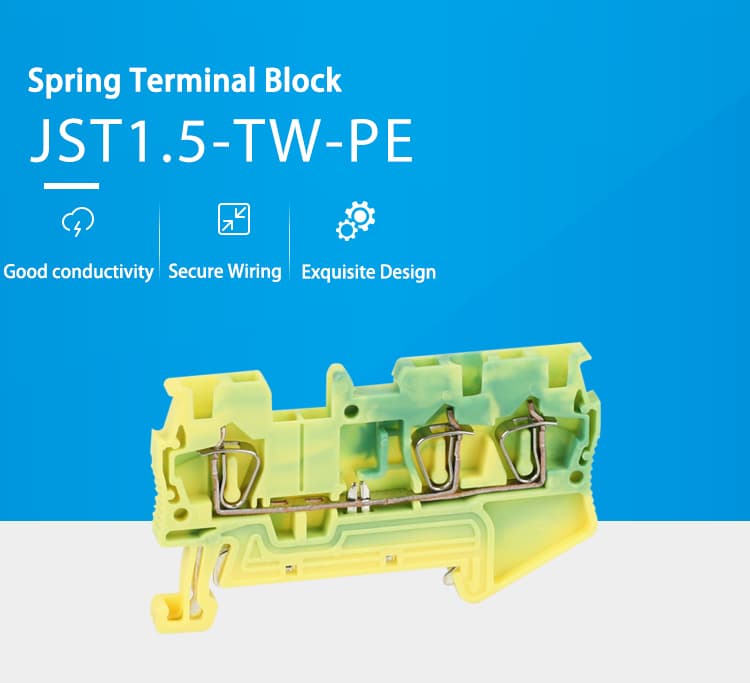

3 Points Spring type Earth Terminal Block

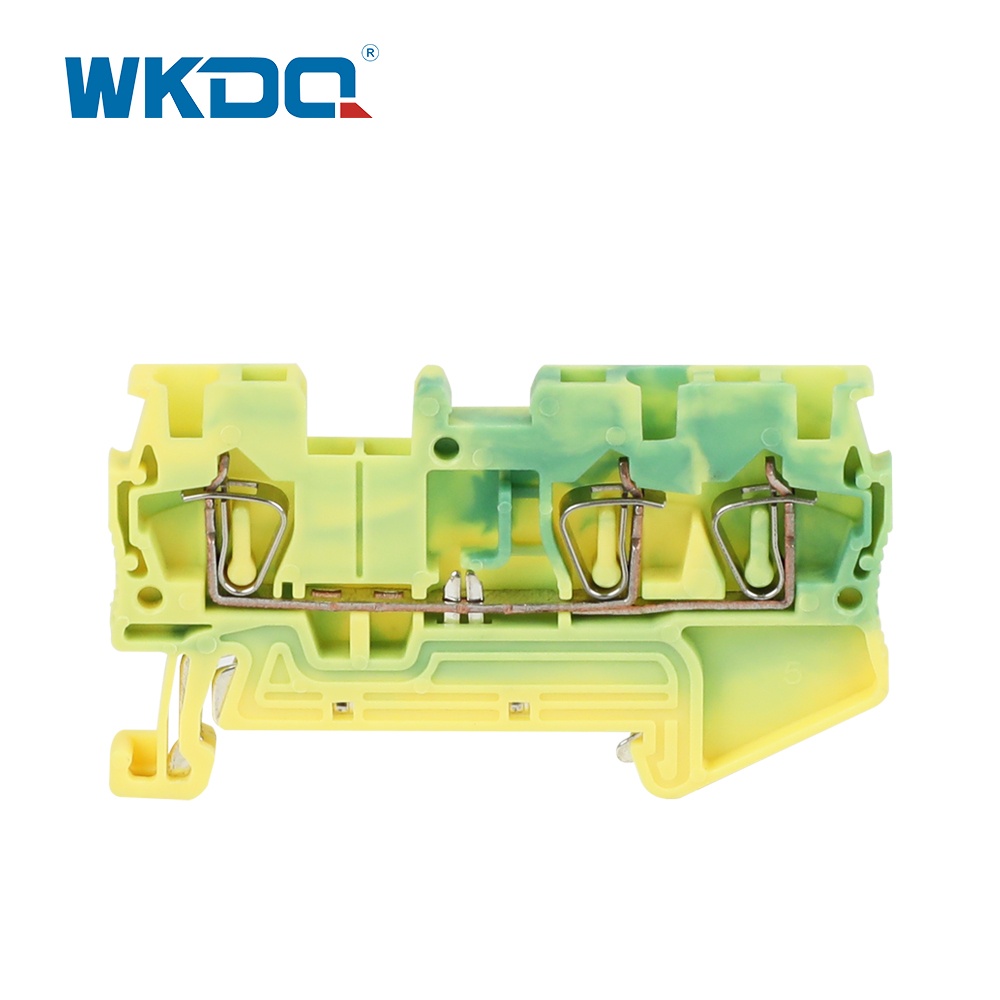

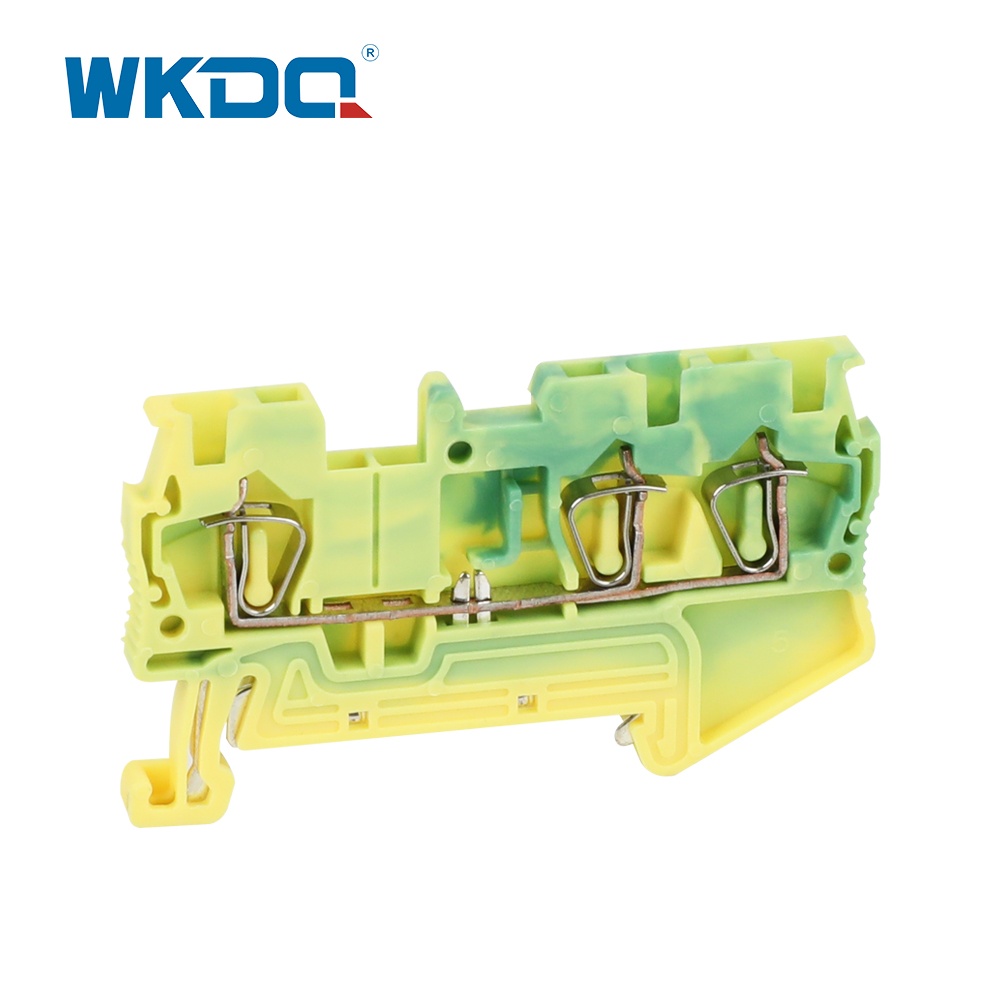

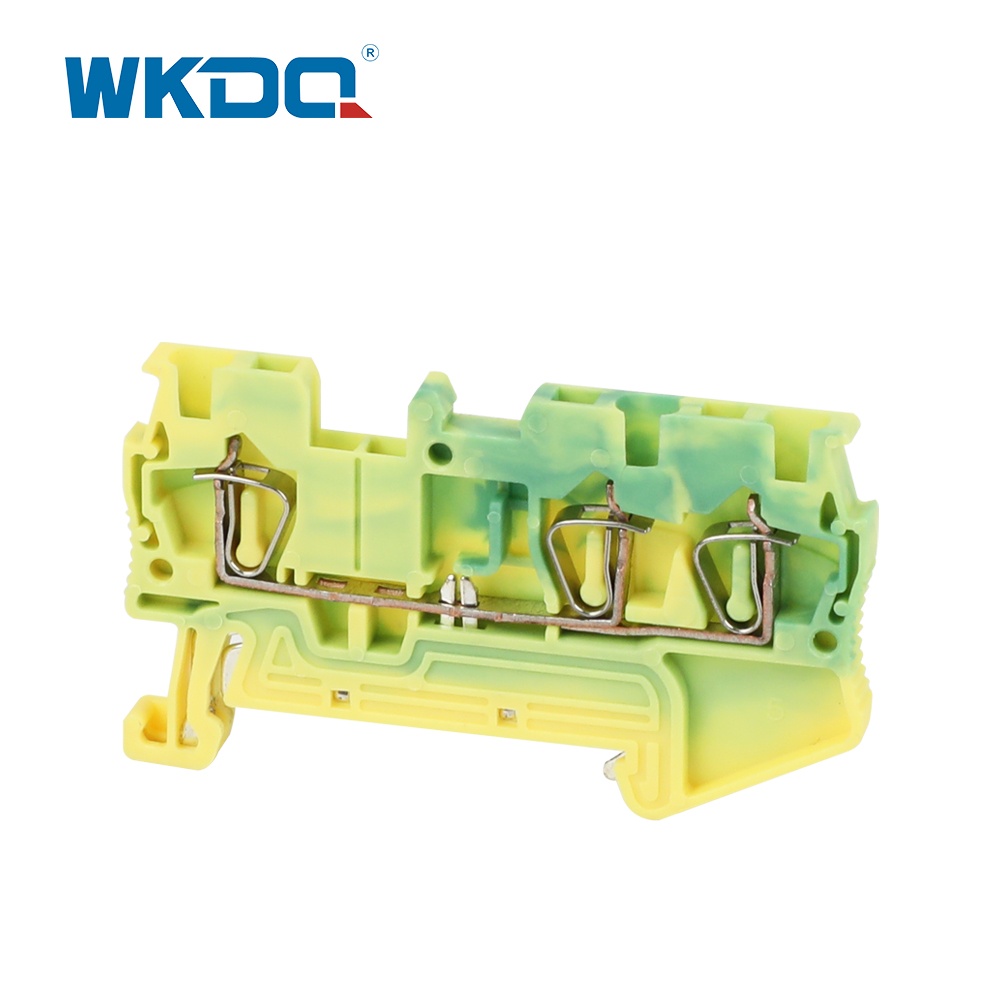

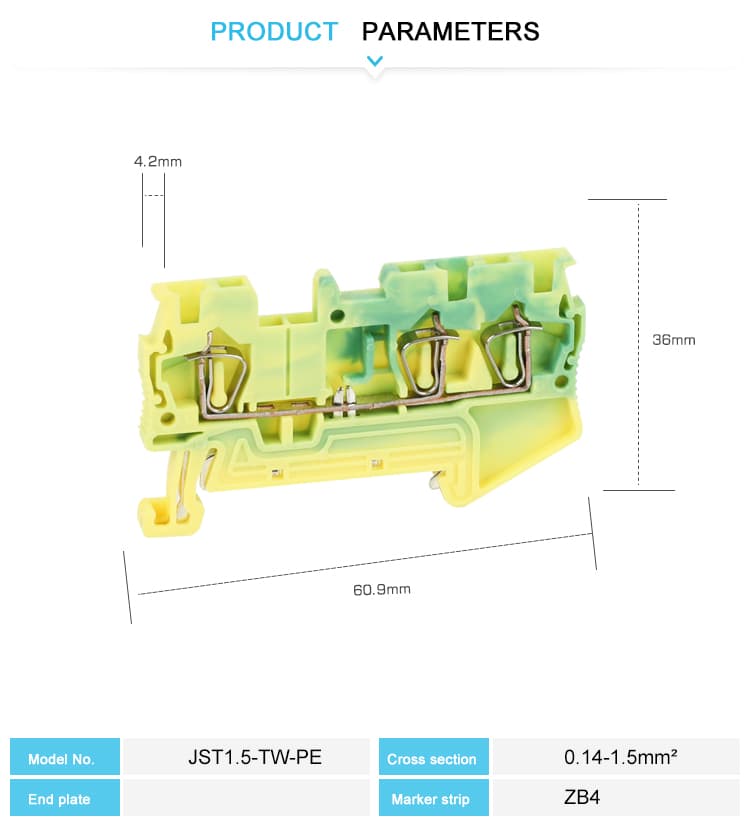

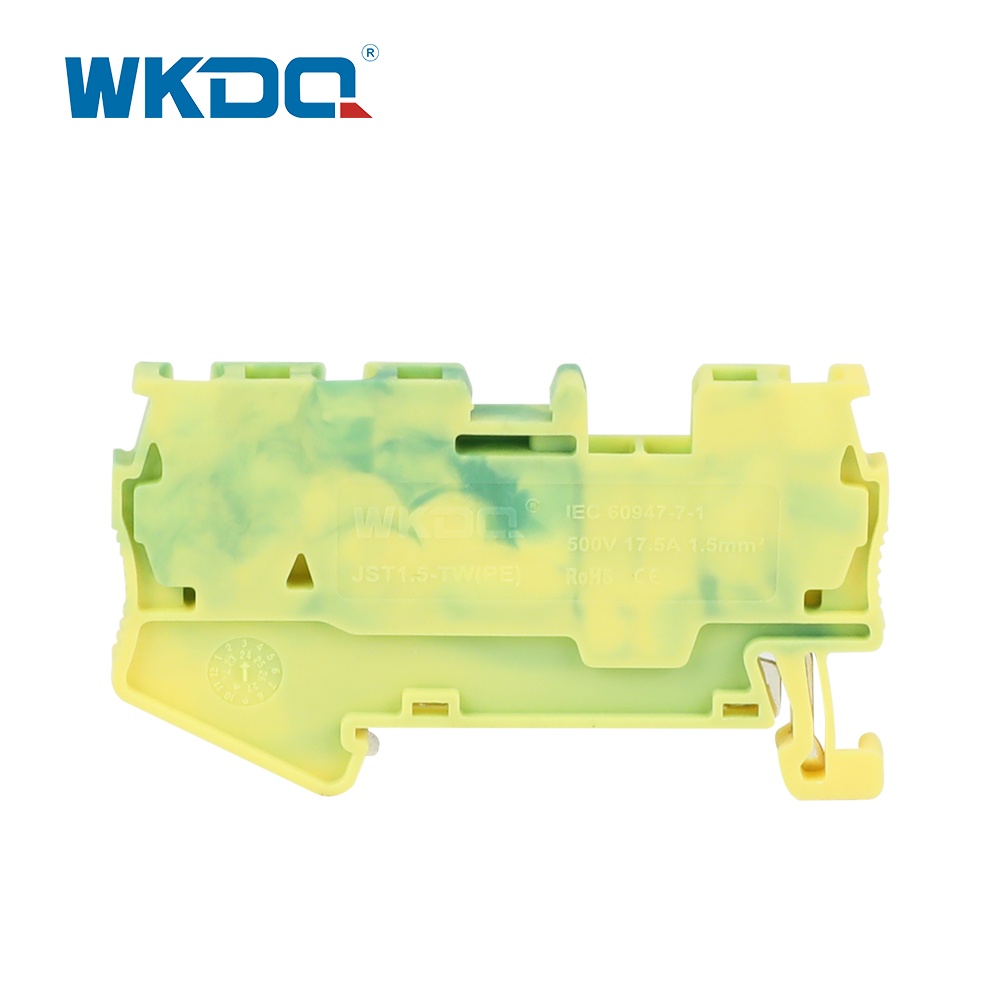

The JST1.5-TW-PE is a compact and reliable spring-clamp terminal block designed for efficient electrical connections in various applications. It features a durable nylon PA66 housing in green and yellow color coding, with dimensions of 60.9×36×4.2 mm (L×H×W). Rated for 500V and 17.5A, it supports solid conductors (0.08–1.5 mm²) and soft conductors (0.14–1.5 mm²), equivalent to 26–15 AWG. Compatible with NS 35/7.5 DIN rails, the terminal block complies with IEC 60947-7-1 standards and includes certifications for CE, RoHS, CQC, and ISO 9001. Customized logos are supported, and the product is packed in cartons for shipment. Ideal for control panels, lighting systems, and compact electrical installations where space-saving and reliable spring-clamp connectivity are required.
