Power DIstribution Blocks JPTV2.5FIX-12

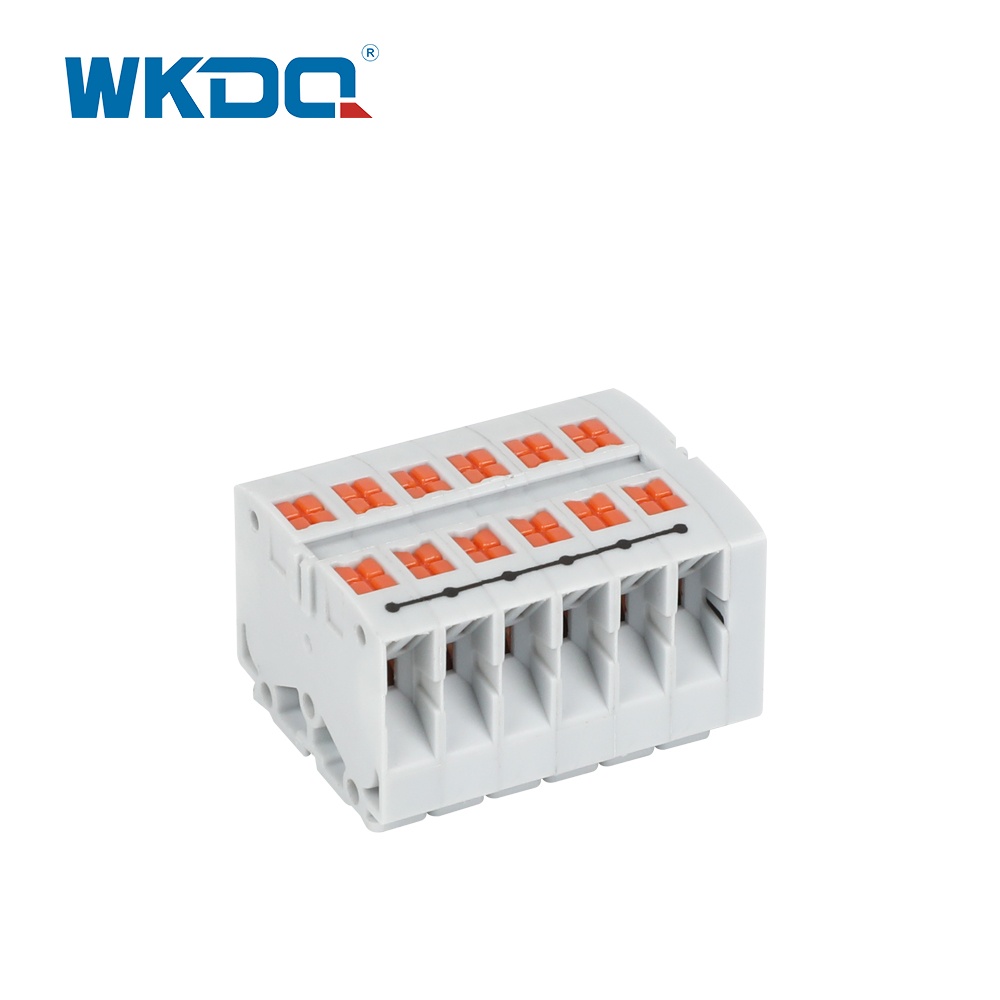

The JPTV2.5FIX-12 is a compact 12-position fixed distribution block engineered for reliable and organized electrical distribution. It features a compact design measuring 53.1×28.6×21.8 mm (L×W×H) and supports a wide wire range of 0.14–4 mm² (solid) or 0.14–2.5 mm² (soft). Rated for 450V and 32A, it is constructed in durable gray nylon and is compatible with NS 35/7.5 DIN rails for easy installation. The terminal block supports clear circuit identification with the use of ZBV2.5 marker strips. Certified with CE, RoHS, CQC, and ISO 9001, it is ideal for control panels, switchgear, and other applications requiring efficient and reliable multi-point electrical connections.
