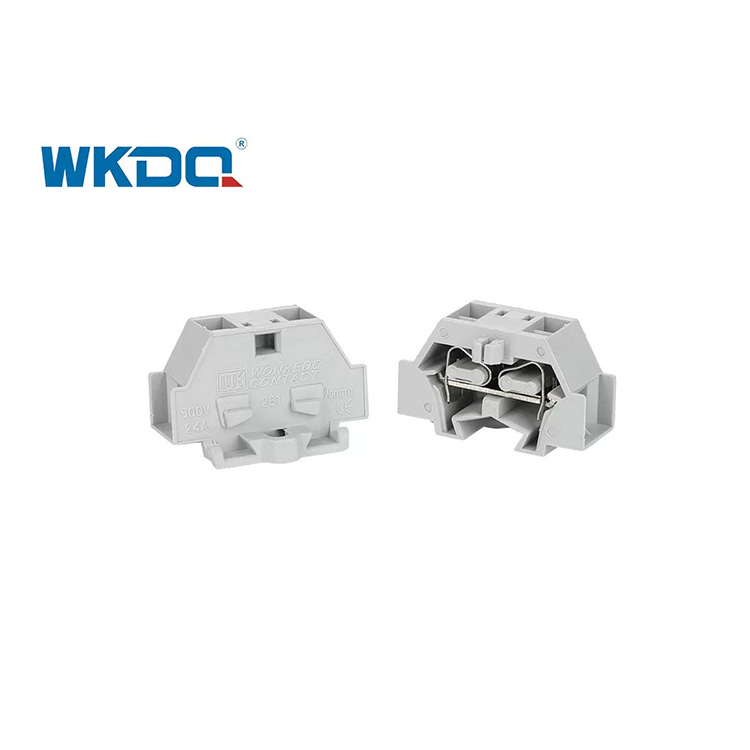

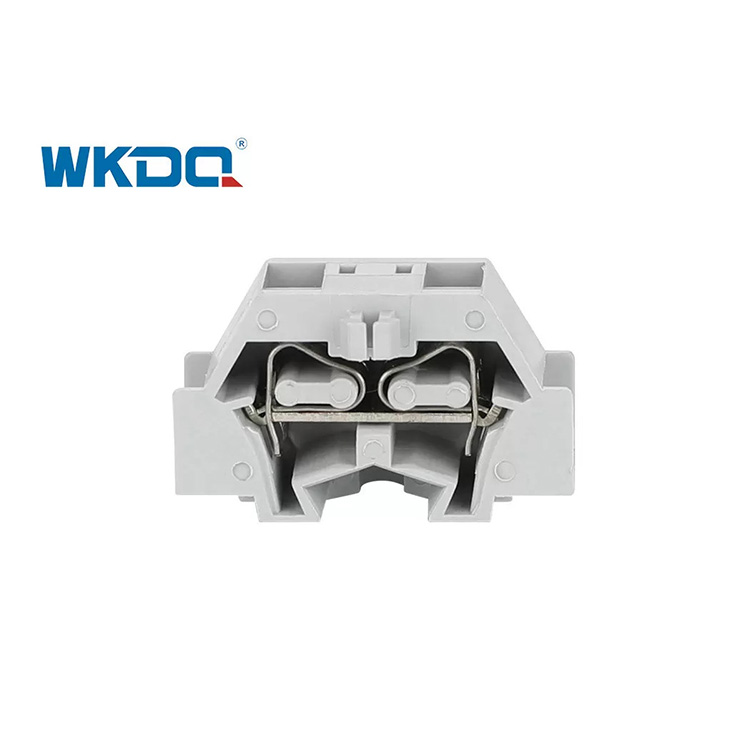

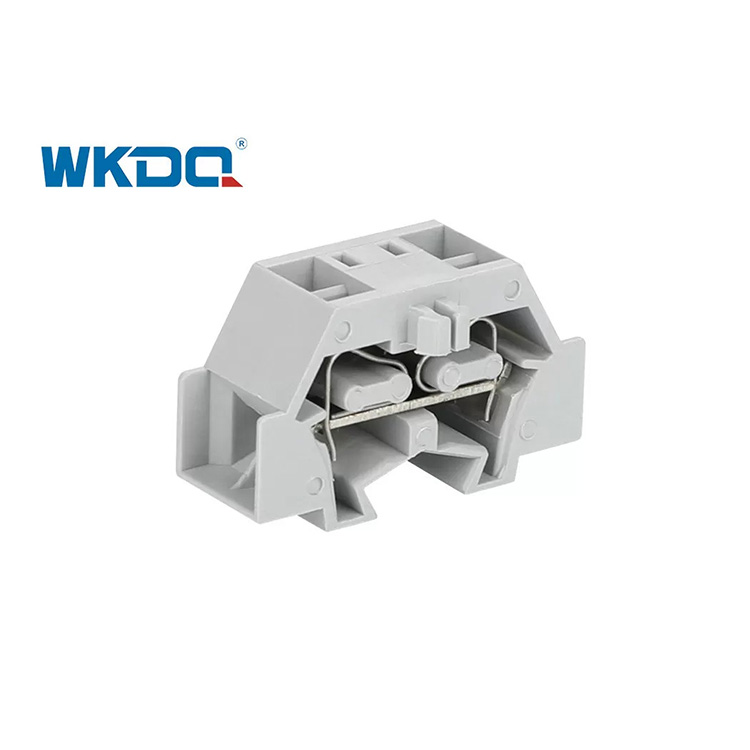

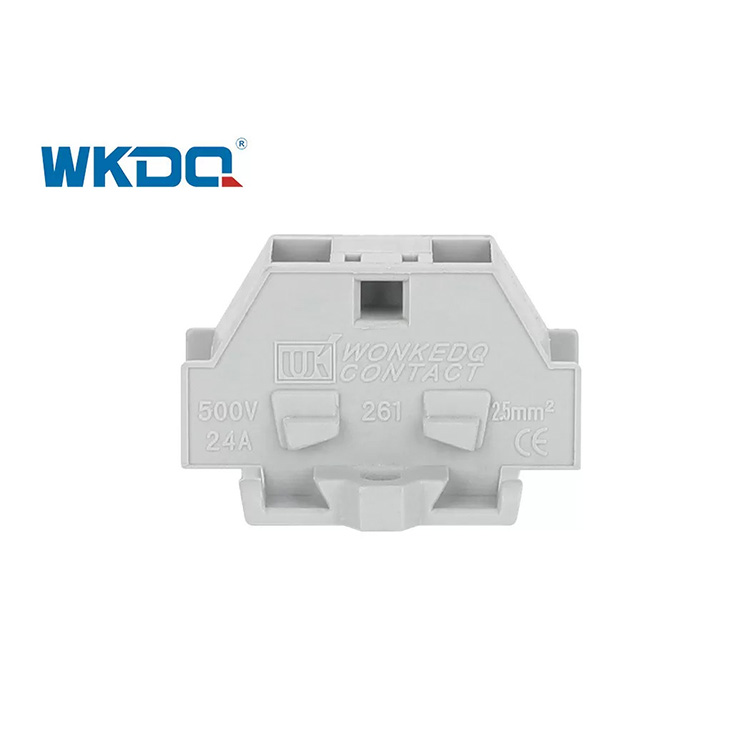

261-331 Spring Clamp Terminal Block Double Pole Feed Through 2 Conductors
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: 261-331
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Part No.: | 261-331 | Length: | 28.3 |
| Height: | 18.2 | Wide: | 10 |
| Packing Unit: | 4000PCS/CTN | Color: | Grey, Different Color Can Be Designed |
| High Light: | spring cage connection terminal block , spring loaded wire terminal | ||

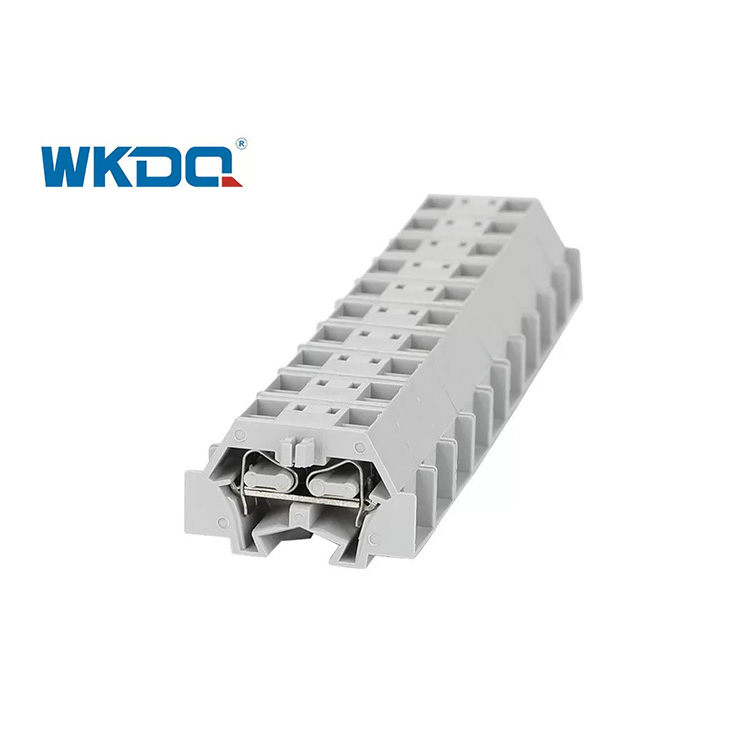

Modular rail-mount terminal blocks are ideal for both custom and ready-made terminal strips for panel mounting applications. Can be mounted by screw flanges, snap-in feet for mounting holes or for assembly onto carrier rails.
Automatic contact spring.
Vibration proof.
Long durable time.
Low transition resistance.
Fast installation, maintenance-free.
The insertion force can be saved by 50%.
Steady structure & Reliable performance.
Suitable for various industrial applications.
Shock resistance & Corrosion resistance.
Made from Flaming proof Nylon PA 66, Brass.
Mounting options: by flanges or snap in feet.
Side entry type make it convenient for wiring.
With snap on markings.
TECHNICAL PARAMETERS
| Model No. | 261-301 |
| Color | Grey, other color can be customized |
| Length/Height/Wide (mm) | 28.3/18.2/10 |
| Connection method | Spring-cage connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 500V/24A |
| Cross section | 0.08-2.5 mm² |
| Conductor Size | 28-14 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 4000PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
Hot Tags: 261-331 Spring Clamp Terminal Block Double Pole Feed Through 2 Conductors, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
