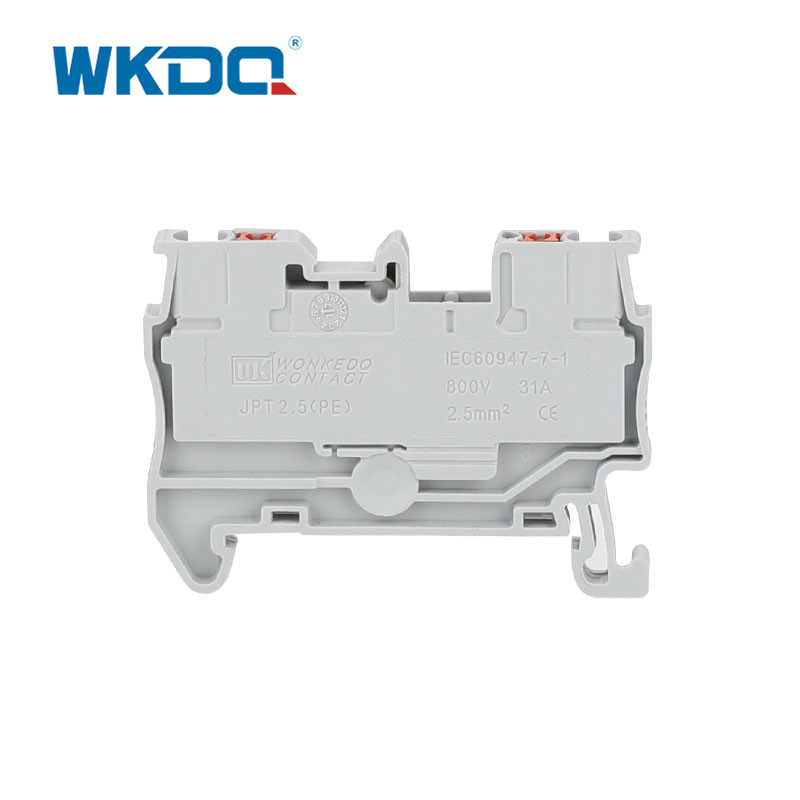

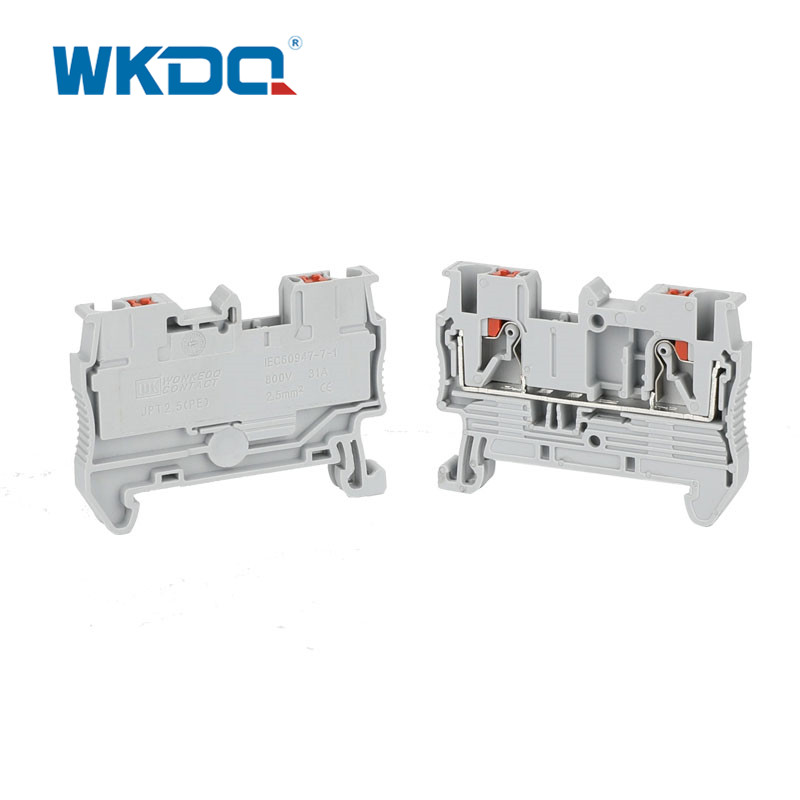

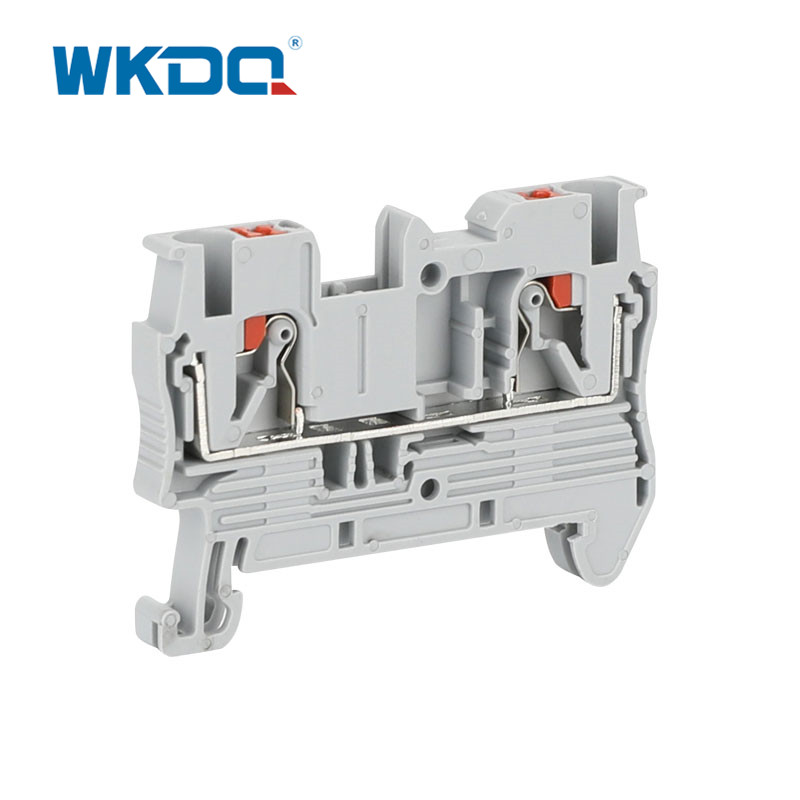

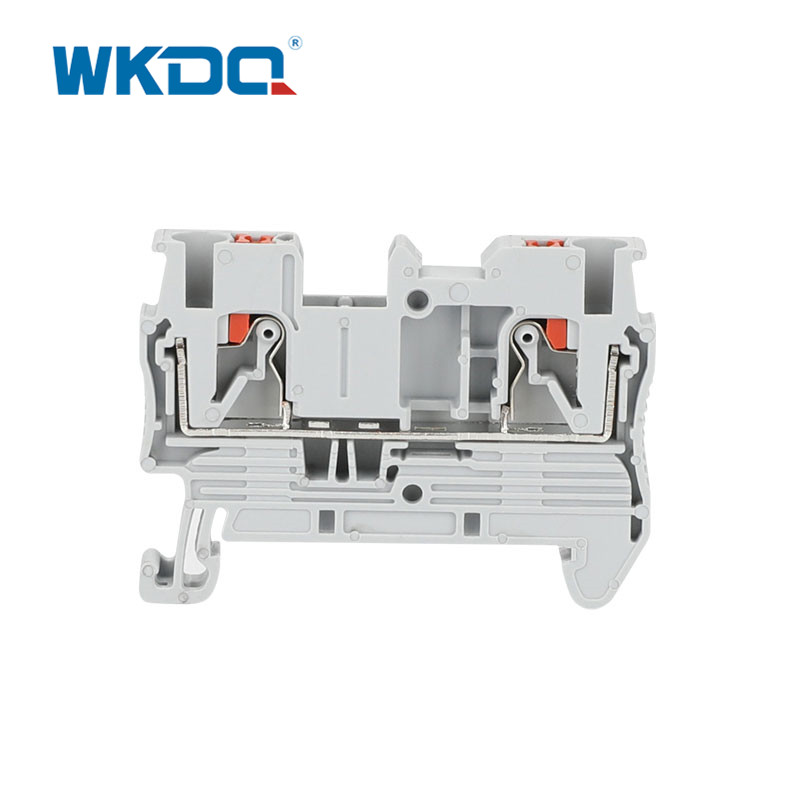

800V 31A Din Rail Mounted Push In Terminal Block Connector
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 2.5
Packaging Details: PCS
Delivery Time: 2-7days
Model:JPT 2.5
Send Inquiry
Product Description
The Push-in connection terminal blocks reduce the wiring time , and can support simply wiring in places where is only a little space available. You don’t need any tool, just insert the cable is ok.
l Made from anti Inflaming Nylon PA 66, brass metal.
l Connecting, build bridges and labeling large or small conductor cross sections easily for feed through terminal blocks.
l Wiring can be handled in a limited space thanks to the compact design and front entry connection.
l With universal foot which can be installed on 35mm Standard Din Rail.
l Build electric potential distribution by using plug-in bridges in the terminal center.
l Available in all accessories: End covers, End Stoppers,Marker strips, Marker carrier, Plug-in bridge, etc.
TECHNICAL PARAMETERS
| Model Number | JPT 2.5 |

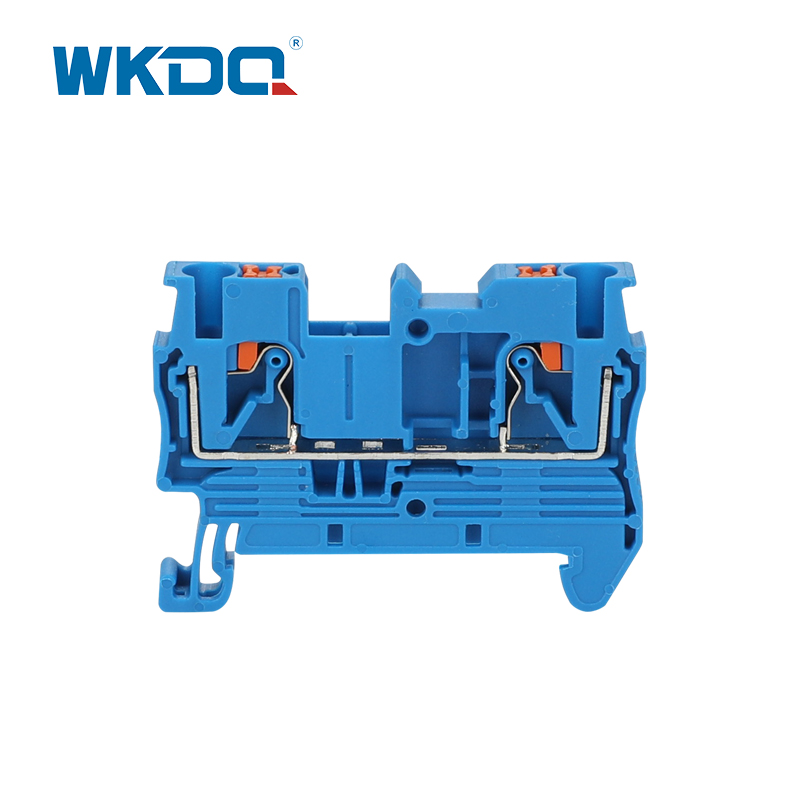

| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 48.5/36/5 |
| Connection method | Push in connection |
| Material | Anti inflaming Nylon PA66 |
| Rated Voltage/Current | 800V/31A |
| Cross section, solid/soft Cable | 0.2-4mm² / 0.2-2.5mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, OEM serivce is supporting |
| Packing Detail | 5.79g/pc, 100PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
Hot Tags: 800V 31A Din Rail Mounted Push In Terminal Block Connector, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
