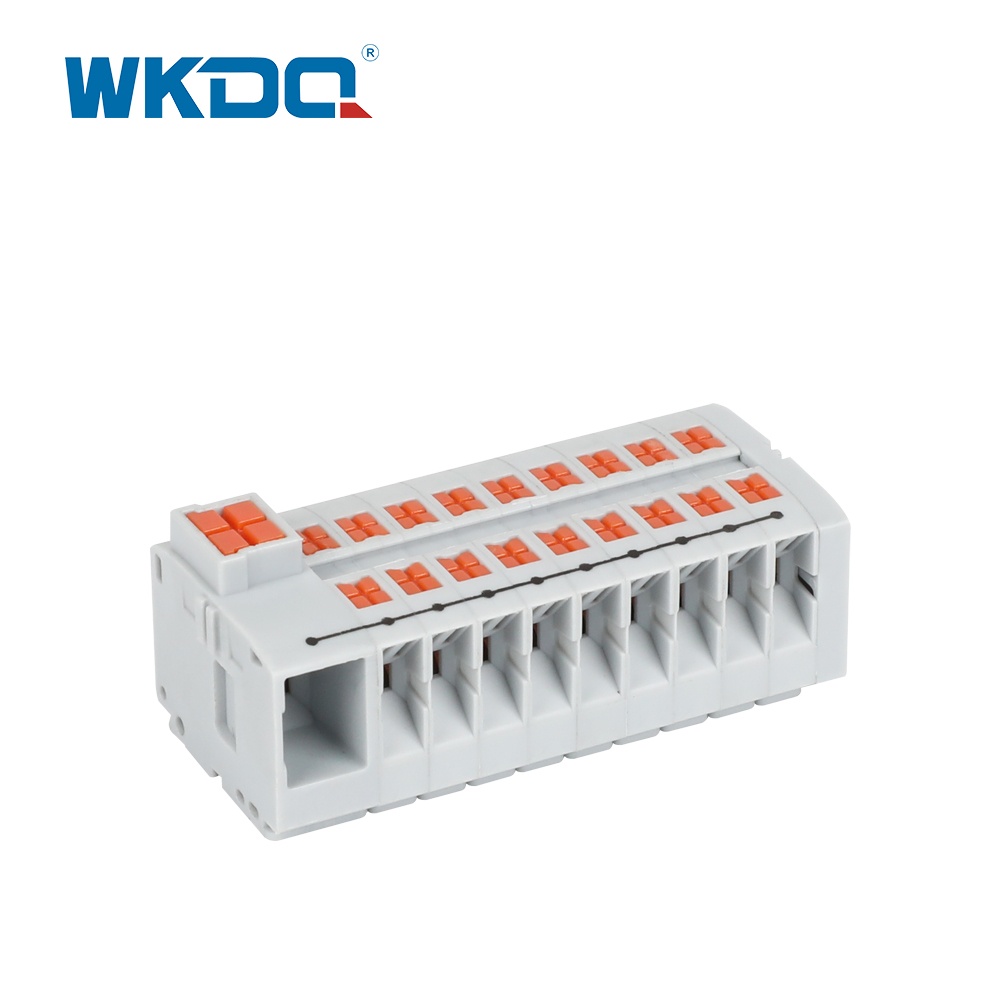

DIN Rail Distribution Block JPTV2,5FIX-19

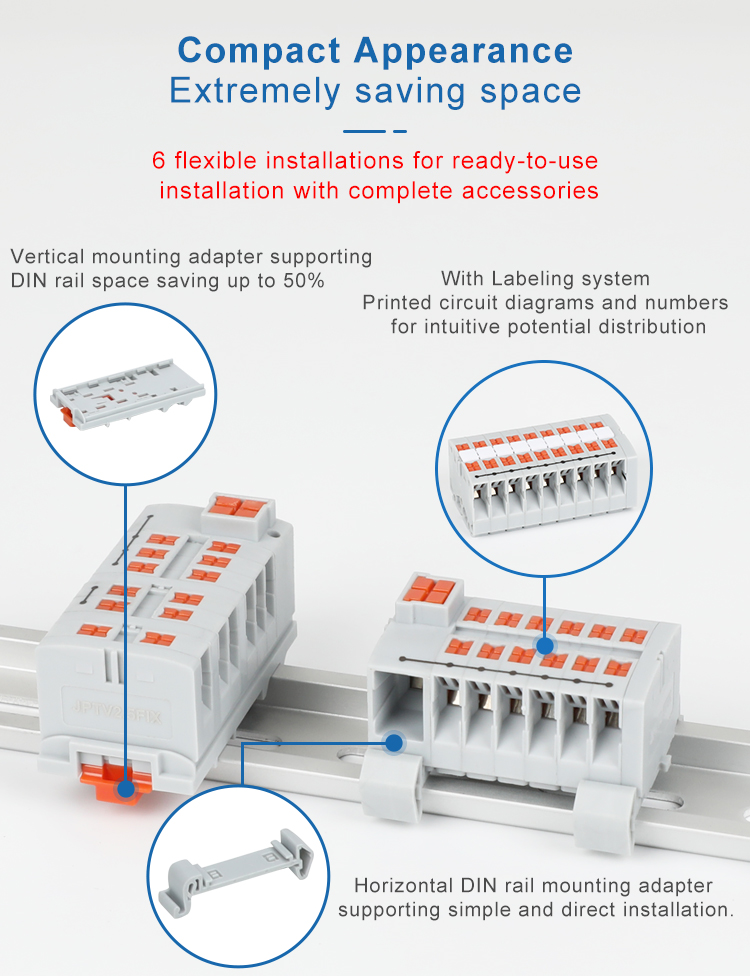

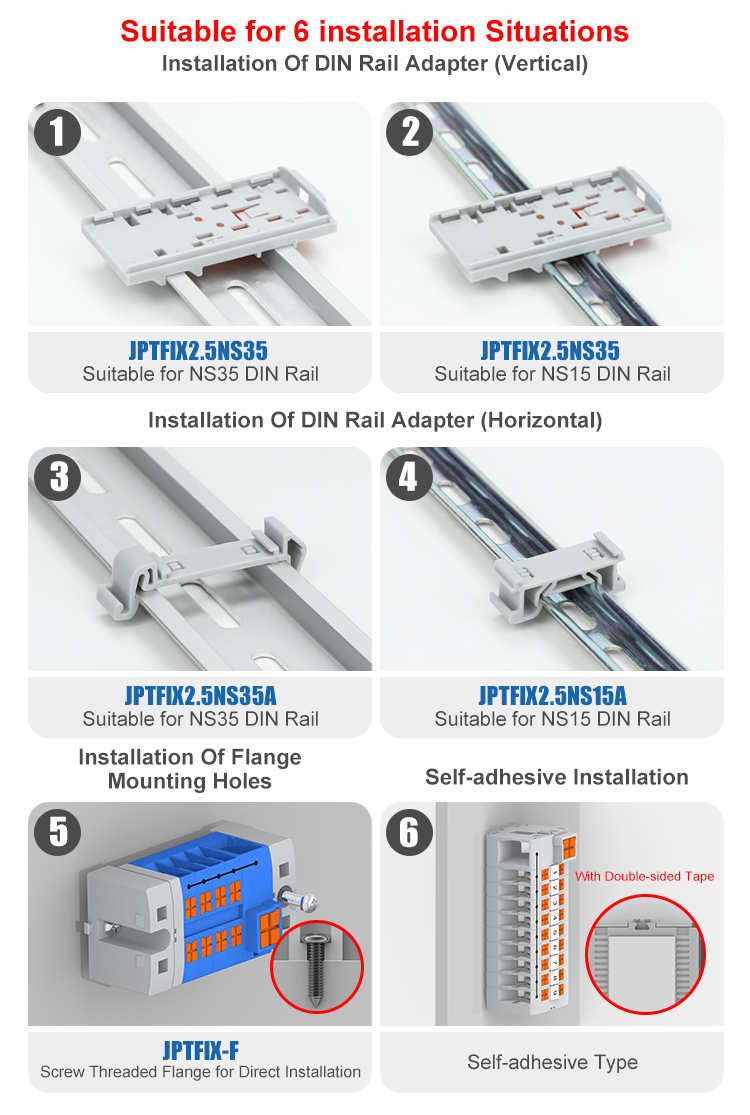

The JPTV2.5FIX-19 is a 19-position fixed distribution block designed for high-density electrical distribution in industrial control systems and switchgear. It supports a versatile wire configuration with line contacts accepting 0.5–10 mm² conductors and load contacts compatible with 0.14–4 mm² (solid) or 0.14–2.5 mm² (soft) conductors. Rated for 690V and 41A, with a continuous current capacity of 24A, it ensures reliable performance in demanding applications. The compact design measures 64.2×28.6×21.8 mm (L×W×H) and is finished in durable gray nylon. Compatible with NS 35/7.5 DIN rails, it facilitates organized installation and supports the use of ZBV2.5 marker strips for clear circuit identification. Certified with CE, RoHS, CQC, and ISO 9001, it offers a robust solution for structured and space-efficient electrical distribution.
