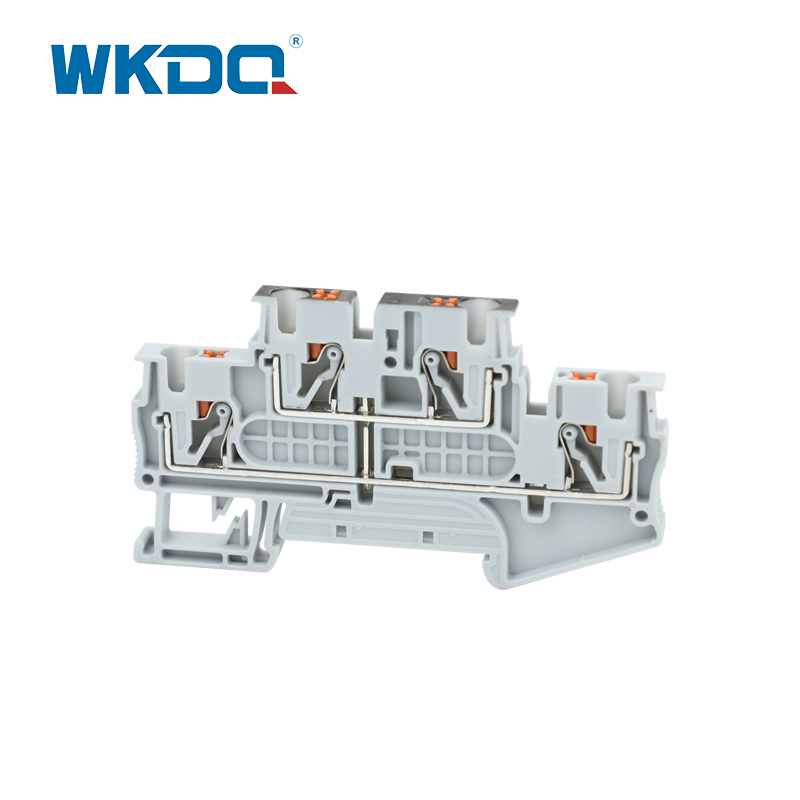

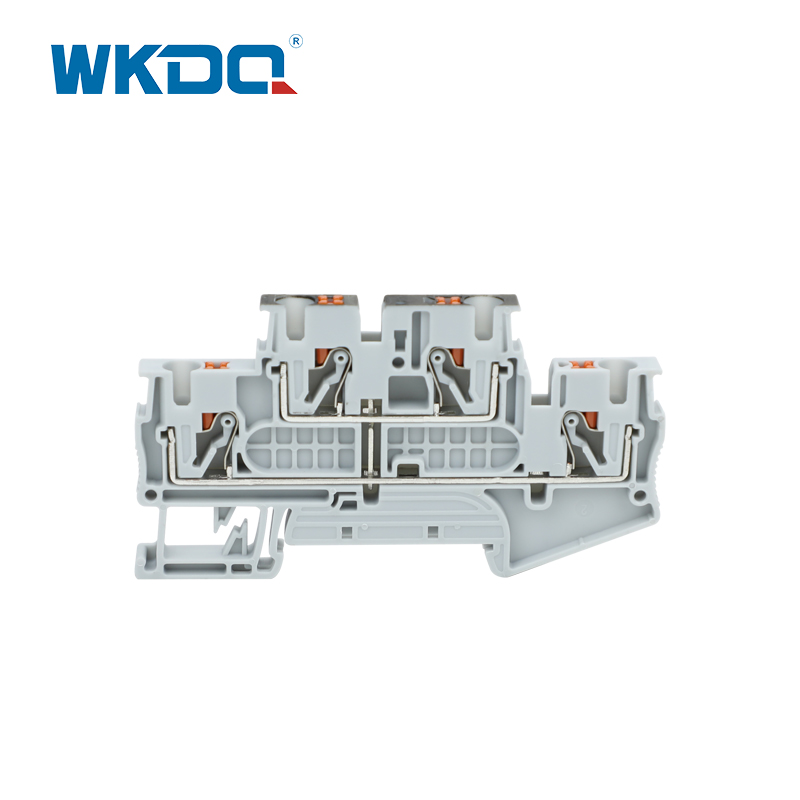

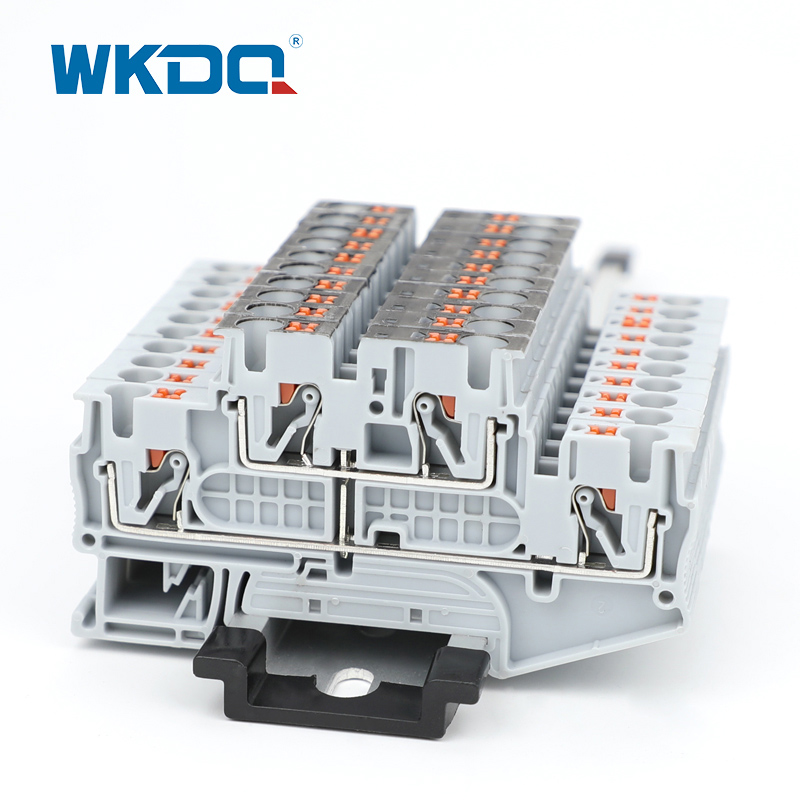

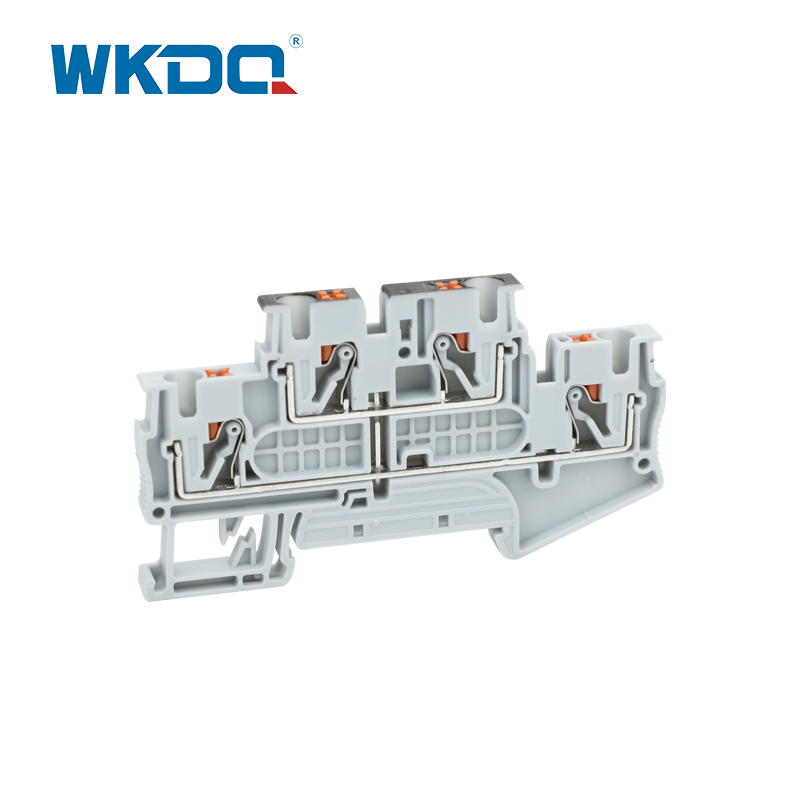

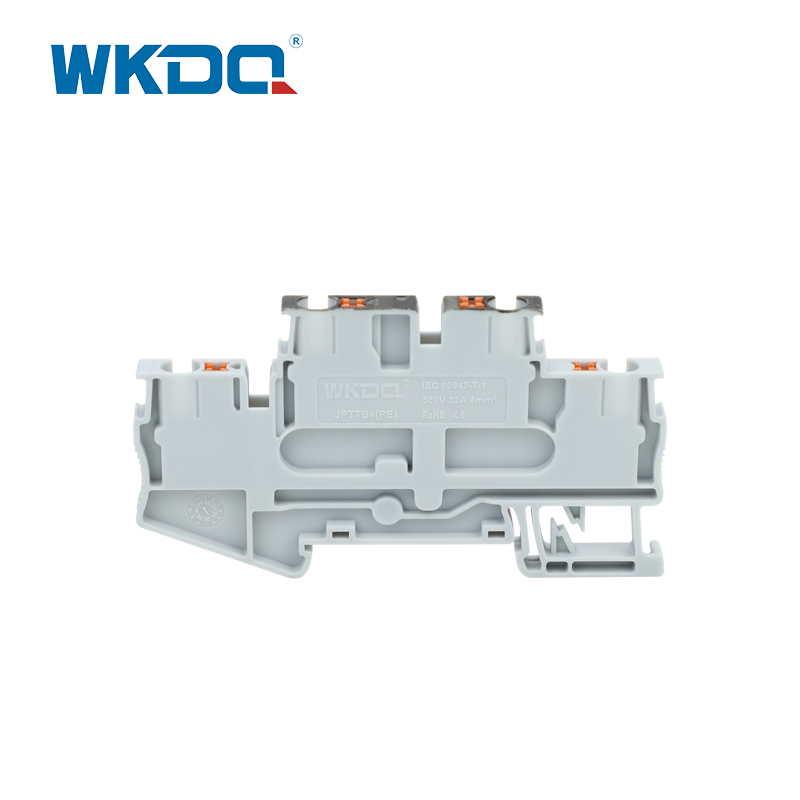

Din Rail Feed Through Terminal Block 2 Levels

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 4-PV
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPTTB 4-PV

Send Inquiry

Product Description

Push in terminal block ‌ is CE/Rohs/CQC certified, adopts double-layer compact structure, supports tool-free quick installation and saves 50% space. The toolless connection design with 50% lower insertion force significantly improves efficiency, accurately locates the line sequence with the color matching button, and presses the safety trip (protection against electric shock) through the tool side during maintenance, meeting the requirements of highly reliable connection and zero-risk maintenance in harsh scenarios.

Model No.	JPTTB 4-PV

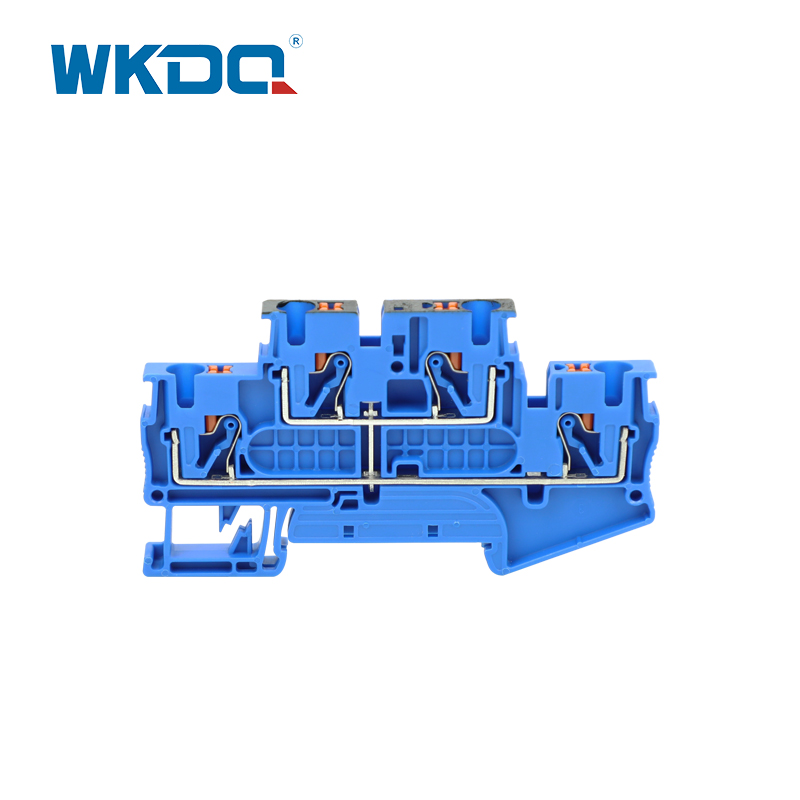

Color	Grey,Blue, other color can be customized
Length/Height/Wide (mm)	84.3/ 46 /6.2
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/30A
Cross section, solid/soft Cable	0.2-6 mm²/0.2-4 mm²
Conductor Size	24-11AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WKDQ LOGO can be customized
Packing Detail	50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
