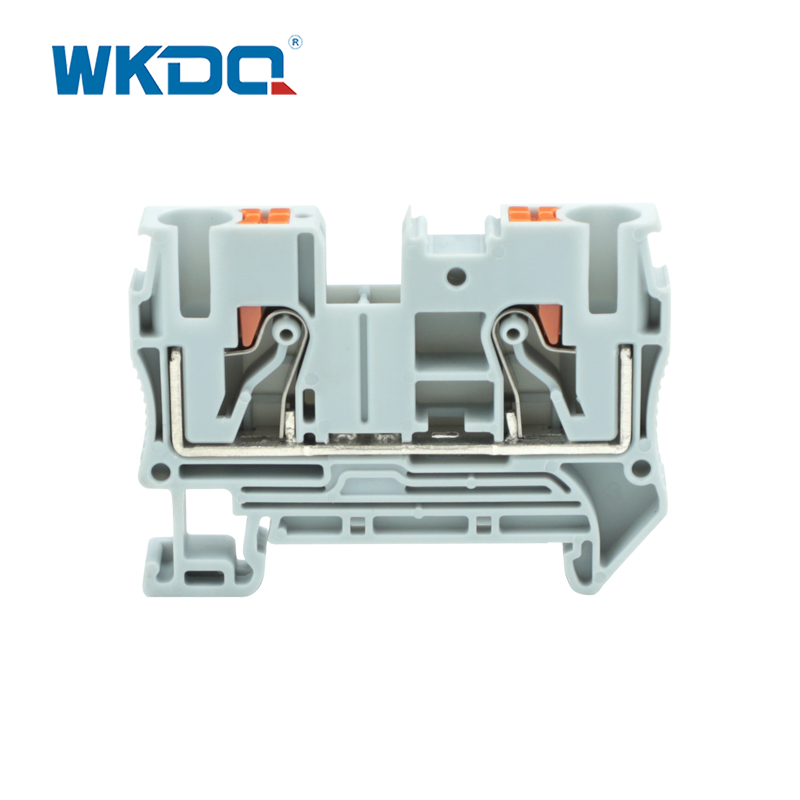

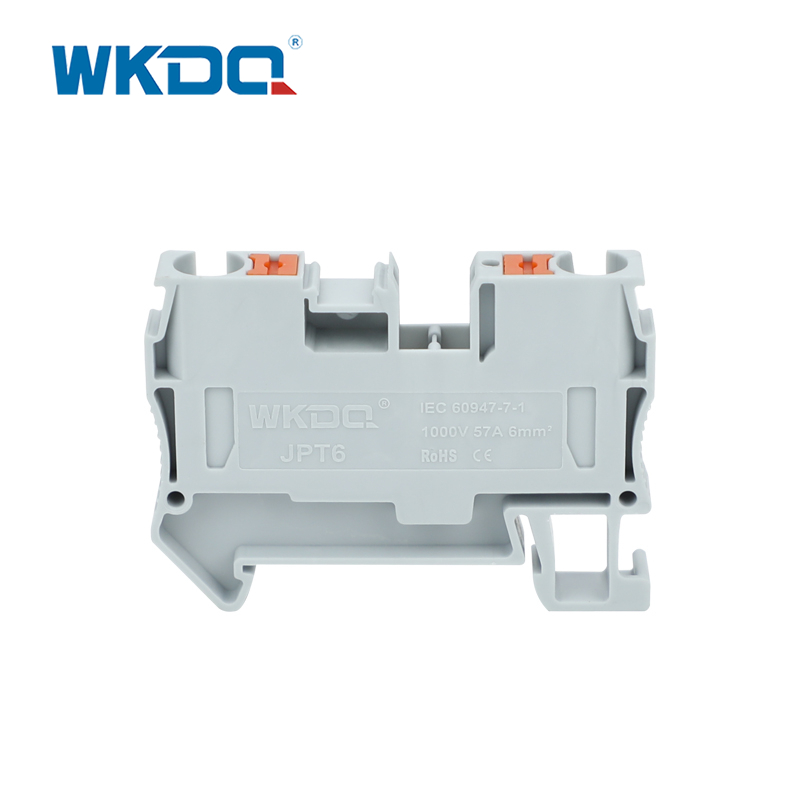

Din Rail Mounted Terminal Block
  • Din Rail Mounted Terminal BlockDin Rail Mounted Terminal Block
  • Din Rail Mounted Terminal BlockDin Rail Mounted Terminal Block

Din Rail Mounted Terminal Block

Place of Origin: China
Brand Name: WONKEDQ,WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 6
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPT 6

Send Inquiry

Product Description


New PUSH IN modular terminal core features:

‌1. Material and process ‌ : nylon PA66 (flame retardant) and nickel-plated brass material, taking into account the insulation and conductivity ‌;

2‌ Tool-free operation ‌ : adaptor tape end or solid wire, directly press to complete wiring/disconnecting ‌;

‌3. Compact structure ‌ : front-end inlet design to optimize space utilization, suitable for narrow installation environment ‌;

‌4. Quick disassembly ‌ : The orange button touches the opening and closing contact for one-hand operation to improve maintenance efficiency ‌;

‌5. Guide compatibility ‌ : Universal base supports NS35 standard DIN guide mounting ‌;

‌6. Extended function ‌ : equipped with end cover, marking bar and other accessories, support modular expansion.


Model Number JPT 6
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 57.7/43.5/8.2
Connection method Push in connecting
Material Nylon PA66
Rated Voltage/Current 1000V/57A
Cross section, solid/soft Cable 0.5-10mm² / 0.5-6mm²
Conductor Size 20-8 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 14.97g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
