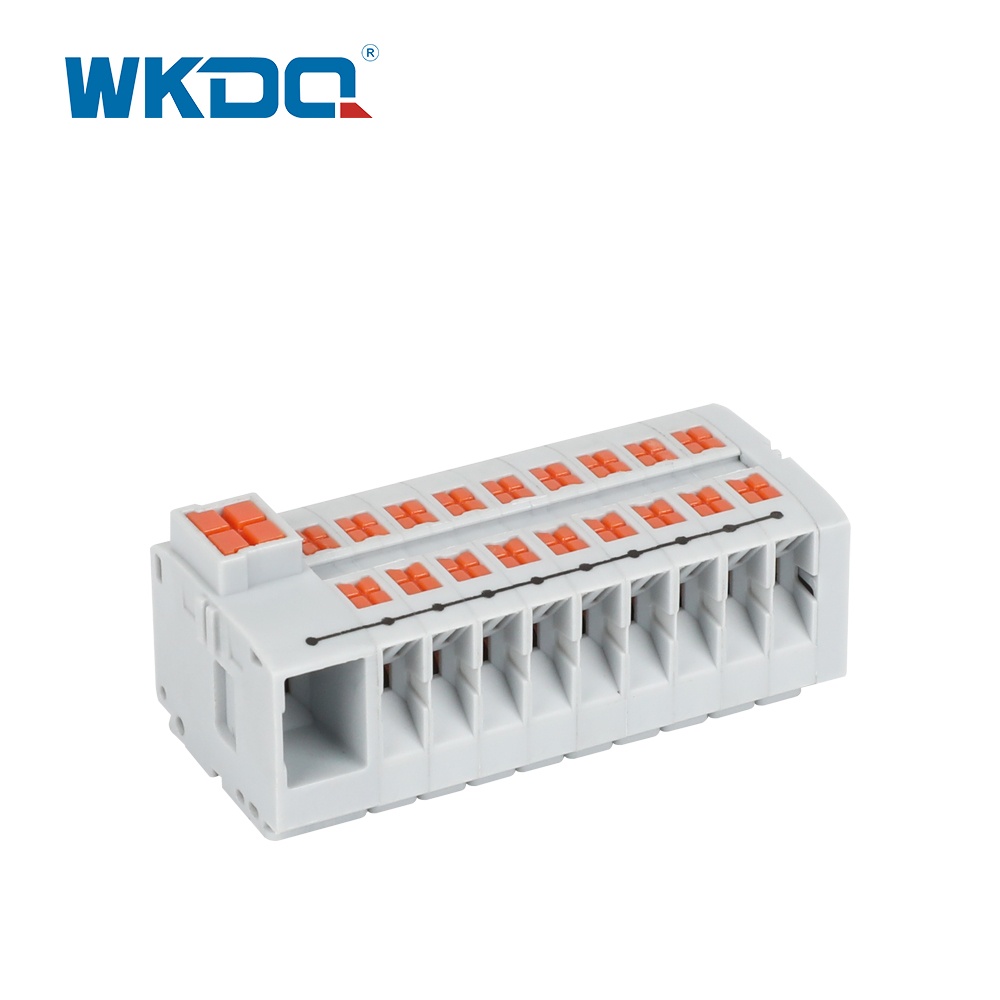

DIN Rail Power Distribution Block JPTV2.5FIX-13

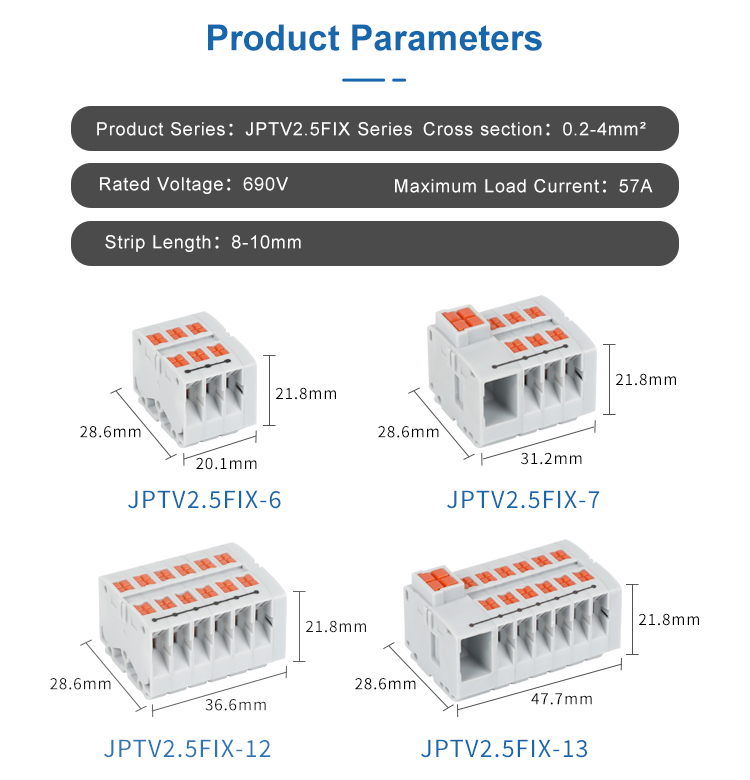

The JPTV2.5FIX-13 is a compact 13-position fixed distribution block designed for reliable multi-point electrical distribution in control systems and switchgear. It supports a versatile wire range with line contacts of 0.5–10 mm² and load contacts of 0.14–4 mm². The block is rated for 690V and 41A, with a continuous current capacity of 24A, ensuring robust performance in industrial environments. It is constructed in durable gray nylon and is sized at 47.7×28.6×21.8 mm (L×W×H), making it suitable for space-efficient DIN rail mounting. The terminal block is compatible with ZBV2.5 marker strips for clear circuit identification, facilitating organized installation and maintenance.
