Din Rail Push In Terminal Block Multi Level

Place of Origin: China
Brand Name: WKDQ / WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT2.5-PE-L-N
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

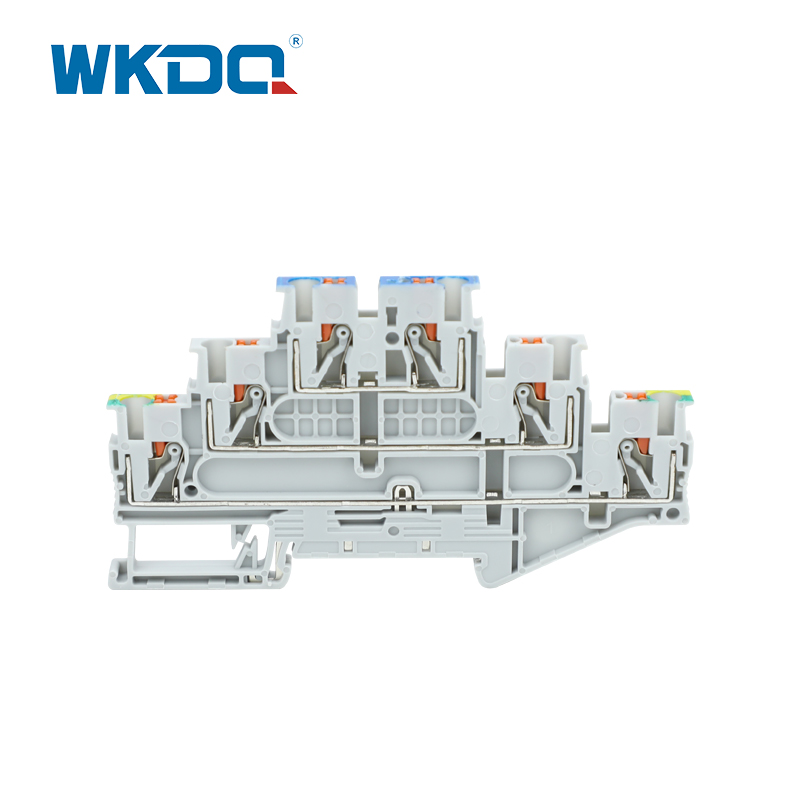

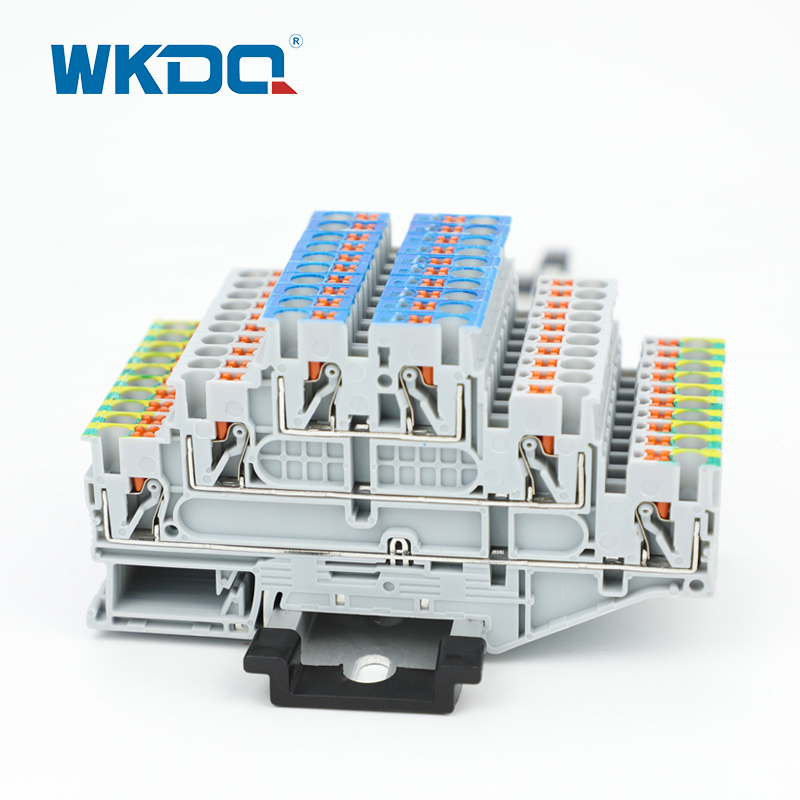

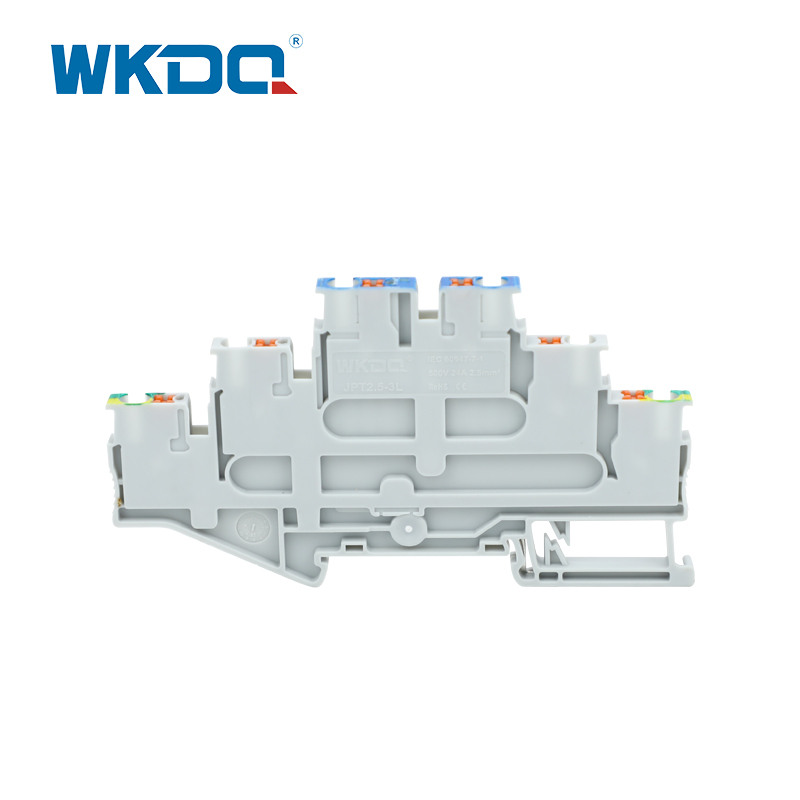

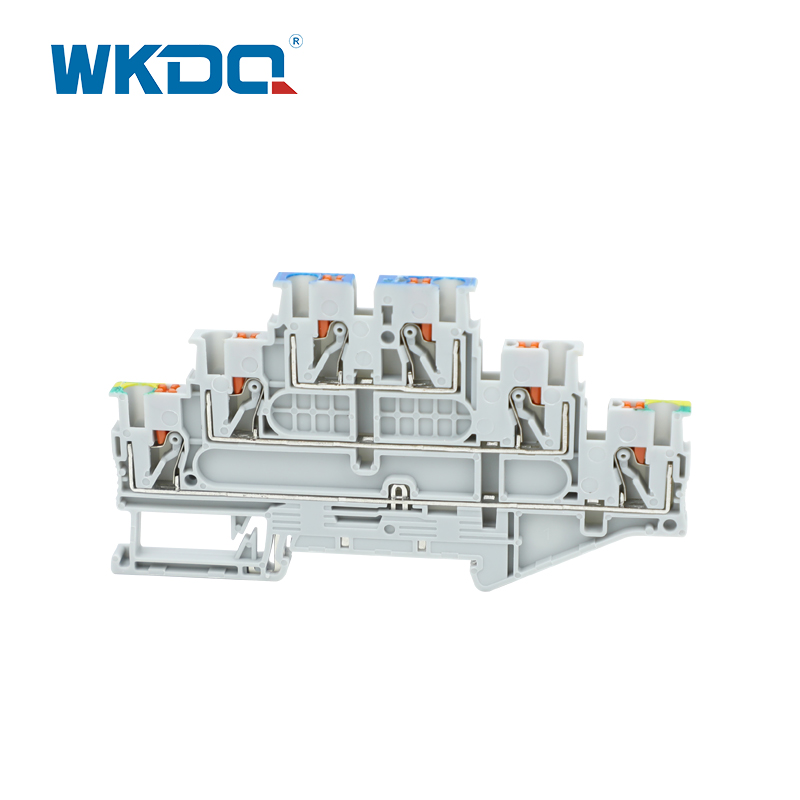

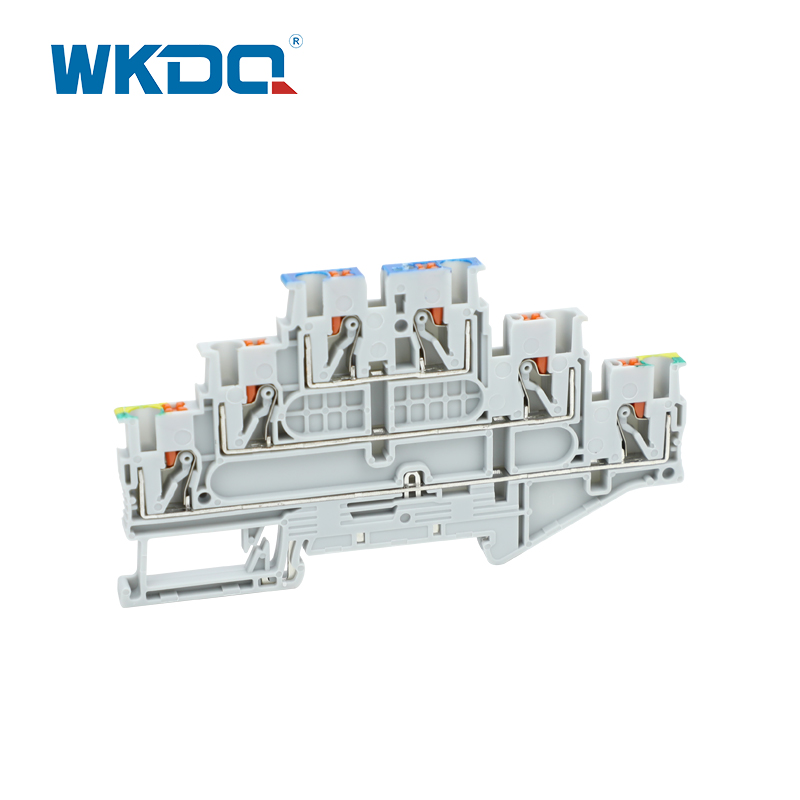

The PE modular terminal block is made of flame-retardant nylon PA66 and brass conductors, compatible with the same pin design as universal terminals, and supports DIN rail tool free single key buckle installation. The push in interface is compatible with bare/flexible/crimped terminals, and the PT series grounding terminal can be integrated with a rail combination base with one click, meeting the rapid deployment needs of diverse cable scenarios.

Model Number	JPT2.5-PE-L-N
Color	Grey, other color can be customized
Length/Wide/Height (mm)	103 / 56.4 / 5.2 mm
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/22A
Cross section, solid/soft Cable	0.14-4mm²/0.14-2.5mm²
Conductor Size	26-12AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, WKDQ, LOGO can be customized
Packing Detail	10.23g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
