Din Rial Push In Terminal Block Anti Inflaming
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 2.5
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description

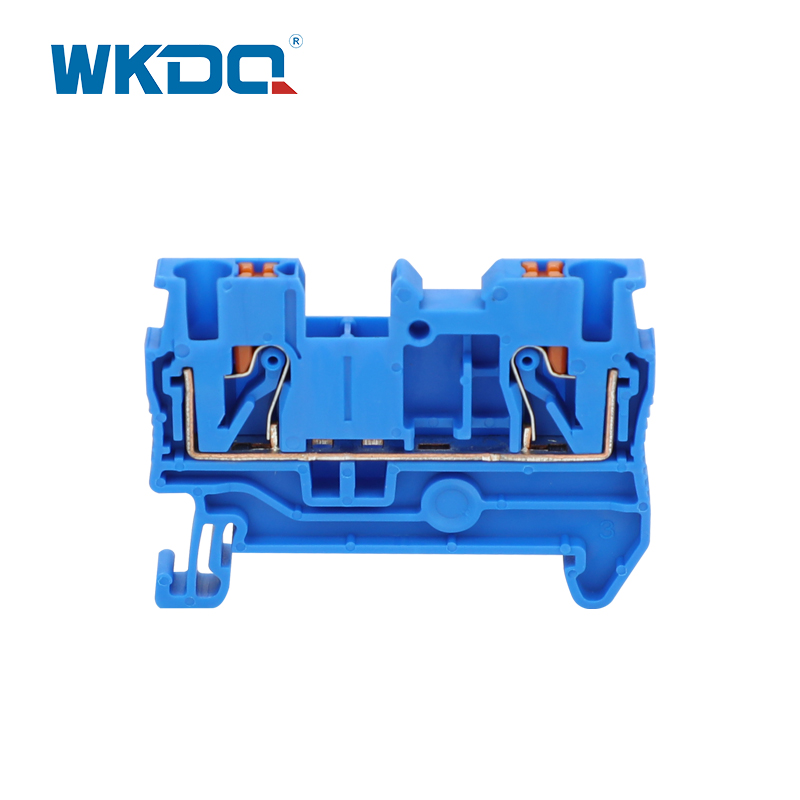

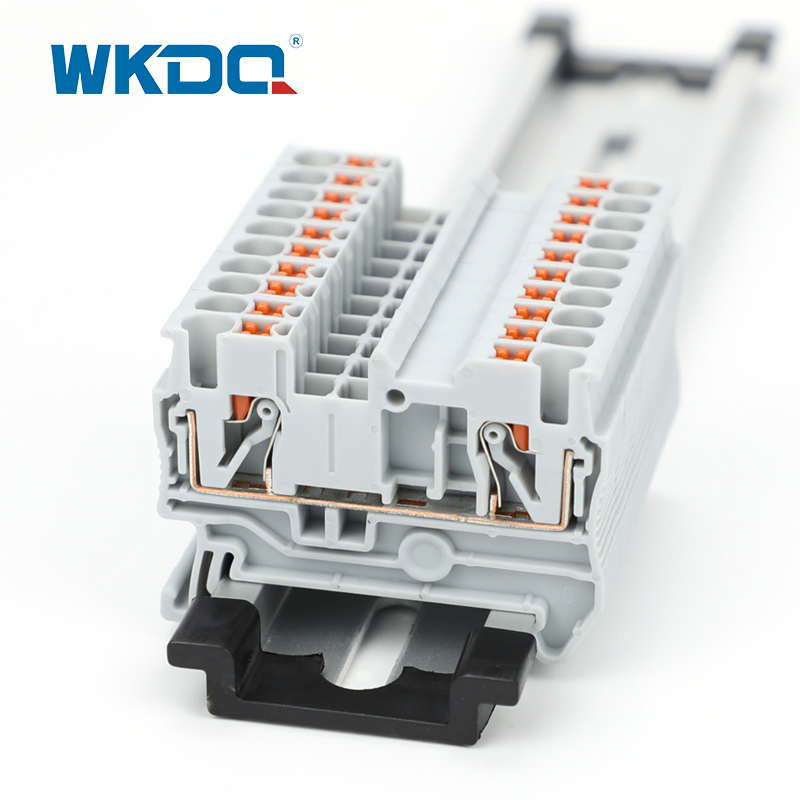

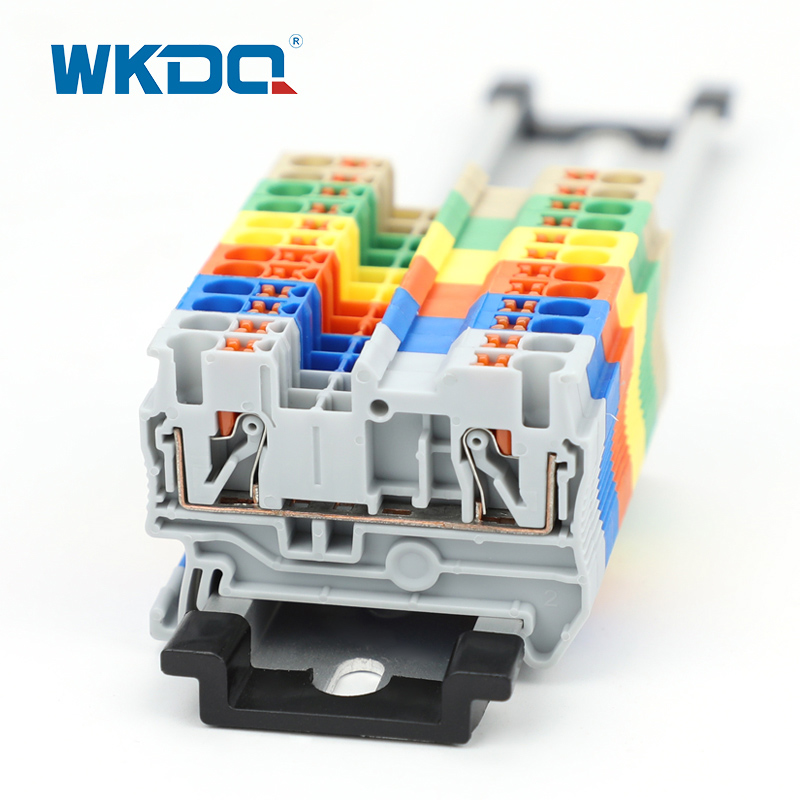

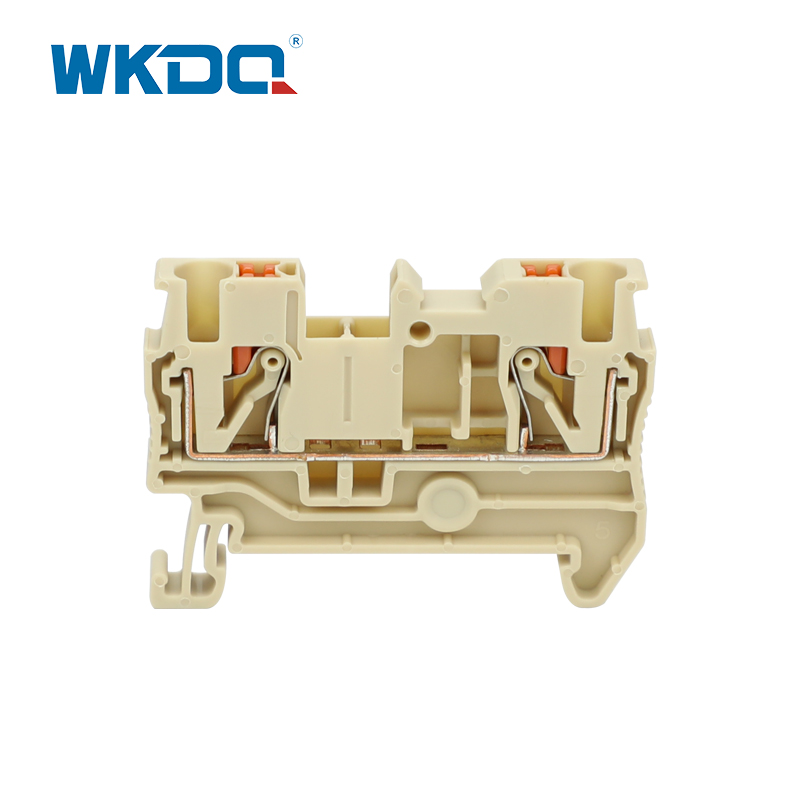

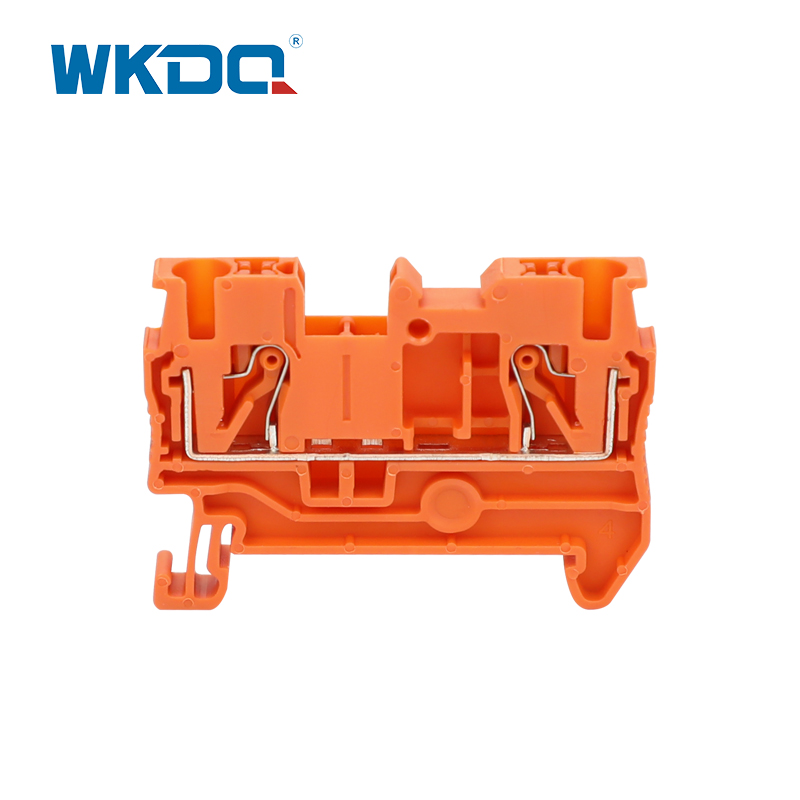

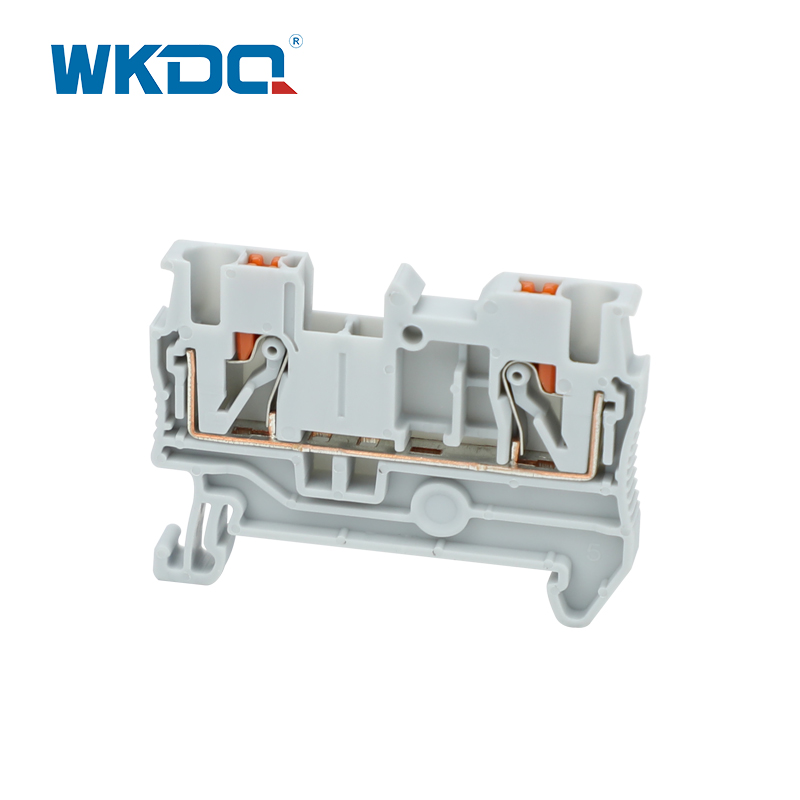

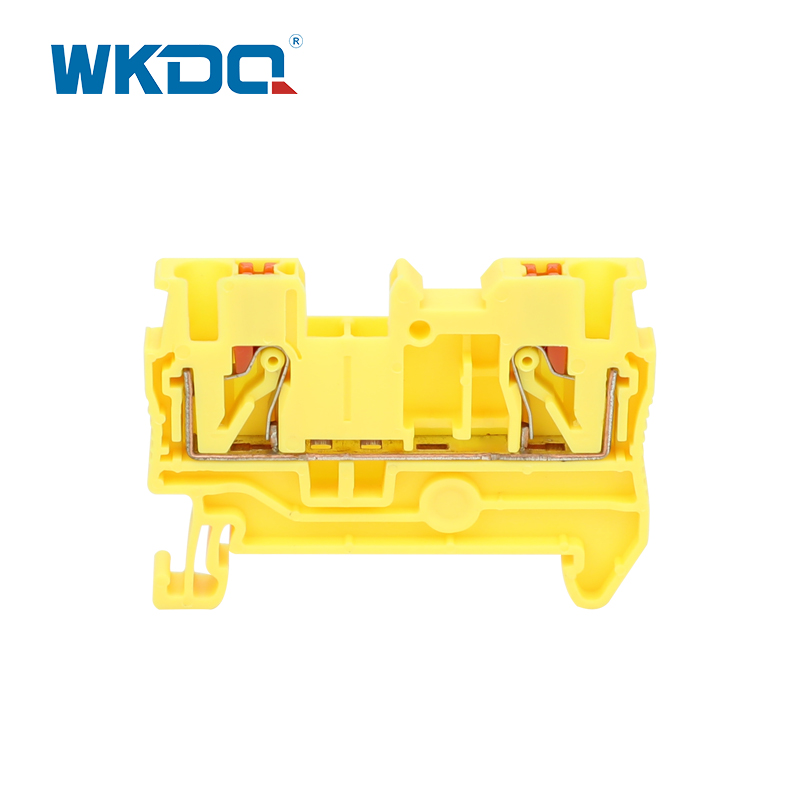

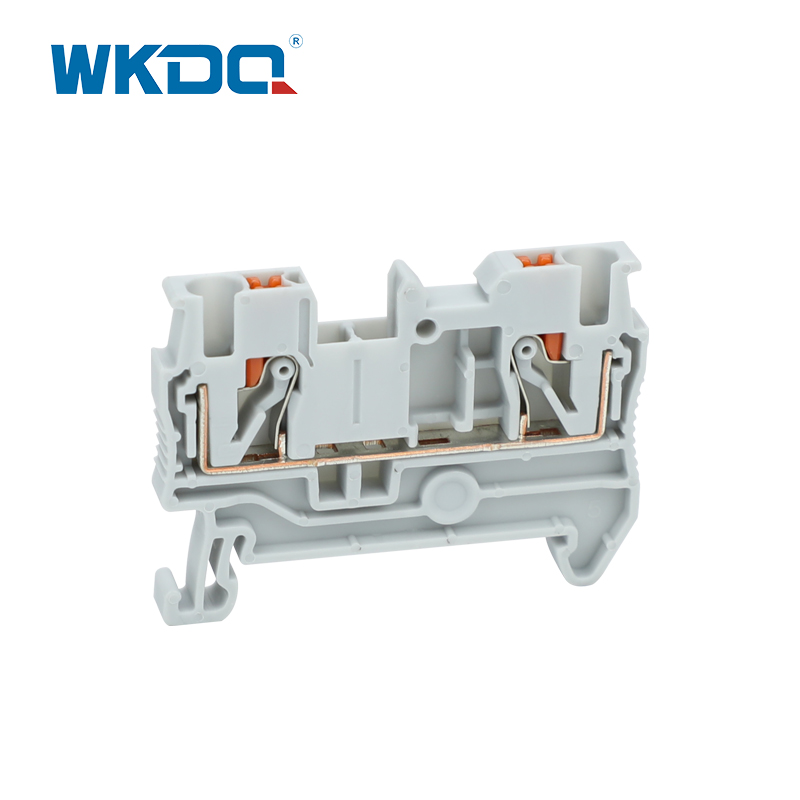

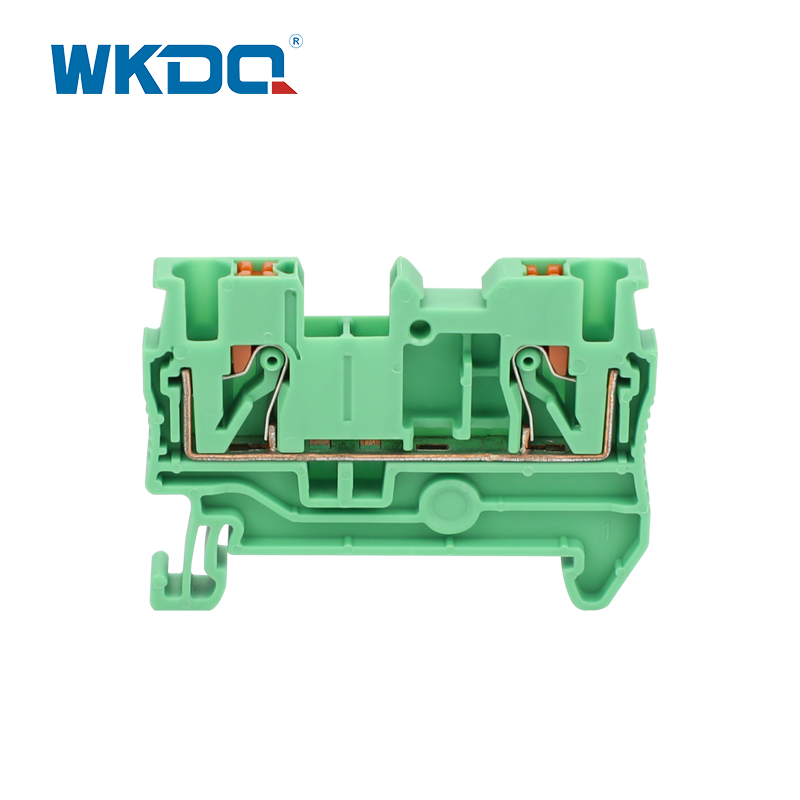

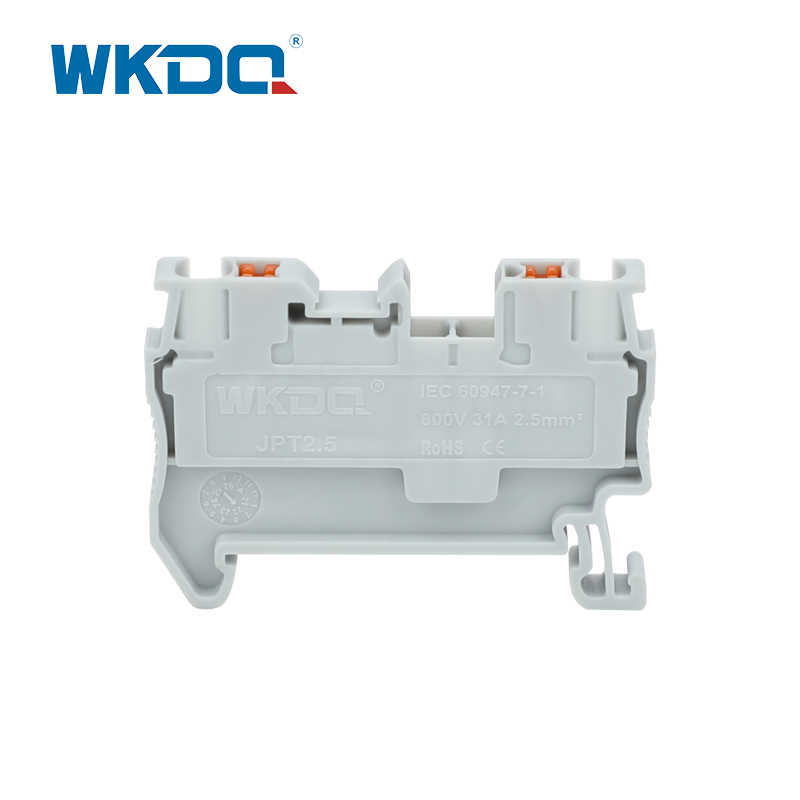

PUSH IN flame-retardant rail terminal block: VO grade flame-retardant PA66 nylon+nickel plated brass, CE/Rohs/CQC certification. Tool free direct insertion adapter end/solid wire, orange button for rewinding;The compact front end design is compatible with NS35 rails and supports tight space cabling.
| Model Number | JPT 2.5 |
| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 48.5/36/5 |
| Connection method | Push in connection |
| Material | Anti inflaming Nylon PA66 |
| Rated Voltage/Current | 800V/31A |
| Cross section, solid/soft Cable | 0.2-4mm² / 0.2-2.5mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, OEM serivce is supporting |
| Packing Detail | 5.79g/pc, 100PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
Hot Tags: Din Rial Push In Terminal Block Anti Inflaming, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
