Distribution Power Terminal Block for Electrical Panel UKK 80A

Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: UKK 80A
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:UKK 80A

Send Inquiry

Product Description

Place Of Origin:	China	Logo:	Customized Logo Is Available
Color:	Blue,Gray,Red,Yellow,Green	Connecting:	Screw Terminal Blocks
Type:	DIN Rail Terminal Blocks.
High Light:	power distribution terminal block , connection distribution block

Electrical power distribution terminal blocks are extensively utilized for distributing power in various applications. They offer a convenient, cost-effective, and safe solution for distributing power from a single input source to multiple outputs. These terminal blocks come equipped with a removable main cover, providing easy access for maintenance and installation purposes. With high conductivity and excellent electrical contacts, they ensure efficient power distribution with minimal energy loss.Simple and Safety Operating.

Compact design.

High safety.

Blue and Grey color.

Standard specification.

Profession power design.

Safe and stable performance.

Made from safe and high quality material.

Brass crimping frame for better conductivity.

Reasonable Design save the installation space.

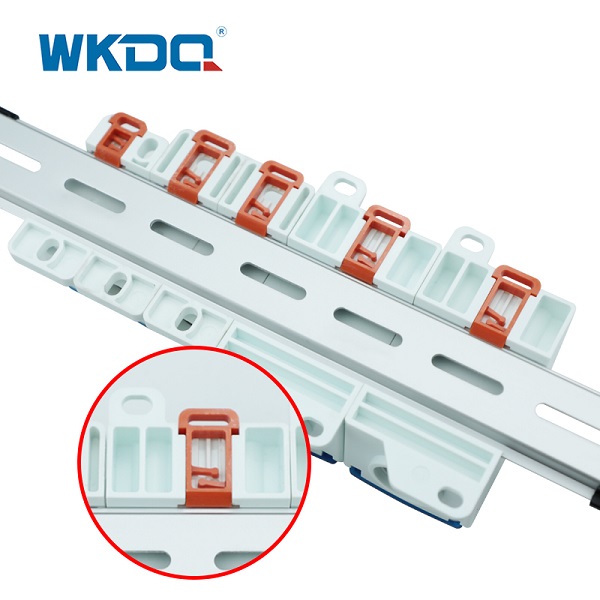

Install on 35mm wide DIN rail or chassis mounting with screws.

With Dust-proof and insulation cover.

Hinged design with safety removable cover.

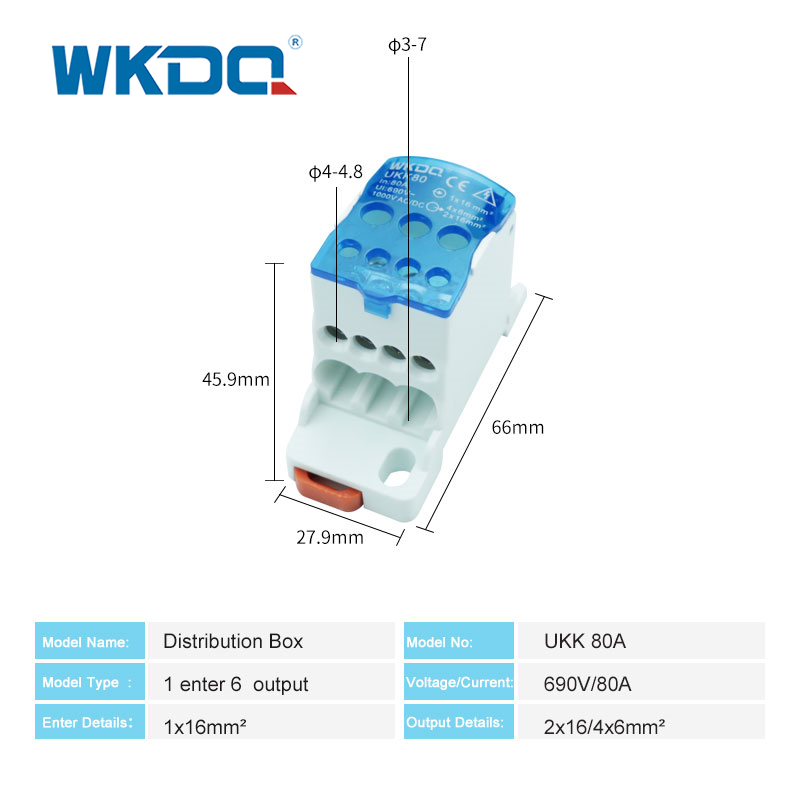

TECHNICAL PARAMETERS

Model No.	UKK 80A
Color	Blue,Gray,Red,Yellow,Green
Length/Height/Wide (mm)	29.5/47/65
Connection method	Screw connection
Material	Flame resistant Nylon PA66, brass conductor
Rated Voltage/Current	690V/80A
Entry Specification	1X16 mm²
Output Specification	2X16/ 4X16 mm²
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Certification	CE/RoHS/CQC/ISO 9001
