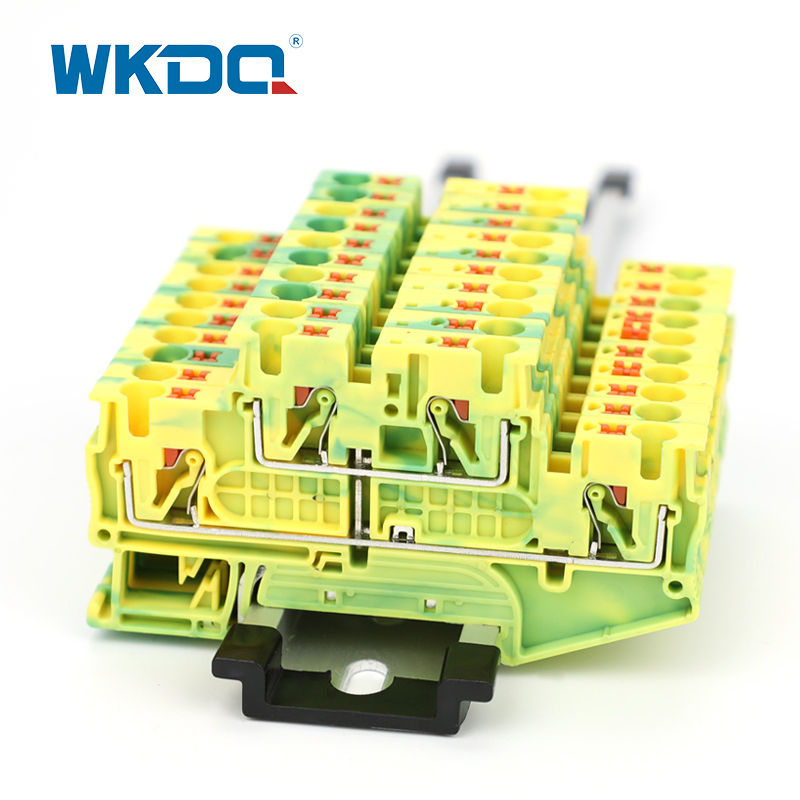

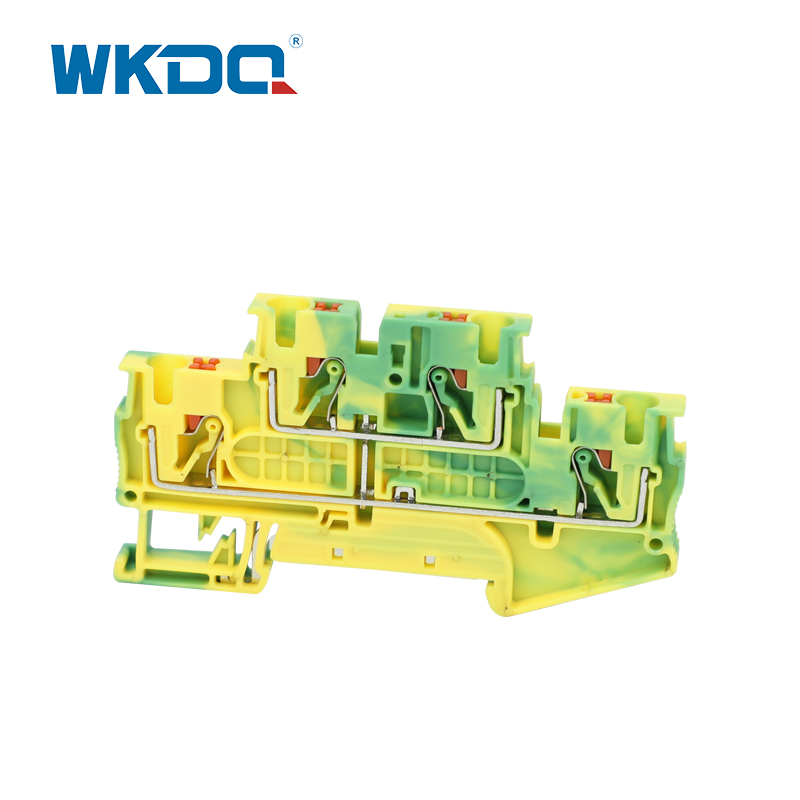

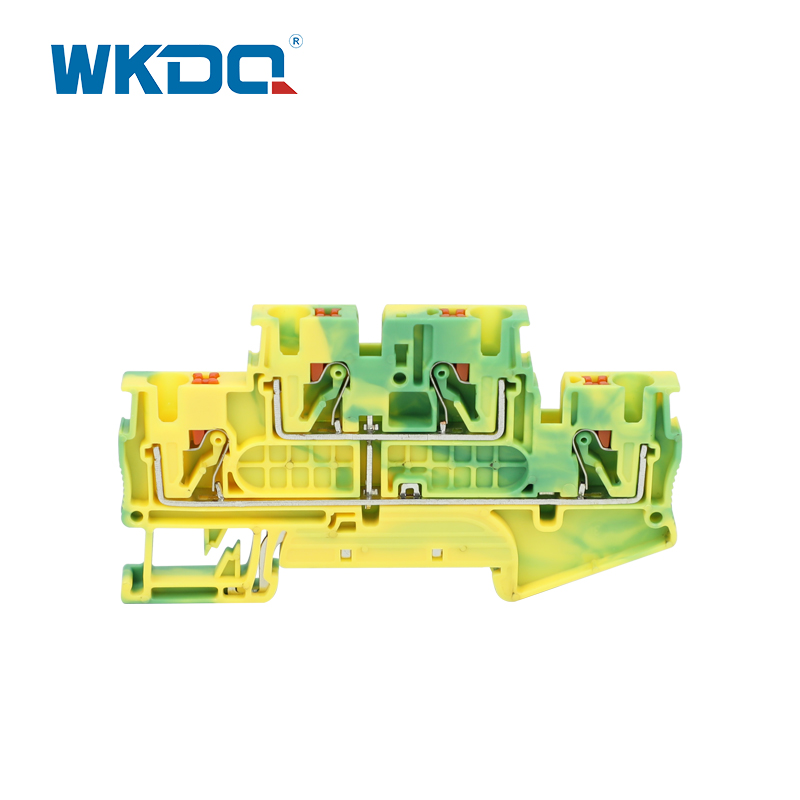

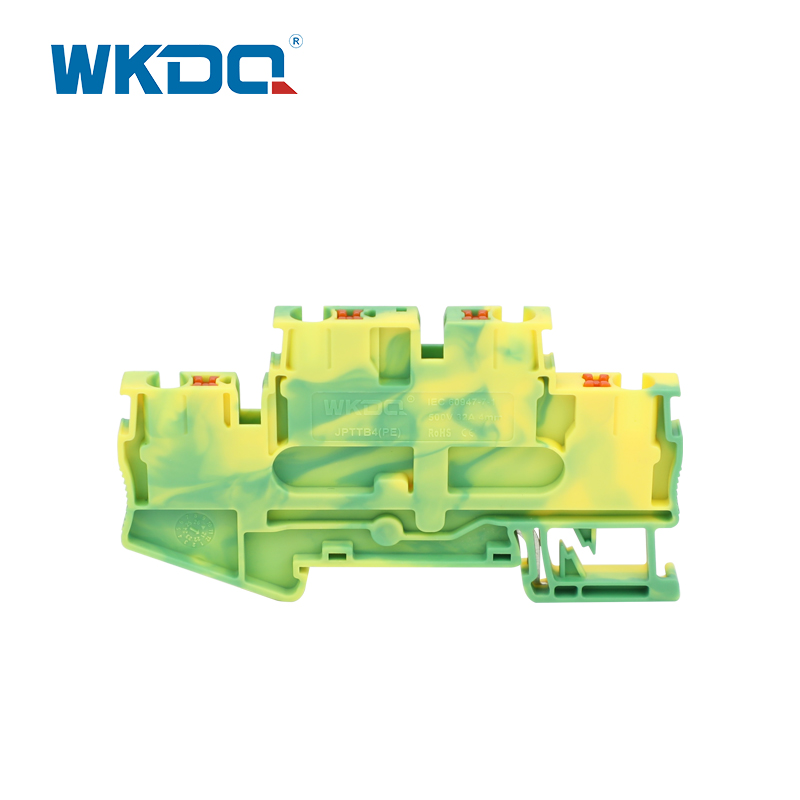

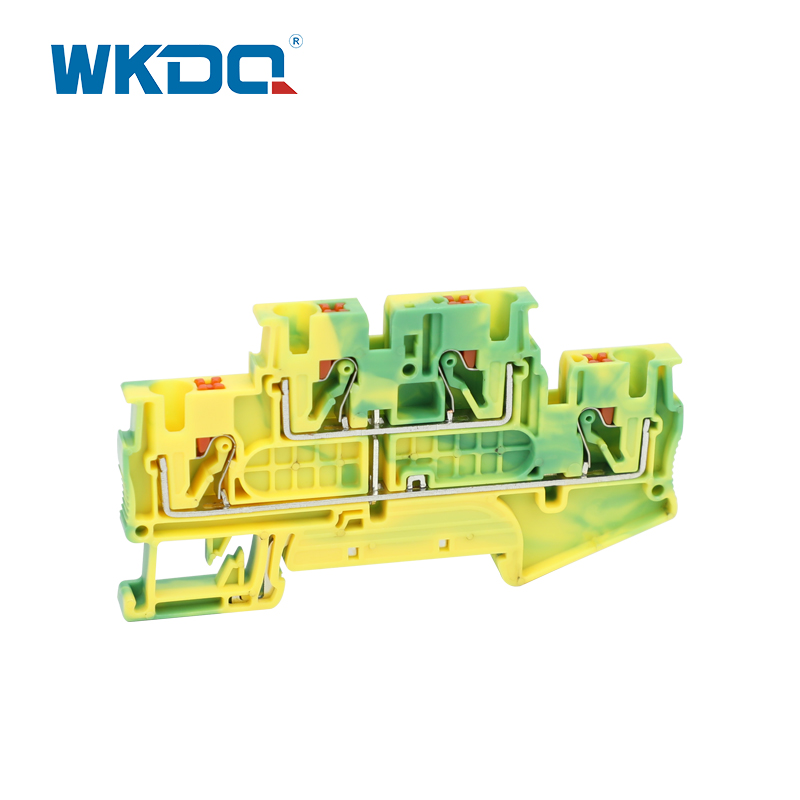

Double Layer Push In Ground Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 4-PE
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model: JPTTB 4-PE

Send Inquiry

Product Description

The VO grade flame-retardant terminal block is made of self extinguishing nylon 66 material, which meets strict fire prevention standards and has obtained CE/Rohs/CQC certification. The double-layer tool free direct insertion structure saves 50% space and reduces insertion force by 50% to achieve fast wiring;The color code button accurately locates the line sequence, and the tool side presses the safety off-line (anti-shock design), taking into account the requirements of highly reliable connection and zero-risk maintenance in industrial scenarios.

Model No.	JPTTB 4-PE
Color	Green- Yellow
Length/Height/Wide (mm)	84.3/ 46 /6.2
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/30A
Cross section, solid/soft Cable	0.2-6 mm²/0.2-4 mm²
Conductor Size	24-11AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WKDQ LOGO can be customized
Packing Detail	50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
