Horizontal Style Heavy Duty Connector With Male Plug And Female Socket
  • Horizontal Style Heavy Duty Connector With Male Plug And Female SocketHorizontal Style Heavy Duty Connector With Male Plug And Female Socket
  • Horizontal Style Heavy Duty Connector With Male Plug And Female SocketHorizontal Style Heavy Duty Connector With Male Plug And Female Socket
  • Horizontal Style Heavy Duty Connector With Male Plug And Female SocketHorizontal Style Heavy Duty Connector With Male Plug And Female Socket
  • Horizontal Style Heavy Duty Connector With Male Plug And Female SocketHorizontal Style Heavy Duty Connector With Male Plug And Female Socket
  • Horizontal Style Heavy Duty Connector With Male Plug And Female SocketHorizontal Style Heavy Duty Connector With Male Plug And Female Socket

Horizontal Style Heavy Duty Connector With Male Plug And Female Socket

WKDQ is Horizontal Style Heavy Duty Connector With Male Plug And Female Socket manufacturers and suppliers in China who can wholesale Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm². We can provide professional service and better price for you. If you interested in our products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

A WKDQ Horizontal Style Heavy Duty Connector With Male Plug And Female Socket refers to a specific configuration of a heavy-duty connector commonly used in industrial applications. Let's break down the components:

Heavy-Duty Connector: As mentioned before, heavy-duty connectors (HDCs) are rugged electrical connectors designed for demanding industrial environments. They provide robust and reliable connections while offering features such as high current and voltage ratings, ingress protection (IP) ratings, and durable construction.

Male Plug: The male plug is one part of the heavy-duty connector pair. It typically has pins or terminals that match the corresponding sockets or receptacles in the female part. The male plug is inserted into the female socket to establish an electrical connection.

Female Socket: The female socket is the counterpart to the male plug. It contains openings or slots to receive the pins or terminals from the male plug. The female socket is designed to provide a secure and reliable connection when the male plug is inserted.

Horizontal Style: The term "horizontal style" indicates the orientation of the connector when installed. In this configuration, the male plug and female socket are aligned horizontally, parallel to the ground or mounting surface. This orientation is suitable for applications where the connector needs to be installed on a flat surface or where space constraints require a low-profile design.

The specific pin configuration, size, and other features of the heavy-duty connector will depend on the manufacturer and the requirements of the application. It's important to consult the manufacturer's datasheets, catalogs, or documentation to select the appropriate heavy-duty connector with the desired male plug and female socket configuration.


TECHNICAL PARAMETERS

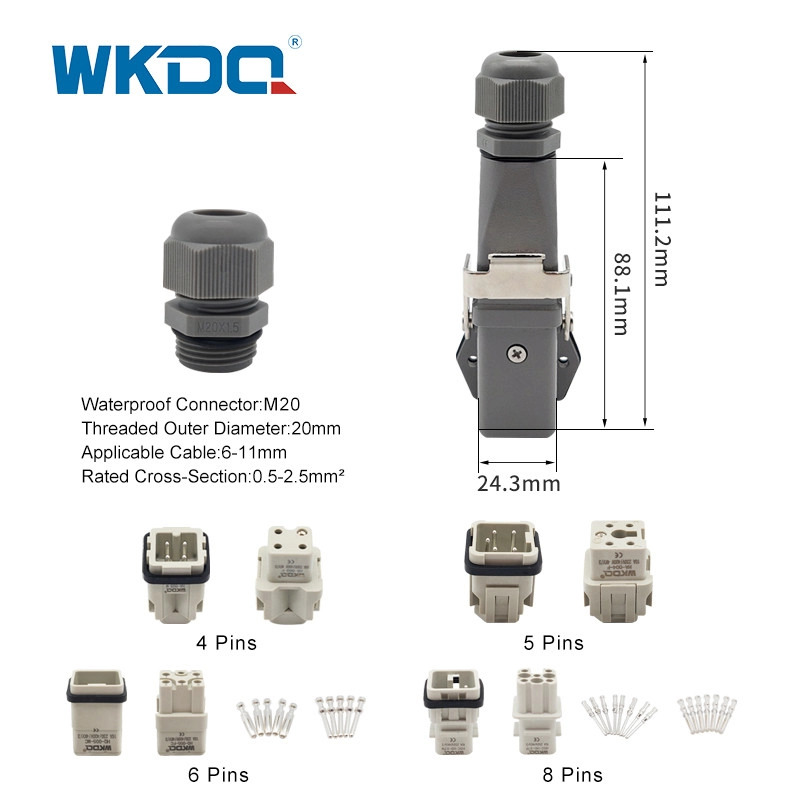

No. PART NO. Order No. Entry Side Number of contact Description Water-proof connector
1 WHA04D 100506005 Top entry 4 3+1ground PG11
2 WHA05D 100506006 Top entry 5 4+1ground PG11
3 WHA06D 100506007 Top entry 6 5+1ground PG11
4 WHA07D 100506008 Top entry 8 7+1ground PG11
5 WHA04C 100506001 Side entry 4 3+1ground PG11
6 WHA05C 100506002 Side entry 5 4+1ground PG11
7 WHA06C 100506003 Side entry 6 5+1ground PG11
8 WHA07C 100506004 Side entry 8 7+1ground PG11
9 WHA04W 100506009 Horizontal 4 3+1ground PG11
10 WHA05W 100506010 Horizontal 5 4+1ground PG11
11 WHA06W 100506011 Horizontal 6 5+1ground PG11
12 WHA07W 100506012 Horizontal 8 7+1ground PG11
13 WHA04WD 100506013 Horizontal Butt 4 3+1ground PG11
14 WHA05WD 100506014 Horizontal Butt 5 4+1ground PG11
15 WHA06WD 100506015 Horizontal Butt 6 5+1ground PG11
16 WHA07WD 100506016 Horizontal Butt 8 7+1ground PG11
17 WHA04DJ 100506013 Docking 4 3+1ground PG11
18 WHA05DJ 100506014 Docking 5 4+1ground PG11
19 WHA06DJ 100506015 Docking 6 5+1ground PG11
20 WHA07DJ 100506016 Docking 8 7+1ground PG11



Hot Tags: Horizontal Style Heavy Duty Connector With Male Plug And Female Socket, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
