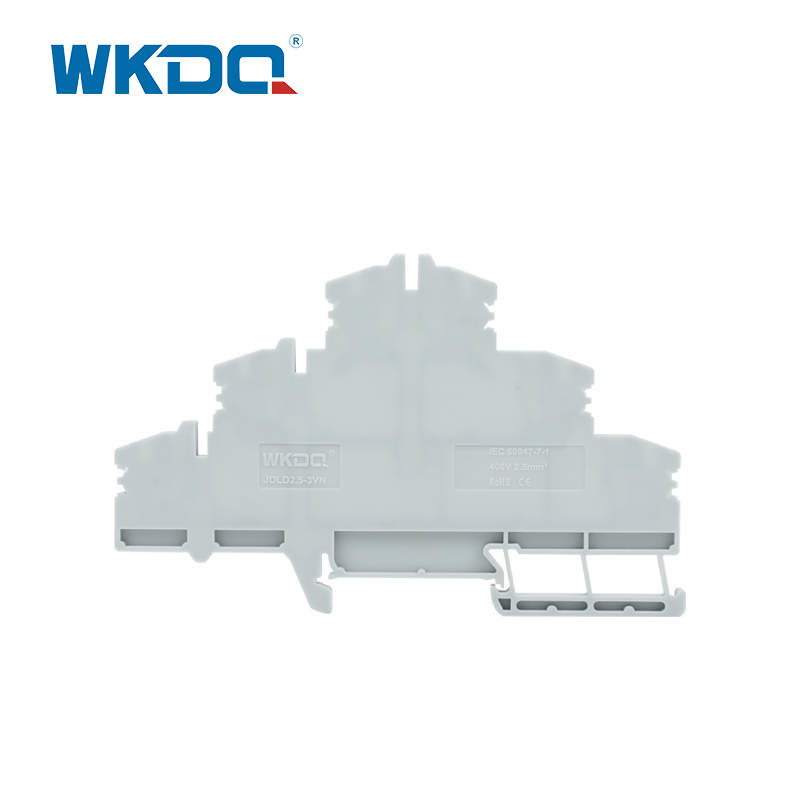

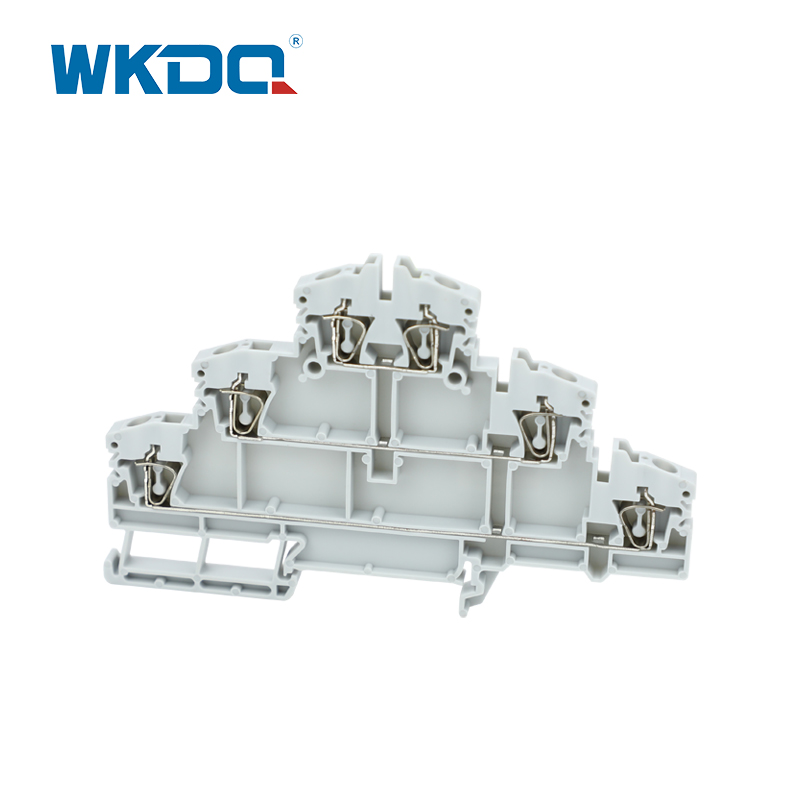

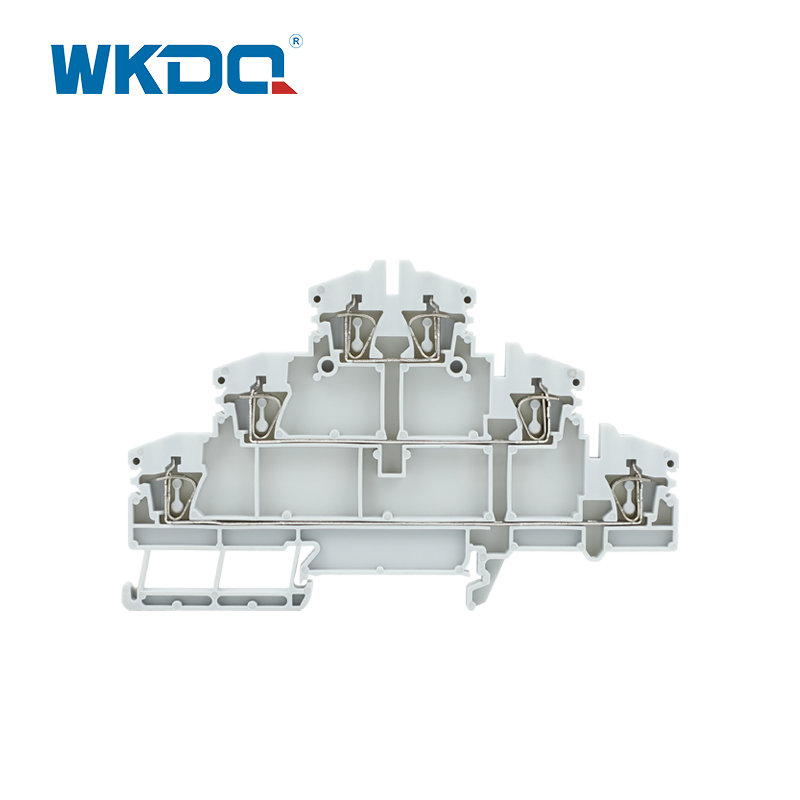

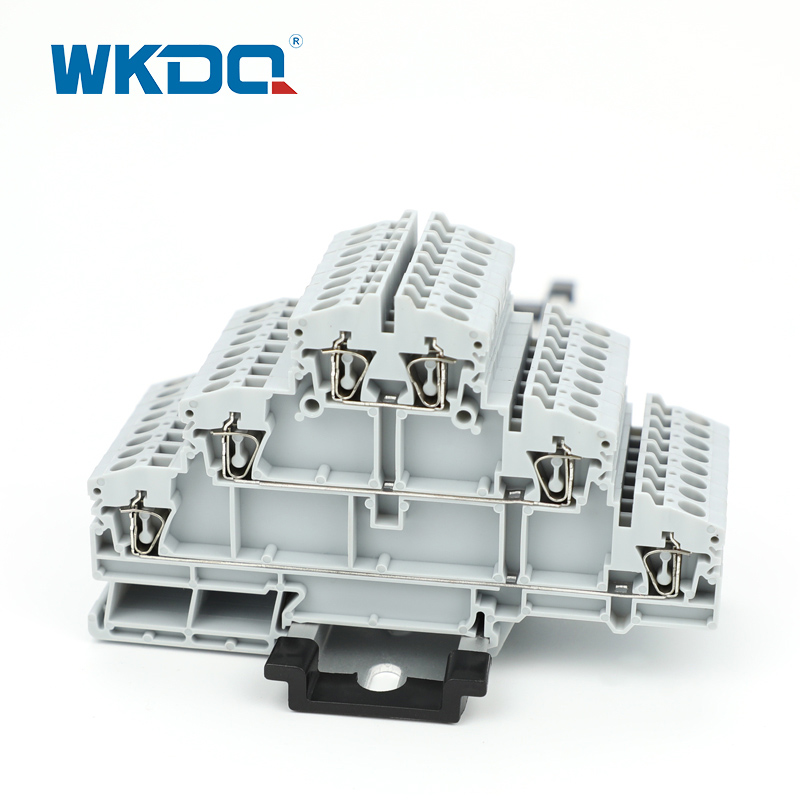

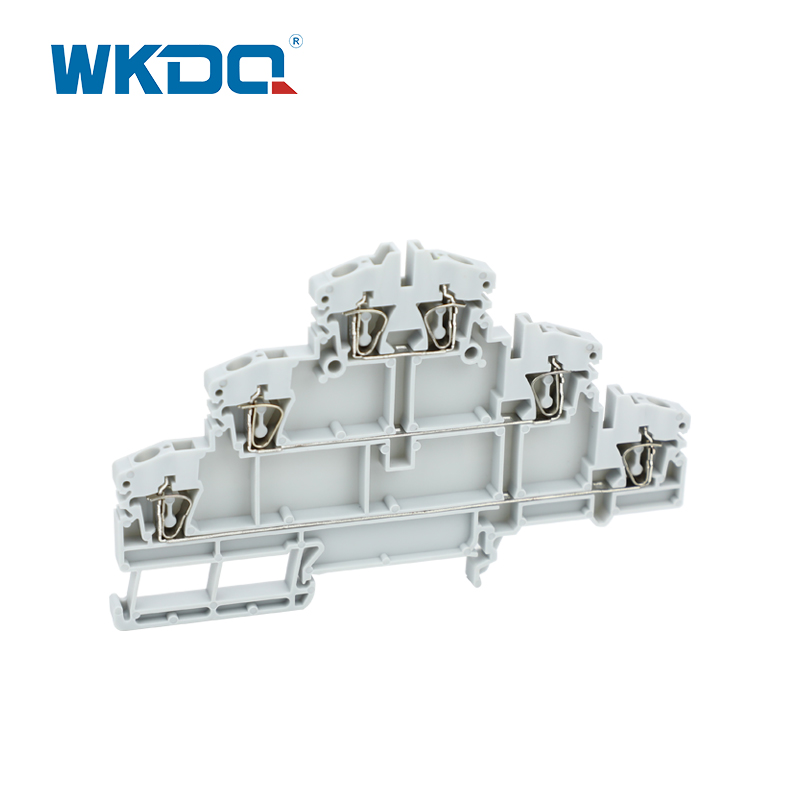

3 Layers Wire Connector Spring Terminal

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JDLD 2.5-3VN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JDLD 2.5 3VN

Send Inquiry

Product Description

Our company's wiring terminals adopt flame-retardant PA66 nylon and tin plated copper strip structure, integrated seismic and anti loosening spring cage design, suitable for wire diameters of 0.5-4mm ². Tin plated contacts achieve low resistance and airtight connections, and the housing meets DIN rail quick installation standards, with supporting components such as end caps/bridging plates.

Model Number	JDLD 2.5-3VN
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	110.5/69.5/5.2
Connection method	Spring clamp
Material	Nylon PA66
Rated Voltage/Current	500V/20A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5 mm²
Conductor Size	26-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	17.4g/pc
Certification	CE/RoHS/CQC/ISO 9001
