JPTIO1.5/S/3-LED(24V) Push In Connection Ground Terminal Block Sensor Actuator

Color:
Grey, Blue, other color can be customized
Length/Wide/Height (mm):
L76.7H40.1/W3.5mm
Connection method:
Push-in connection
Material:
Nylon PA66
Rated Voltage/Current:
250V/13.5A
Cross section, solid/soft Cable:
0.14-1.5mm²/0.14-1.5mm²
Conductor Size:
26-16 AWG
Mounting Type:
NS 35/7.5
Standard:
IEC 60947-7-1
Packing Detail:
8.11g/pc, 50PCS/BOX

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTIO1.5/S/3-LED(24V)
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPTIO1.5/S/3-LED(24V)

Send Inquiry

Product Description

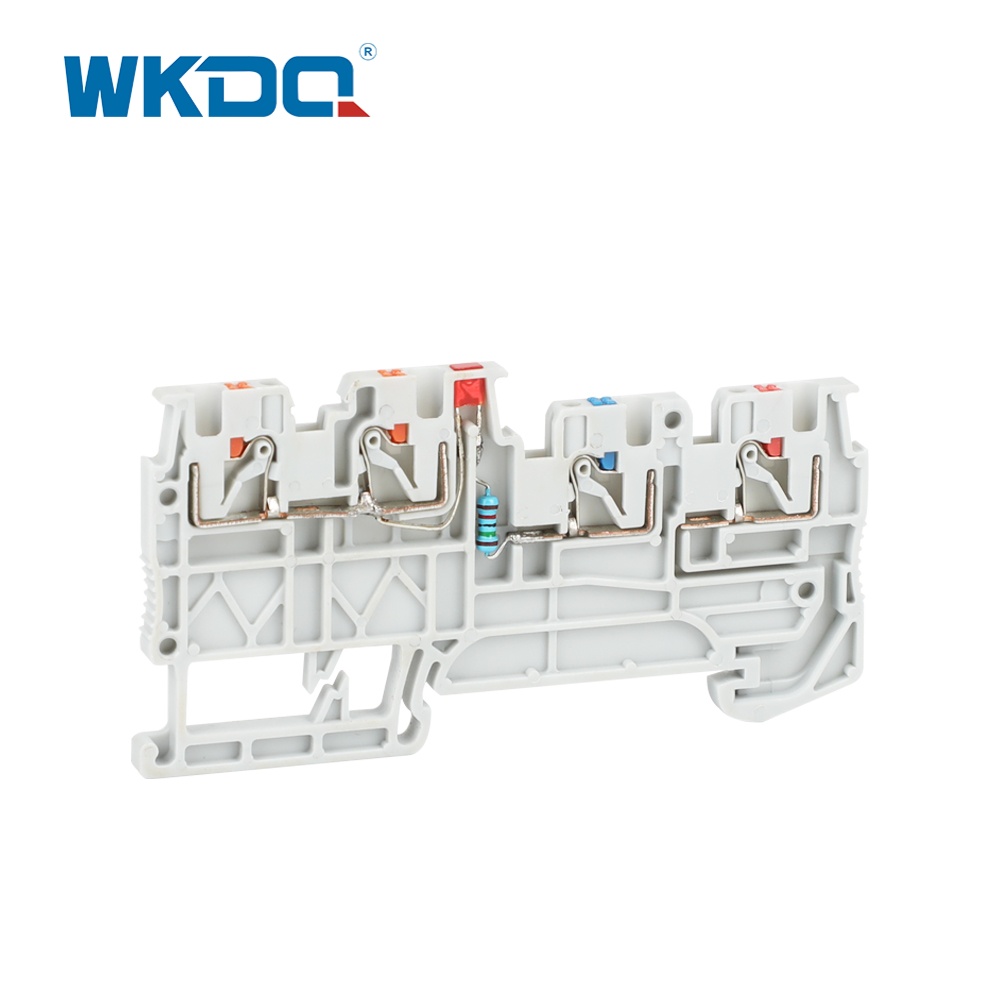

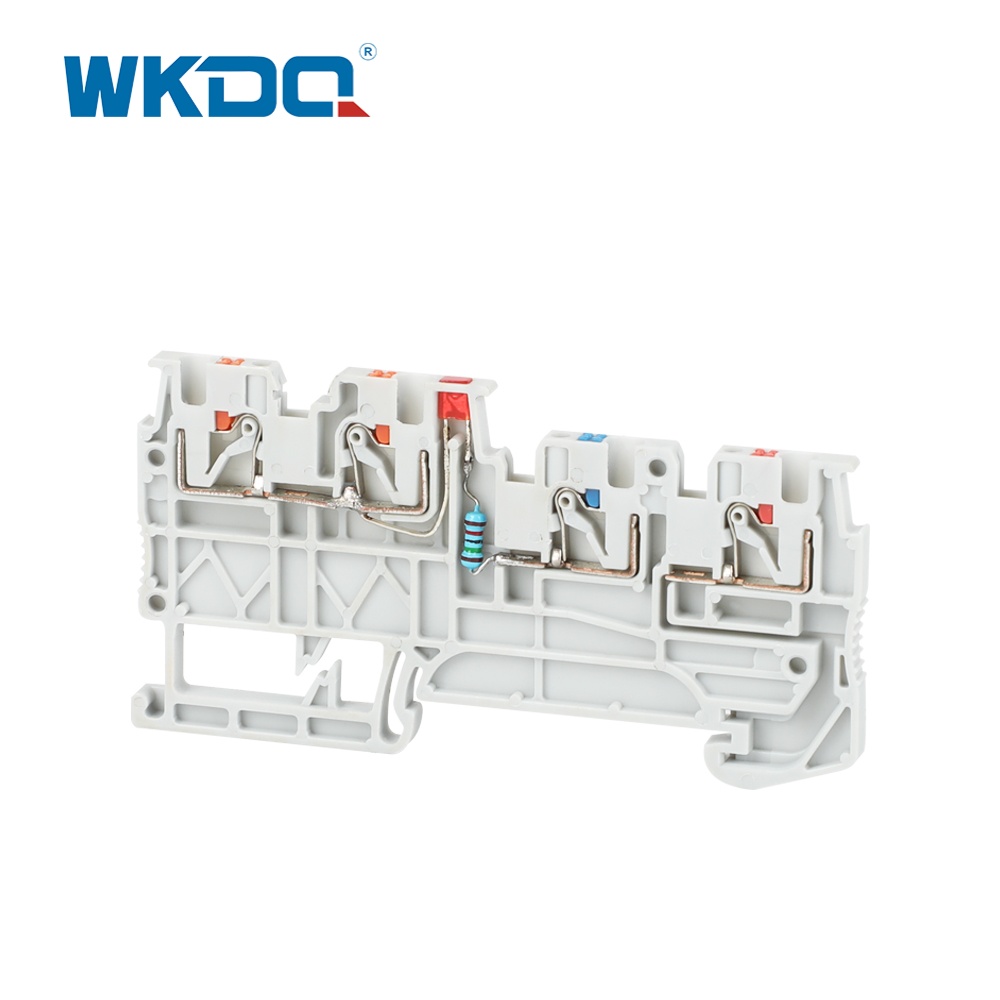

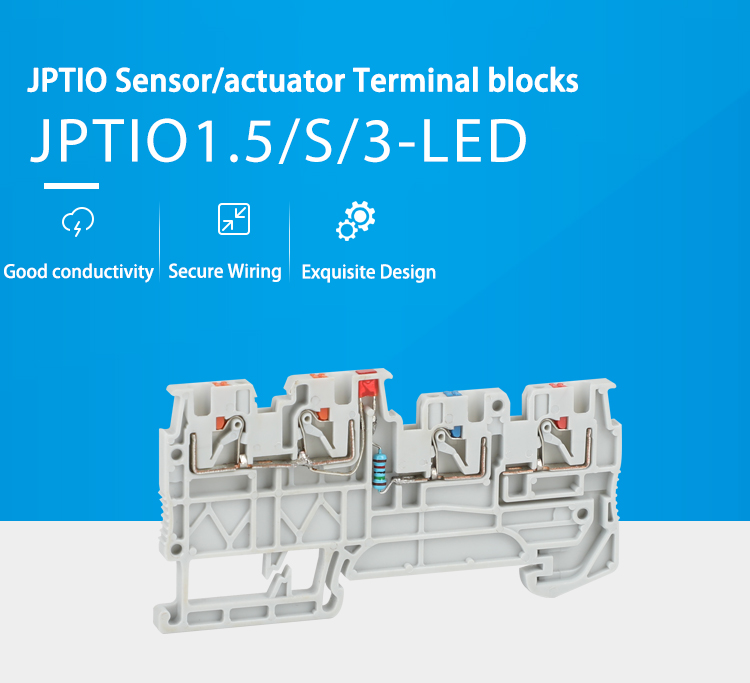

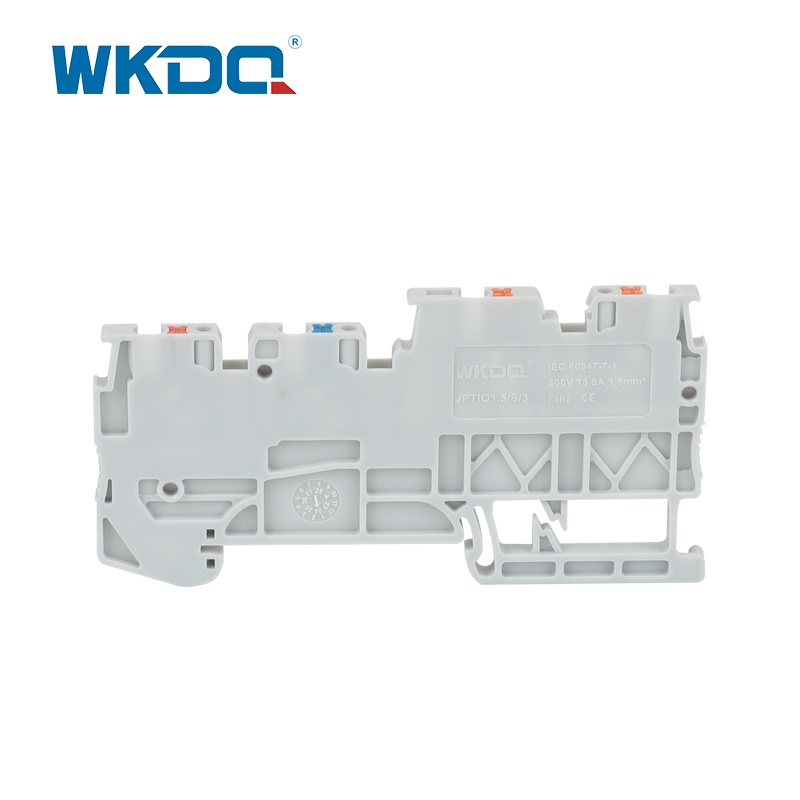

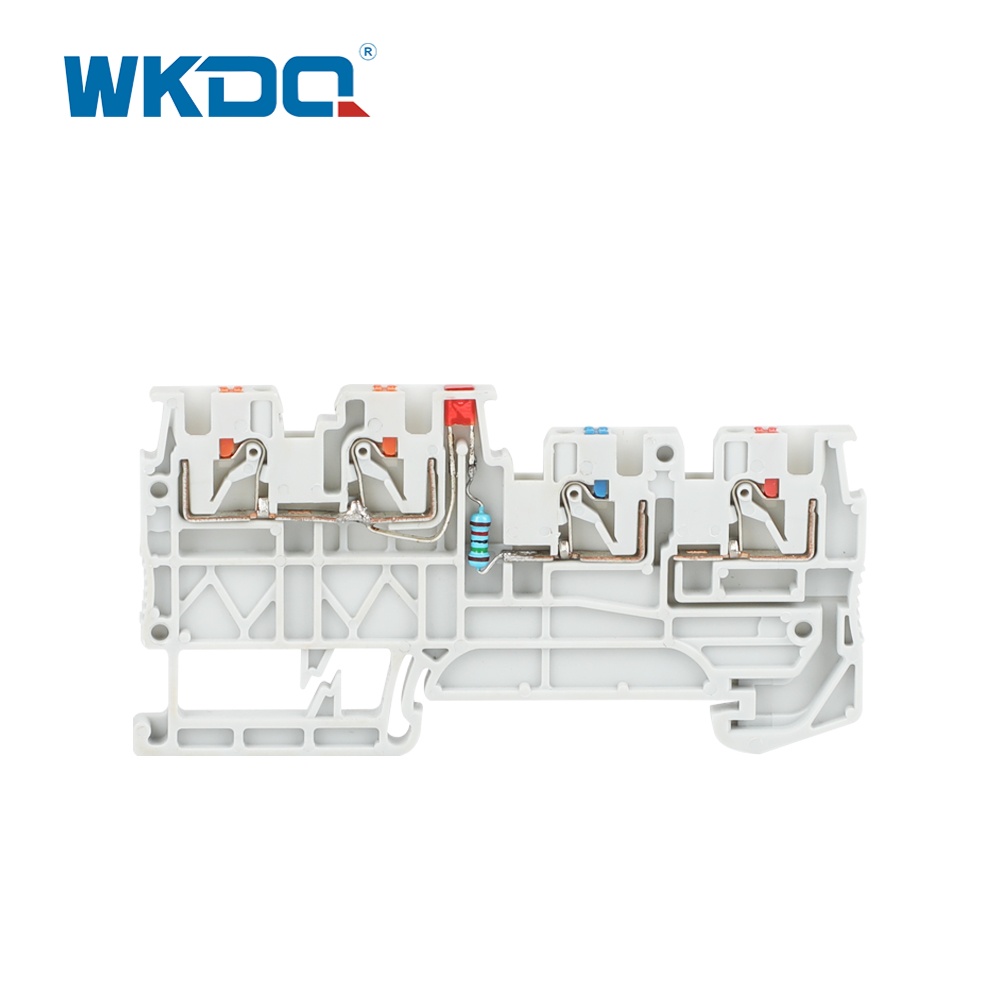

JPTIO1.5/S/3-LED(24V) terminal block

JPTIO1.5/S/3-LED(24V) ‌terminal block‌ The ‌terminal block‌ adopts flame-retardant nylon PA66, brass conductor and stainless steel compression spring to ensure electrical safety and mechanical strength under harsh working conditions.

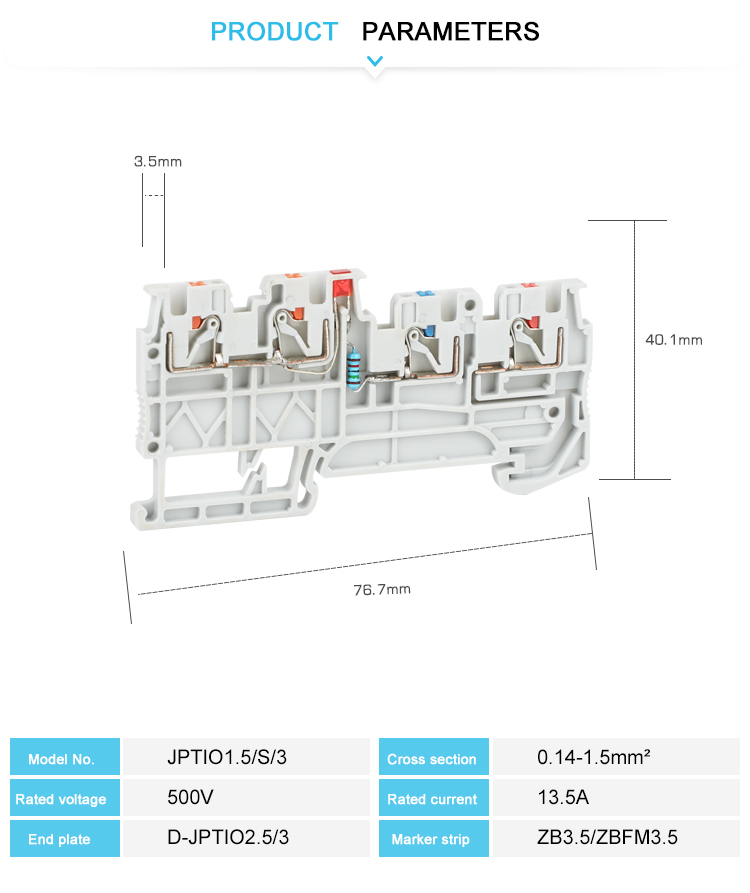

TECHNICAL PARAMETERS

Model Number	JPTIO1.5/S/3-LED(24V)
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	L76.7/H40.1/W3.5mm
Connection method	Plug in connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	250V/13.5A
Cross section, solid/soft Cable	0.14-1.5mm²/0.14-1.5mm²
Conductor Size	26-16AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM serivce is supporting
Packing Detail	5.79g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
