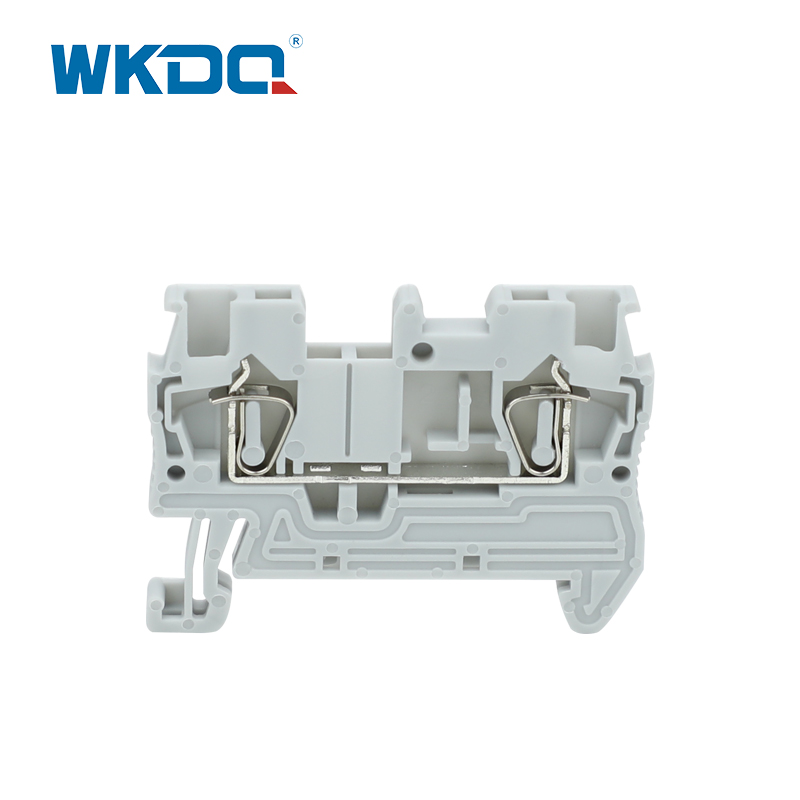

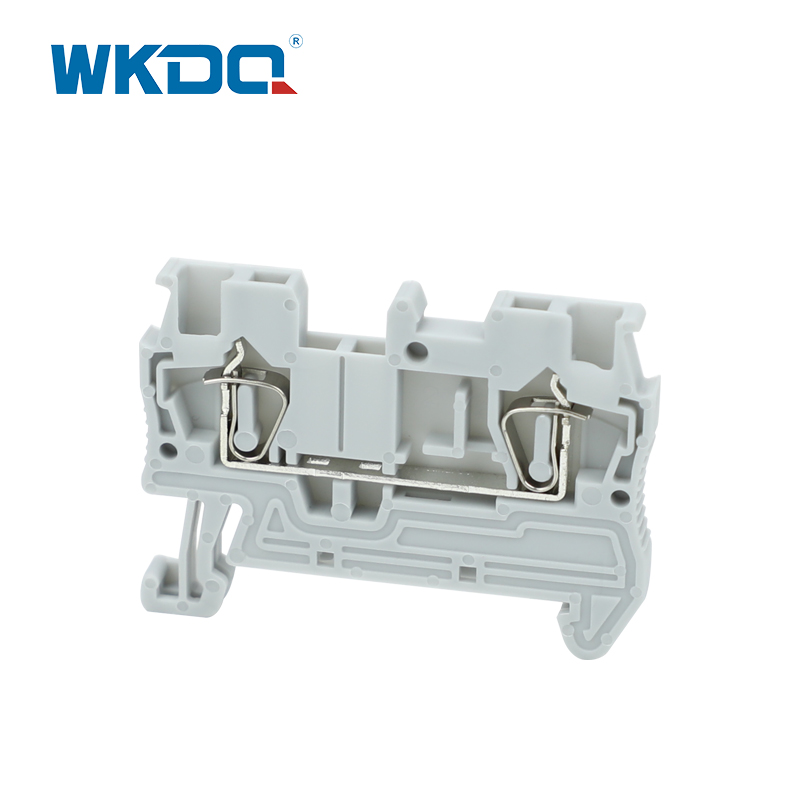

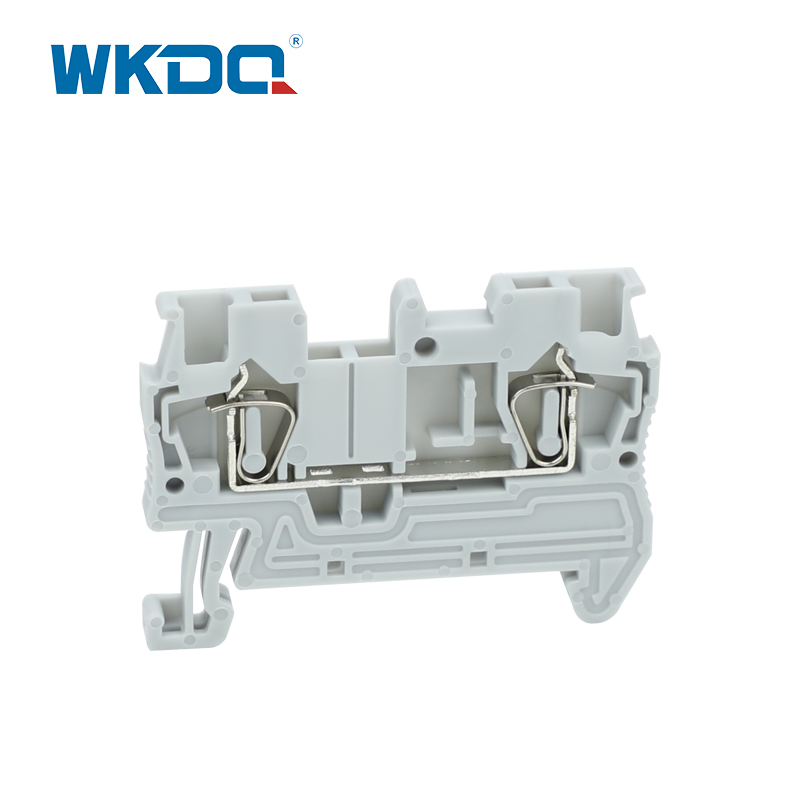

Spring-Loaded Terminal Block

Our terminal blocks feature high-quality nickel-plated steel spring clamps, ensuring reliable and durable performance. The surface treatment process applied to the copper current bar guarantees a consistent and stable wiring connection, even in vibrating applications. The spring clamp connection offers numerous advantages, including shorter wire installation time and easy maintenance.

Constructed from top-notch inflaming retarding PA 66 material, our terminal blocks exhibit exceptional quality and durability. The inclusion of nickel-plated brass metal further enhances their performance and longevity. Despite their compact design, these terminal blocks effectively save valuable space, while the front connection feature ensures easy access and operation.

To streamline installation and ensure efficient electrical connections, our terminal blocks are designed with optimized wiring schemes. Multiple identification bits are available for clear and organized labeling, promoting efficient organization and maintenance. The corrosion-proof contact points guarantee reliable and long-lasting performance, even in challenging environments.

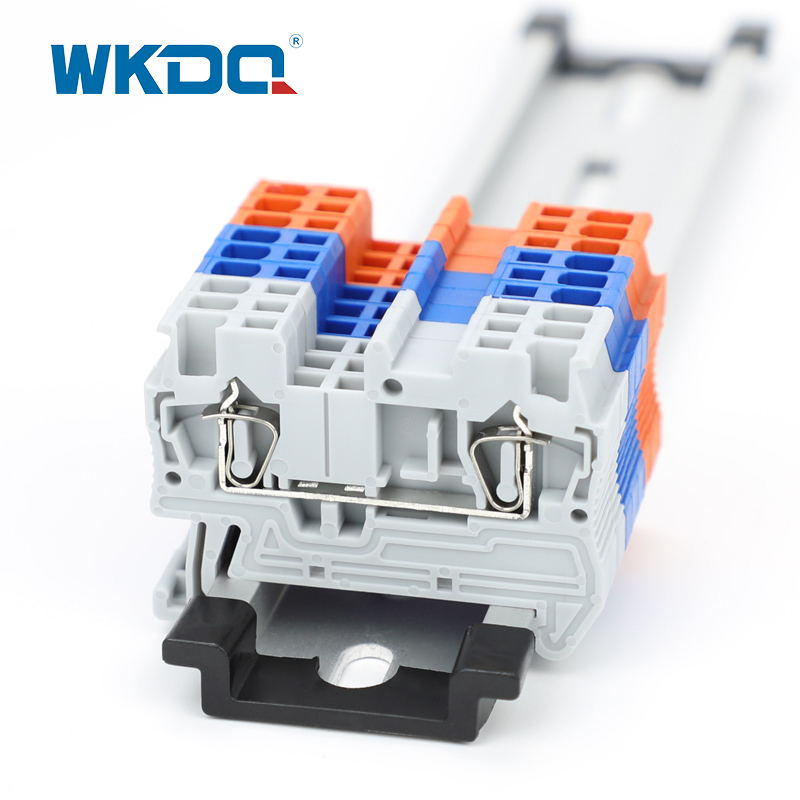

We prioritize high-quality materials that meet stringent standards, ensuring that our terminal blocks are reliable and durable. The universal foot design enables effortless installation on DIN Rail NS 35, providing compatibility and ease of use. Additionally, our terminal block series offers a comprehensive range of accessories, including end covers, end stoppers, marker strips, fixed bridges, and more, catering to various application requirements.

With our terminal blocks, you can expect superior quality, reliable performance, and optimal durability. The efficient spring clamp connection, compact design, and easy installation features make them an excellent choice for your wiring needs.

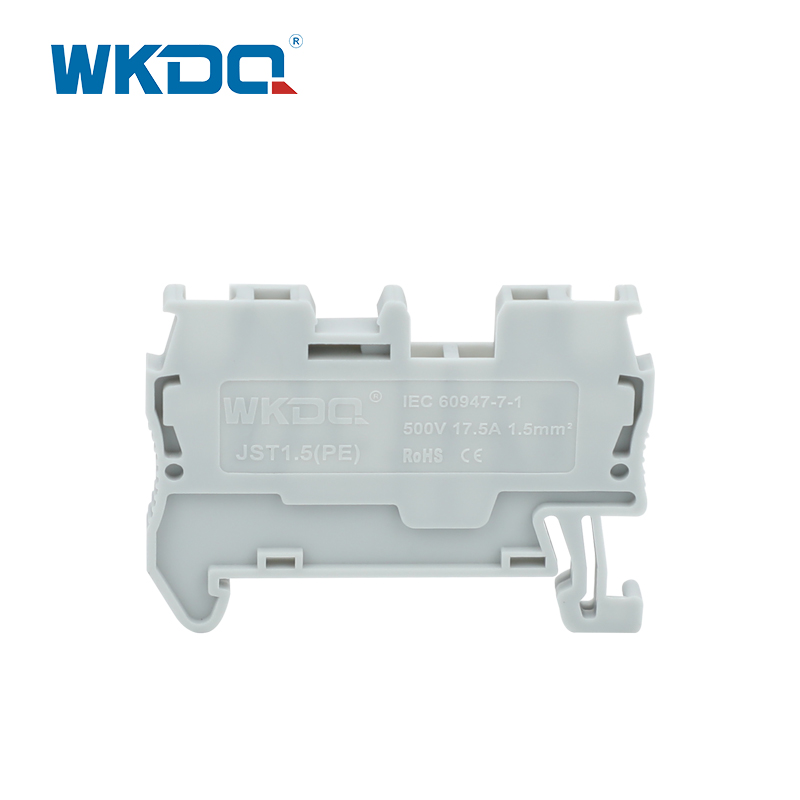

Part No.	JST 1.5 TB

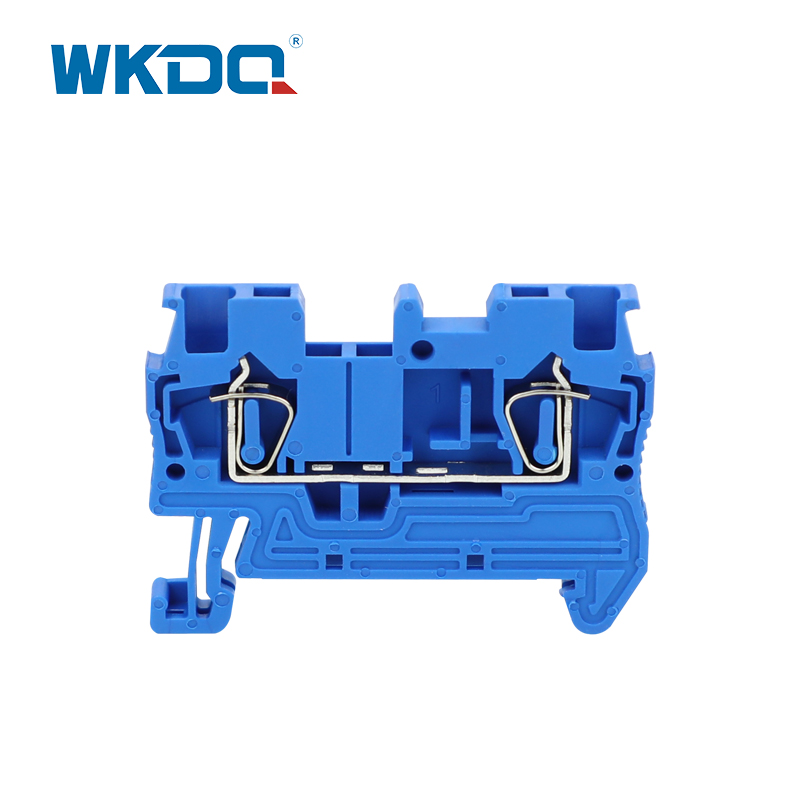

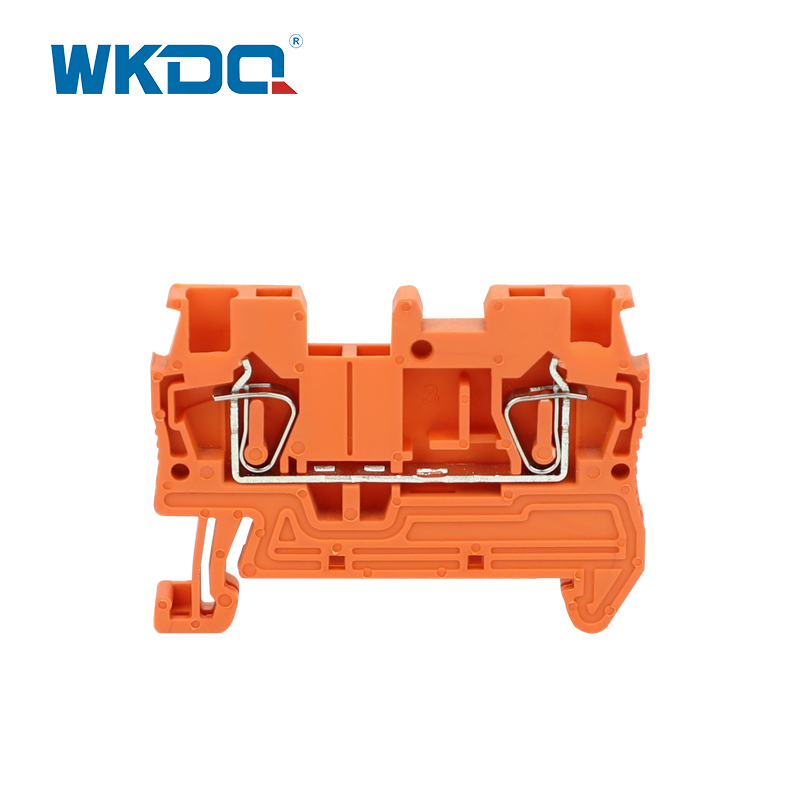

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	49/36/4.2
Connection method	Spring connection
Material	Nylon PA66
Rated Voltage/Current	500V/17.5A
Cross section, solid/soft Cable	0.14-1.5 mm² / 0.14-1.5 mm²
Conductor Size	26-16 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	4.67g/pc, 100PCS/BOX,4200PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
