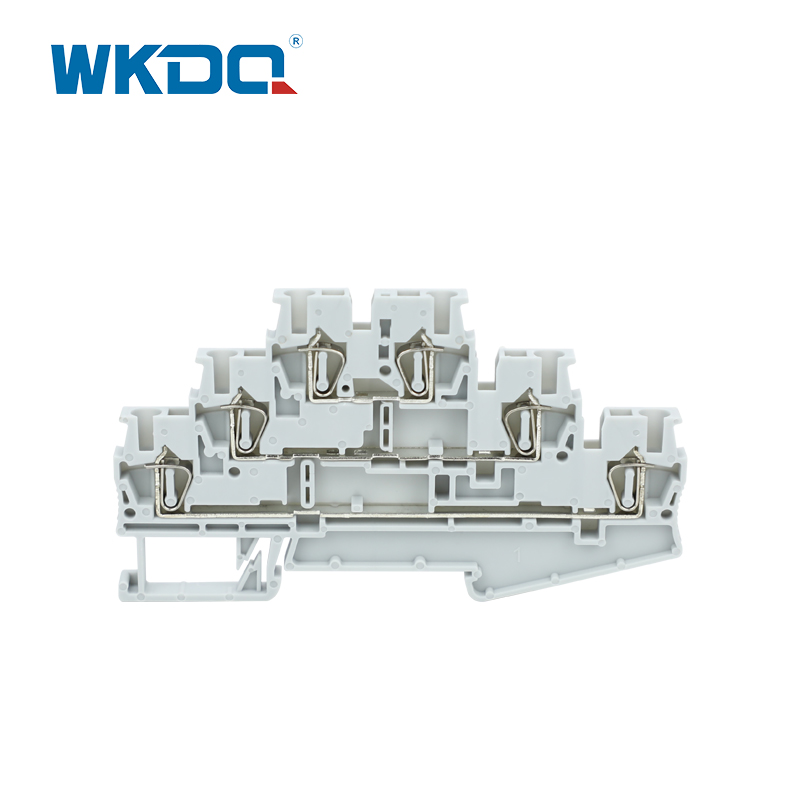

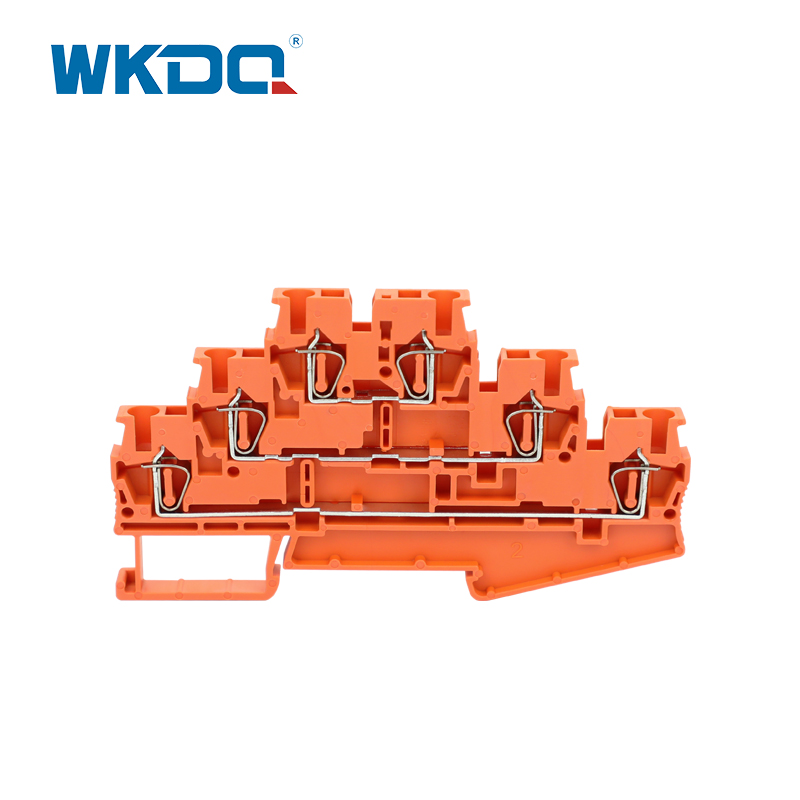

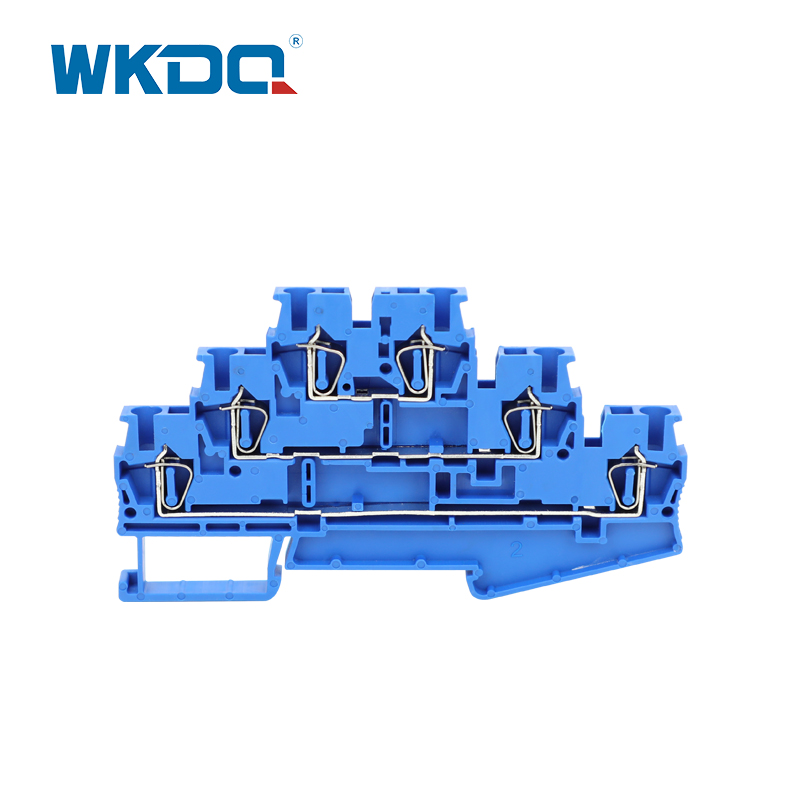

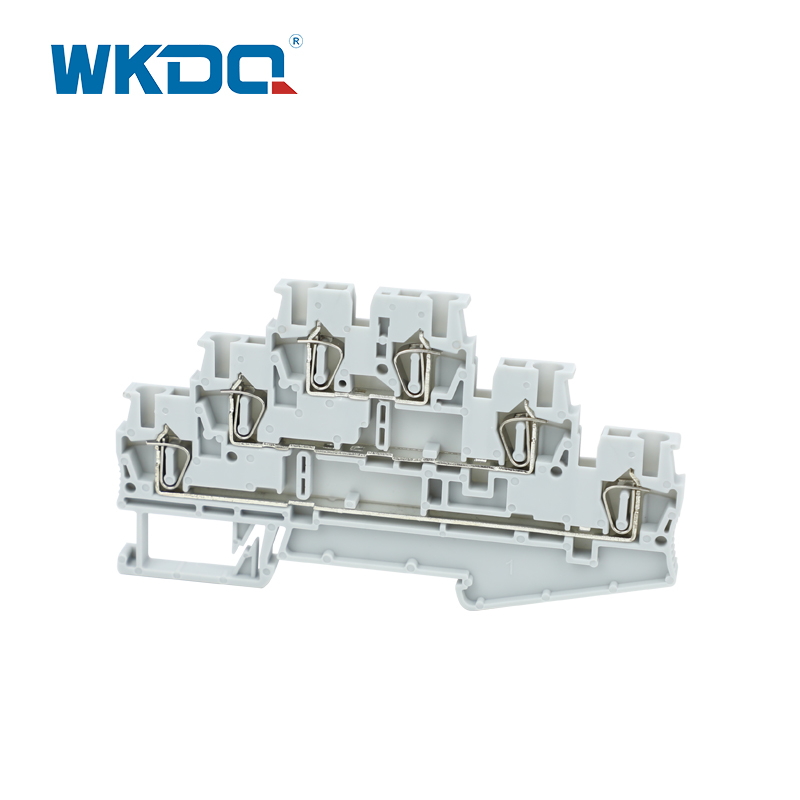

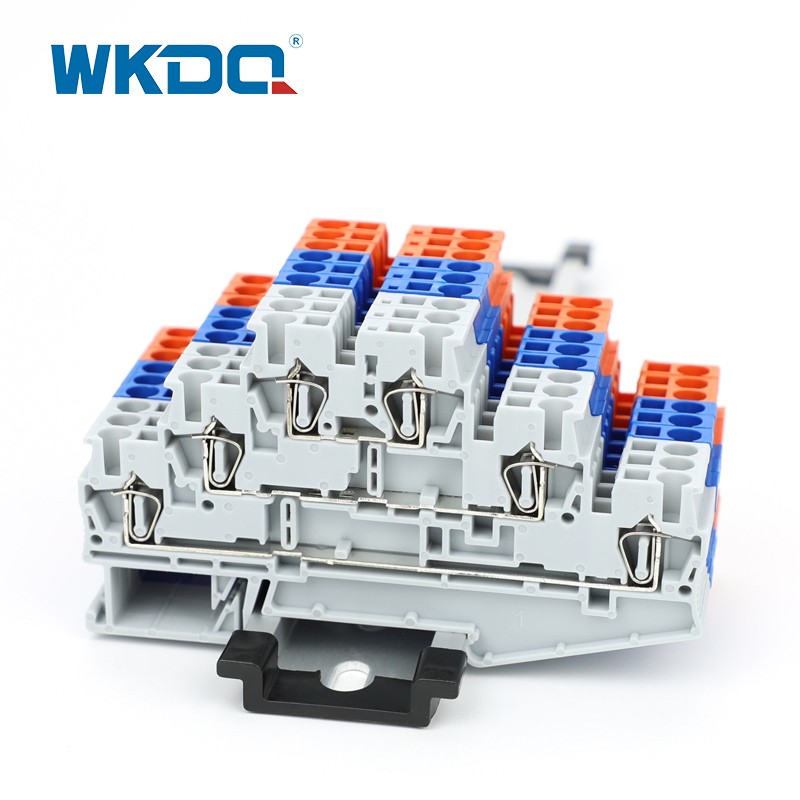

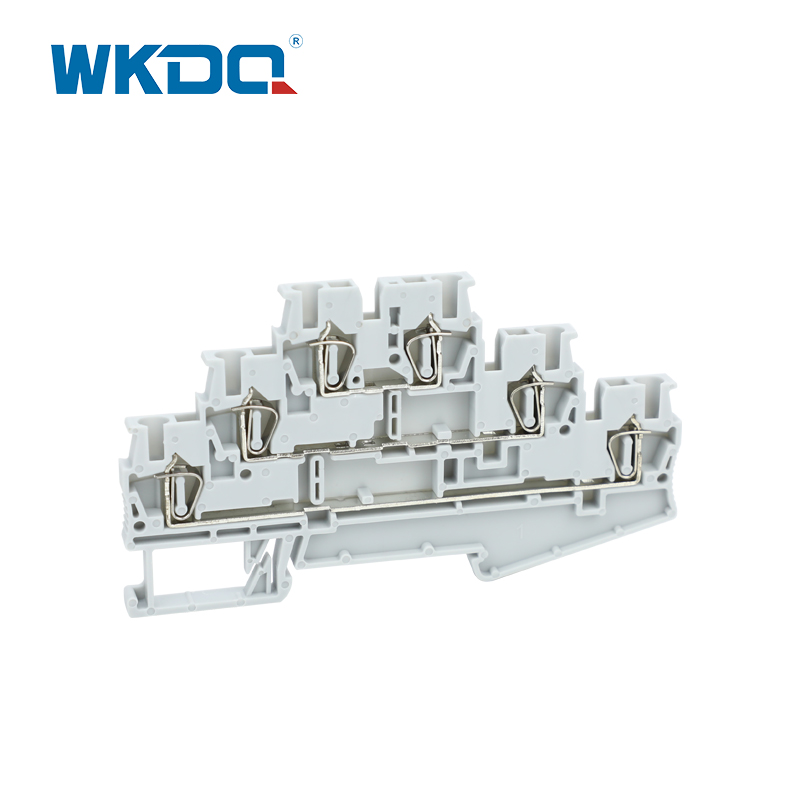

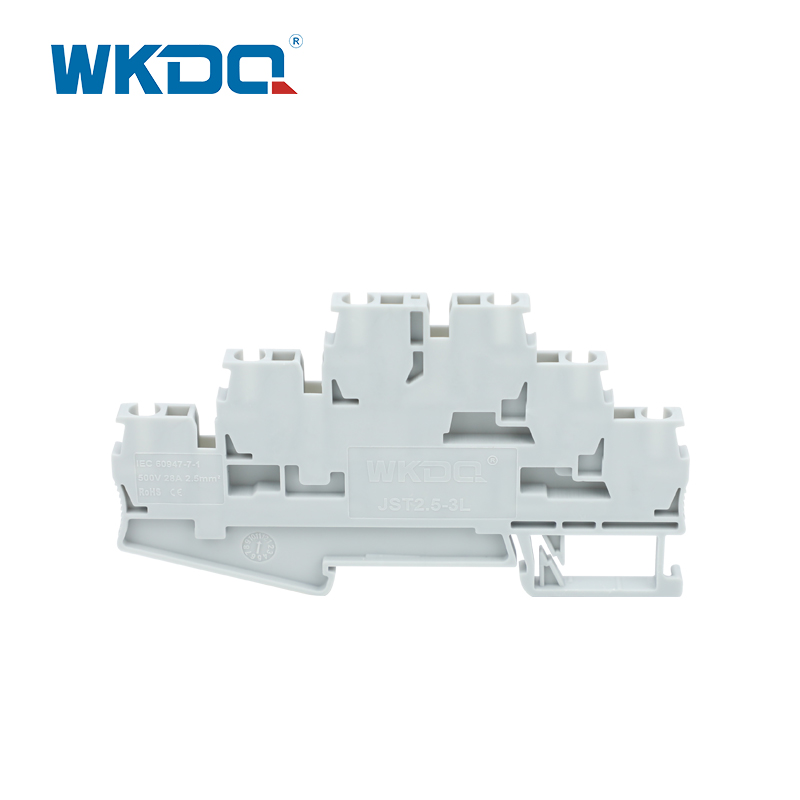

JST 2.5 3L Three Levels Terminal Block

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 2.5-3L
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 2.5-3L

Send Inquiry

Product Description

      Our multi-layer terminal blocks adopt a vertical stacking design (standard/double-layer/triple-layer), made of flame-retardant PA66 nylon and copper parts. They integrate potential /PE interfaces and bridge wiring functions, and support DIN rail quick installation. It features low-resistance anti-corrosion contacts and LED voltage indication. A single terminal can be connected to multiple sensors, saving 50% of the space in the control cabinet. It meets the high-density wiring requirements of mechanical and electrical systems, balancing reliability and space intensification.

Model Number JST 2.5-3L
Color Grey, Blue, Orange
L/H/W(mm) 99.5/57/5.2
Connection Spring connecting
Material Flame retardants Nylon PA66
Standing Voltage/Current 500V/28A
Cross size, solid/stranded wire 0.2-4mm2 / 0.2-2.5 mm2
Conductor Dimension 28-12 AWG
Mounting Type DIN 35mm
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing 17.07g/pc, 50PCS/BOX,1000PCS/CTN
Certificates CE/RoHS/CQC/ISO 9001
