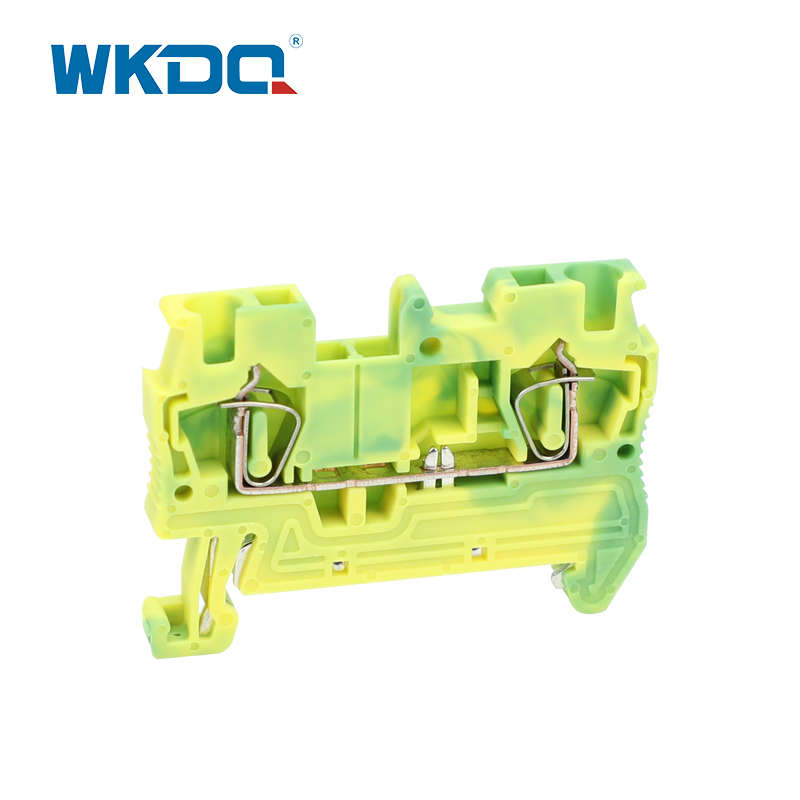

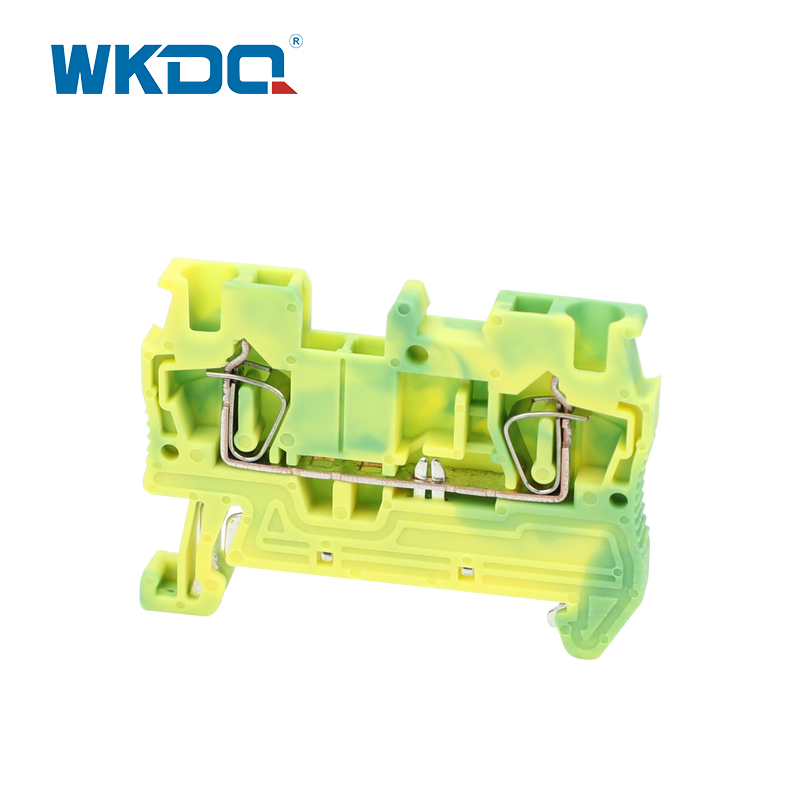

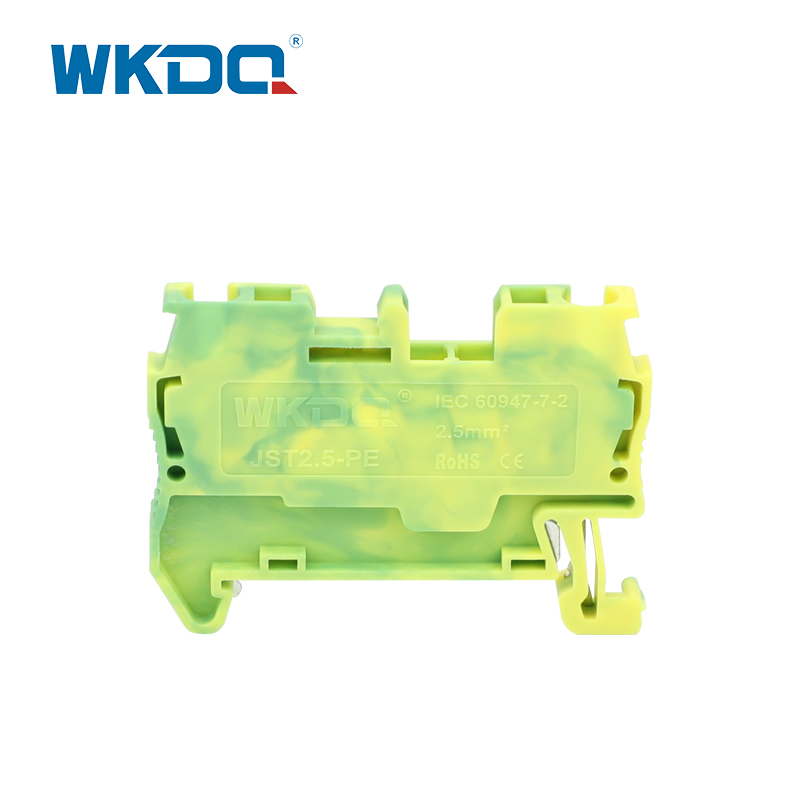

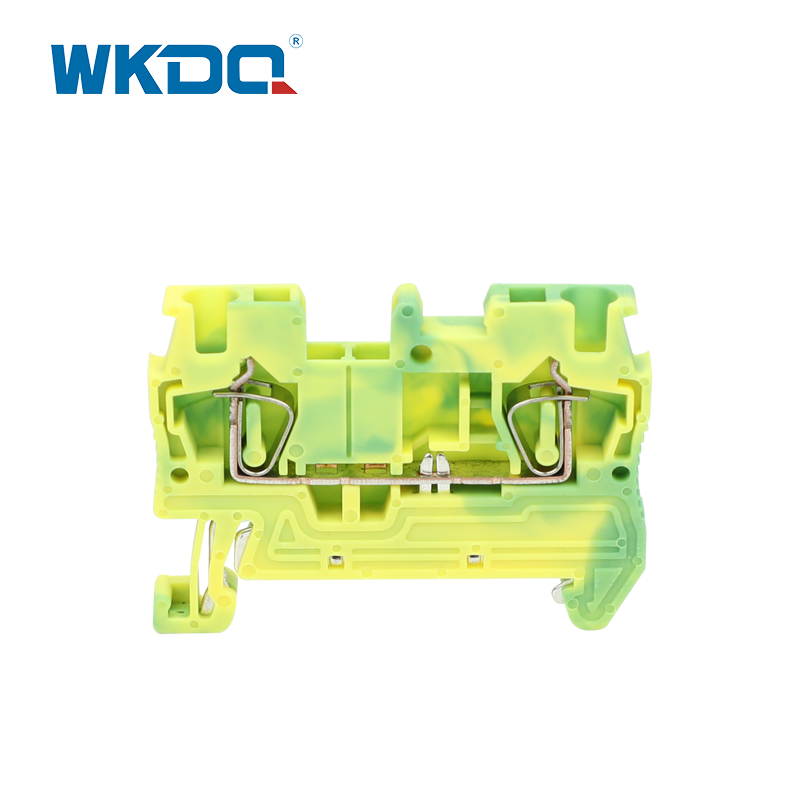

JST 2.5 PE Spring Clamp Connector

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 2.5-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 2.5-PE

Send Inquiry

Product Description

WonkeDQ spring cage terminals are made of flame-retardant PA66+ tin-plated copper parts. The shock-resistant cage structure ensures airtight connection in strong vibration environments and is suitable for wire diameters ranging from 0.5 to 4mm². The yellow-green housing complies with IEC grounding, supports DIN rail quick installation and bridging expansion, and the low-resistance anti-corrosion contacts save 30% of installation space. It comes standard with modular accessories and OEM customization, and is specifically designed for high-reliability scenarios such as rail transit and energy equipment.

Model Number	JST 2.5-PE
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	49/35.5/5.2
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	8.88g/pc, 100PCS/BOX,4000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
