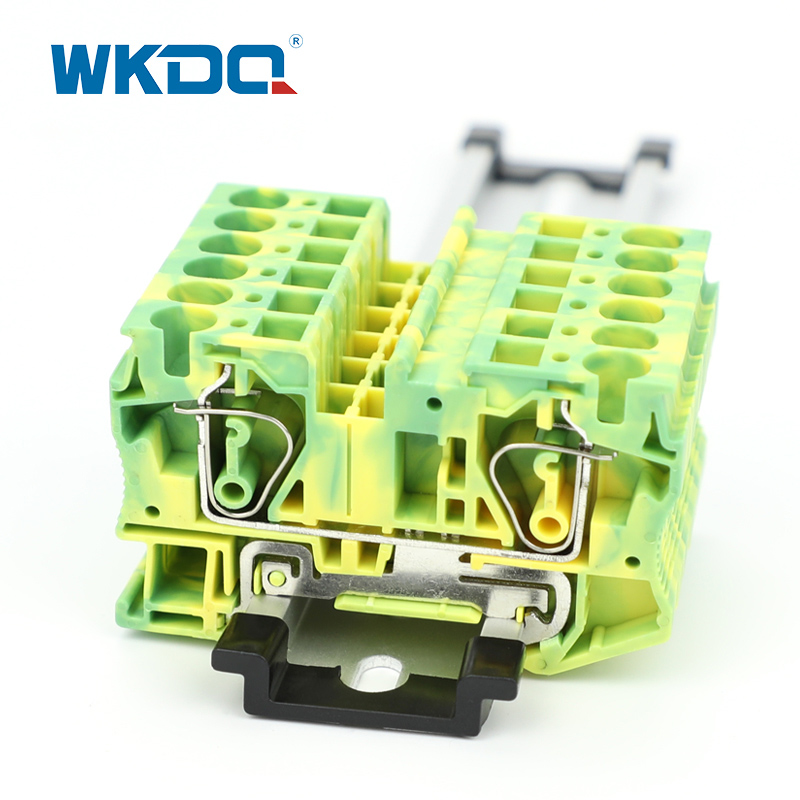

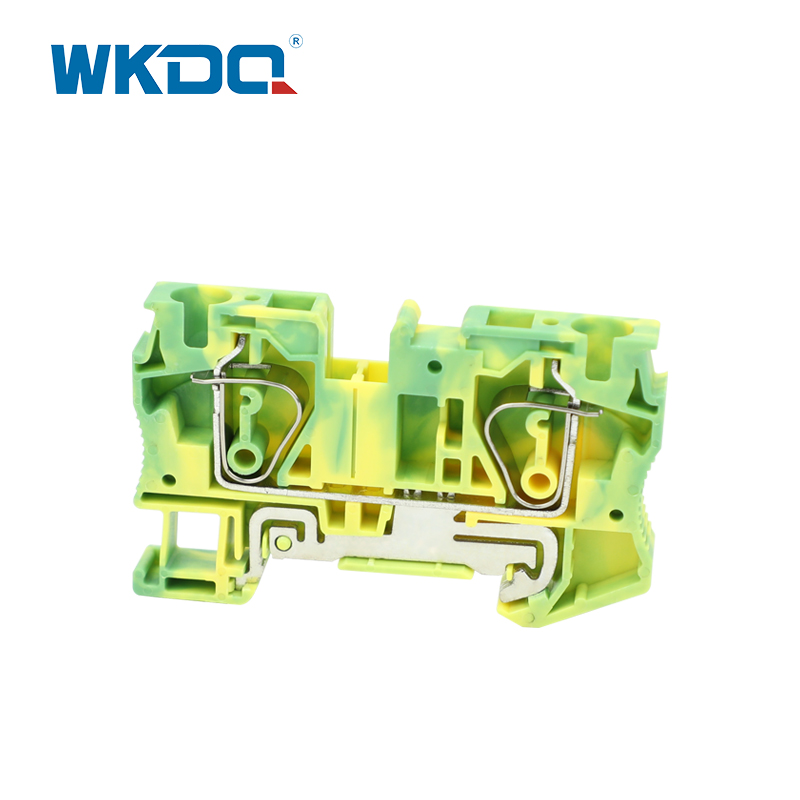

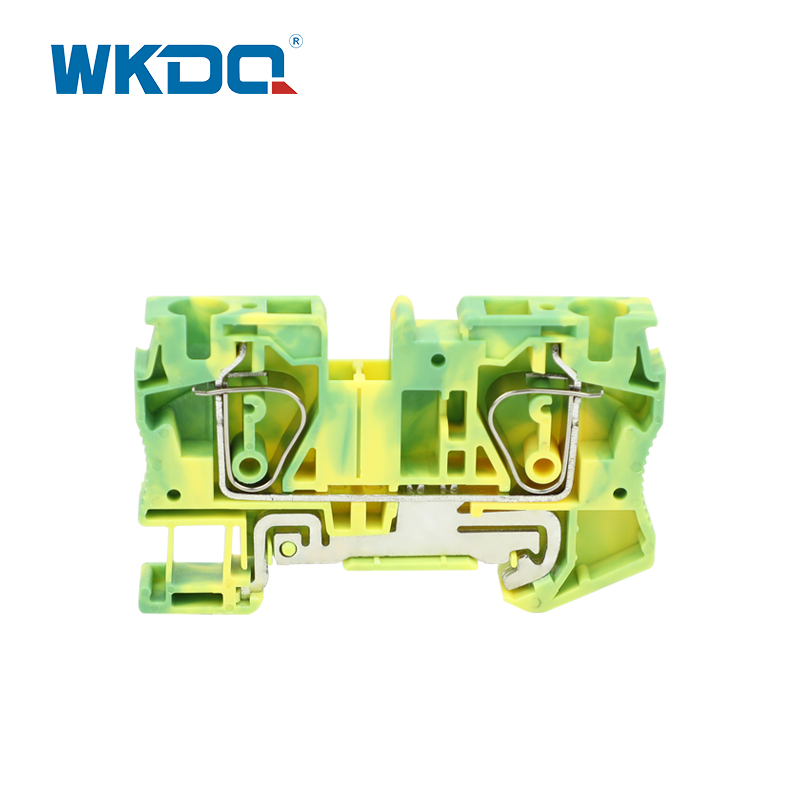

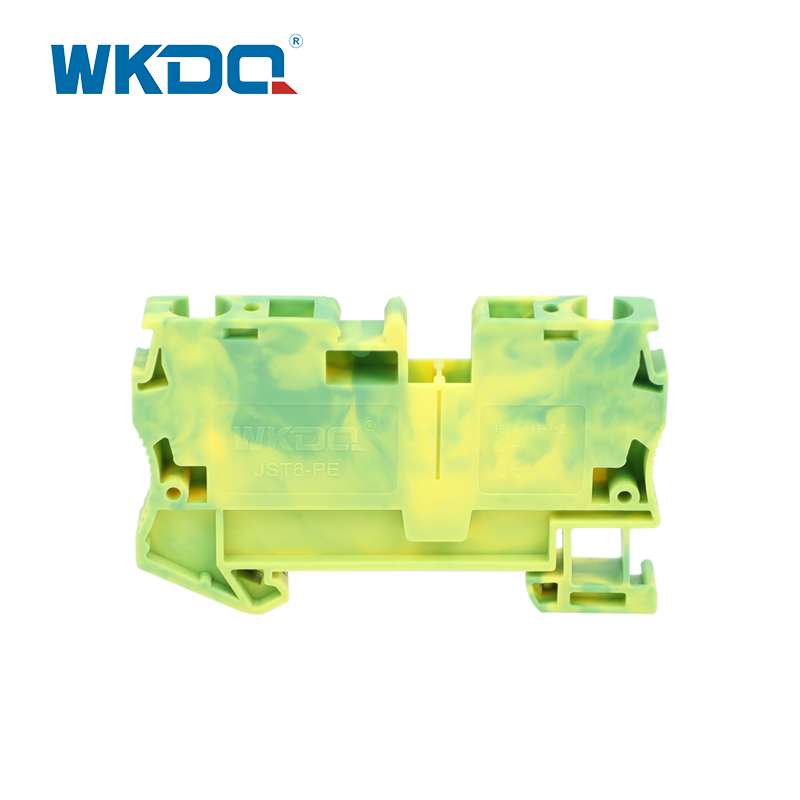

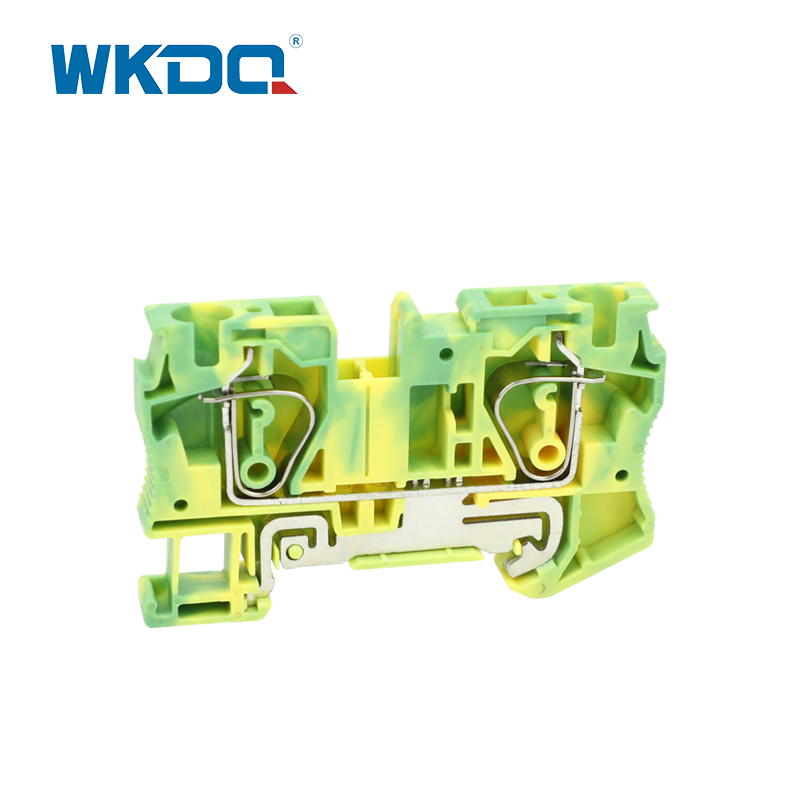

JST 6 PE Ground Spring Terminal Block

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 6-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 6-PE

Send Inquiry

Product Description

The spring terminal adopts a PA66+ stainless steel spring structure, suitable for wire diameters ranging from 0.5 to 4mm². The top wire entry design saves 30% of the space. Tin-plated contacts, anti-seismic self-locking structure, in compliance with IEC standards, support DIN rail quick installation and bridging expansion. Standard identification system, UL/CE certification, maintenance-free electrical connection specifically designed for high-vibration scenarios.

Part No.	JST 6-PE
Color	Yellow/Green,
Length/Height/Wide (mm)	70/43/8.2
Connection method	Spring-cage connection
Material	Anti-flaming Nylon PA66
Rated Voltage/Current	800V/57A
Cross section, solid/soft Cable	0.5-10mm² / 0.5-6 mm²
Conductor Size	20-8 AWG
Mounting Type	NS 35mm
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	19.27g/pc, 50PCS/BOX,1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
