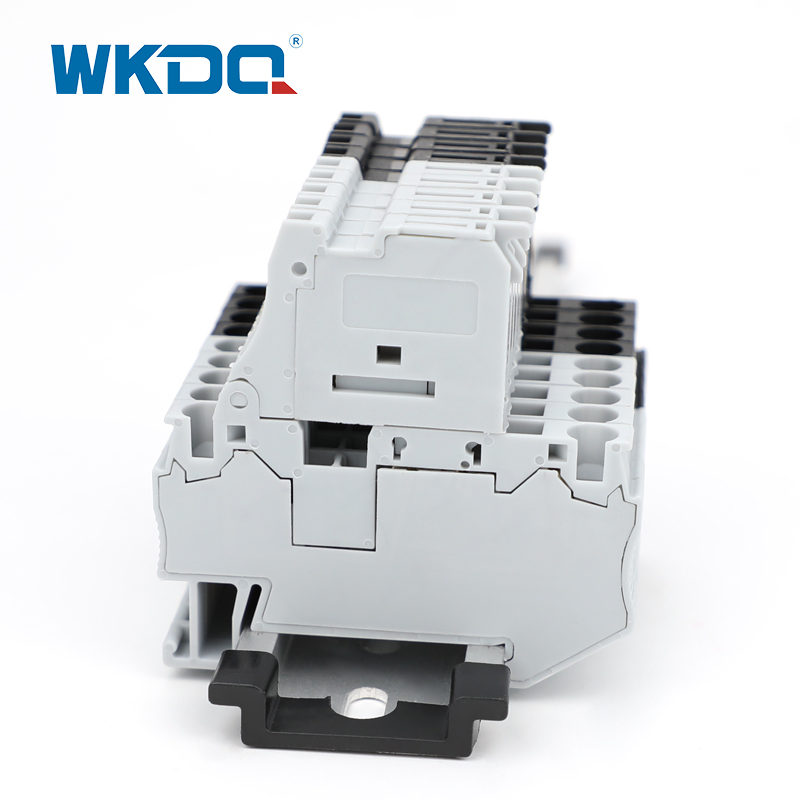

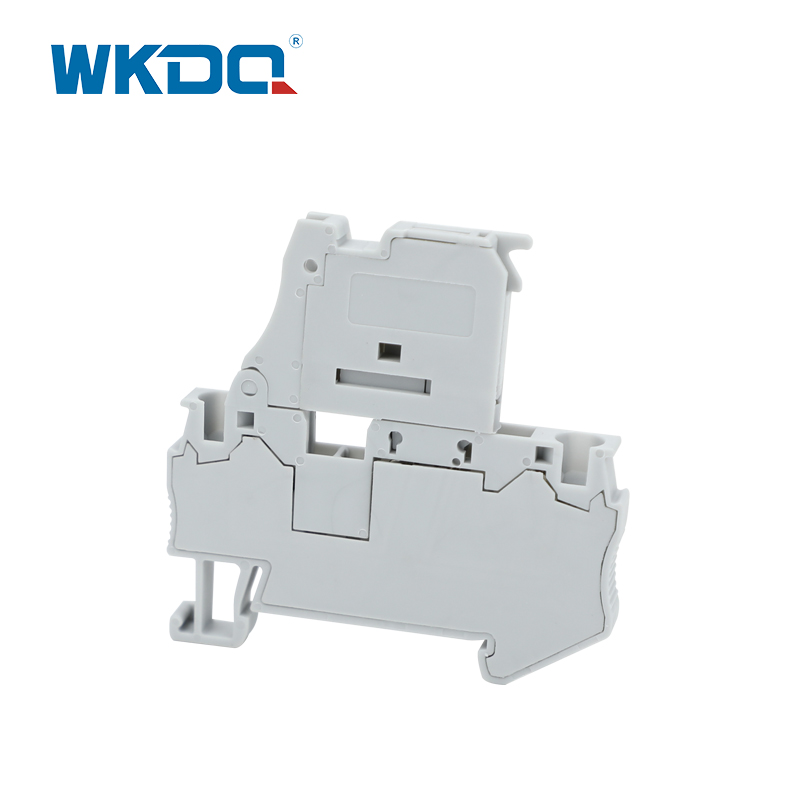

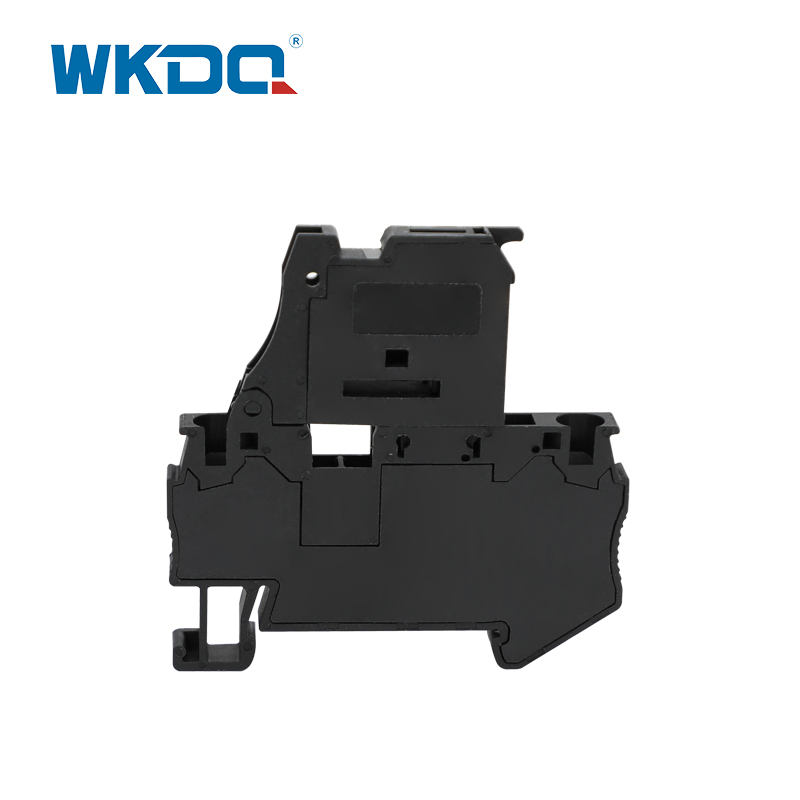

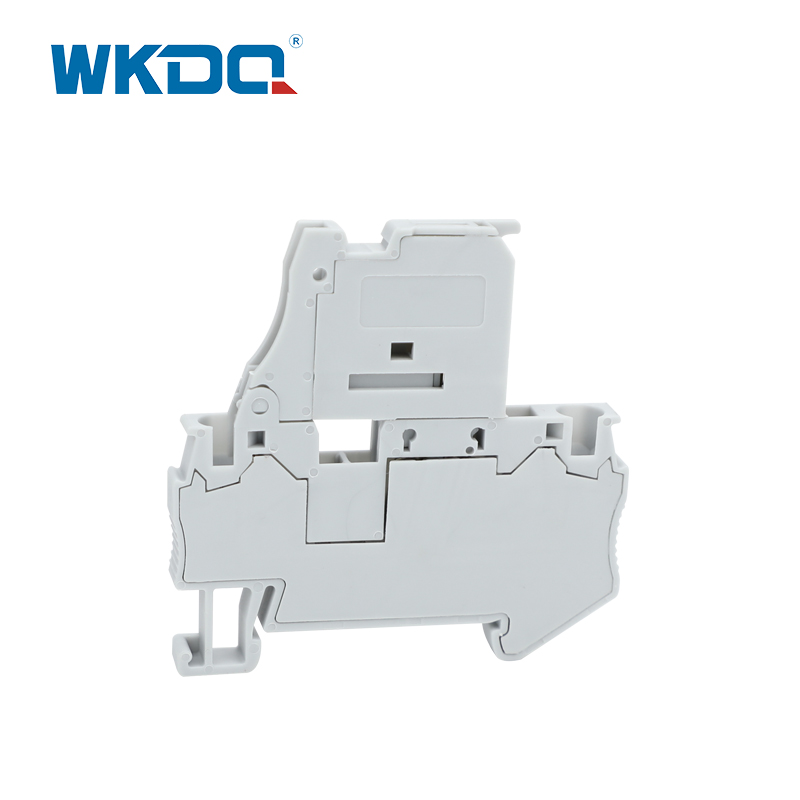

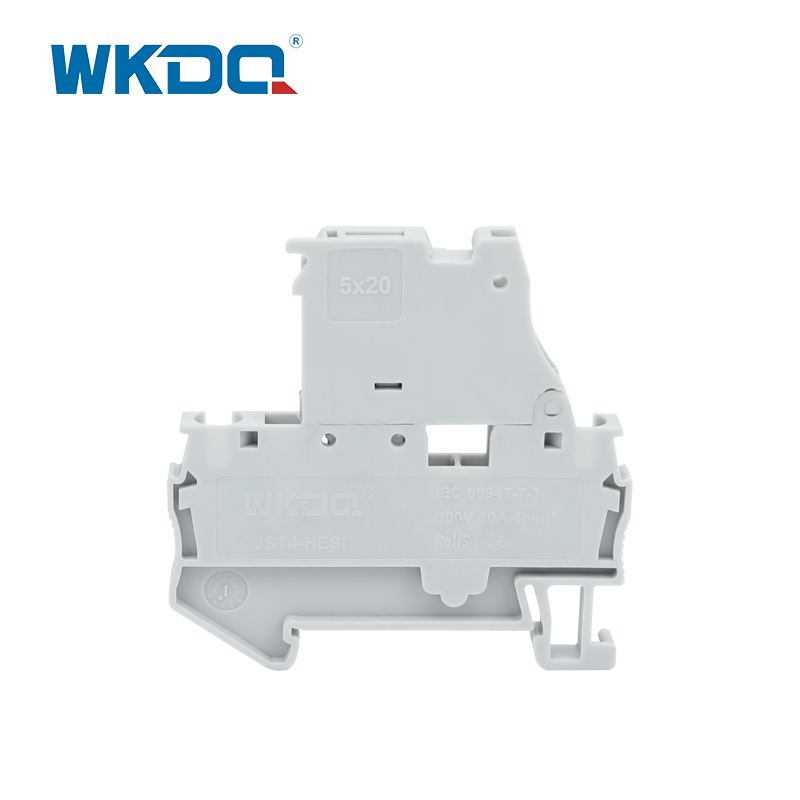

Wire Connector With Fuse Terminals
Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 1.5
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etcSend Inquiry
分享FacebookTwitterPinterestLinkedIn
Model:JST 1.5
Send Inquiry
Product Description
-
Our Terminals offer quick NS32/NS35 rail installation with anti-drop bolt design, dual electric potential distribution (central/side adaptors), and PA66 engineering plastic shells for durability and insulation. Modular auxiliaries simplify multi-section setups, while white markings ensure clear ID. Built to last 15 years with ±5mm precision, they support OEM customization for tailored, reliable electrical solutions.
| Part No. | JST 1.5 |
| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 49/36/4.2 |
| Connection method | Spring connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 500V/17.5A |
| Cross section, solid/soft Cable | 0.14-1.5 mm² / 0.14-1.5 mm² |
| Conductor Size | 26-16 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 4.67g/pc, 100PCS/BOX,4200PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
Hot Tags: Wire Connector With Fuse Terminals, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
