Screwless Terminal Block
Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 16
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: CE/RoHS/CQC/ISO 9001
Model:JST16
Send Inquiry
Product Description

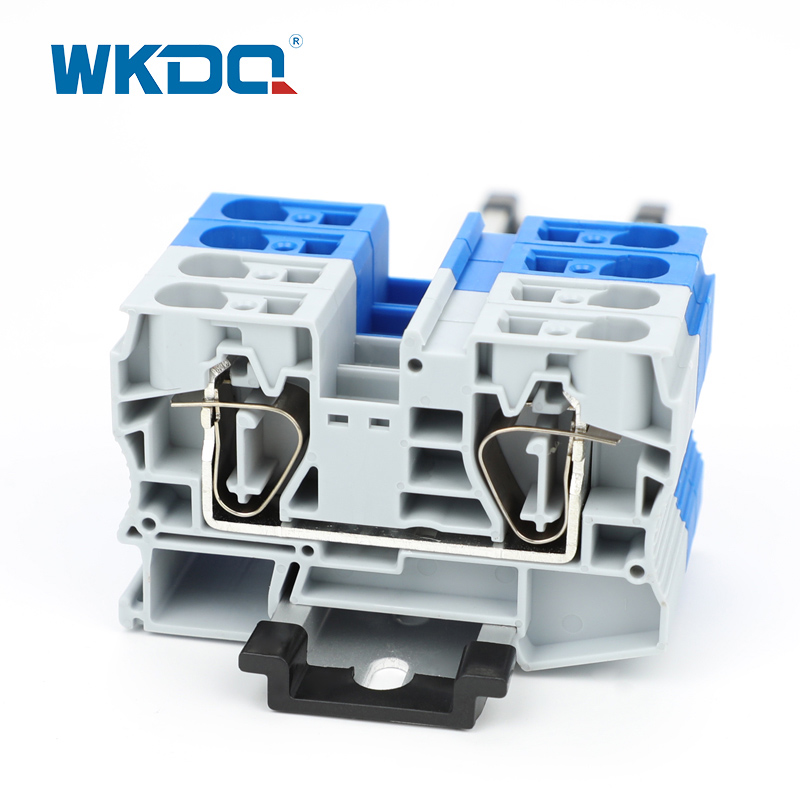

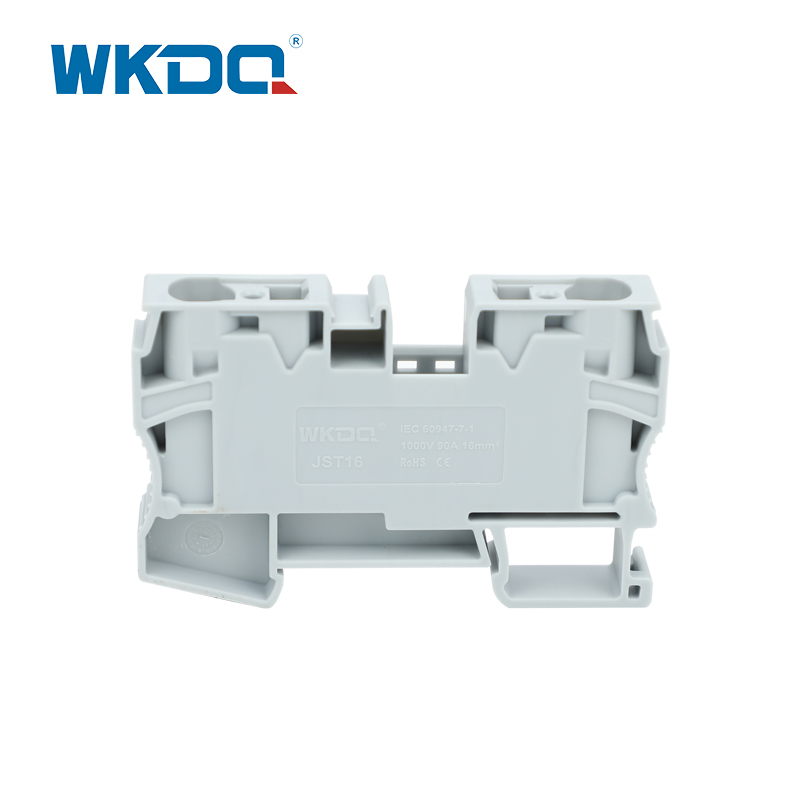

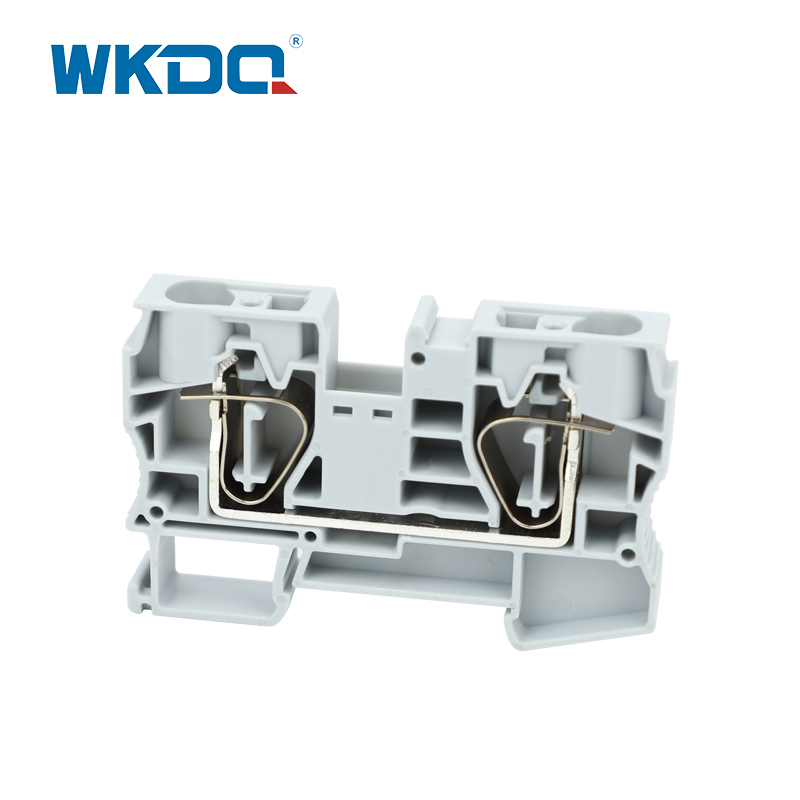

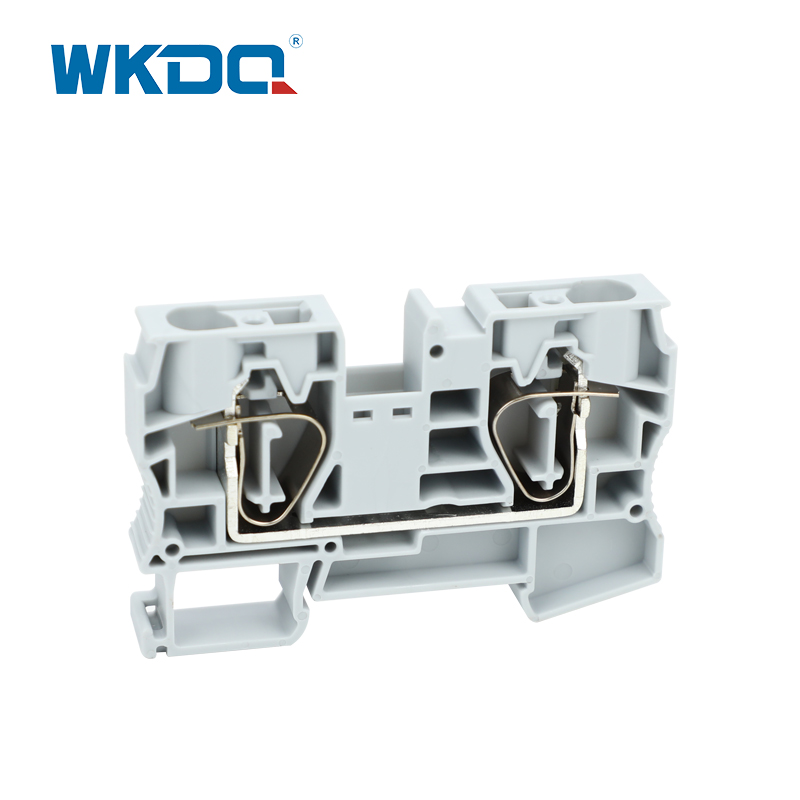

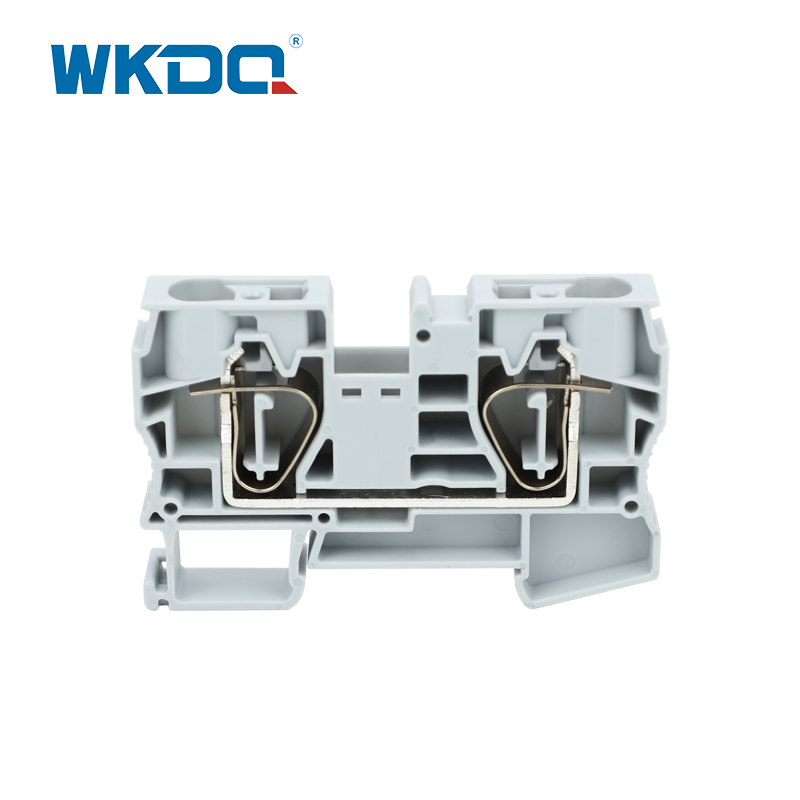

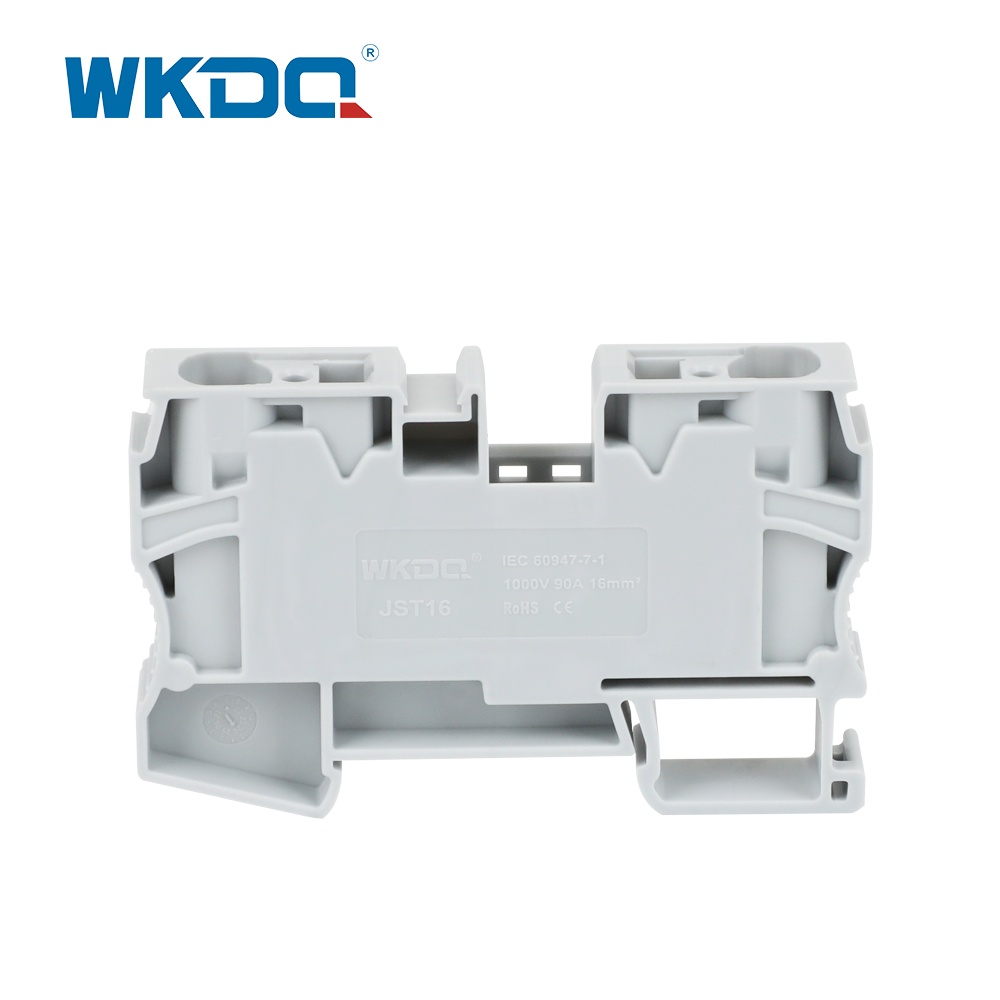

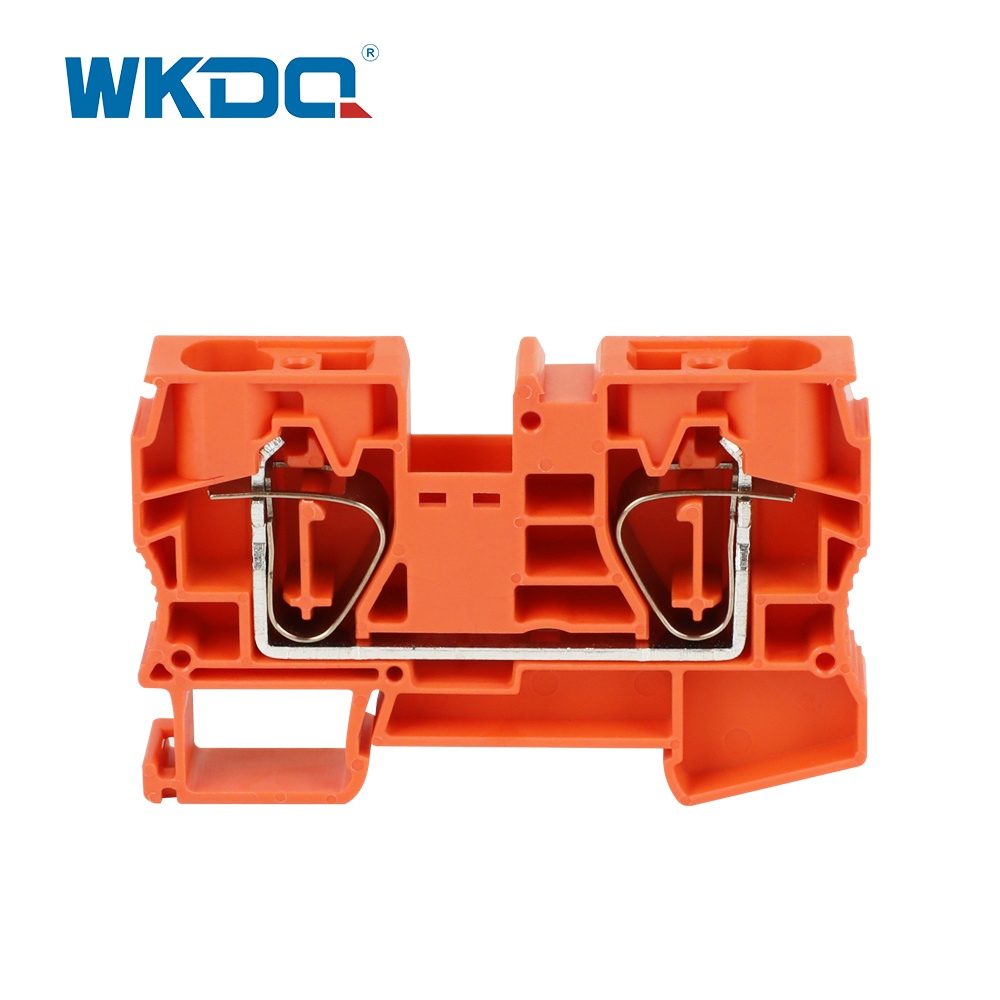

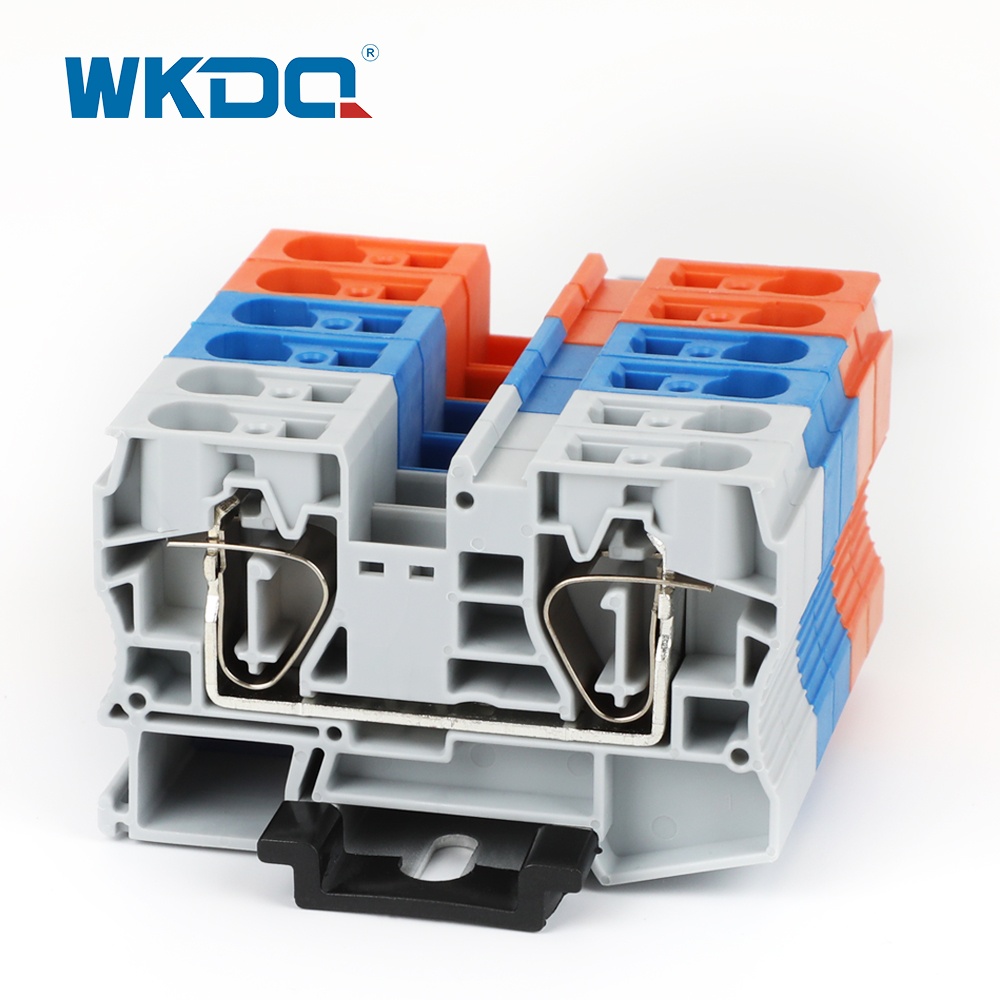

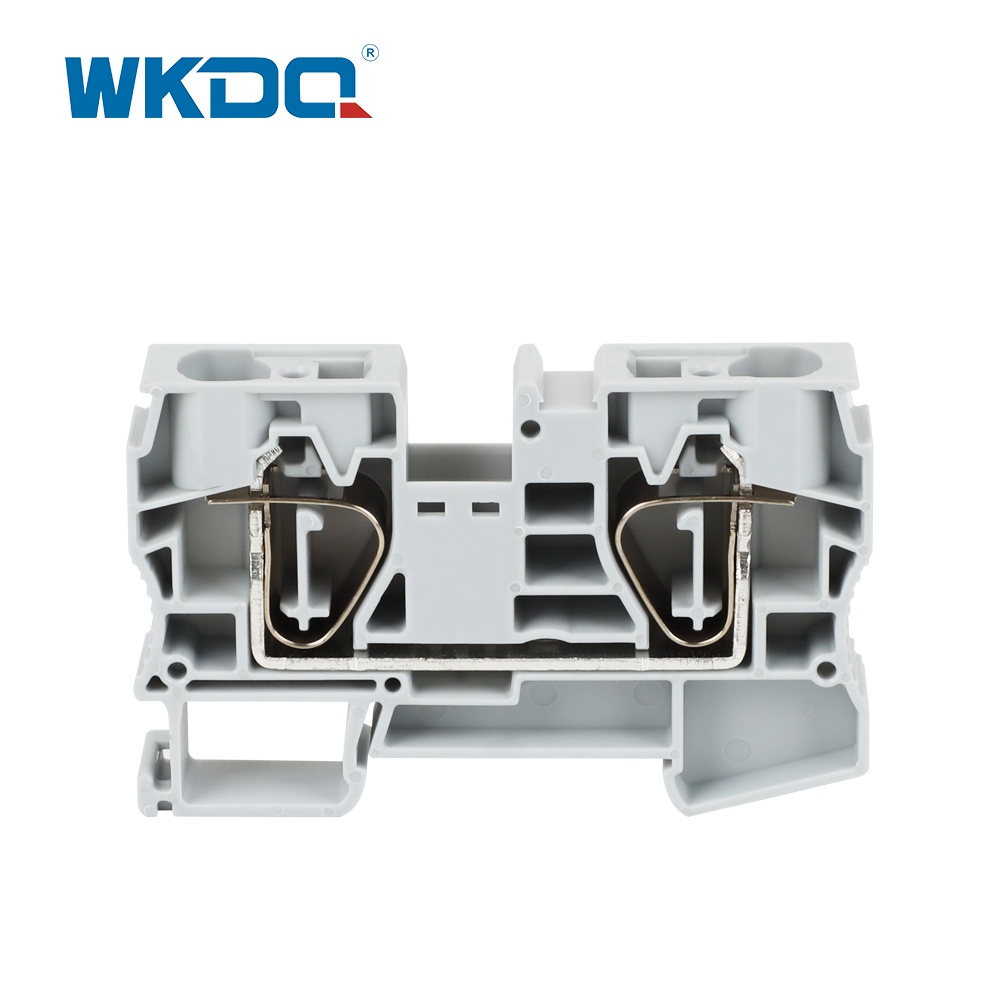

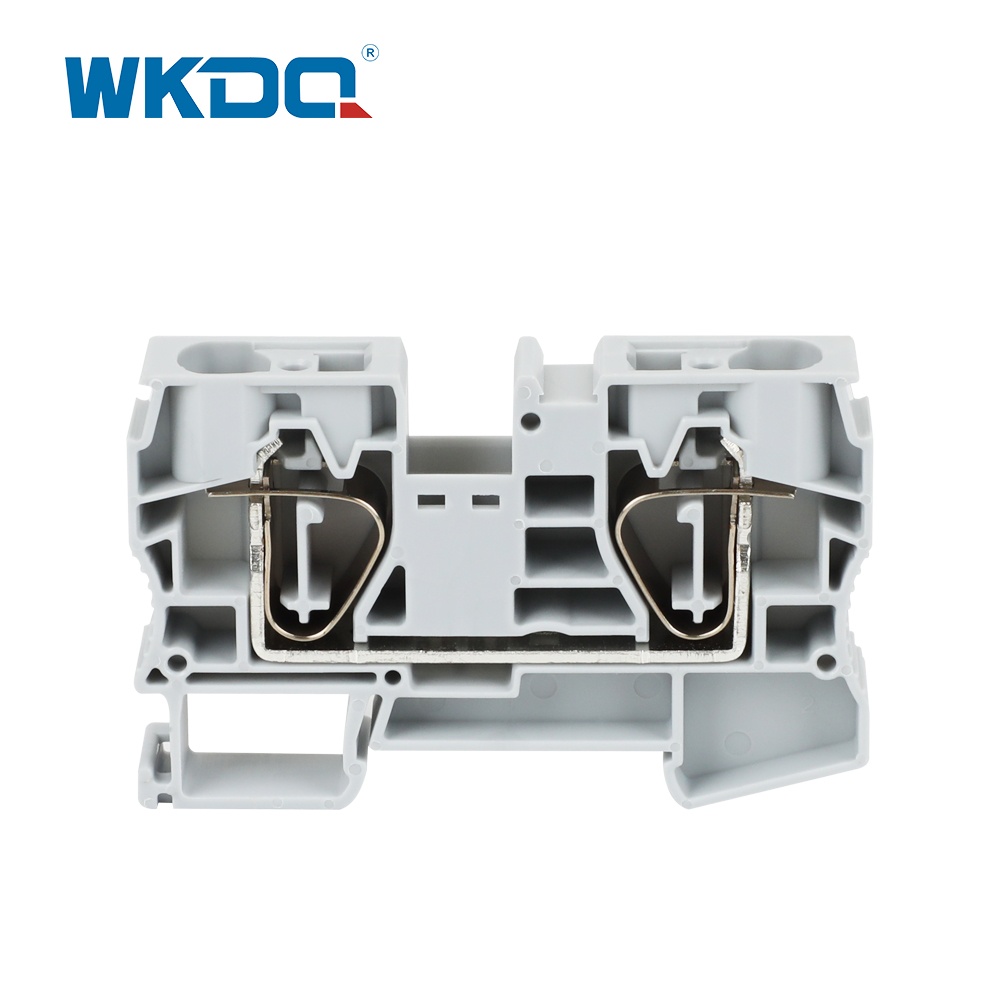

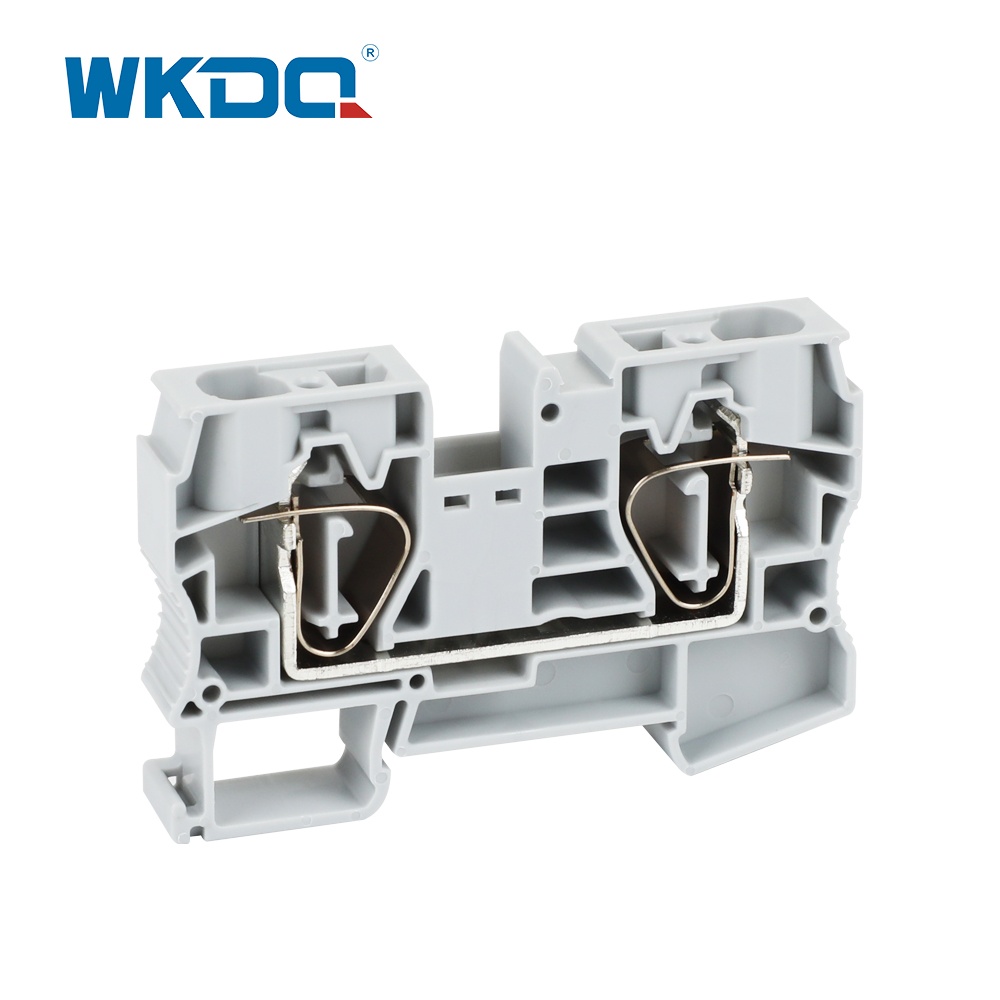

WonkeDQ spring cage terminal blocks offer highly efficient wiring without screws and save 15% space when installed at the front end. The flame-retardant PA66+ stainless steel spring/nickel-plated strip material ensures airtight, low resistance and anti-corrosion connection. Compatible with DIN rails, quick assembly parts and durable design simplify installation and meet high reliability requirements.
| Model Number | JST 16 |

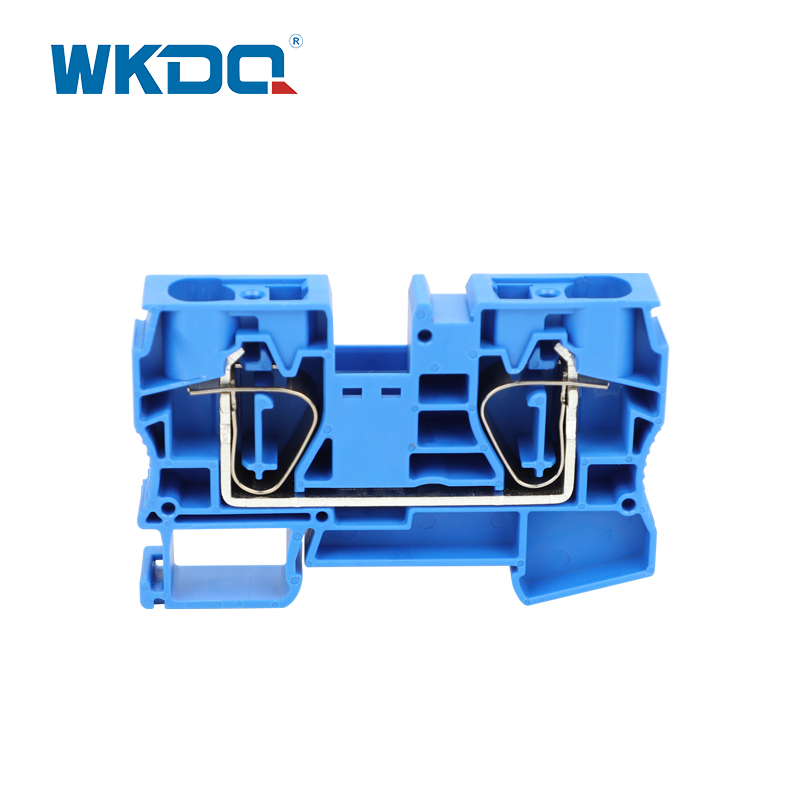

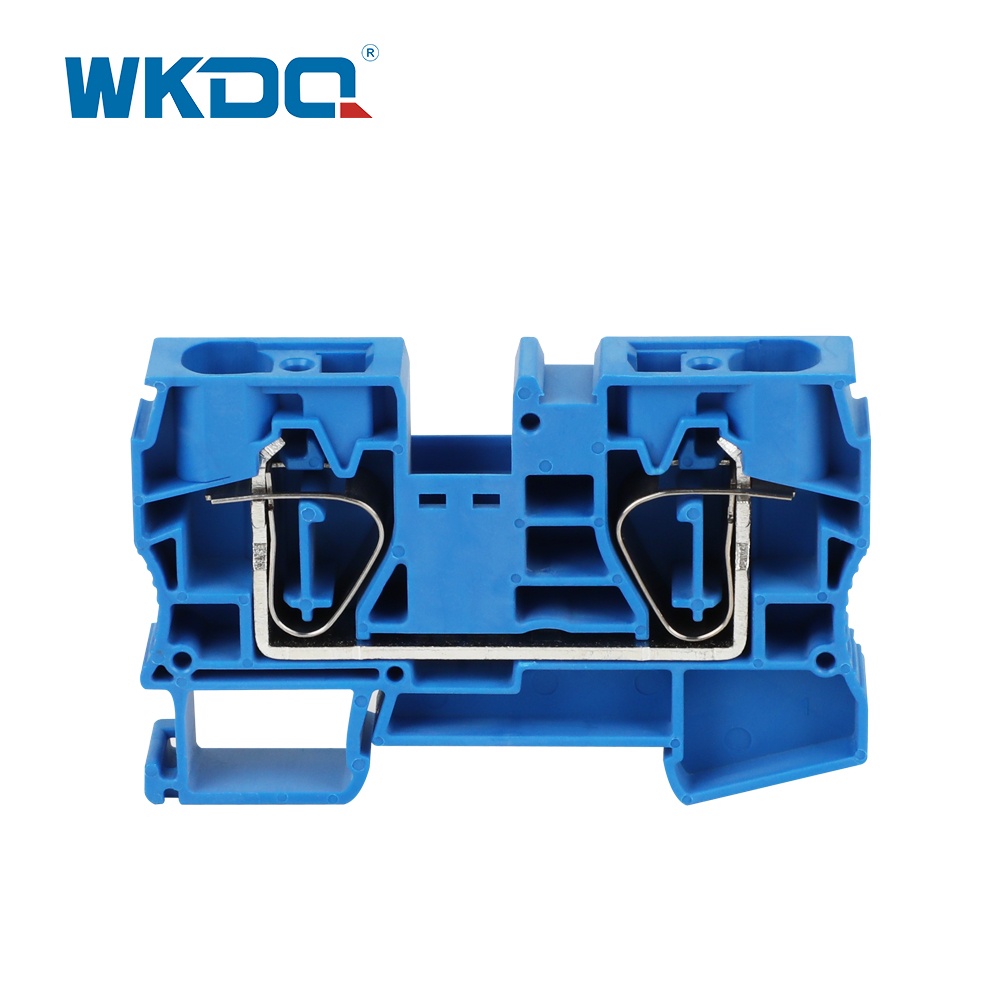

| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | L80.2/H51/W12.2 mm |
| Connection method | Spring-cage connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 1000V 90A |
| Cross section, solid/soft Cable | 0.2-25mm²/0.2-16mm² |
| Conductor Size | 16-6 AWG |
| Mounting Type | NS 35/7.5 |
| International Standard | IEC 60947-7-1 |
| Brand | Customized logo are supported |
| Packing method | 26g/pc, 40PCS/BOX, 800PCS/CTN |
| Certificates | CE/RoHS/CQC/ISO 9001 |
Hot Tags: JST16 Screwless terminal block, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
