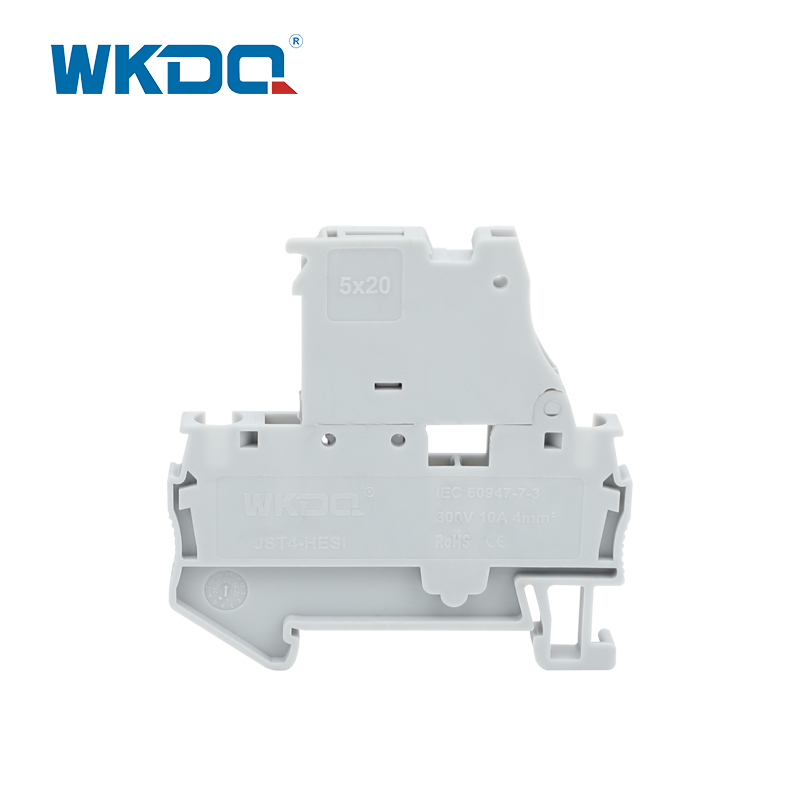

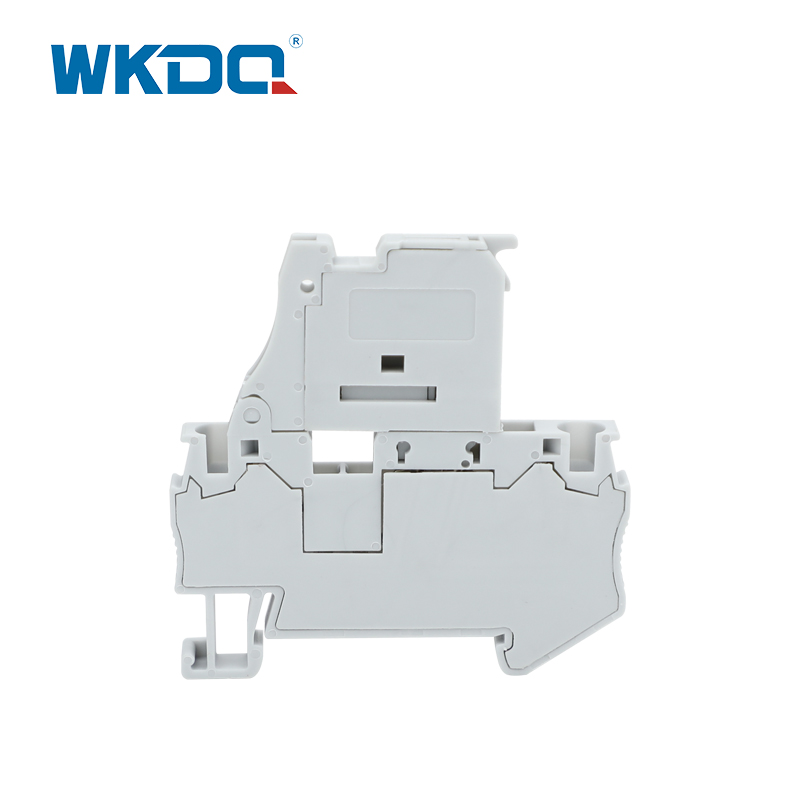

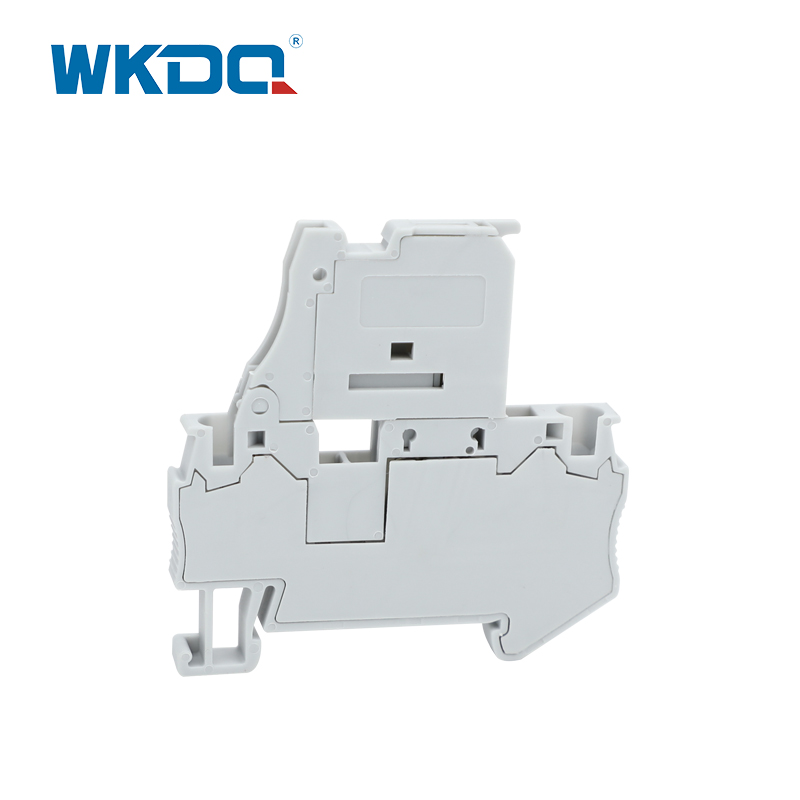

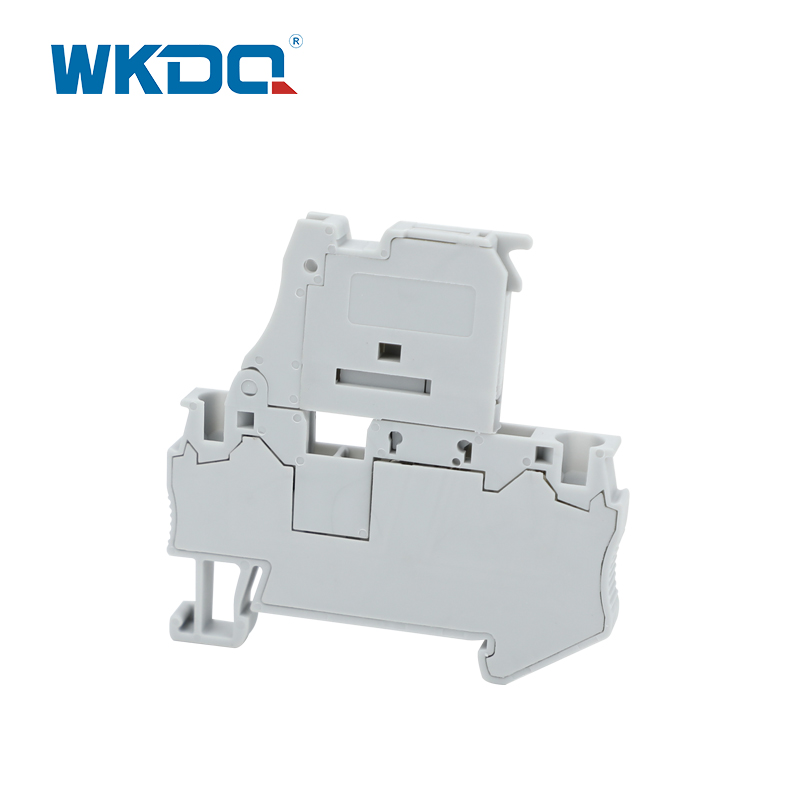

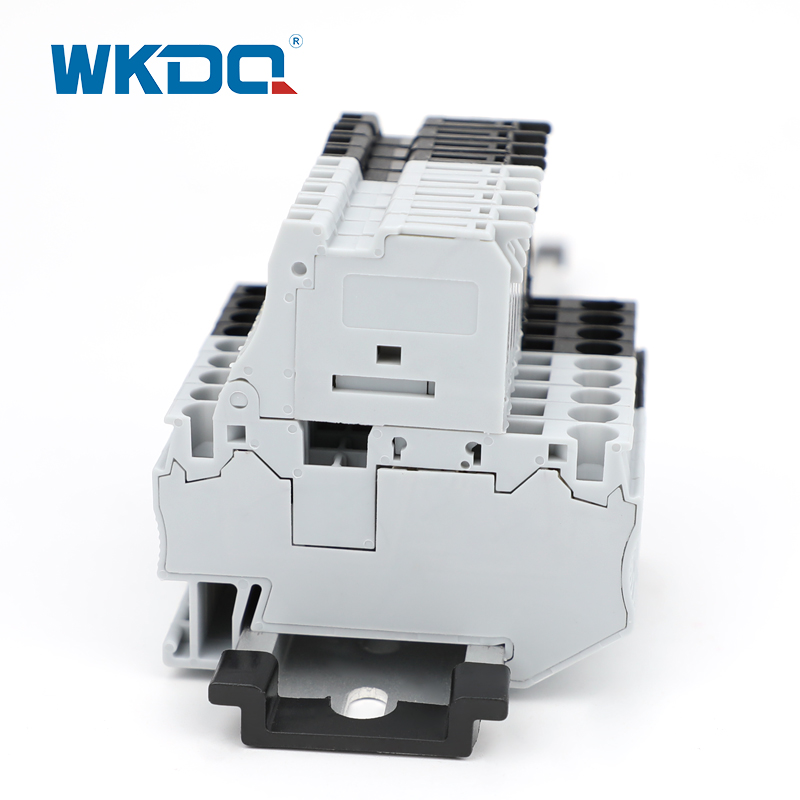

Fuse Spring Terminal Block
  • Fuse Spring Terminal BlockFuse Spring Terminal Block
  • Fuse Spring Terminal BlockFuse Spring Terminal Block
  • Fuse Spring Terminal BlockFuse Spring Terminal Block
  • Fuse Spring Terminal BlockFuse Spring Terminal Block
  • Fuse Spring Terminal BlockFuse Spring Terminal Block
  • Fuse Spring Terminal BlockFuse Spring Terminal Block

Fuse Spring Terminal Block

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JST4-HESI
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST4-HESI

Send Inquiry

Product Description
        Wonke Spring-Type Fuse Terminal Blocks enable safe, tool-free fuse insertion/extraction with faster wiring than traditional screw-type blocks, paired with space-saving design and low-resistance connections for reliability. Constructed from flame-retardant PA66 and copper, they feature hinged-arm over-current protection and DIN rail mounting for quick installation. Customizable with end covers, partitions, and bridges, these blocks ensure durable, efficient electrical protection across diverse industrial applications.
Model No. JST4-HESI Fuse terminal block

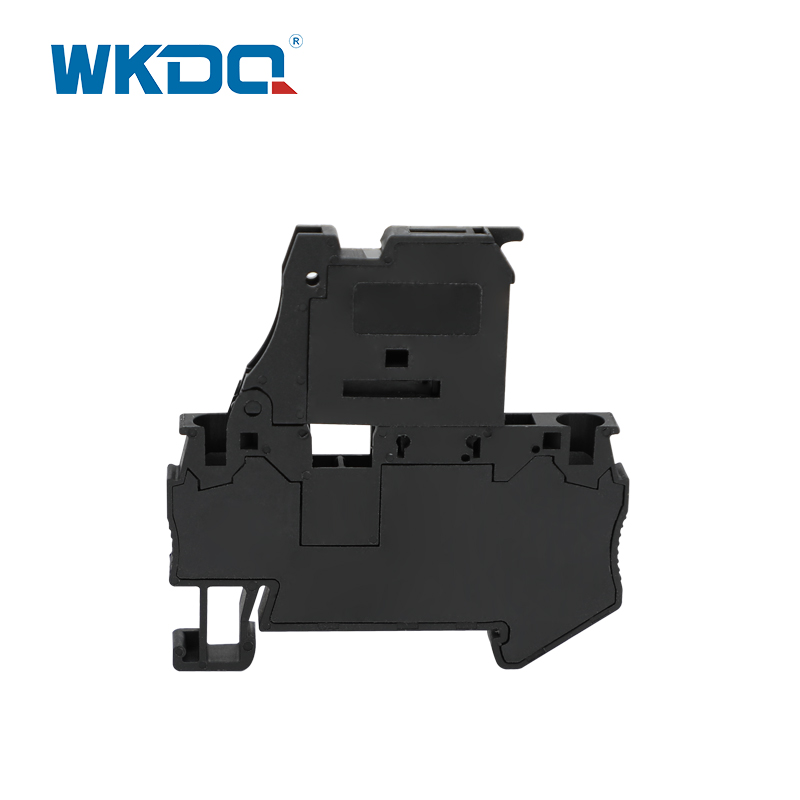

Color Black, Gray.
Length/Height/Wide (mm) 62.5 / 35.6 / 6.2 mm
Connection method Spring cage connection
Material Nylon PA66
Rated Voltage/Current 300V / 10A
Cross section, solid/soft Cable 0.08-4 mm² / 0.08-4 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized LOGO can be made.
Packing Detail 17.35g/pc, 50PCS/BOX,1000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001

Hot Tags: JST4-HESI Fuse Spring Terminal Block, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
