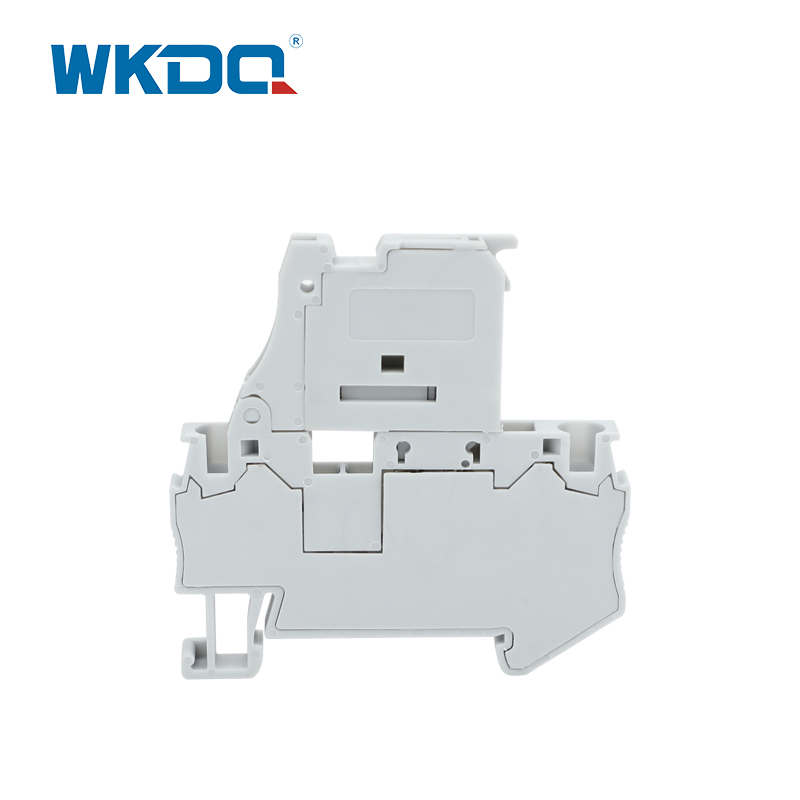

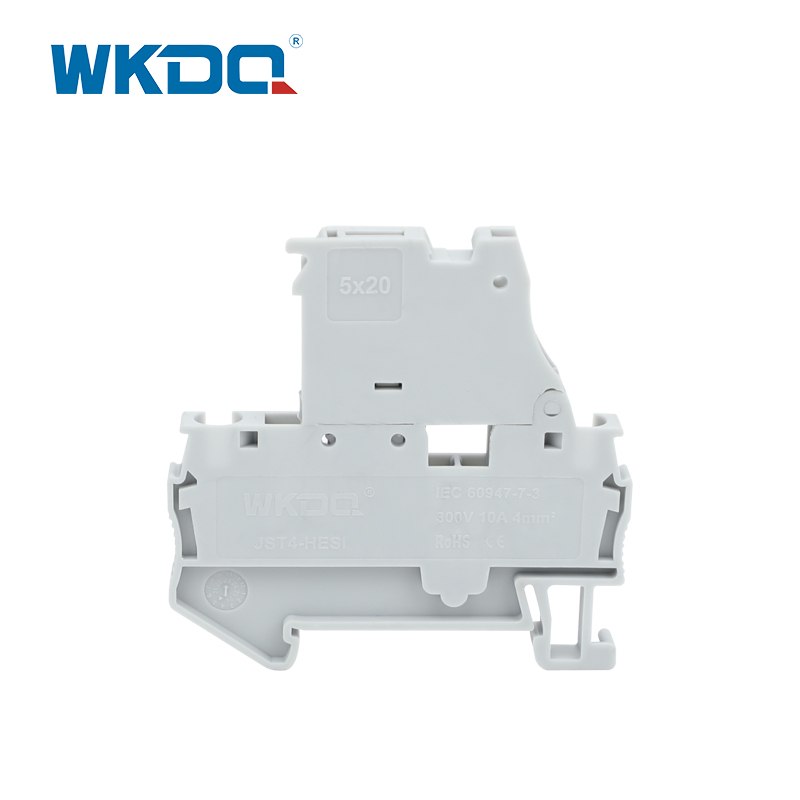

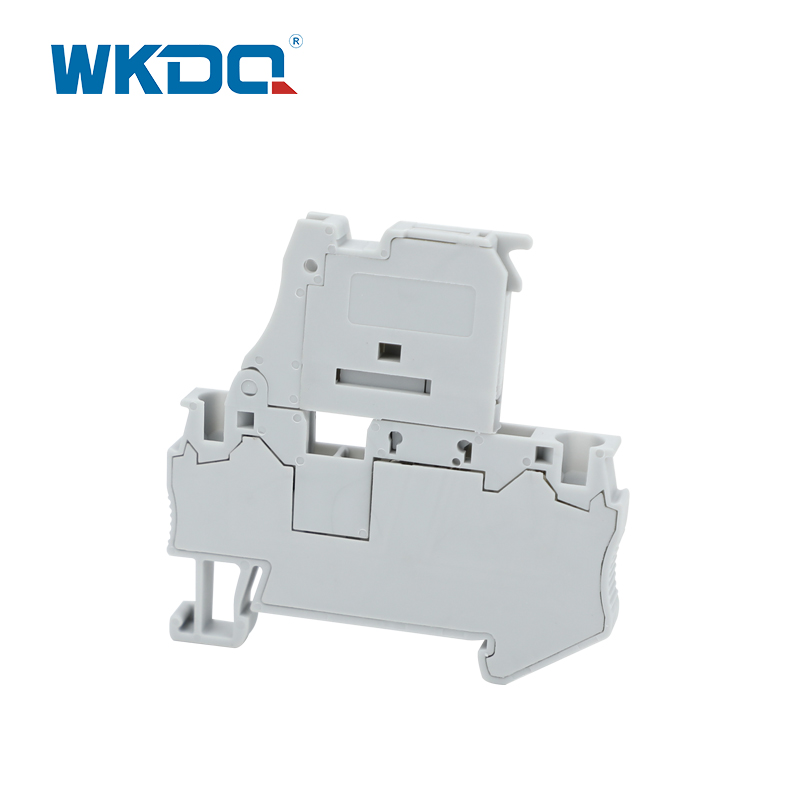

Fuse Led Terminal Block

Introducing the Wonke Spring cage fuse terminal block, featuring a built-in 24VDC or 220VAC LED indicator for a safe and convenient fuse insertion and extraction process. This innovative design offers a faster and easier wire connection method compared to traditional screw-type fuse terminal blocks, saving valuable time during installation.

Designed with a space-saving mindset, our terminal block is the perfect solution for applications where space is limited. Despite its compact size, it ensures stable and low contact resistances, providing reliable electrical connections for your peace of mind.

Installation and maintenance are a breeze with our terminal block, thanks to its easy mounting and dismounting capabilities from the terminal rail. This user-friendly feature simplifies both initial setup and subsequent maintenance procedures.

Specifically engineered for electrical machine control systems, our terminal block offers a reliable solution for fuse protection. Crafted from high-quality inflaming retarding PA 66 material with copper metal, it prioritizes durability and safety in even the most demanding environments. The inclusion of hinged-arm fuse blocks further enhances over-current protection, safeguarding your equipment.

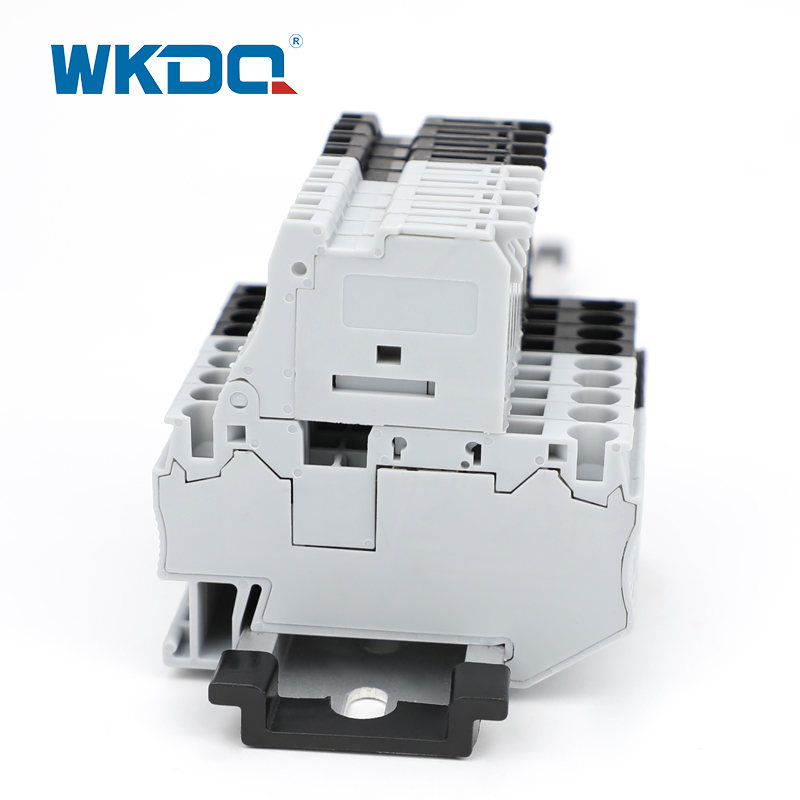

Installation is made quick and convenient as our terminal blocks can be mounted directly on DIN rail, ensuring a seamless integration process.

To complement our terminal blocks, we provide a wide range of accessories including end covers, end stoppers, partition plates, marker strips, fixed bridges, separating plates, and more. These accessories allow for customization, catering to diverse application requirements.

Experience the advantages of the Wonke Spring cage fuse terminal block, offering a safe and convenient fuse handling experience, time-saving wire connections, space efficiency, reliable electrical connections, and compatibility with DIN rail. With its high-quality construction and a wide array of accessories, it provides an optimal solution for various electrical systems.

Model No.	JST4-HESILED Fuse terminal block with led

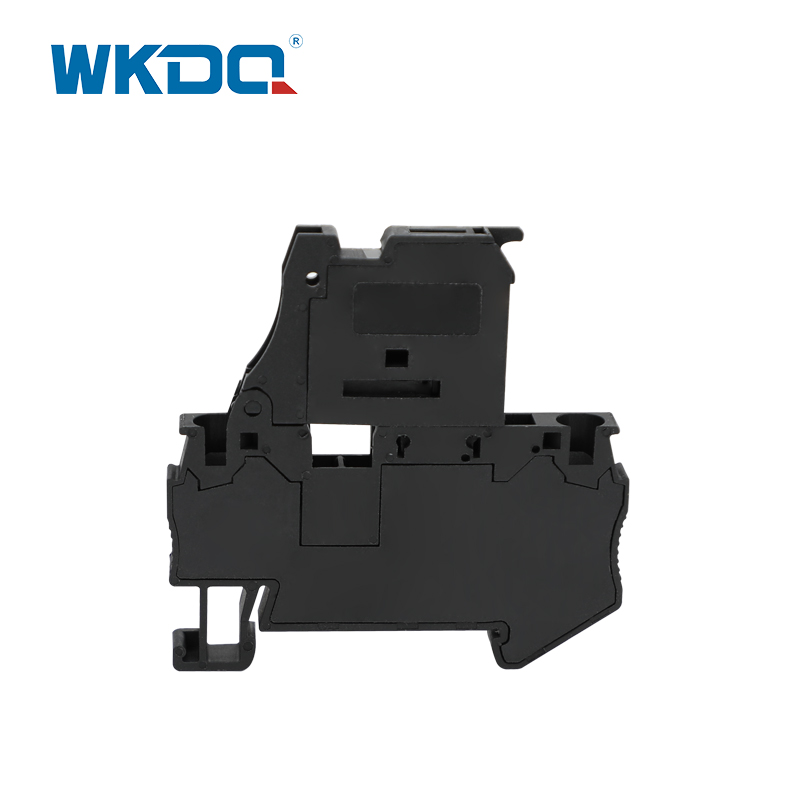

Color	Black, Gray.
Length/Height/Wide (mm)	62.5 / 35.6 / 6.2 mm
Connection method	Spring cage connection
Material	Nylon PA66
Rated Voltage/Current	300V / 10A
Cross section, solid/soft Cable	0.08-4 mm² / 0.08-4 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized LOGO can be made.
Packing Detail	17.35g/pc, 50PCS/BOX,1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
