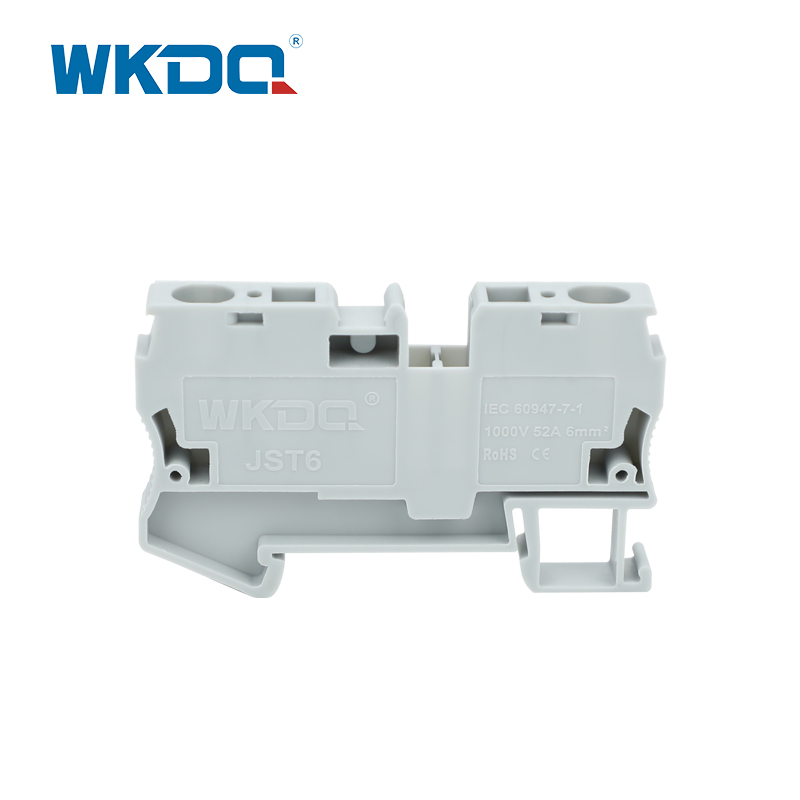

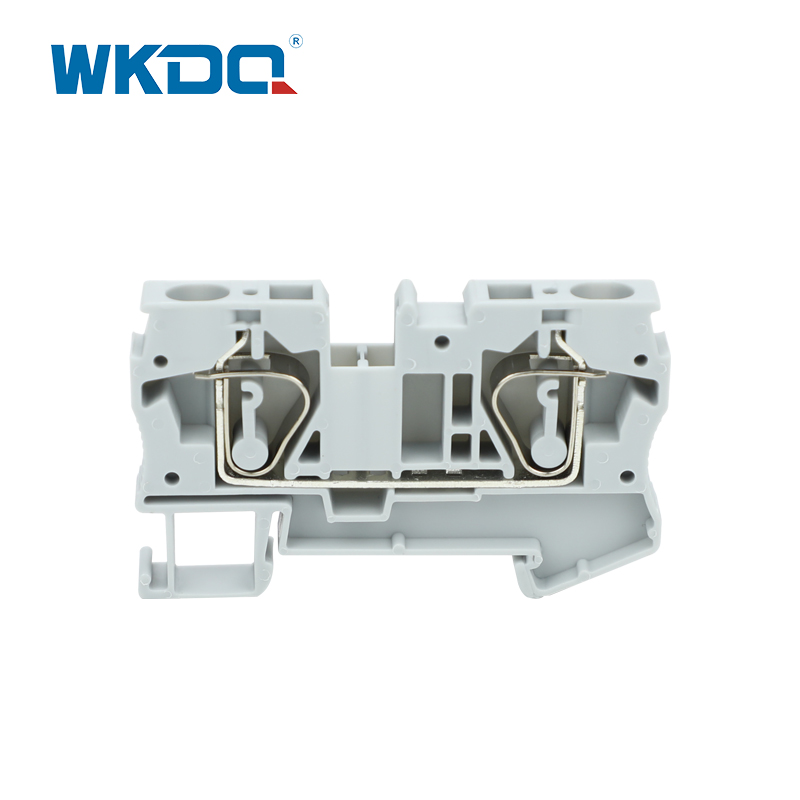

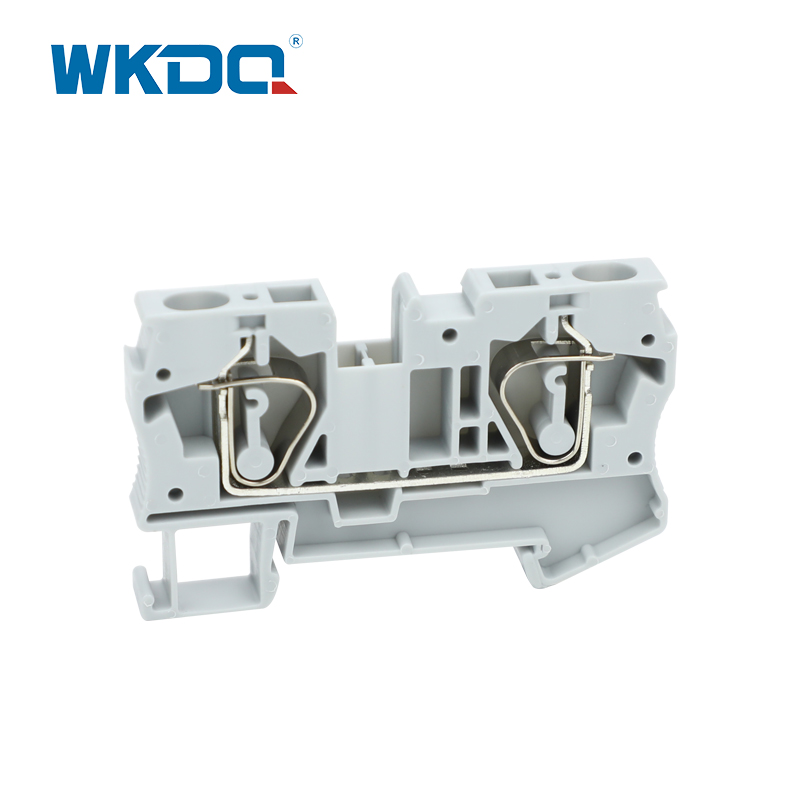

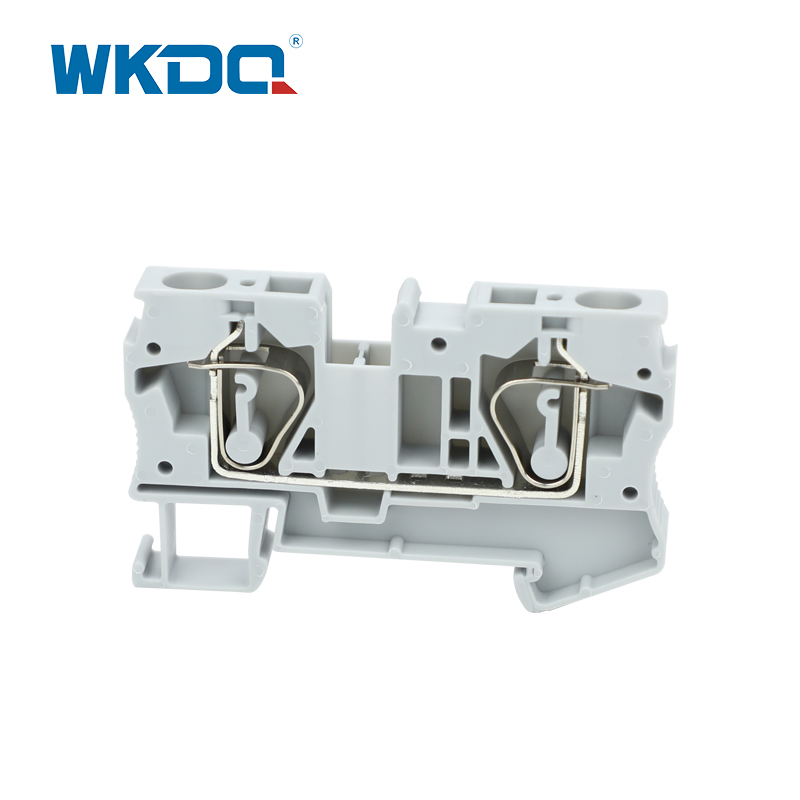

Spring Cage Terminals Blocks

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 6
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 6

Send Inquiry

Product Description

WonkeDQ terminal blocks offer a variety of industrial-grade connection solutions (screw/spring/push-in type), featuring shock resistance, airtightness, flame retardancy, corrosion resistance, and compatibility with DIN rail installation. Compact design saves space. It supports color customization and bridging functions. High-quality materials ensure durability and reliability, simplifying complex wiring requirements.

Part NO.	JST 6

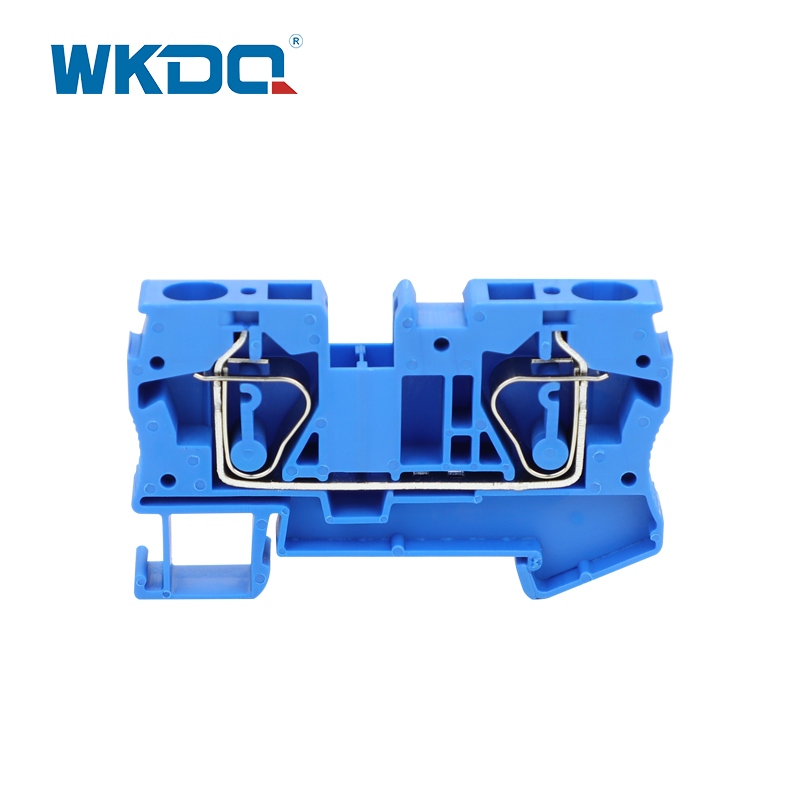

Color	Grey, Blue, other color can be customized
L/H/W	70/43/8.2
Connecting	Spring cage connection
Material	Anti flaming plastic
Voltage/Current	800V/57A
Cross section, solid/stranded Cable	0.5-10mm² / 0.5-6 mm²
Conductor Size	20-8 AWG

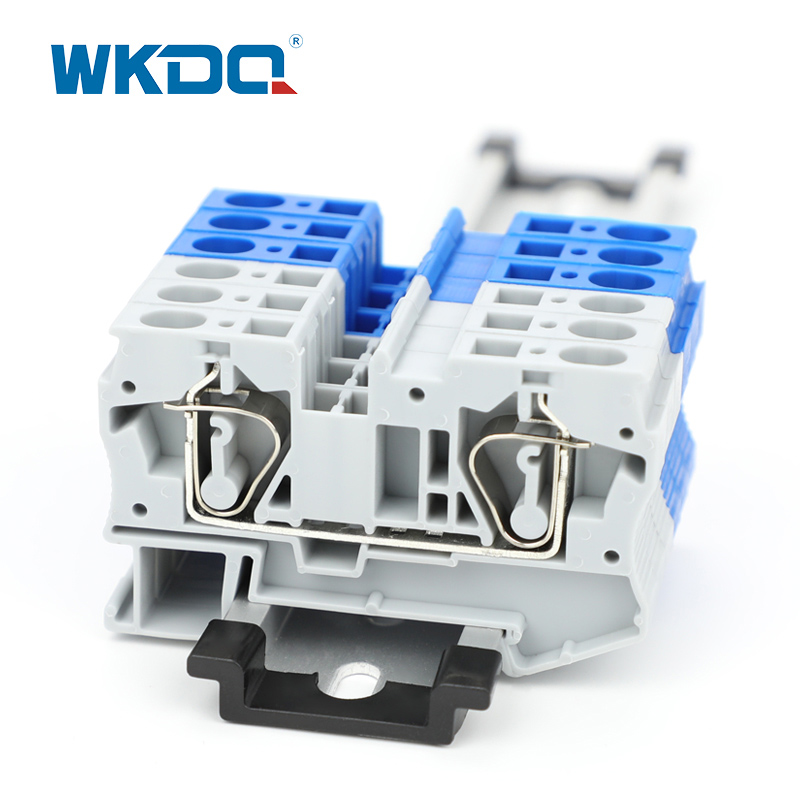

Mounting	NS 35/7.5
Standard	IEC 60947-7-1
Brand	WonkeDQ
Packing Detail	16.87g/pc, 50PCS/BOX,1000PCS/CTN
Certificates	CE/RoHS/CQC/ISO 9001
