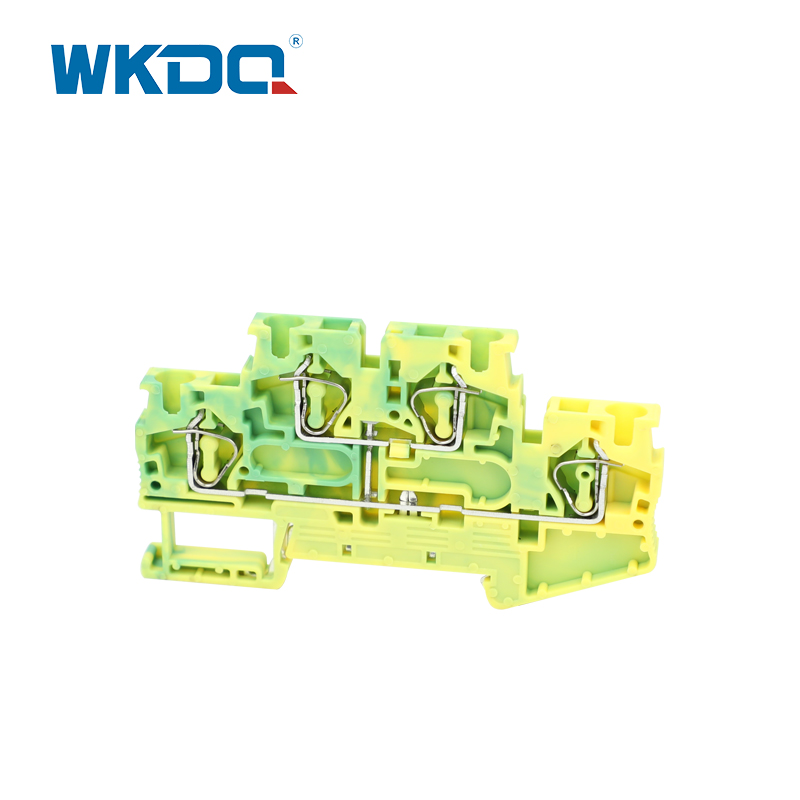

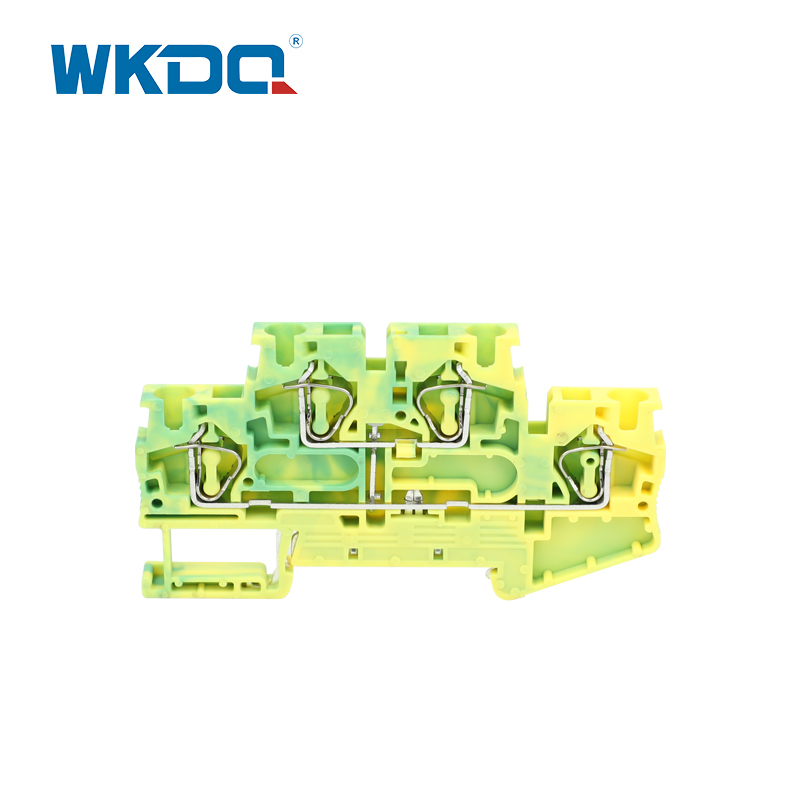

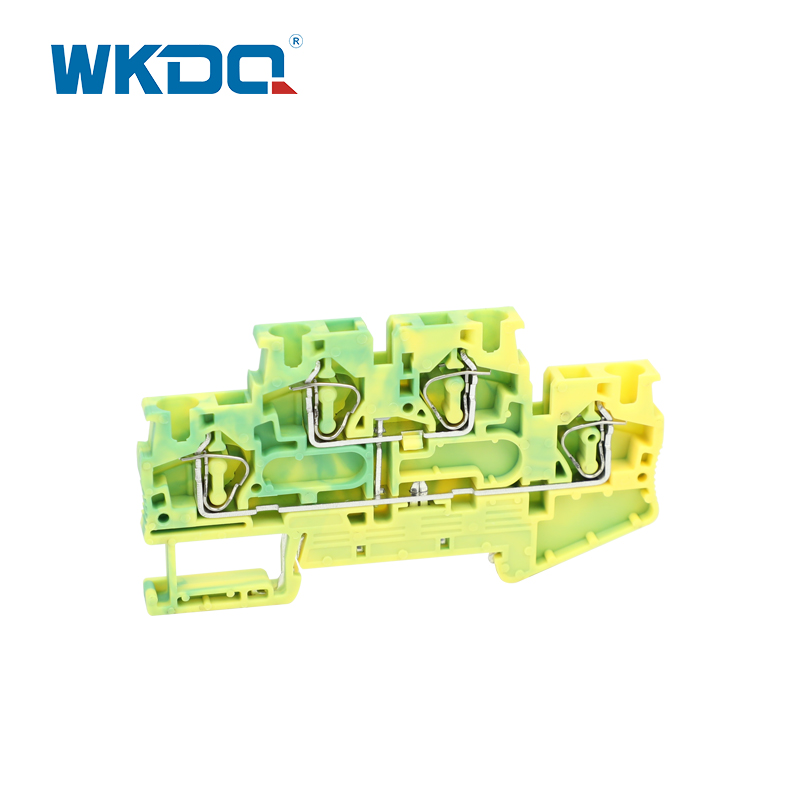

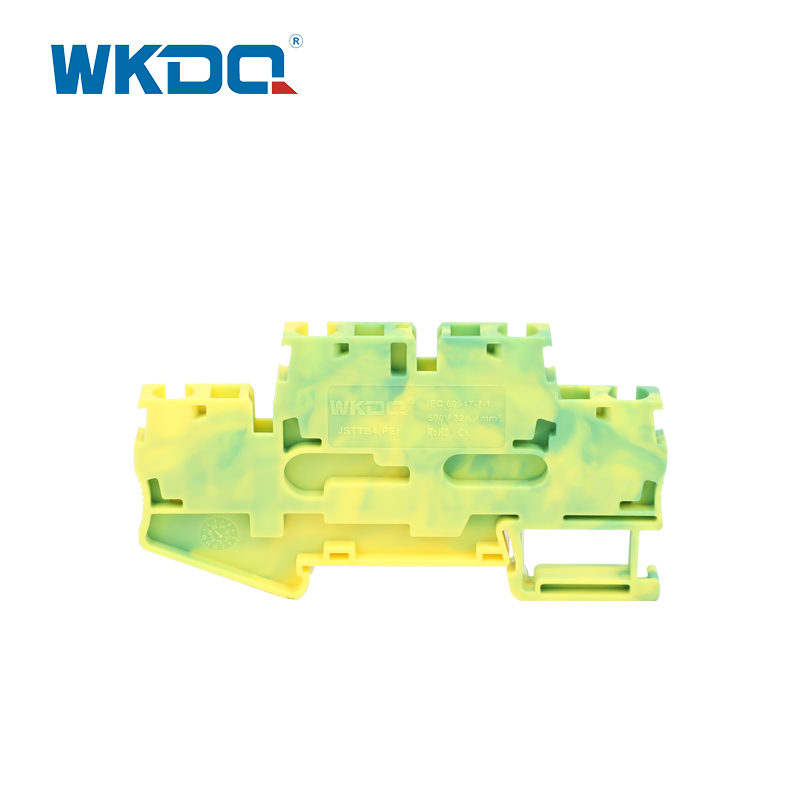

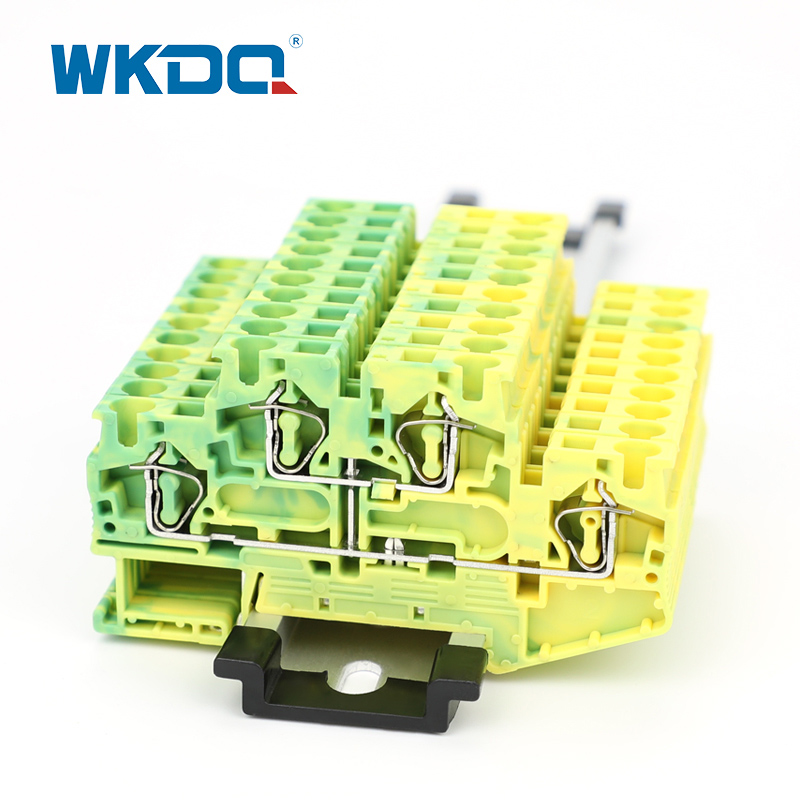

2 Level Ground Terminal Block

Introducing our 2-Level Multi-Conductor Spring Cage Ground Terminal Block, designed to provide easy operation and reliable grounding connections. With its compact front connection design, accessing the terminal block is convenient, and the terminal point can be easily opened using a standard screwdriver. Once the conductor is inserted into the clamping space, the screwdriver is removed, and the conductor automatically makes a secure contact.

Key features of our ground terminal block include:

Easy operation for hassle-free installation and maintenance.
Safe and reliable connection with a corrosion-proof contact point, ensuring long-term reliability.
Constructed from high-quality anti-flame plastic, guaranteeing safety and durability.
Space-saving design and optimized wiring scheme, maximizing efficiency in compact spaces.
All materials used in construction are of guaranteed quality, ensuring robustness and performance.
Perfectly suitable for electrical machine control systems, providing reliable grounding solutions.
Constructed from engineering flame-retardant nylon PA66 with brass metal, ensuring excellent conductivity and durability.
Equipped with a universal foot for easy installation on Din Rail NS 35.
Capable of effortlessly connecting two conductors, accommodating even large conductor cross-sections.
Electric potential distribution can be achieved using fixed bridges in the terminal center.
OEM service is supported, offering customized solutions to meet specific requirements.
Choose our 2-Level Multi-Conductor Spring Cage Ground Terminal Block for easy and reliable grounding connections. With its user-friendly operation, corrosion-proof contact point, and durable construction, it provides a dependable solution for your grounding needs in electrical installations.

Model Number	JSTTB 4-PE
Color	Yellow-Green
Length/Height/Wide (mm)	86.5/46/6.2
Connection method	Spring Cage connection
Material	Nylon PA66
Rated Voltage/Current	500V/32A
Cross section, solid/soft Cable	0.5-6mm² / 0.5-4 mm²
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	13g/pc,
Certification	CE/RoHS/CQC/ISO 9001
