2 Level Terminal Block

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSTTB 4-PV
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JSTTB 4-PV

Send Inquiry

Product Description

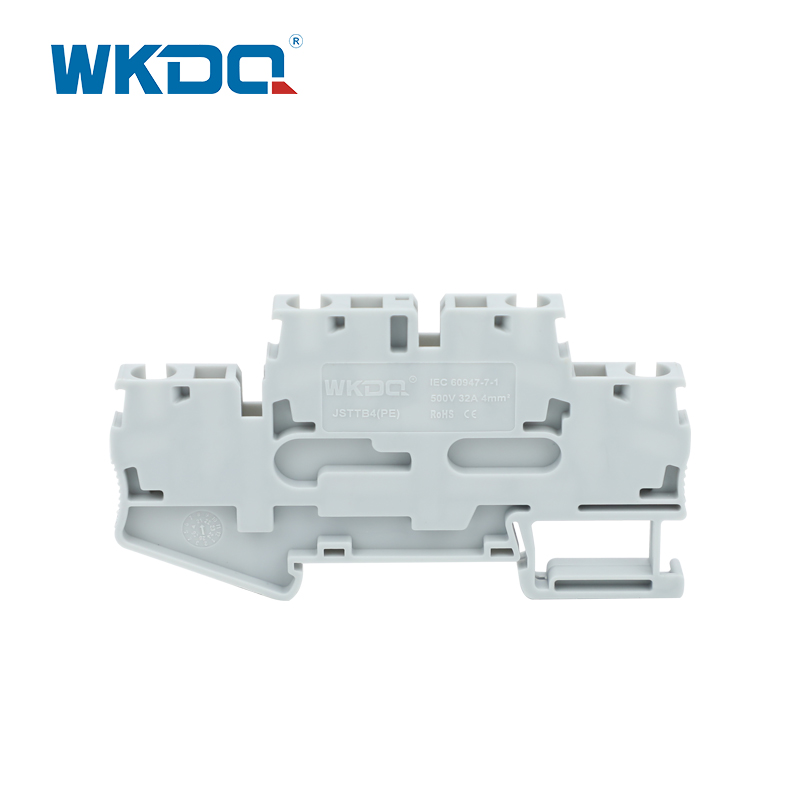

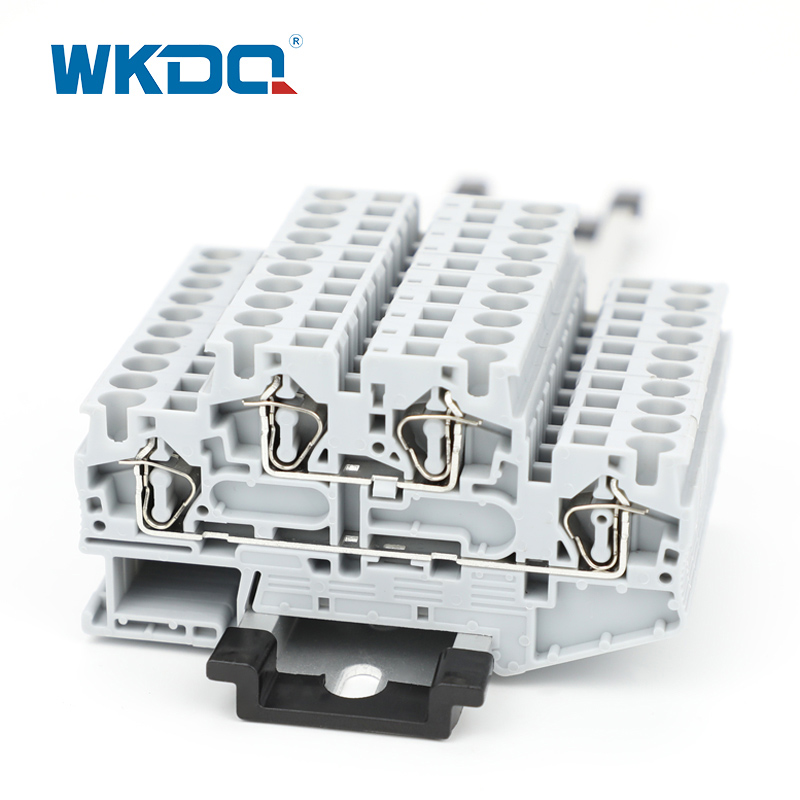

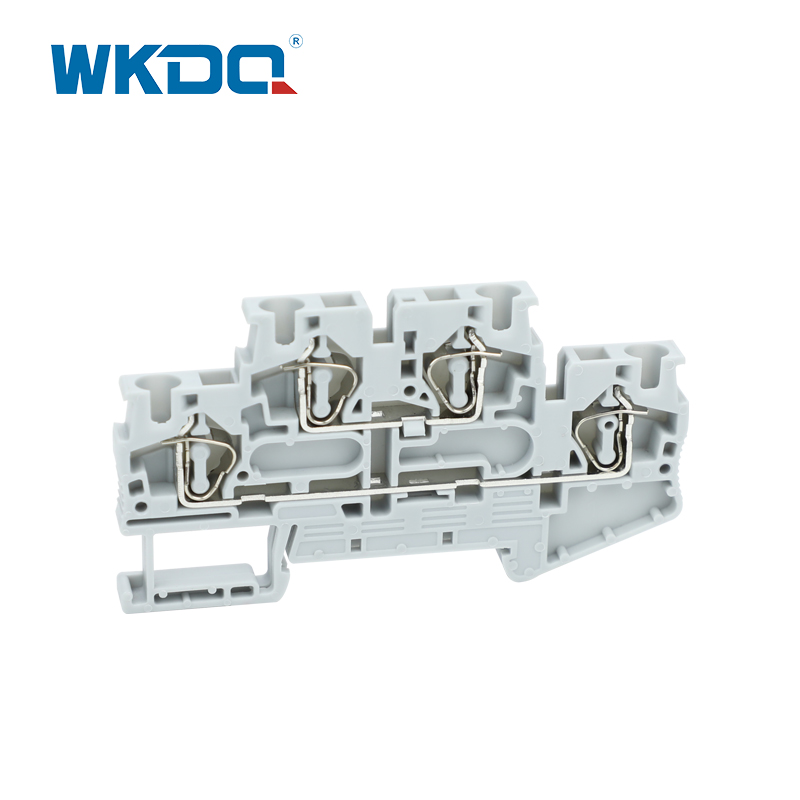

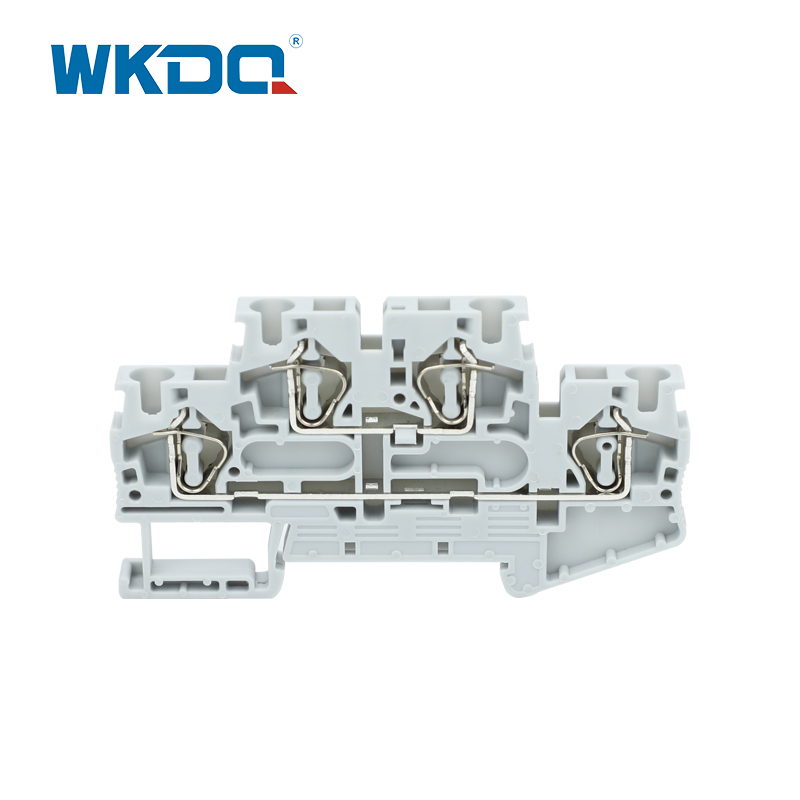

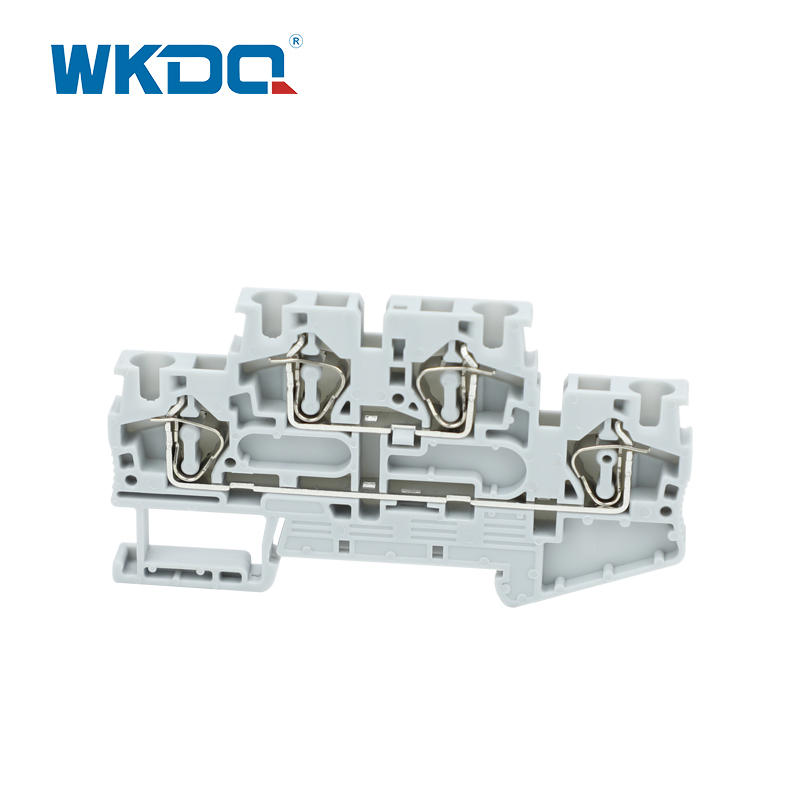

Our Double Level Multi-Conductor Feed-through Terminal Blocks feature spring-loaded contacts for secure, vibration-proof, and gas-tight connections with high-contact force. Constructed from flame-retardant PA66 nylon and brass, they offer corrosion resistance, space-saving design, and easy DIN Rail NS 35 installation. Supporting dual conductors and large cross-sections, they include built-in potential distribution bridges and universal feet for quick setup. Engineered for electrical control systems, these blocks provide durable, OEM-customizable solutions for diverse applications.

Model Number	JSTTB 4-PV

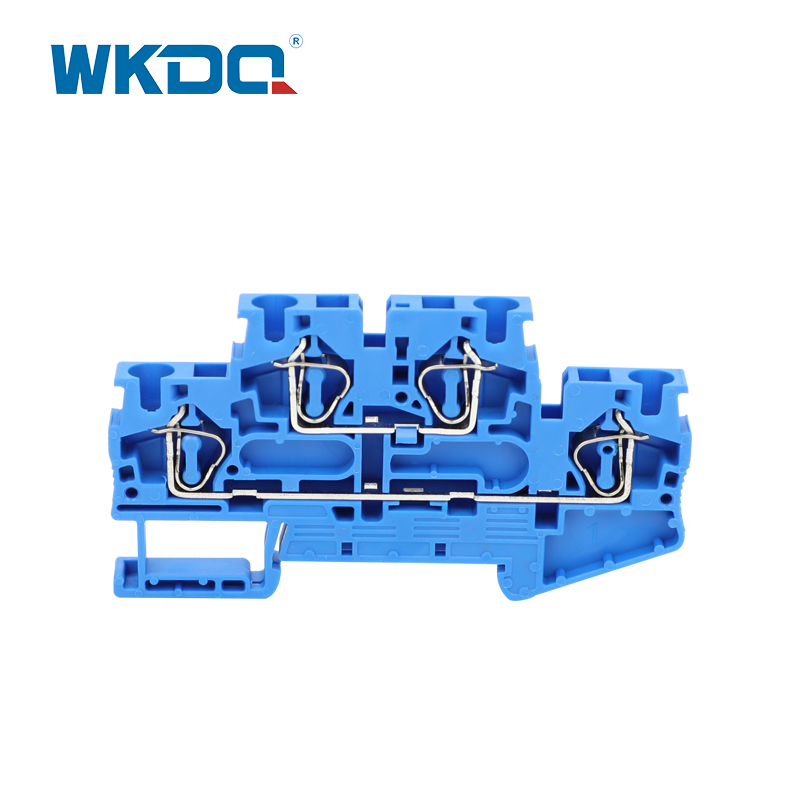

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	86.5/46/6.2
Connection method	Spring type connection
Material	Nylon PA66
Rated Voltage/Current	500V/32A
Cross section, solid/soft Cable	0.5-6mm² / 0.5-4 mm²
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	13g/pc,
Certification	CE/RoHS/CQC/ISO 9001
