High Current Terminals Block

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUIK 35
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUIK 35

Send Inquiry

Product Description

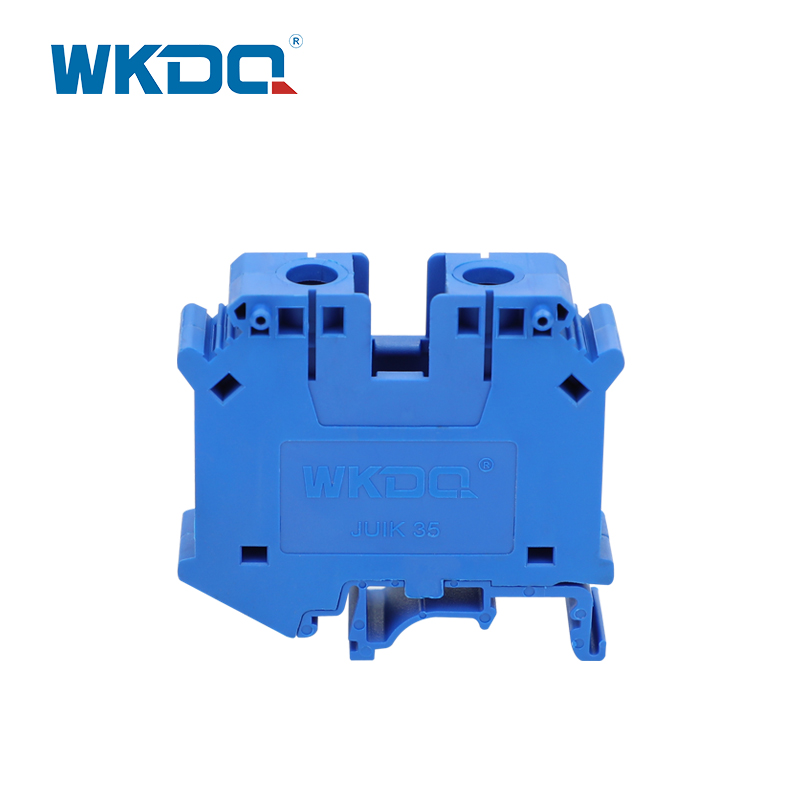

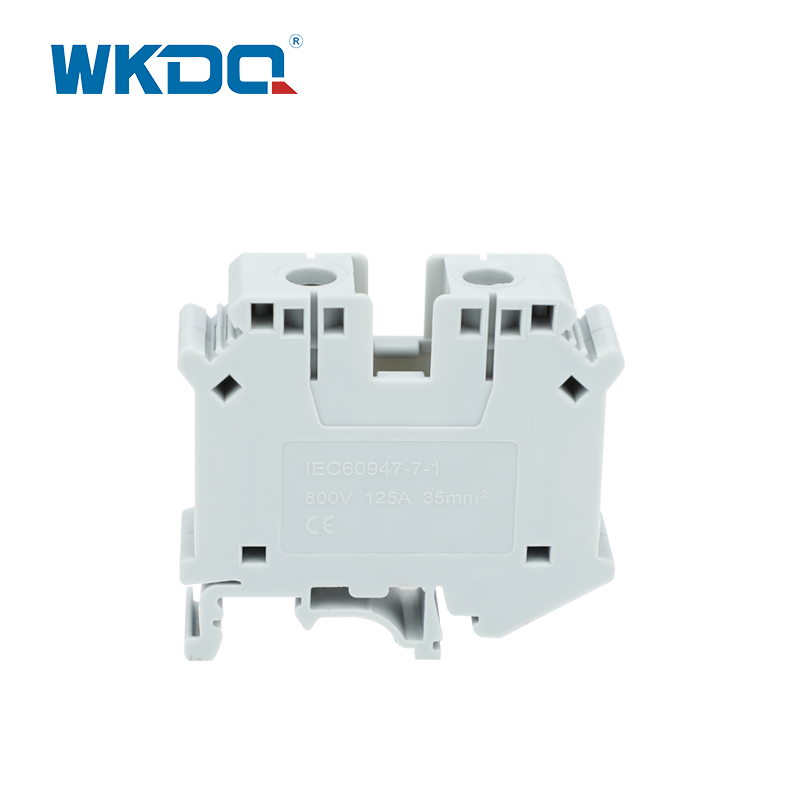

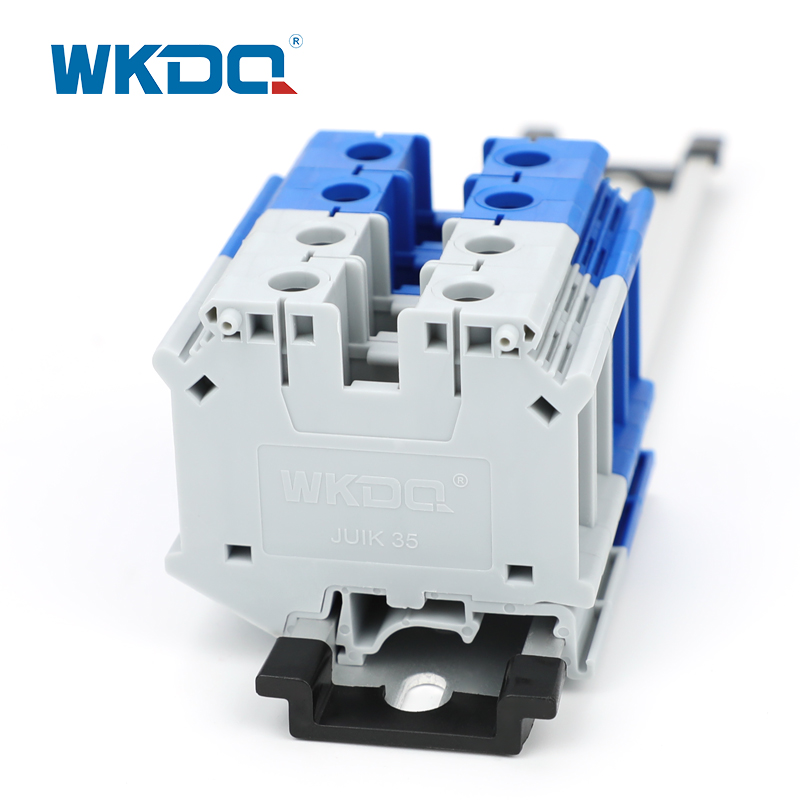

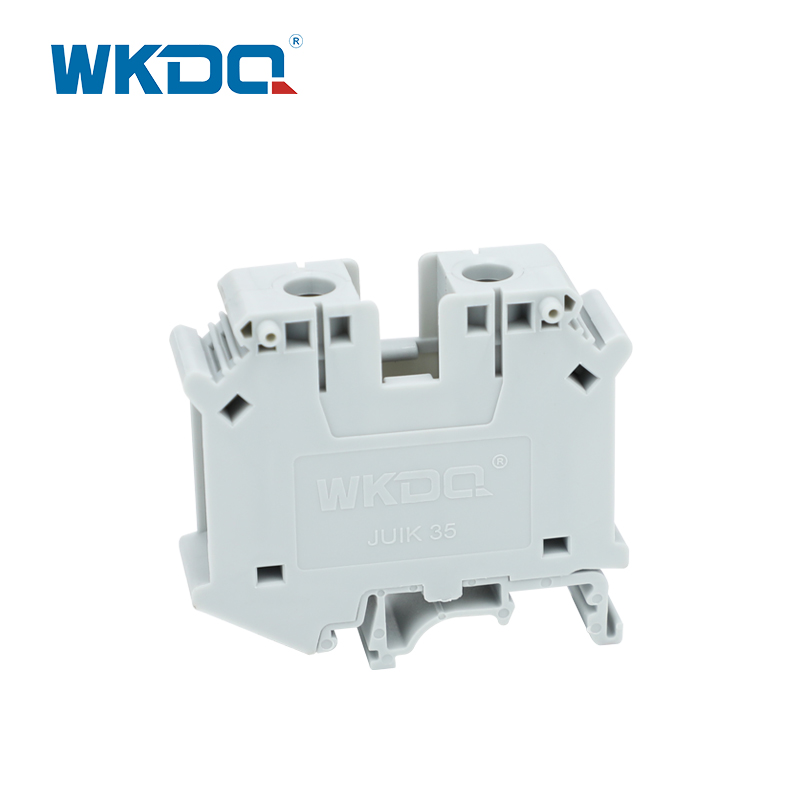

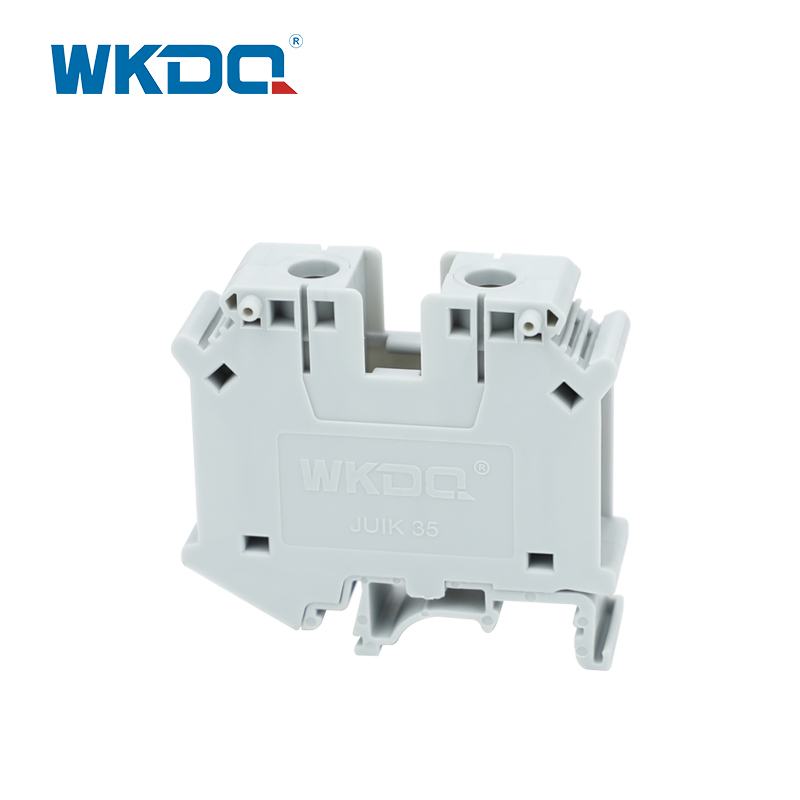

The JUK 3N universal screw terminal block adopts a PA66 flame-retardant nylon housing and nickel-plated brass conductors. It supports high specifications of 1000V/150A, is compatible with solid wires ranging from 0.75 to 35mm² and flexible wires of the same cross-section. It features a 35mm DIN rail quick installation design, and its shockproof structure has passed the IEC 60512 vibration test. The corrosion-resistant contact points ensure long-term stable connection, with a contact resistance as low as 0.1mΩ. They are available in gray/blue and support LOGO customization. They comply with CE/RoHS/CQC/ISO certifications and are widely used in high-reliability scenarios such as solar combiner boxes and industrial distribution cabinets.

Model No.	JUIK 35
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	56/51/15.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	1000V/150A
Cross section, solid/soft Cable	0.75-35 mm² / 0.75-35 mm²
Conductor Size	18-2 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	43.90g/pc, 20PCS/BOX, 600PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
