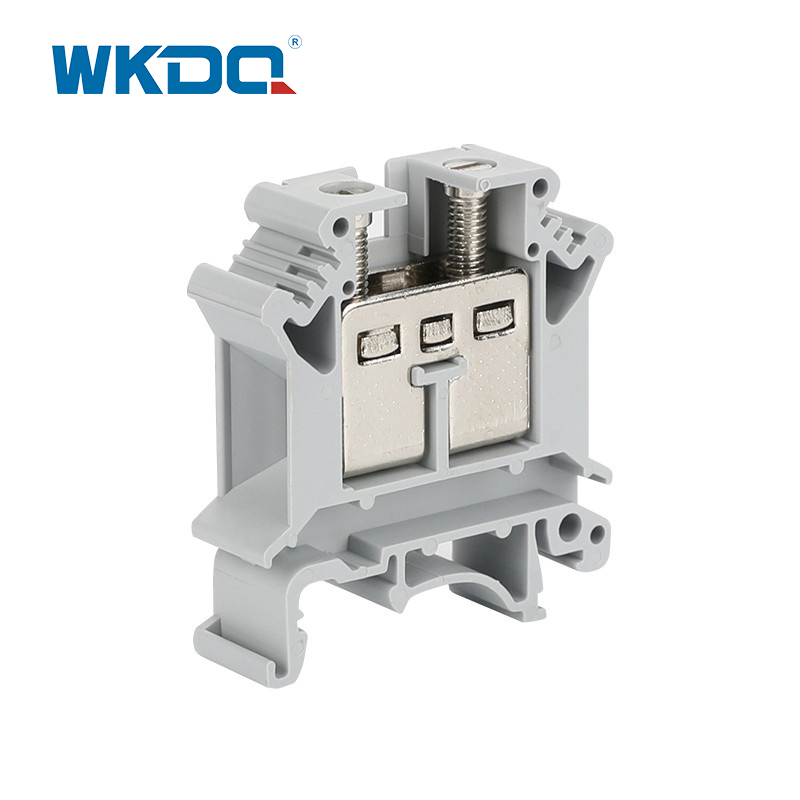

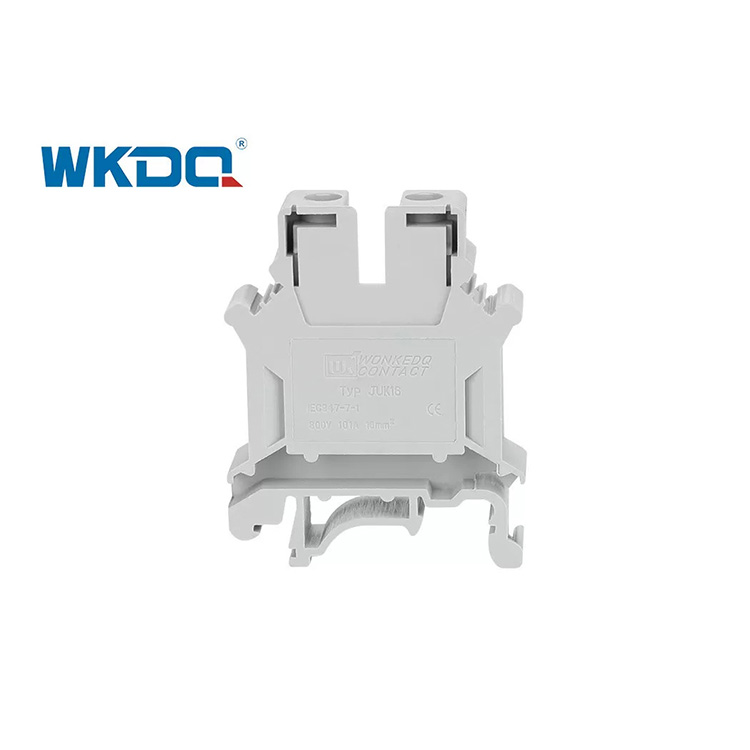

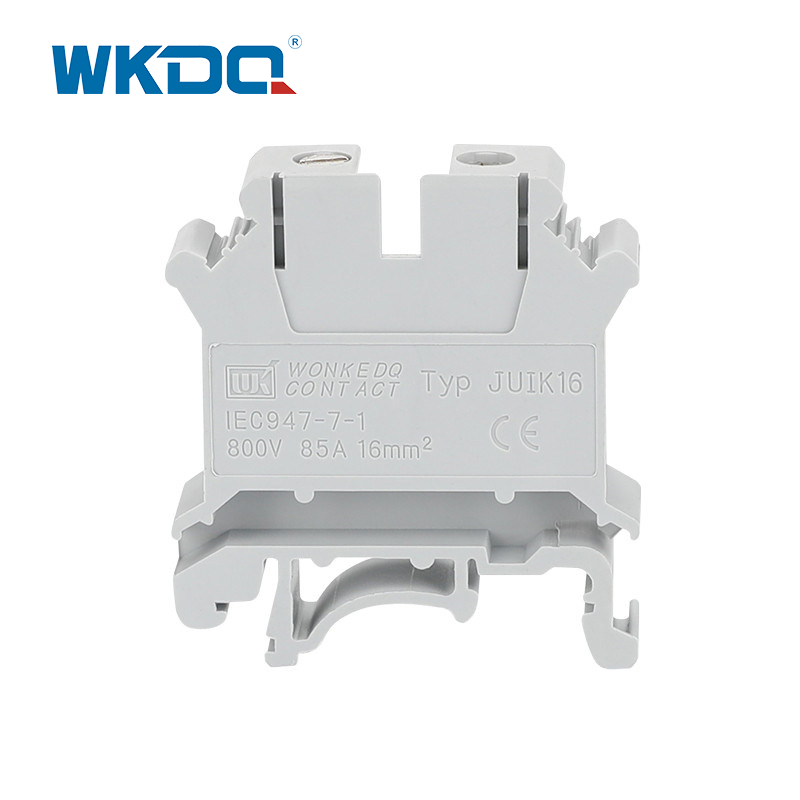

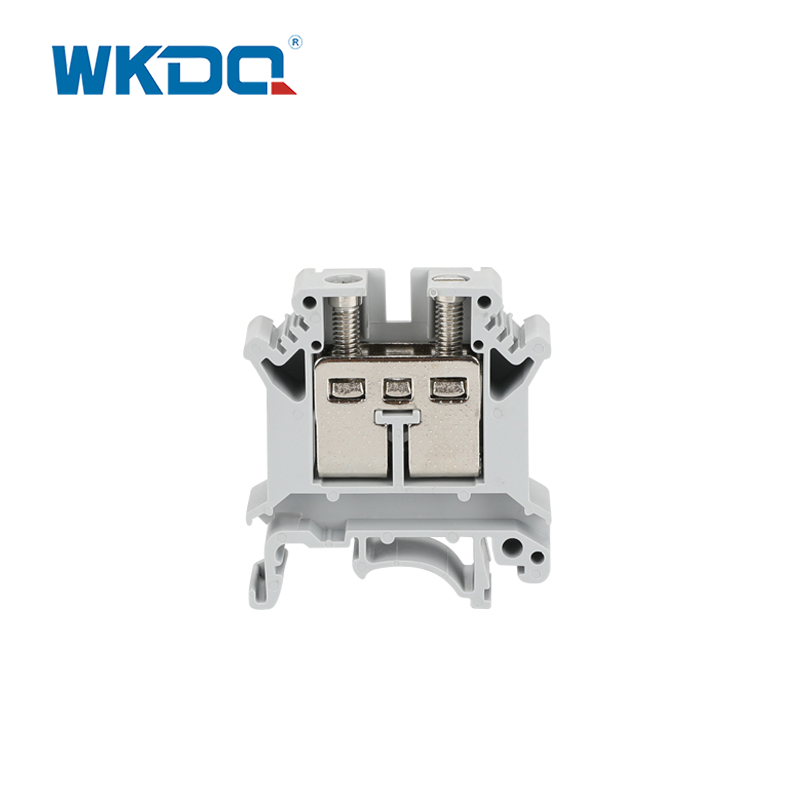

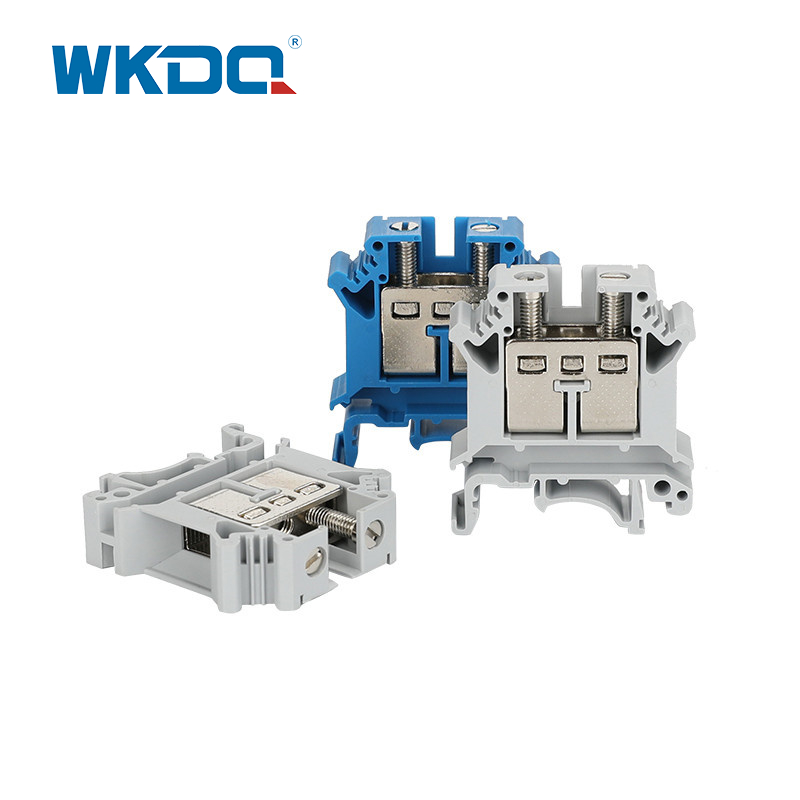

JUIK16 Electrical Terminal Block CE Certificate Grey Color 800V_101A High Flexibility

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUIK16

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUIK16

Send Inquiry

Product Description

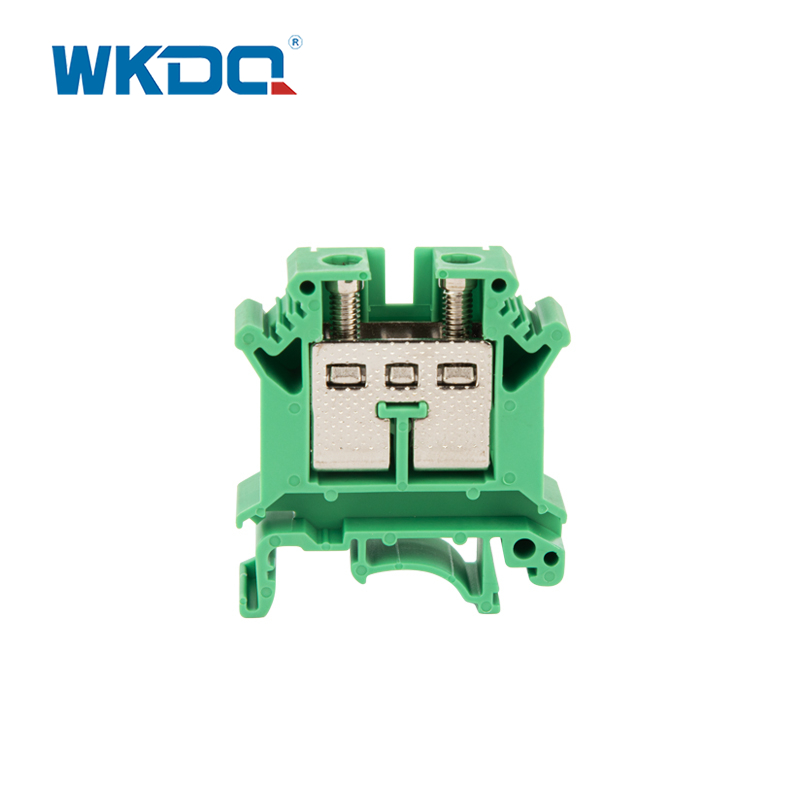

The WONKEDQ grounding terminal block features a strong clamping DIN rail design to ensure stable grounding, and its high electrical conductivity and low resistance characteristics guarantee reliable connection. The compact modular structure saves space and is easy to install. The corrosion-resistant contacts and vibration/temperature change resistant design enhance durability. It adopts PA66 flame-retardant nylon + brass components, supports multi-accessory expansion and personalized logo customization, and is an efficient, flexible and safe grounding solution.

Technical Parameters

Model NO.	JUIK 16

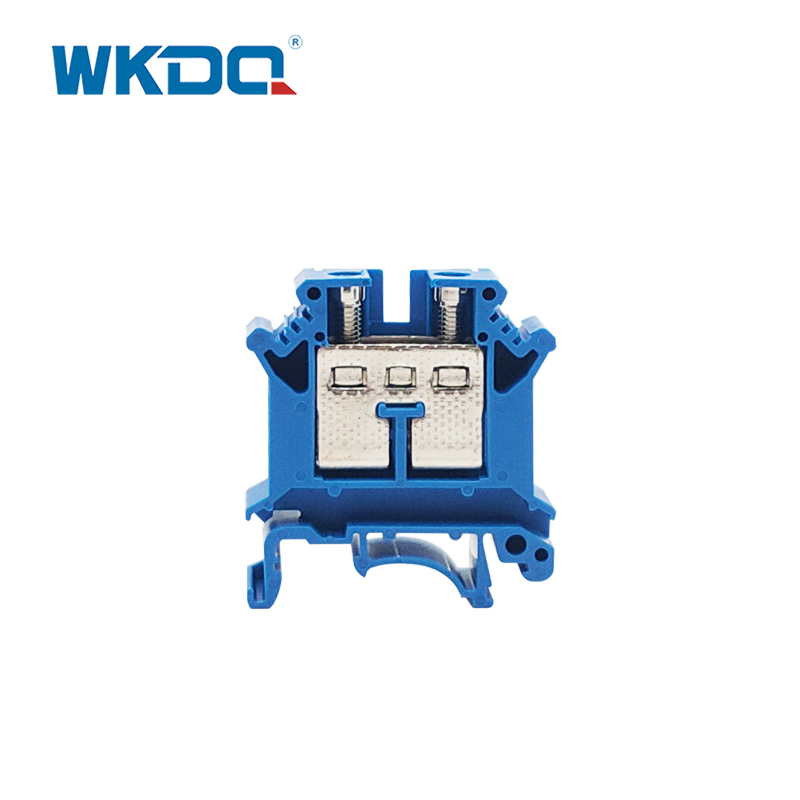

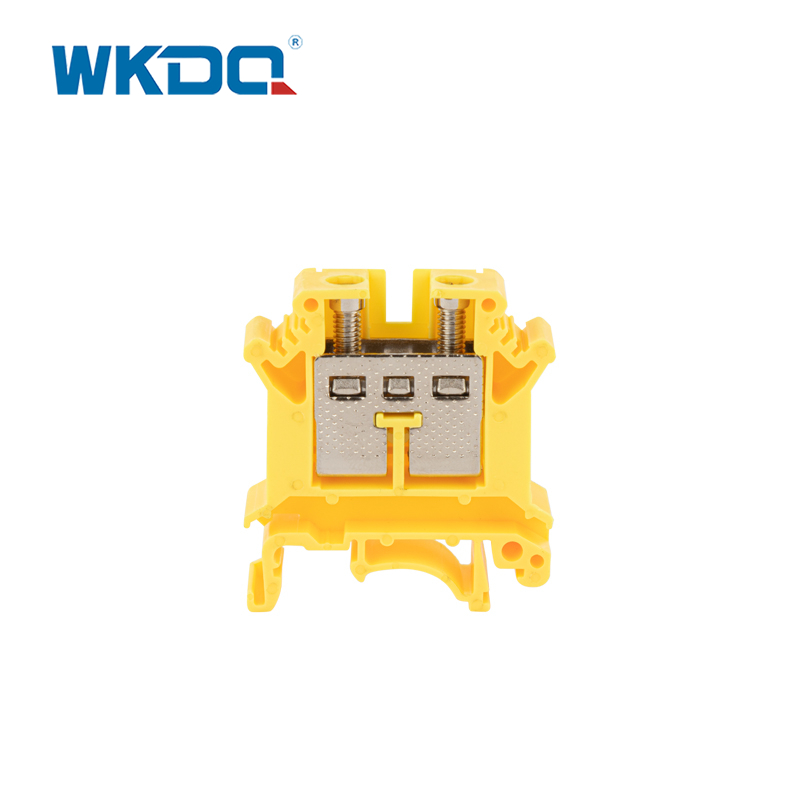

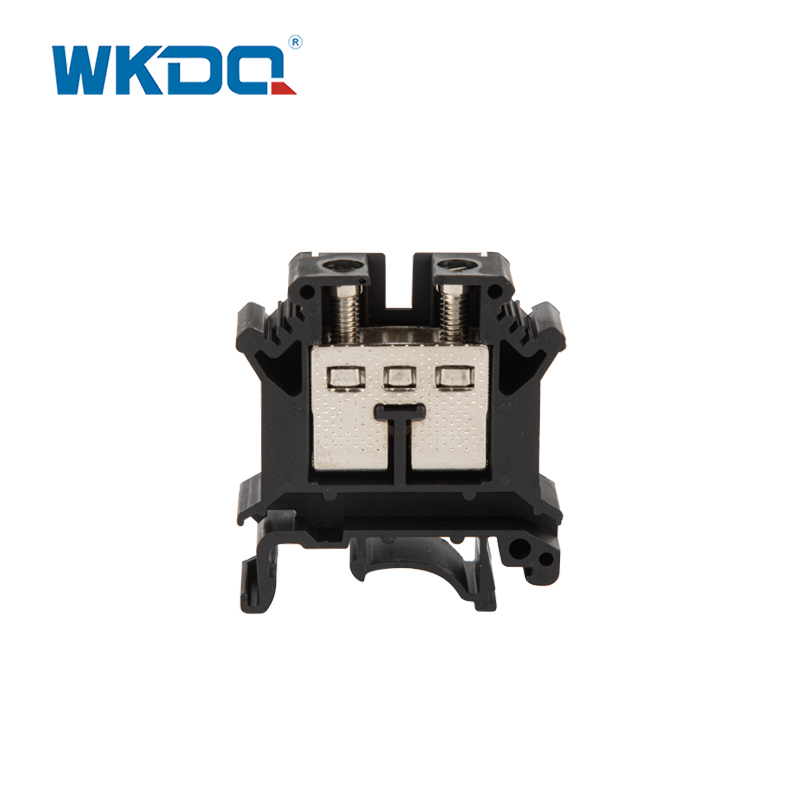

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/12.2
Connection method	Screw connection
Material	Polyamide 6.6
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	2.5-25 mm² /4-16 mm²
Conductor Size	12-4 AWG

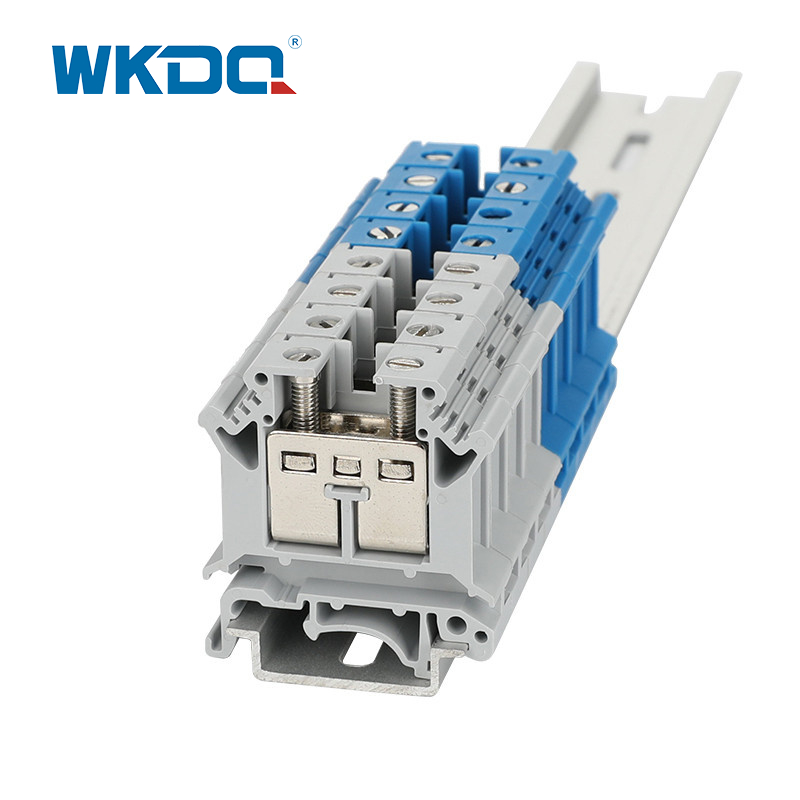

Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	21.79g/pc, 50PCS/BOX,1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
