Our screw connection terminal blocks are meticulously designed to accommodate a wide range of cable cross-sections, whether they are rigid or flexible. They boast a pre-assembled and divisible cross-connection system, allowing for effortless removal of unwanted cross-connections. The Ground Terminal Blocks offer protective insulation, prioritizing the safety and security of your product. The screw-mounted connection guarantees a firm and secure clamp, eliminating any concerns about loose wires.

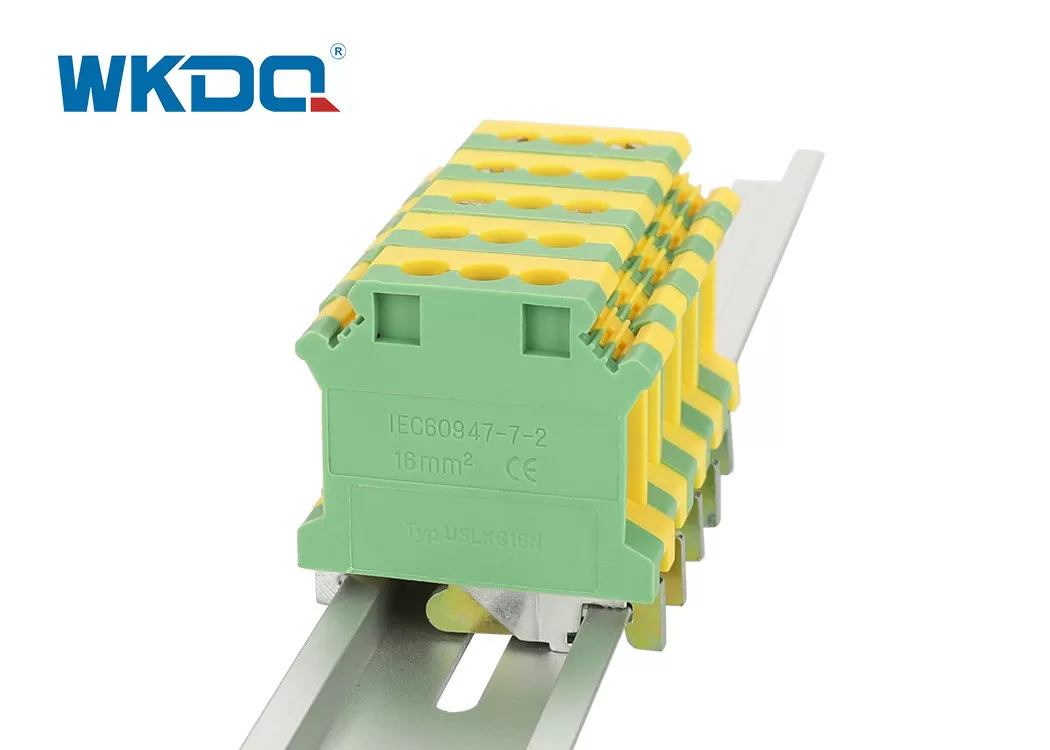

These terminal blocks are equipped with a combination foot that seamlessly fits NS 35mm mounting rails, offering flexibility in installation options. The insulation body of the terminal blocks is crafted from high-quality polyamide 6.6, ensuring durability and reliable performance throughout their lifespan.
Tightening the cable is a breeze with the use of a screwdriver, enabling efficient and secure connections. The contact points of the terminal blocks are corrosion-proof, guaranteeing long-lasting and reliable electrical connections. They provide strong contact force, facilitating excellent connections and ensuring stable performance.
Our terminal blocks are manufactured using safe and high-quality materials, ensuring their reliability and durability. Once the cables are tightened, the cable entry is closed to prevent wire splitting and ensure a secure connection.
For added convenience, the terminal blocks effortlessly distribute connections across multiple conductors using bridges, providing flexibility in wiring configurations. We also offer ground terminal blocks that are suitable for a wide range of cable cross-sections.
To complement our terminal blocks, we provide a comprehensive range of accessories, including end plates, end clamps, partition plates, separating plates, marking strips, and more. These accessories enhance the functionality and versatility of our terminal blocks, ensuring a complete and efficient wiring solution.
With our screw connection terminal blocks and accompanying accessories, you can effortlessly achieve secure and reliable cable connections, exceptional electrical performance, and unparalleled flexibility in wiring configurations for a wide array of applications.
Model No.
|

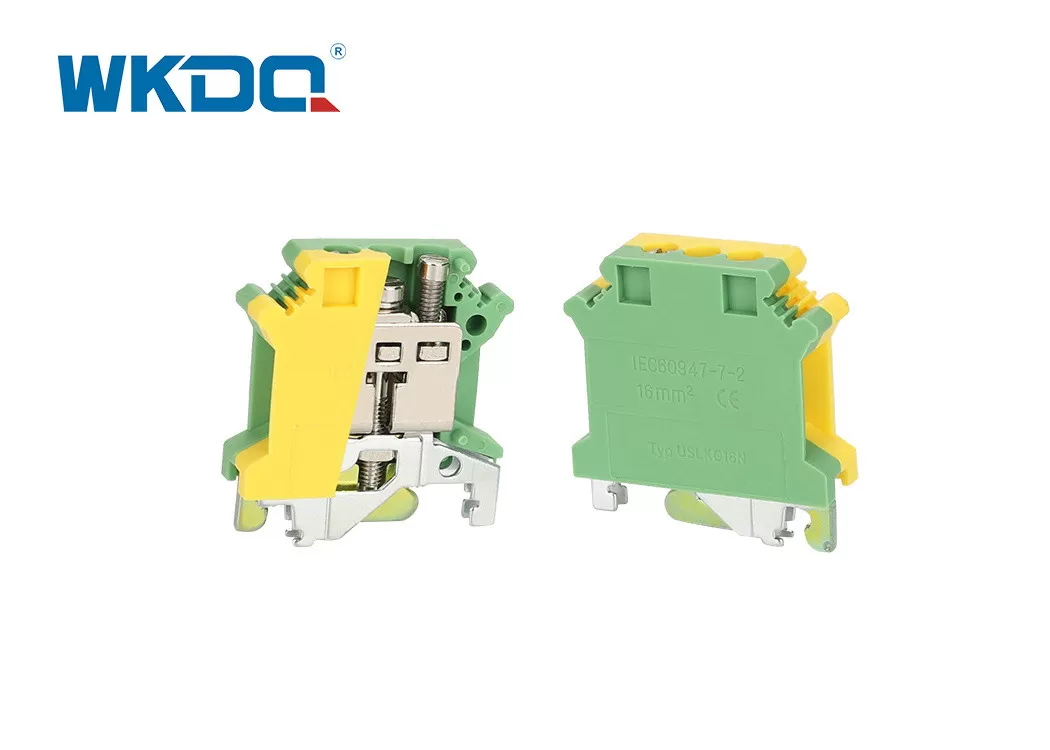

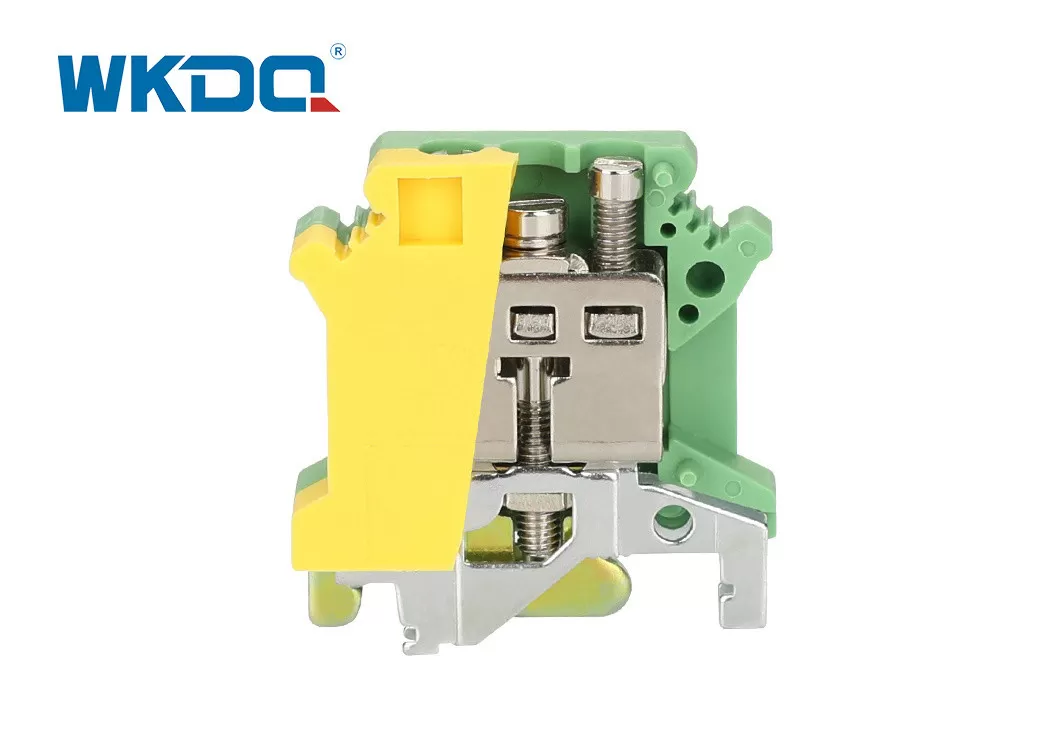

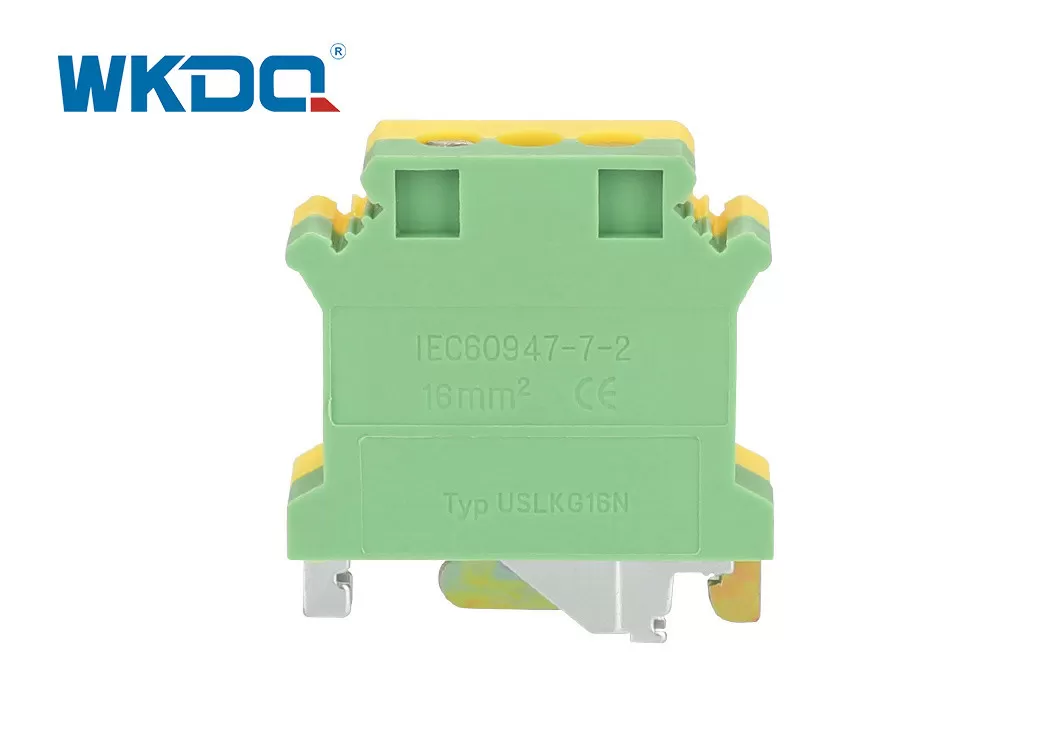

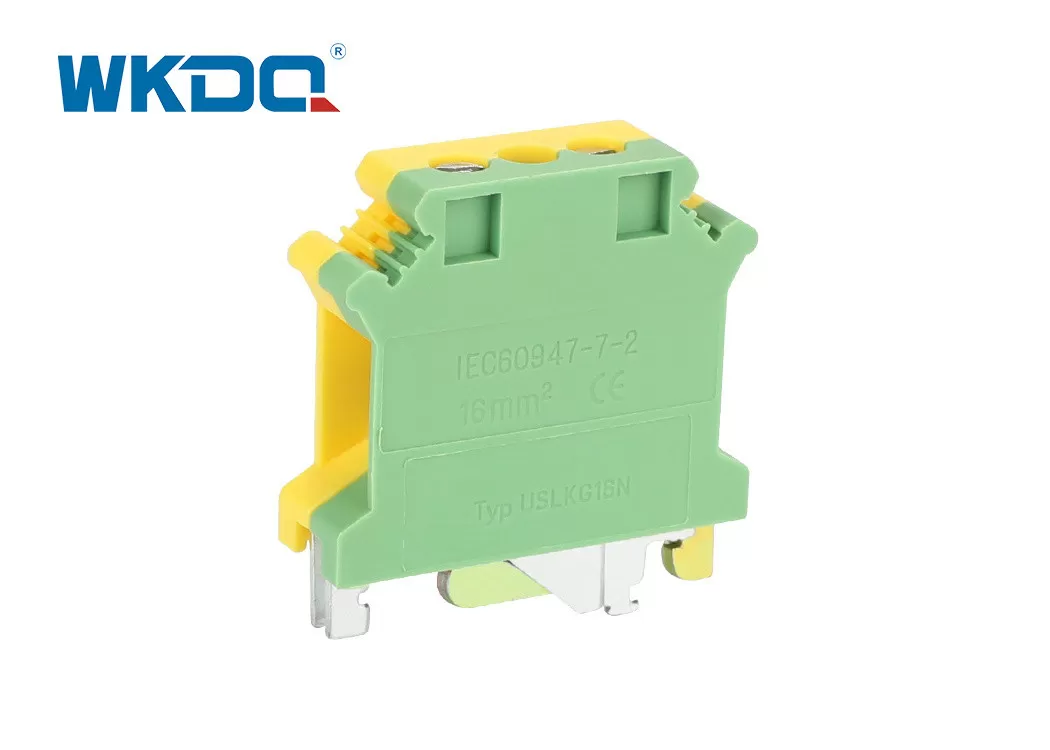

JUISLKG 16N Ground Modular Terminal Block
|
Color
|
Yellow/Green, other color can be customized
|
Length/Height/Wide (mm)
|
42.5/46.2/12.2
|
Connection method
|
Screw connection
|
Material
|
Flame resistant Nylon PA66, Nickel plated brass conductor
|
Rated Voltage/Current
|
800V/101A
|
Cross section, solid/soft Cable
|
2.5-25 mm² /4-16 mm²
|
Conductor Size
|
12-3 AWG
|
Mounting Type
|
DIN Rail NS 35
|
Standard
|
IEC 60947-7-1
|
LOGO
|
WonkeDQ, LOGO can be customized
|
Packing Detail
|
35.42g/pc, 50PCS/BOX, 600PCS/CTN
|
Certification
|
CE/RoHS/CQC/ISO 9001
|
