Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 1.5N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

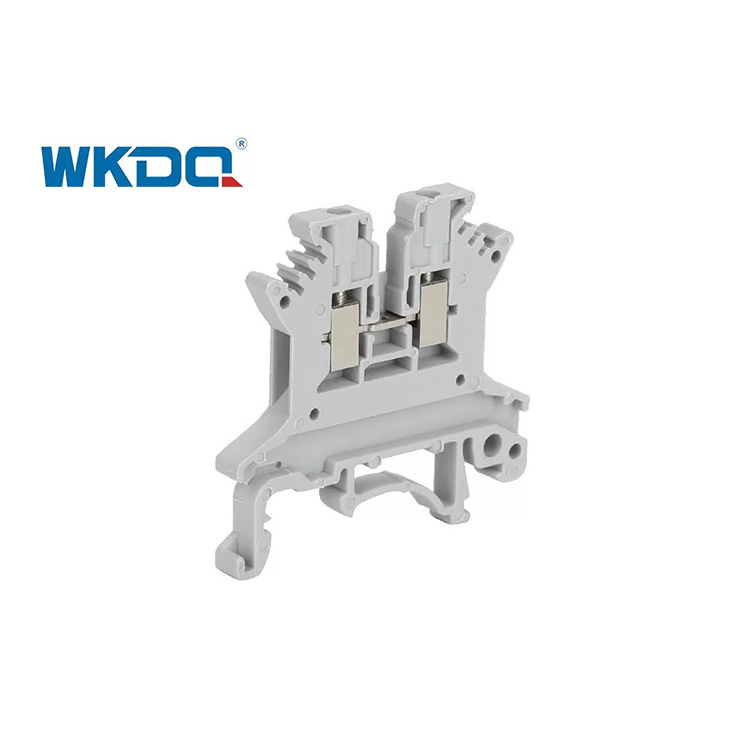

The WonkeDQ JUK series through-terminal blocks are specially designed for efficient and reliable electrical connections. They adopt screw connections to adapt to large-diameter wiring. The flame-retardant PA66 plastic body combined with brass screws ensures durability. Supports bridging for rapid connection of multiple conductors. Anti-corrosion contact points and strong contact force ensure stable power supply. Universal mounting feet are compatible with 35mm DIN rails. The easy-to-operate design reduces installation costs. Adapted to the management requirements of scene lines such as control panels, it is equipped with an identification system to achieve unified management, meeting the strict electrical connection requirements with low cost and high flexibility.
Part No. | JUK 1.5N |
Color | Grey, Blue, other color can be customized |
Length/Height/Wide (mm) | 42.5/42/4.2 |
Connection method | Screw connection |
Body Material | Nylon PA66 |
Rated Voltage/Current | 800V/24A |
Cross section, solid/soft Cable | 0.14-1.5 mm / 0.14-1.5 mm |
Conductor Size | 24-12 AWG |
Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | WonkeDQ, LOGO can be customized |
Package | 4.32g/pc, 100PCS/BOX, 1500PCS/CTN |
Certification | CE/RoHS/CQC/ISO 9001 |
1. Reliable and good quality
2. Competitive price
3. Excellent Service: Quickly response
4. Full range products for selection: from 1.5mm2 to 240mm2
5. Flexible to design according to customers’ deman
