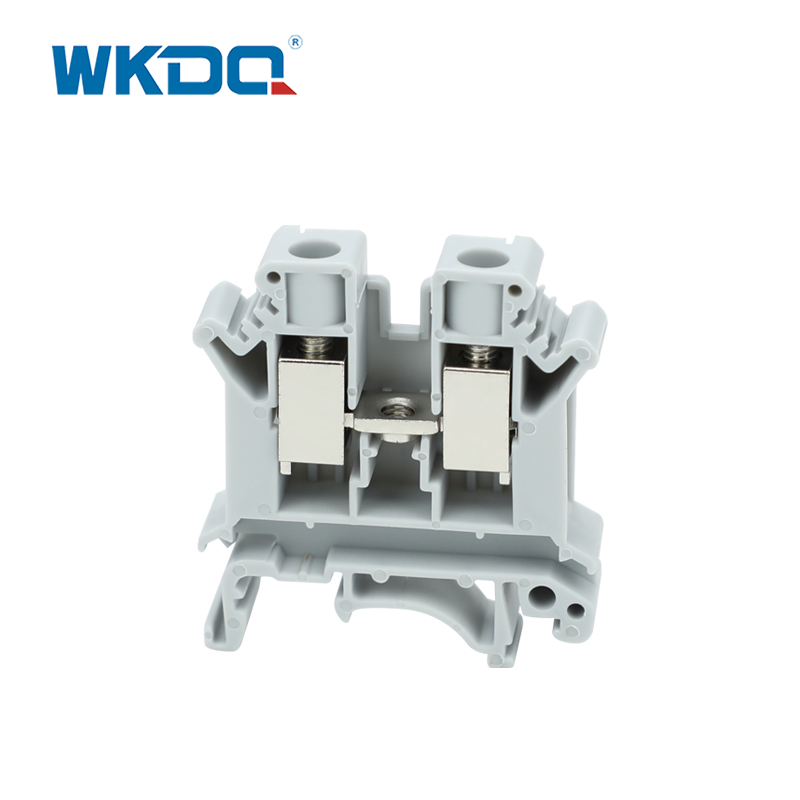

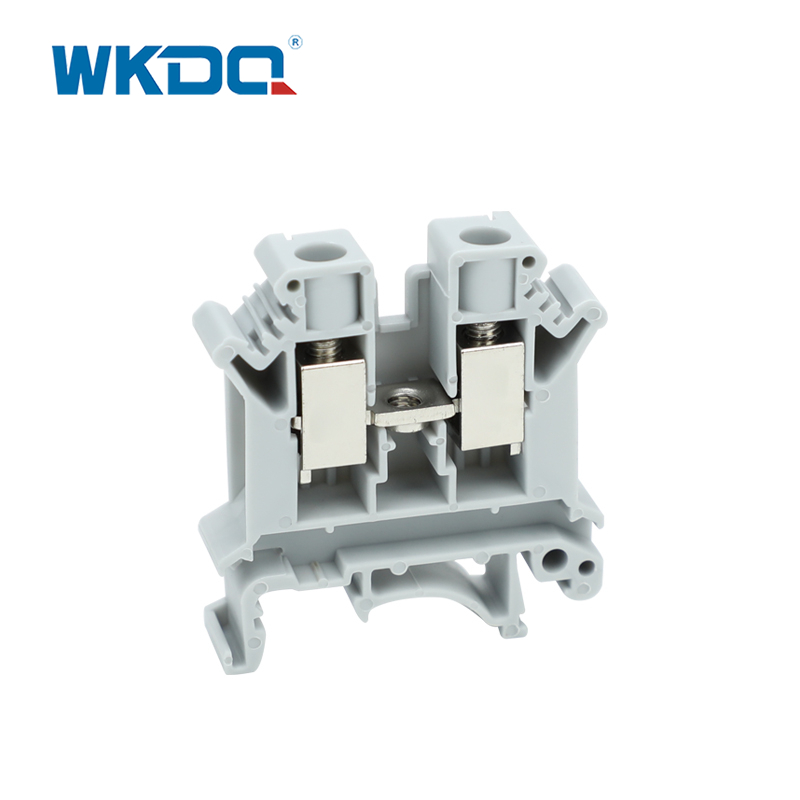

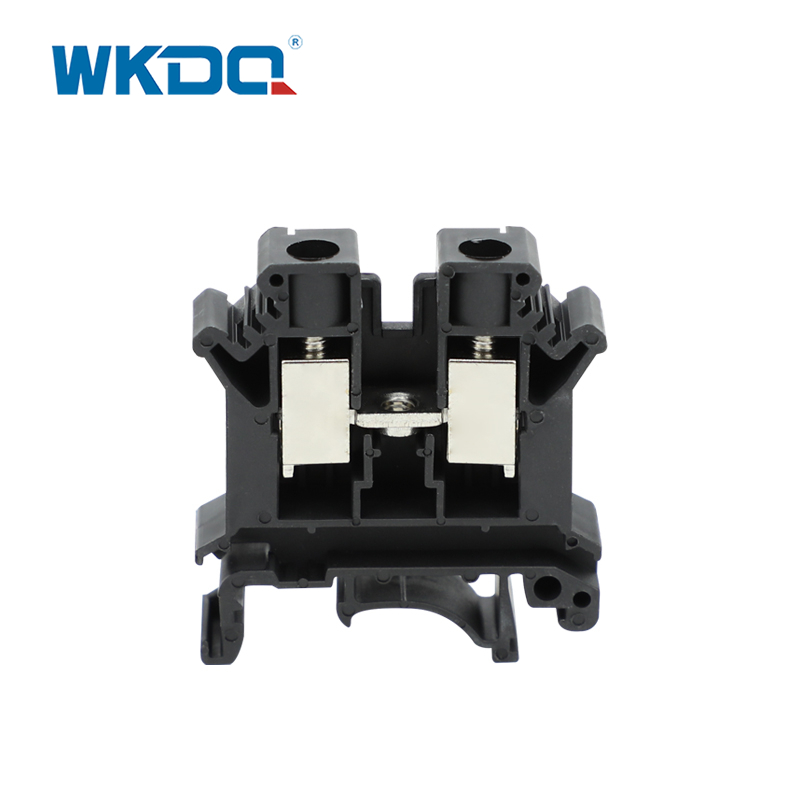

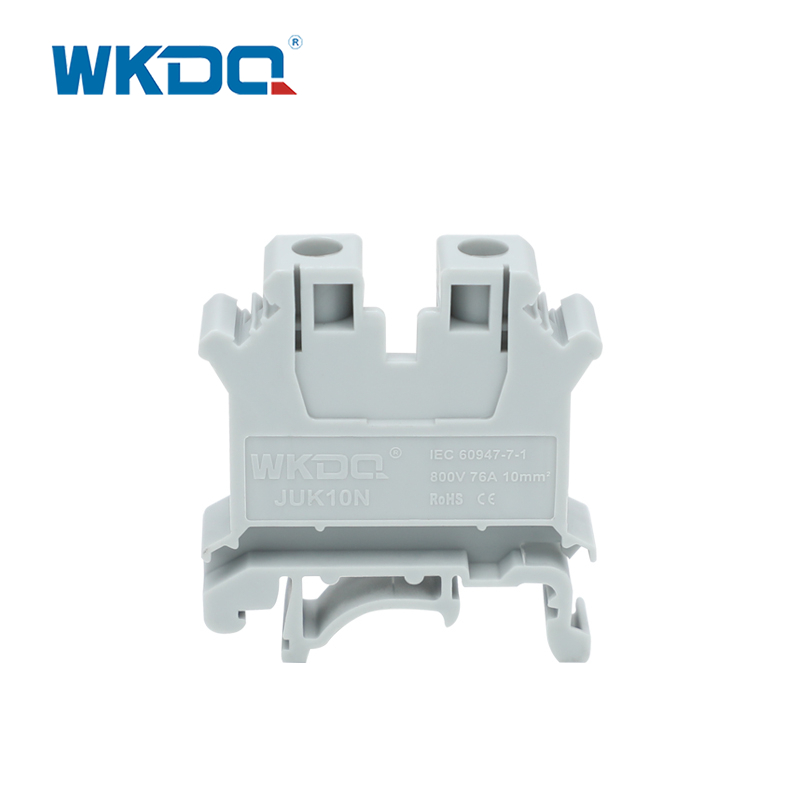

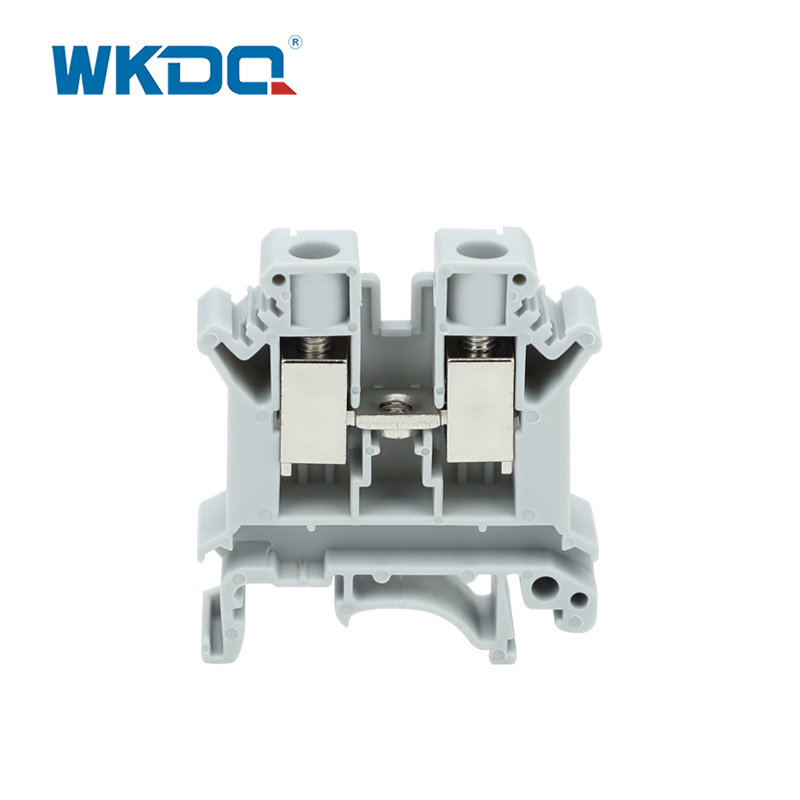

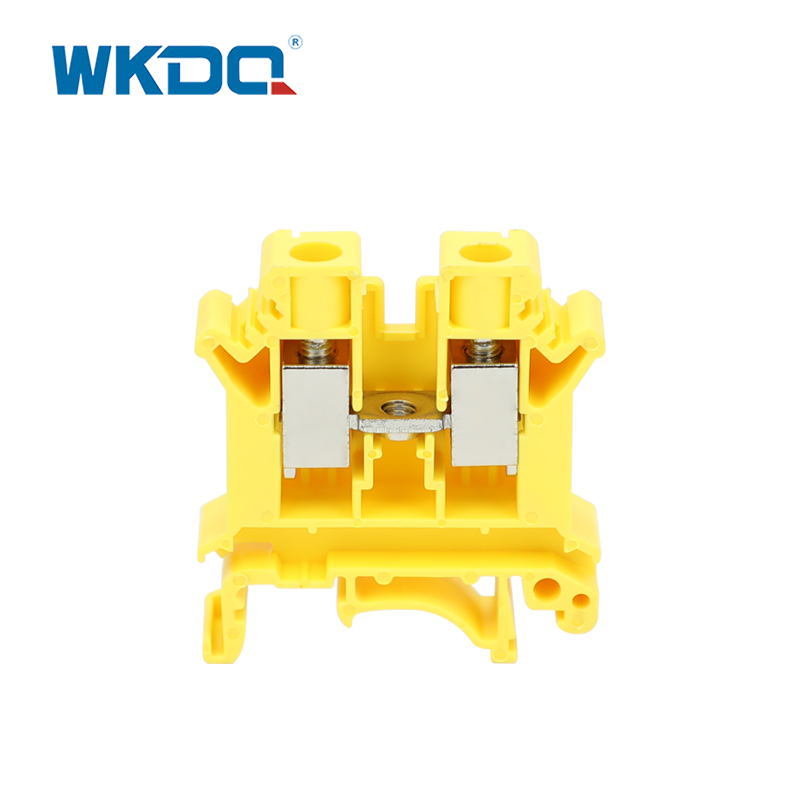

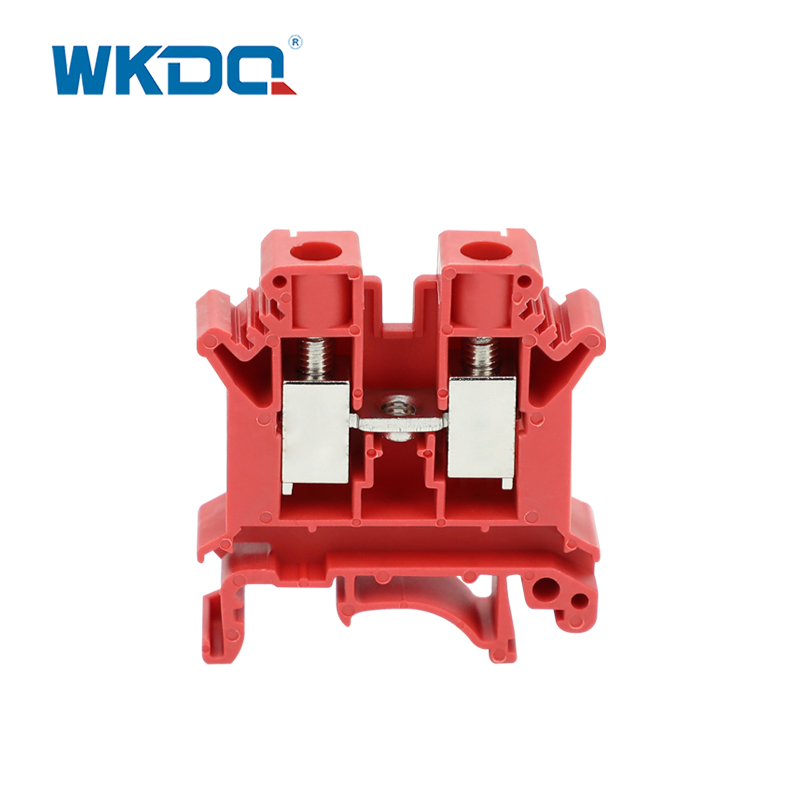

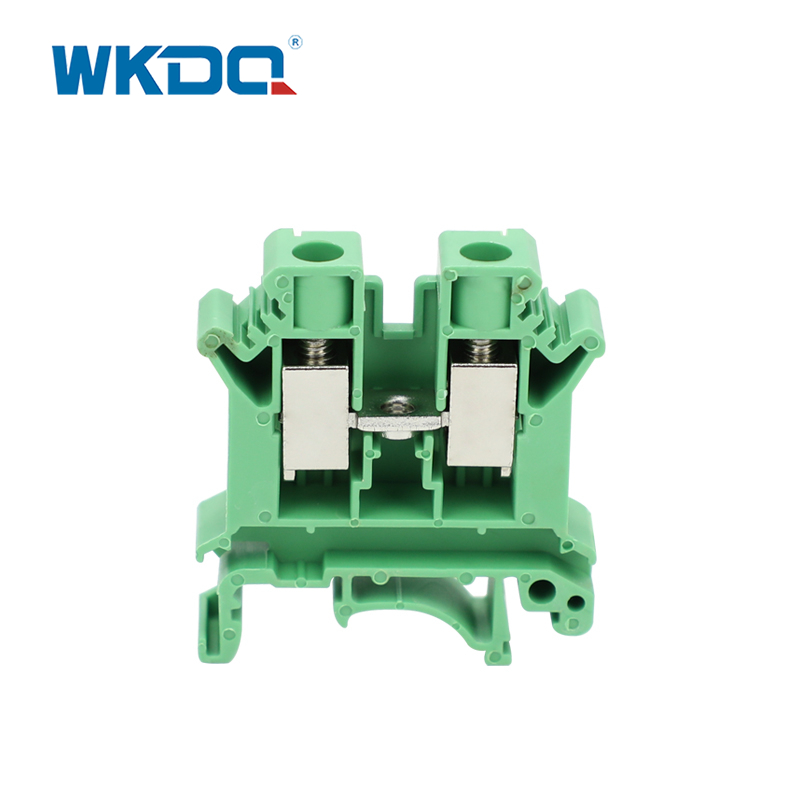

JUK 10N Screw Clamp Electrical Terminal Block DIN Mounted Type Switches Power Distribution

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 10N

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUK 10N

Send Inquiry

Product Description

The WonkeDQ JUK series DIN rail terminal block adopts flame-retardant PA66 engineering plastic and nickel-plated brass conductive parts, supports 200kA SCCR high current carrying, is equipped with side-in/top-in bridge and JUK 6N-10N universal shape design, and is compatible with 35mm DIN rail for immediate installation. Anti-corrosion contact points and strong pressure connections (low voltage drop) ensure reliable power supply. Compatible with the entire accessory ecosystem including end covers and Bridges, it simplifies inventory and installation, meeting the efficient and flexible wiring requirements of multiple scenarios such as wire management and power distribution systems.

Technical Parameters

Model Number	JUK 6N
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/8.2
Connection type	Screw connecting
Material	Nylon PA66
Rated Voltage/Current	800V/57A
Cross section for cables	0.2-6 mm / 0.2-4 mm
Conductor Size	24-8 AWG
DIN Rail	NS 35mm
International Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	12.94g/pc, 50PCS/BOX,1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
