Industrial Terminal Blocks

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 16
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

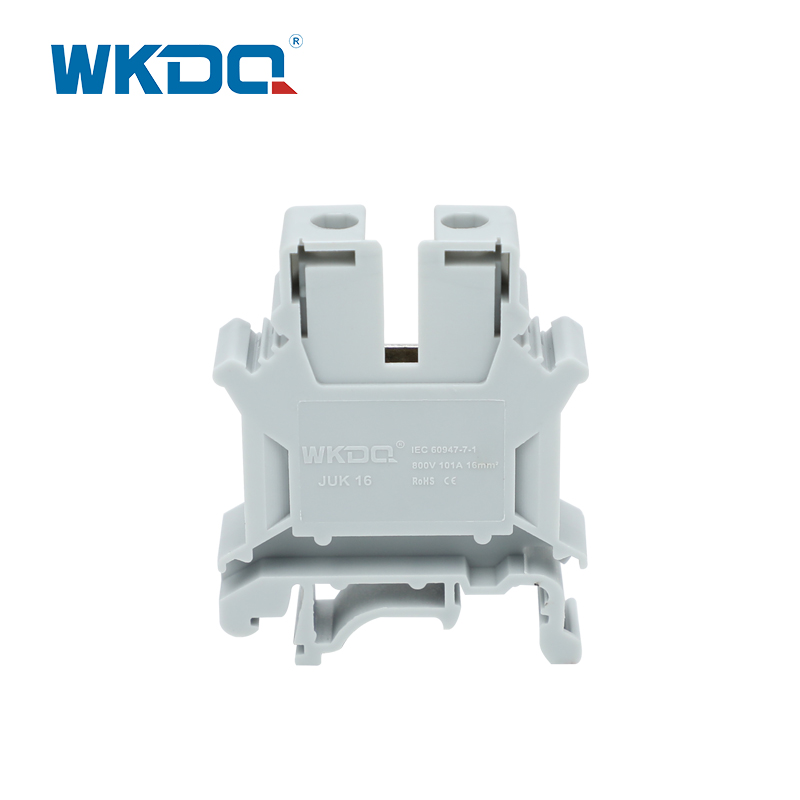

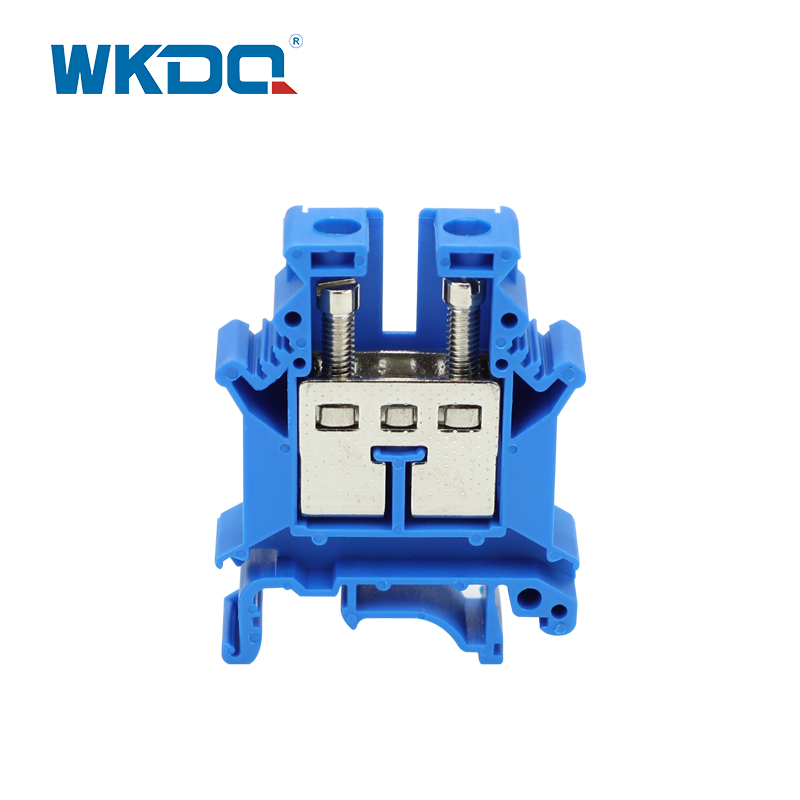

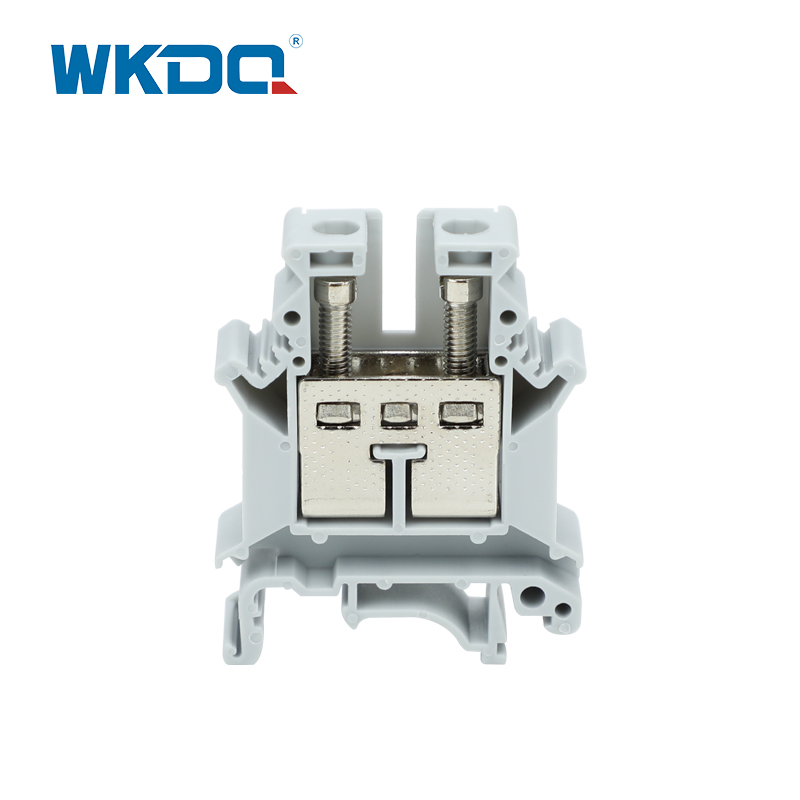

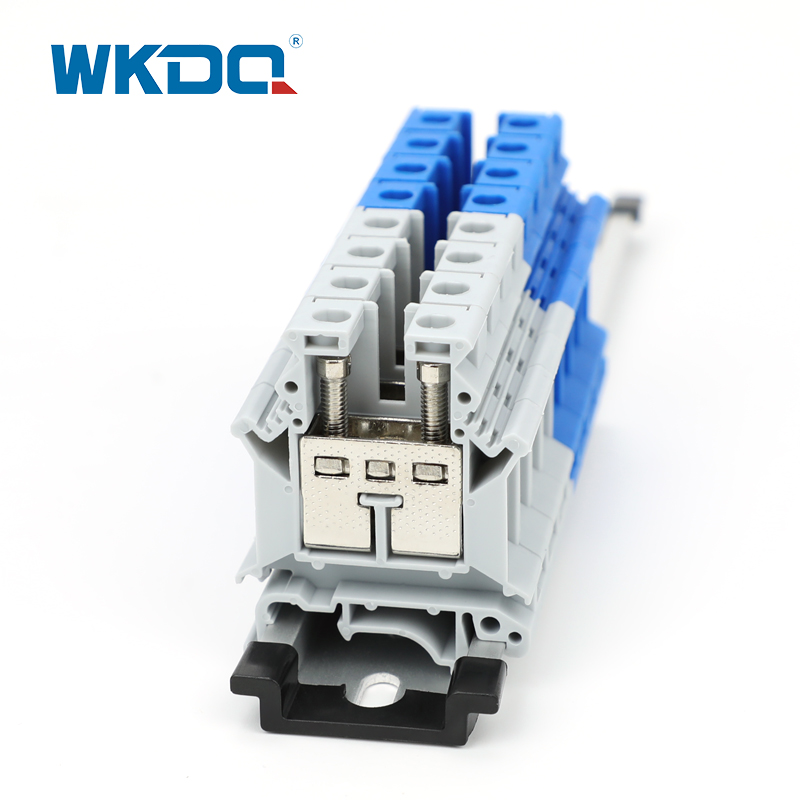

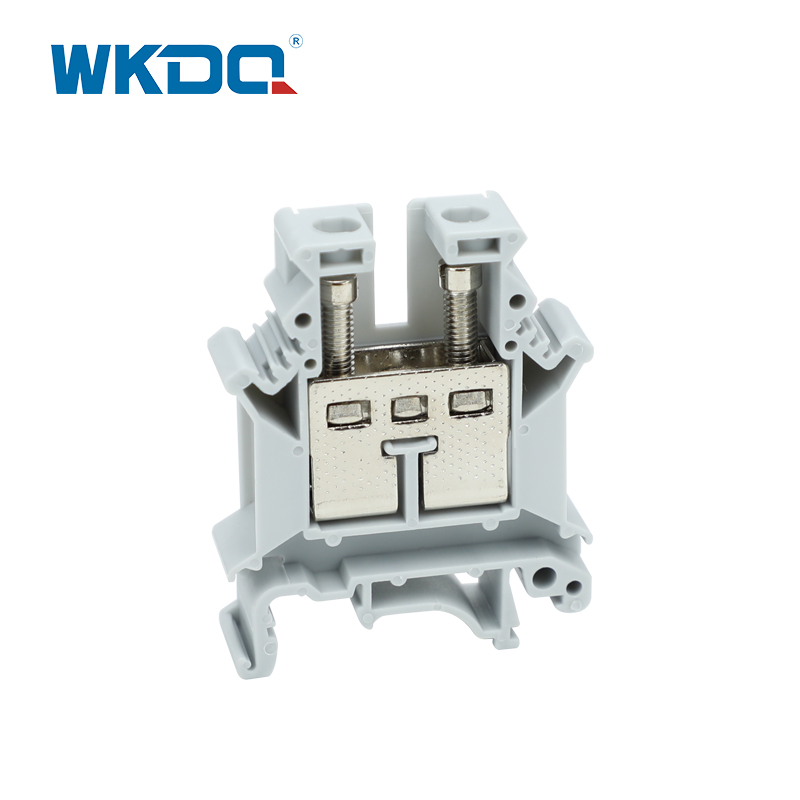

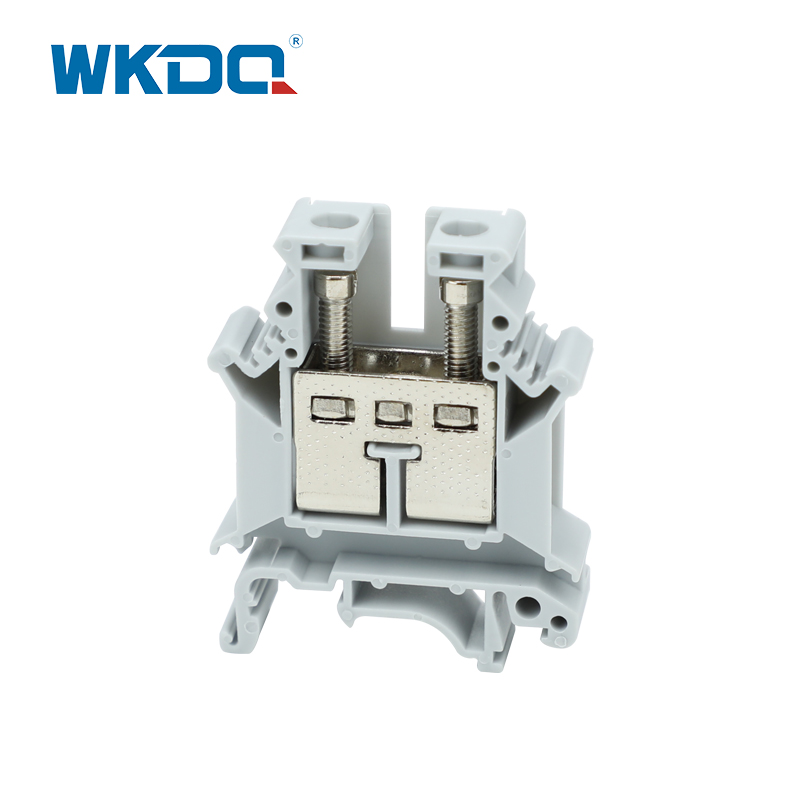

Model:JUK 16

Send Inquiry

Product Description

WONKEDQ terminal blocks feature a highly flame-retardant PA66 insulated housing (V0 certified) and a reinforced shock-resistant structure. They support tool-free and quick installation, achieving stable electrical connections with low voltage drop and high contact force. They are compatible with DIN rails and pre-wiring modules, and are widely used in electronic devices, mechanical manufacturing, and industrial engineering fields. Safety and reliability are guaranteed by CE/RoHS/ISO certification.

Item No.	JUK 16
Color	Normally Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/53/12.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	2.5-25 mm /4-16 mm
Conductor Size	12-4 AWG
Mounting Type	NS 35/7.5
International Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Package	22.05g/pc, 50PCS/BOX,1000PCS/CTN
Certific	CE, RoHs, CQC,etc
