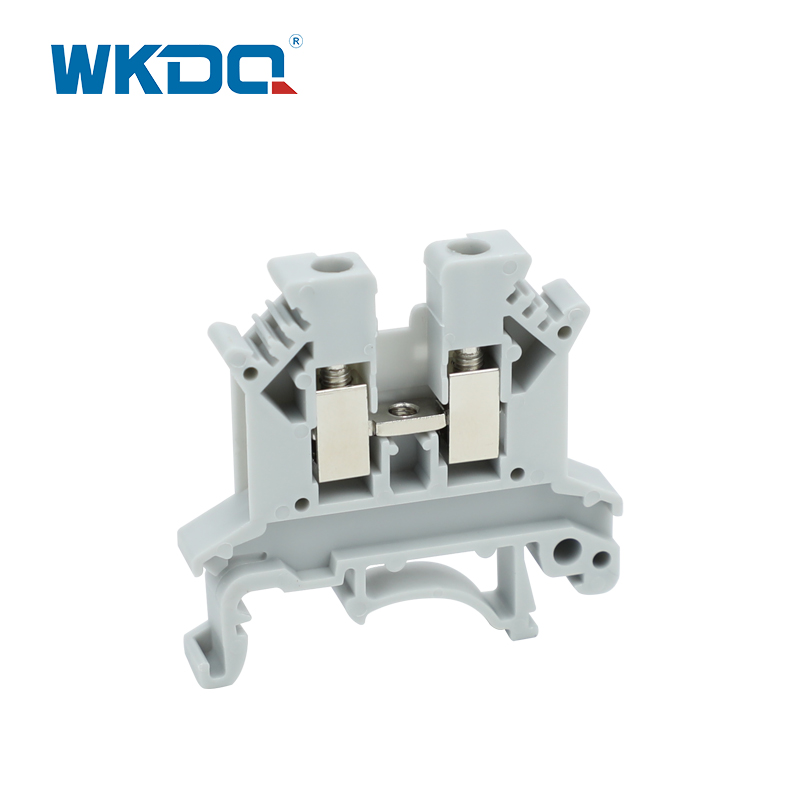

Feed through terminal block

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 2.5B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etcSend Inquiry

Model:JUK 2.5B

Send Inquiry

Product Description

WonkeDQ terminal blocks are made of flame-retardant PA66 engineering plastic and anti-electrolytic brass components. They are compatible with 35mm DIN rails for easy installation and support the JST/JPT series accessory ecosystem. They are equipped with a full accessory system including bridging Bridges and end covers. The strong contact force (≤0.1mΩ) and anti-seismic design ensure stable connection in high-load scenarios. It can achieve safe power distribution without special pretreatment and is suitable for harsh environments such as solar combiner boxes and industrial power distribution.

Model Number	JUK 2.5B

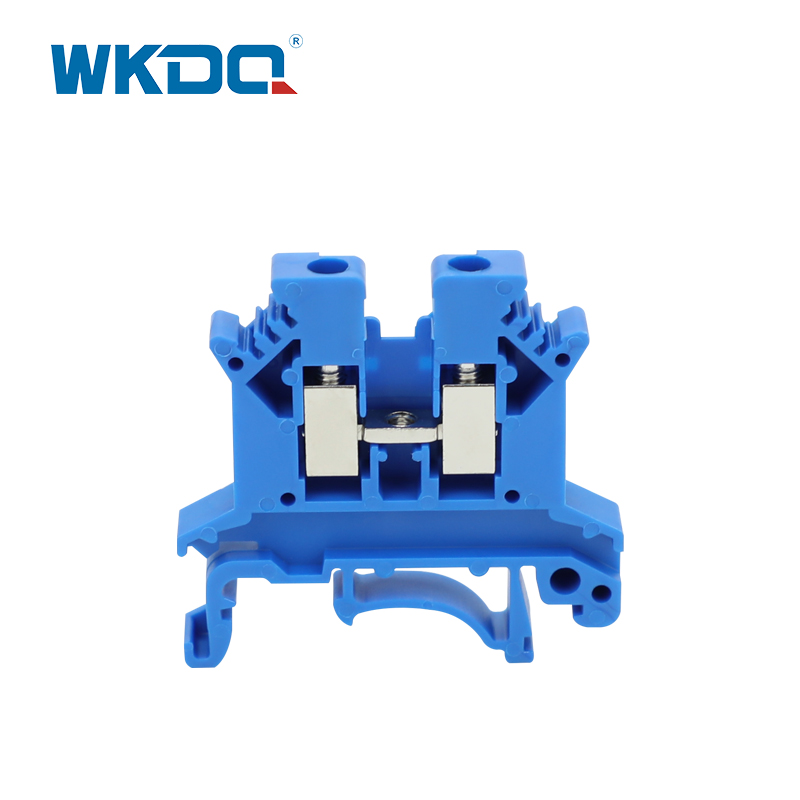

Color	Grey, Blue
Length/Height/Wide (mm)	42.5/41/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/32A
Cross section, solid/soft Cable	0.2-4 mm / 0.2-2.5 mm
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	6.9g/pc, 50PCS/BOX,3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
