Electrical Connector Blocks

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 3N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUK 3N

Send Inquiry

Product Description

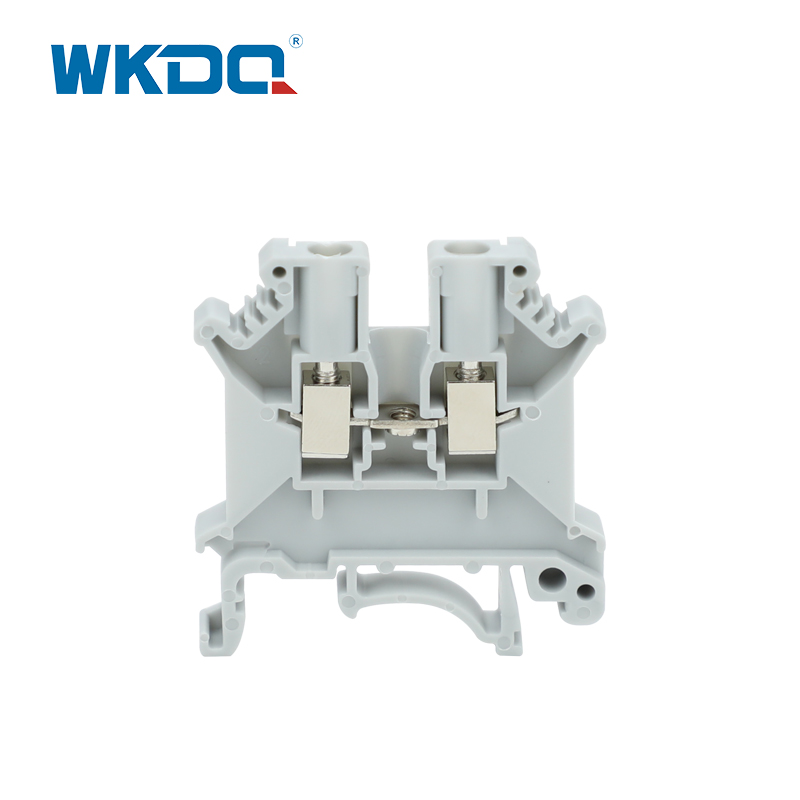

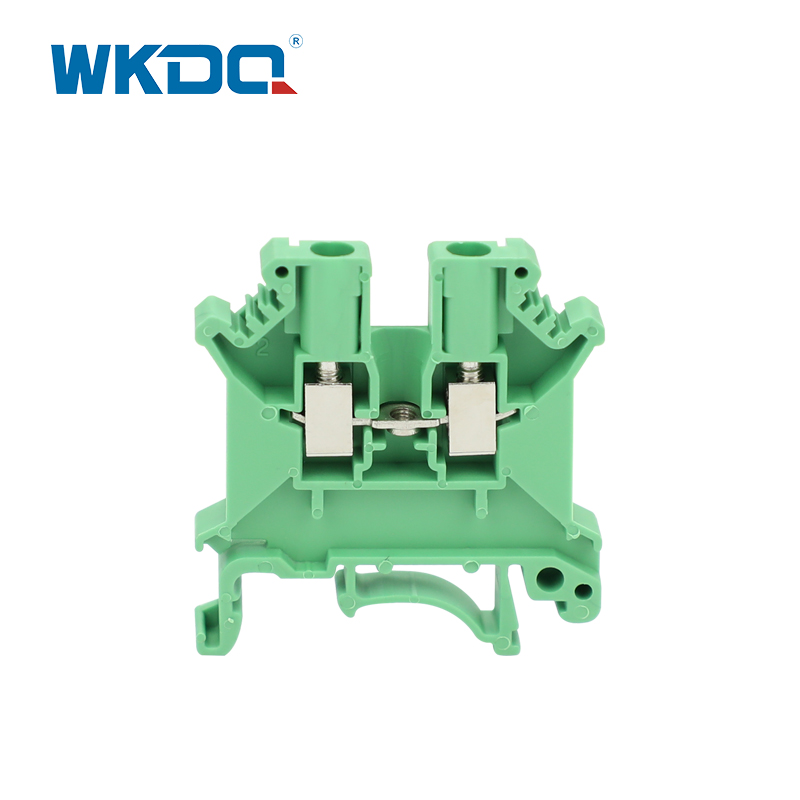

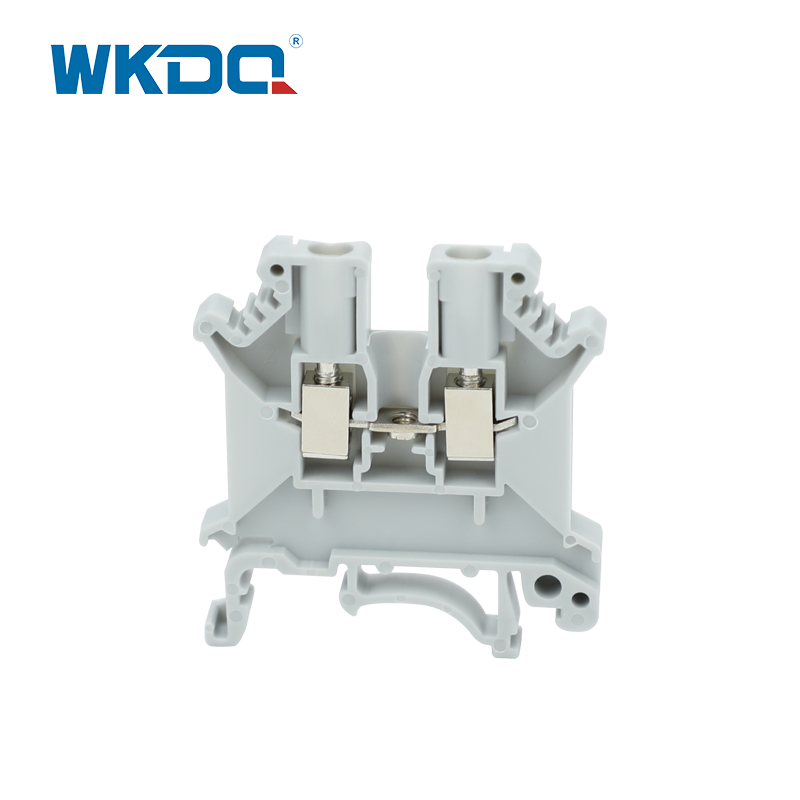

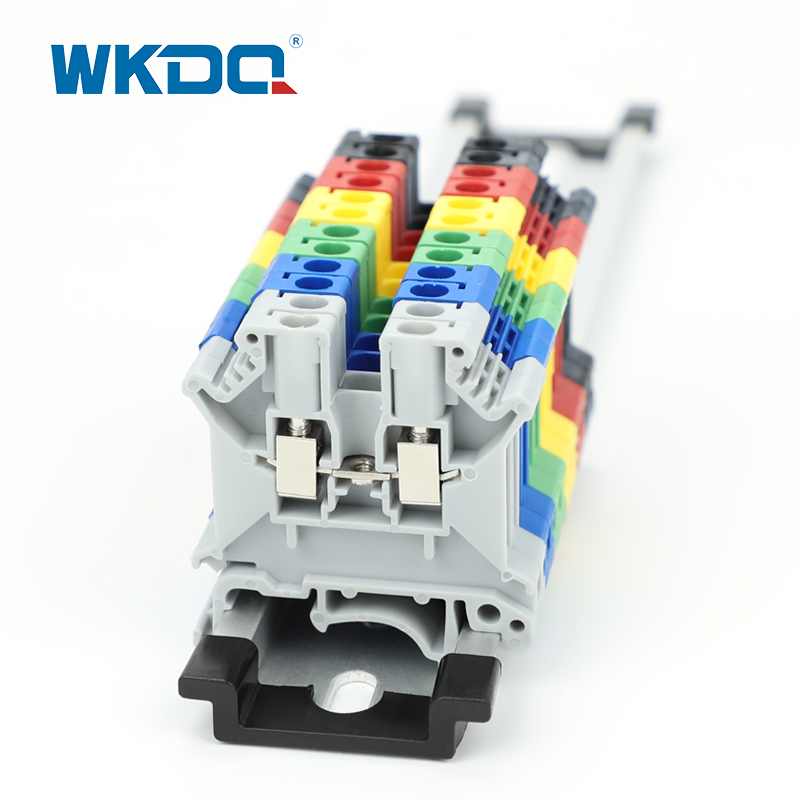

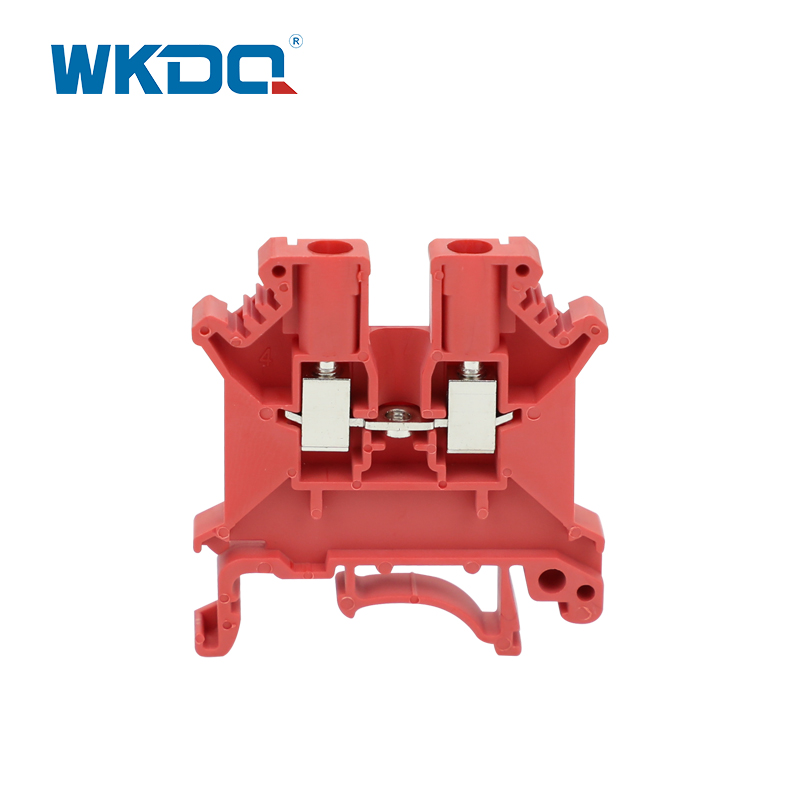

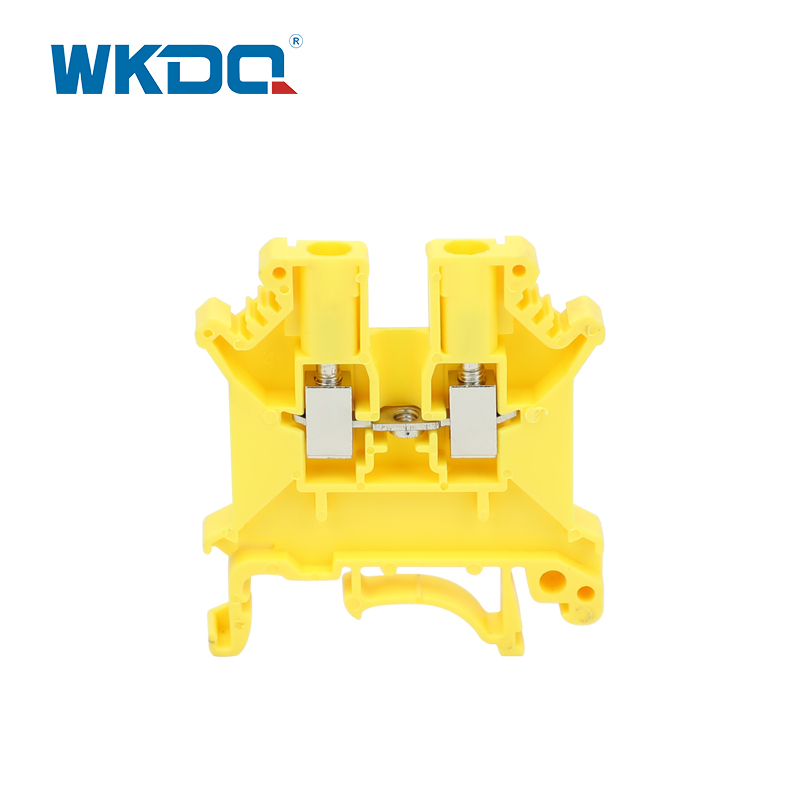

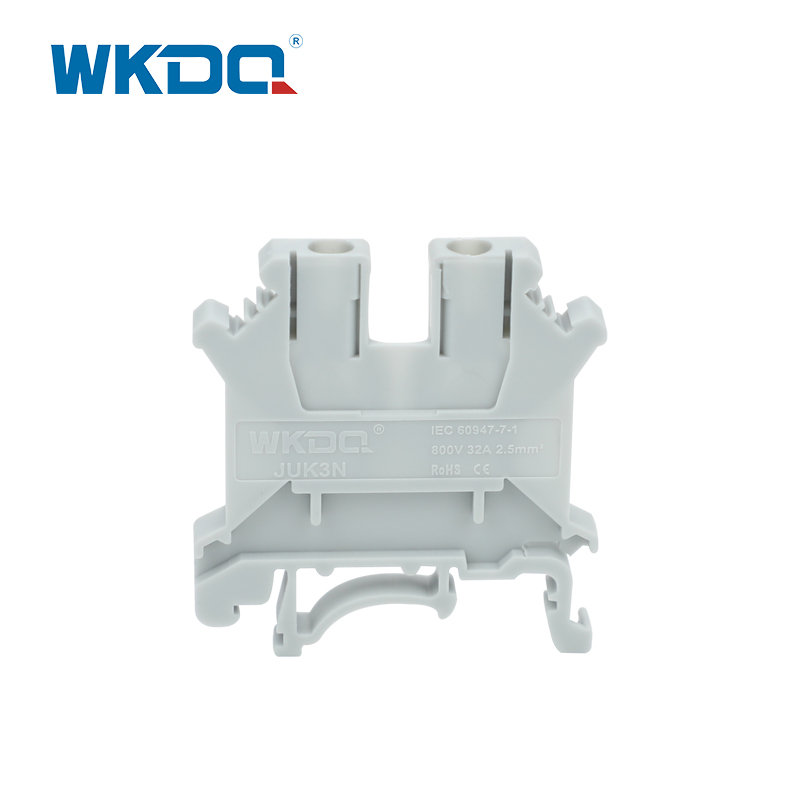

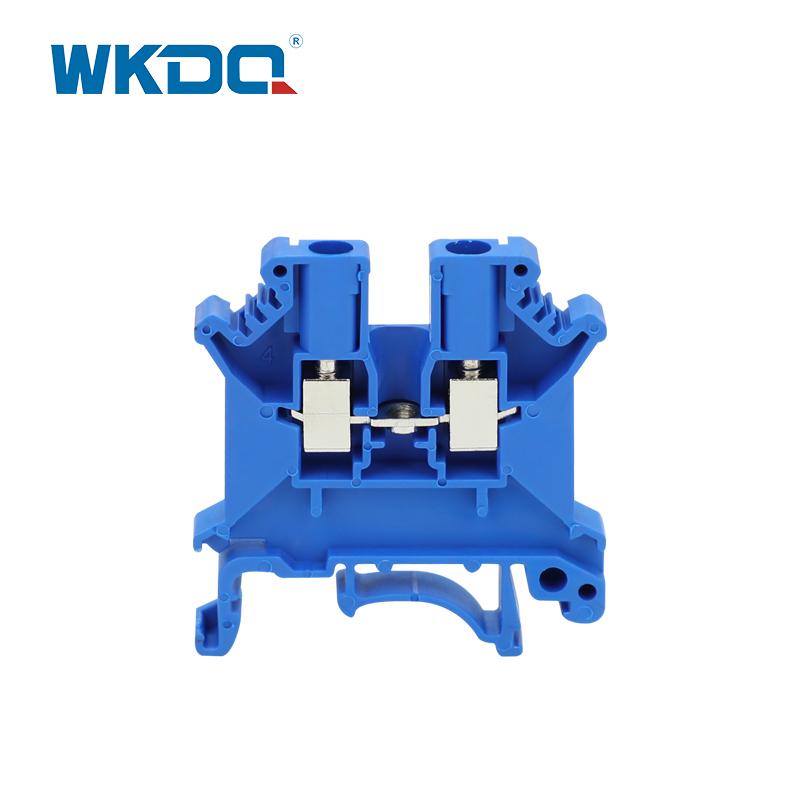

The JUK 3N universal terminal block adopts a PA66 flame-retardant nylon housing and tin-plated brass conductive parts. It supports quick installation on 35mm DIN rails and is compatible with solid wires of 0.2-6mm²/ flexible wires of 0.2-4mm². The contact resistance is as low as 0.1mΩ. The shockproof design passes the IEC 60512 vibration test. The 800V/41A high-specification product is suitable for scenarios such as solar combiner boxes and industrial distribution cabinets. It is available in gray or blue and supports LOGO customization. It complies with CE/RoHS certifications and can be deployed within 5 seconds, balancing safety and efficiency.

Part No.	JUK 5N
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/41A
Cross section, solid/soft Cable	0.2-6 mm / 0.2-4 mm
Conductor Dimension	24-10 AWG
Mounting Type	DIN Rail 35mm
Standard	IEC 60947-7-1
LOGO	OEM provided
Packing Detail	8.45g/pc, 50PCS/box,3000PCS/Carton
Certification	CE/RoHS/CQC/ISO 9001
