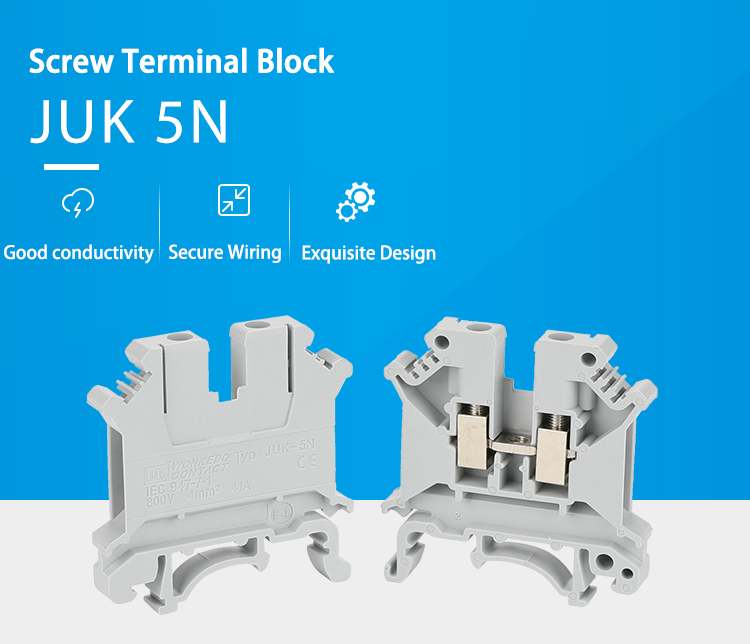

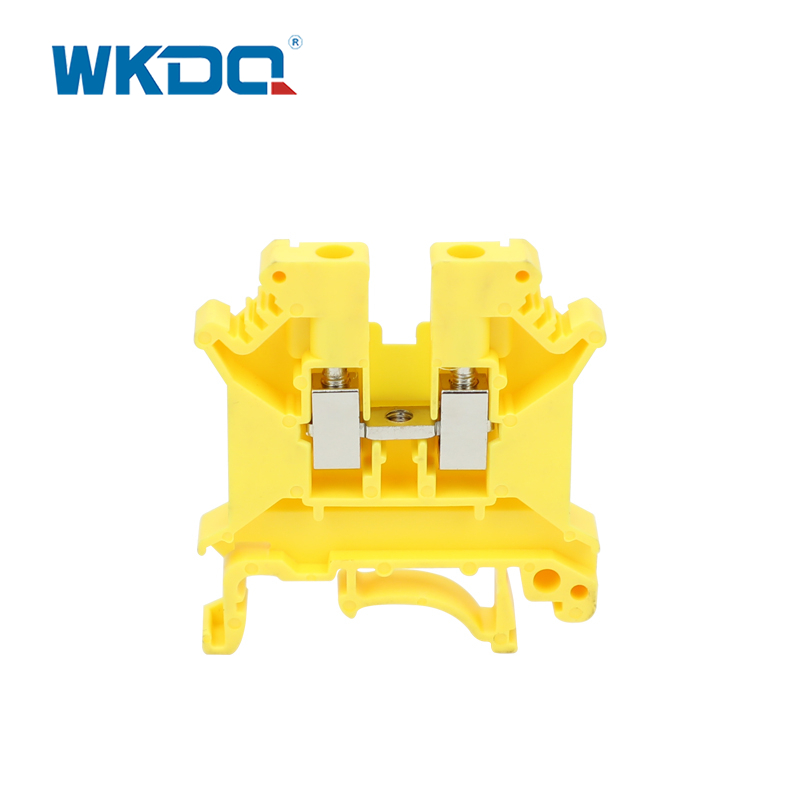

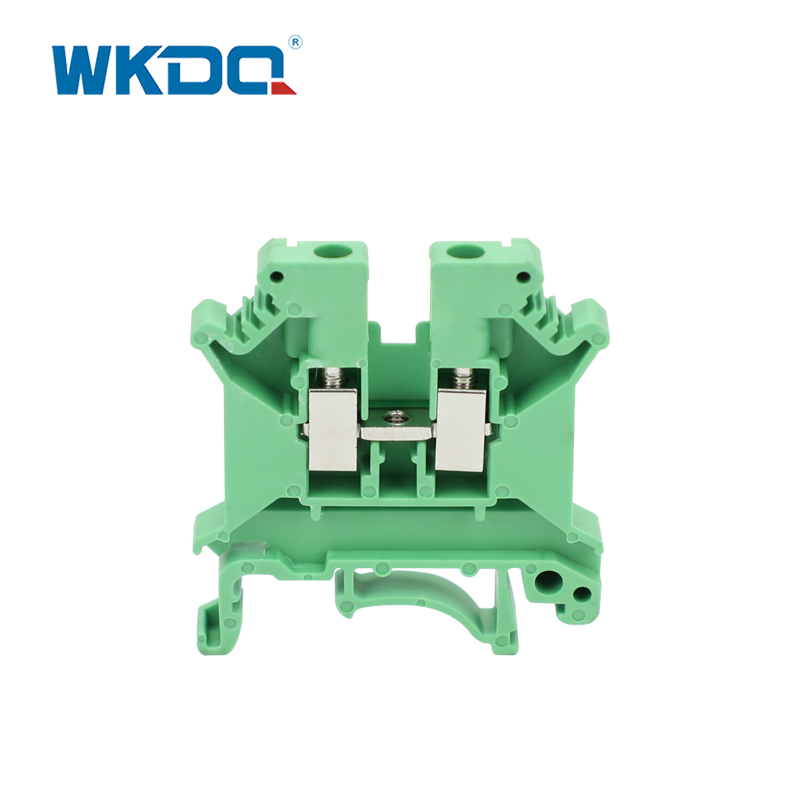

JUK 5N Electrical Terminal Block Component 4 mm² Feed Through Durable

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 5N

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUK 5N

Send Inquiry

Product Description

The JUK "Proven Safe Reliable" screw terminal system covers through/protective grounding terminals with wire diameters ranging from 1.5 to 240mm². It is suitable for solid/multi-strand wires and is made of PA66 flame-retardant nylon + nickel-plated brass. The low contact resistance ensures reliable conductivity. Supports 35mm DIN rail for immediate installation and use. The JUK 6N-10N universal form factor is compatible with accessories such as end covers and dividers. Equipped with a full accessory ecosystem including bridging Bridges, it simplifies the rapid installation and customization requirements in scenarios such as industrial power distribution and control cabinets.

Technical Parameters

Model Number	JUK 3N

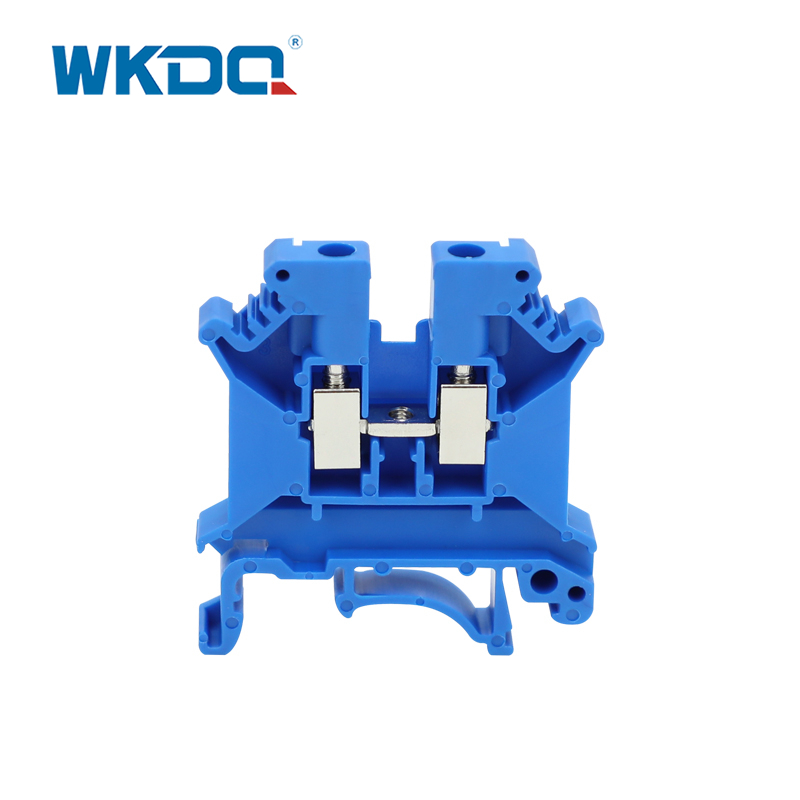

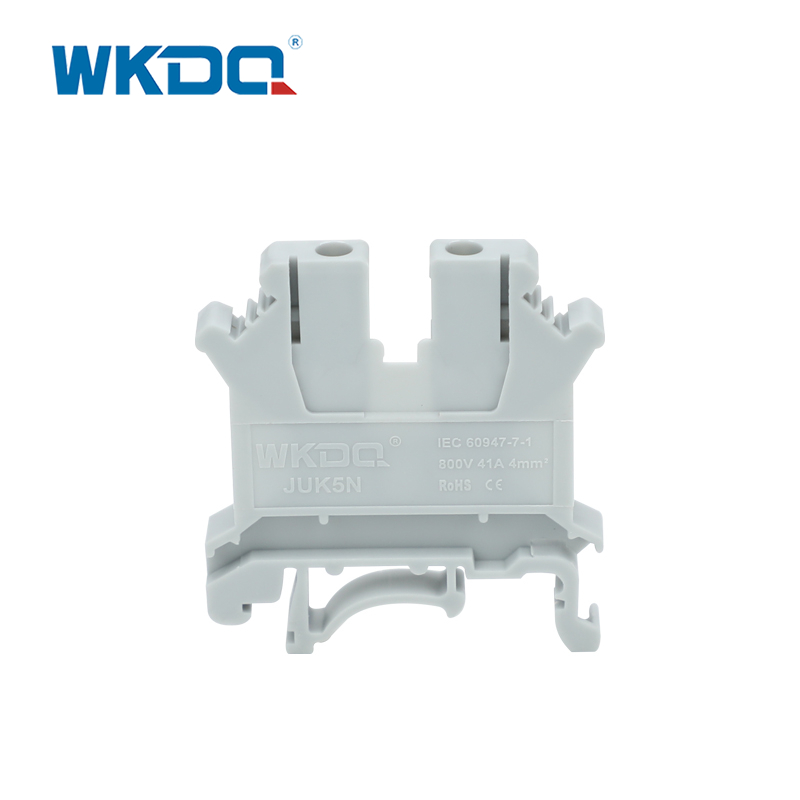

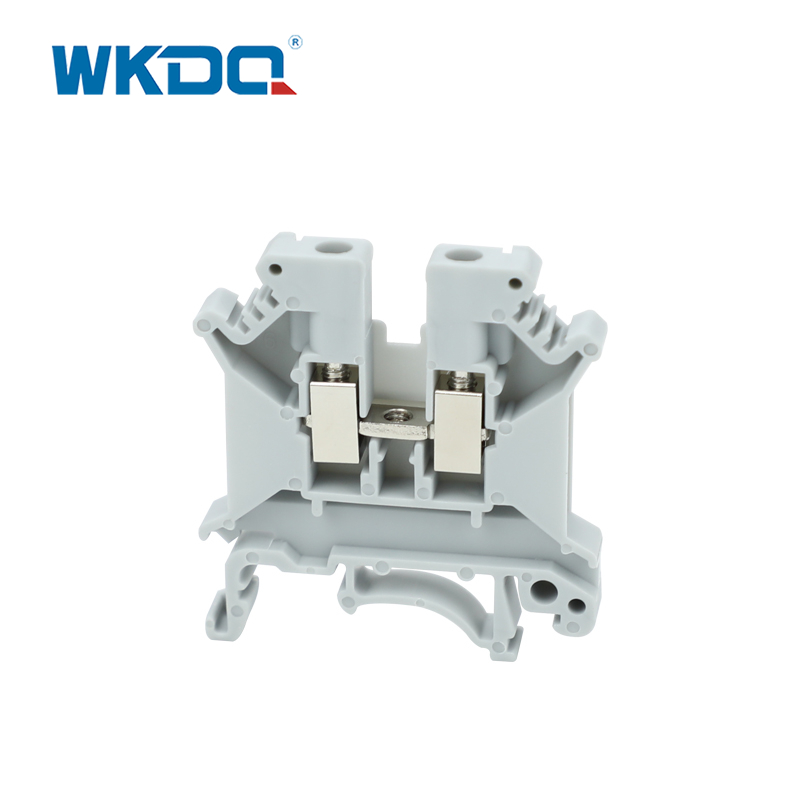

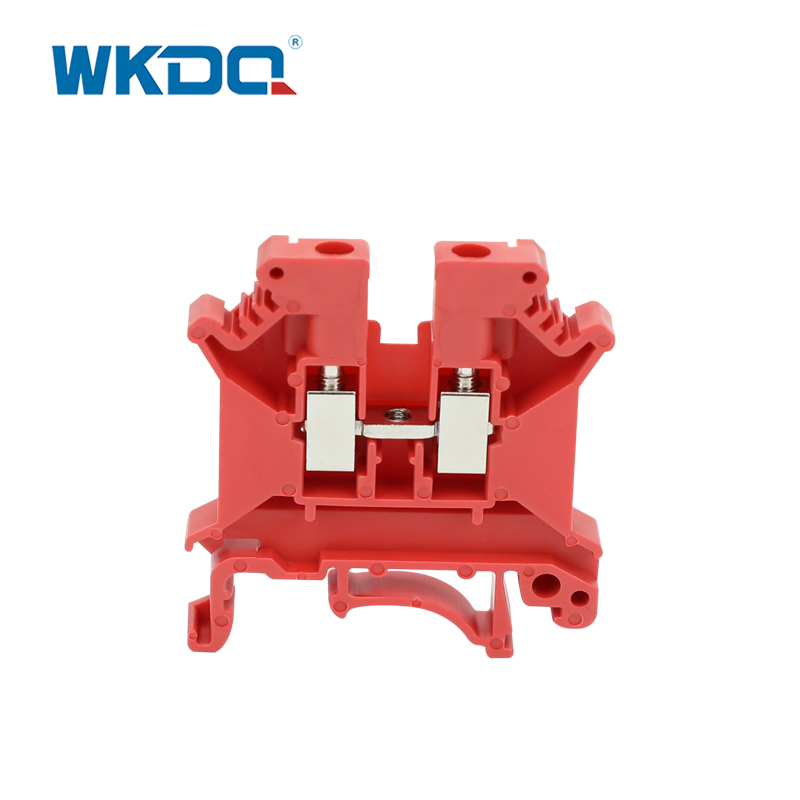

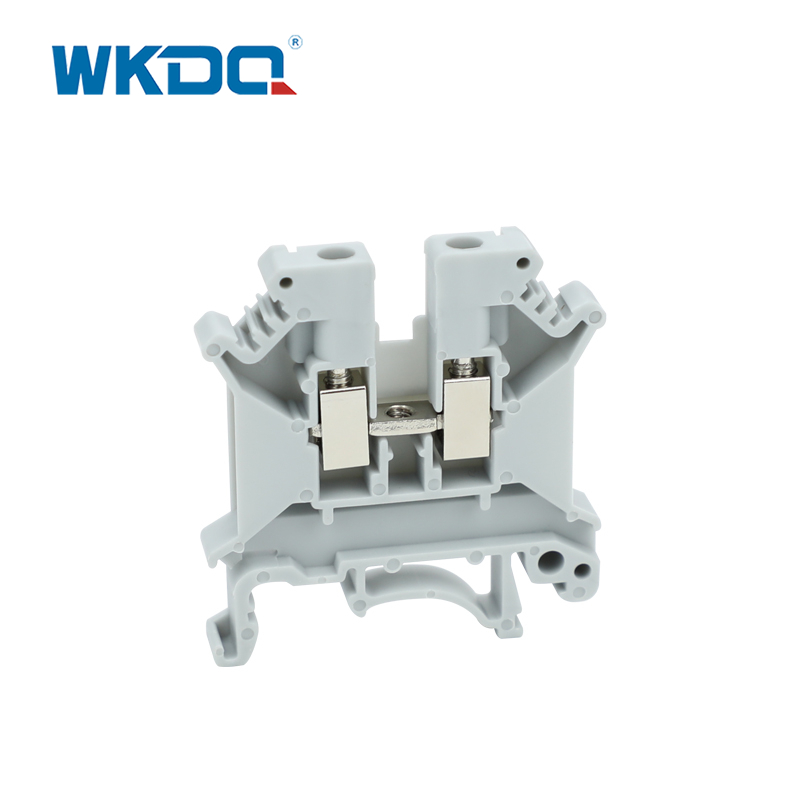

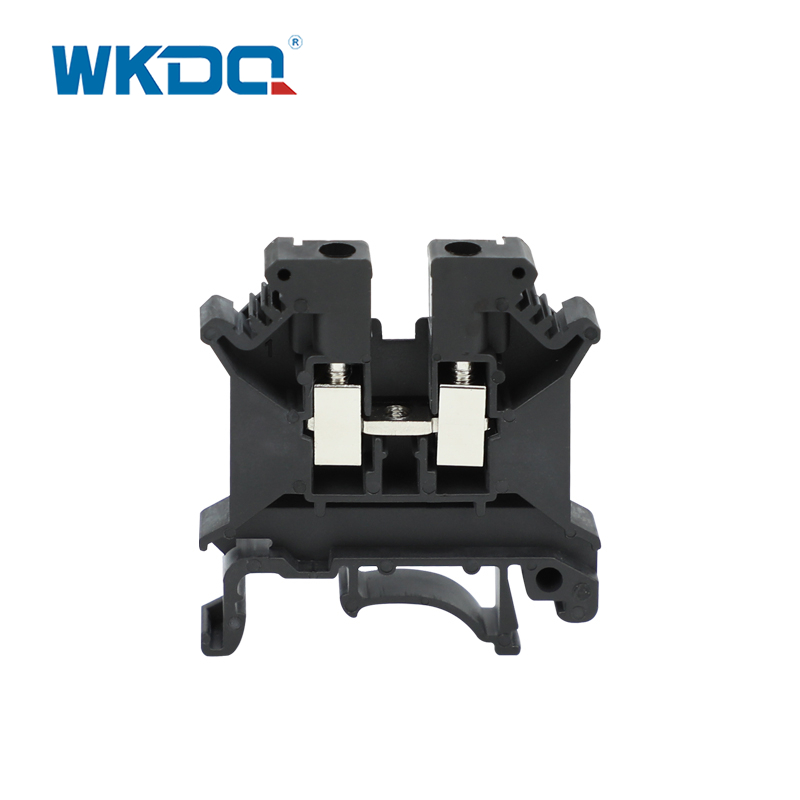

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/5.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/32A
Cross section, solid/soft Cable	0.2-4 mm / 0.2-2.5 mm
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, Customized logo are supported
Packing Detail	7.04g/pc, 50PCS/BOX,3500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
