Electrical Terminal Block
Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 3N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Model:JUK 3N
Send Inquiry
Product Description

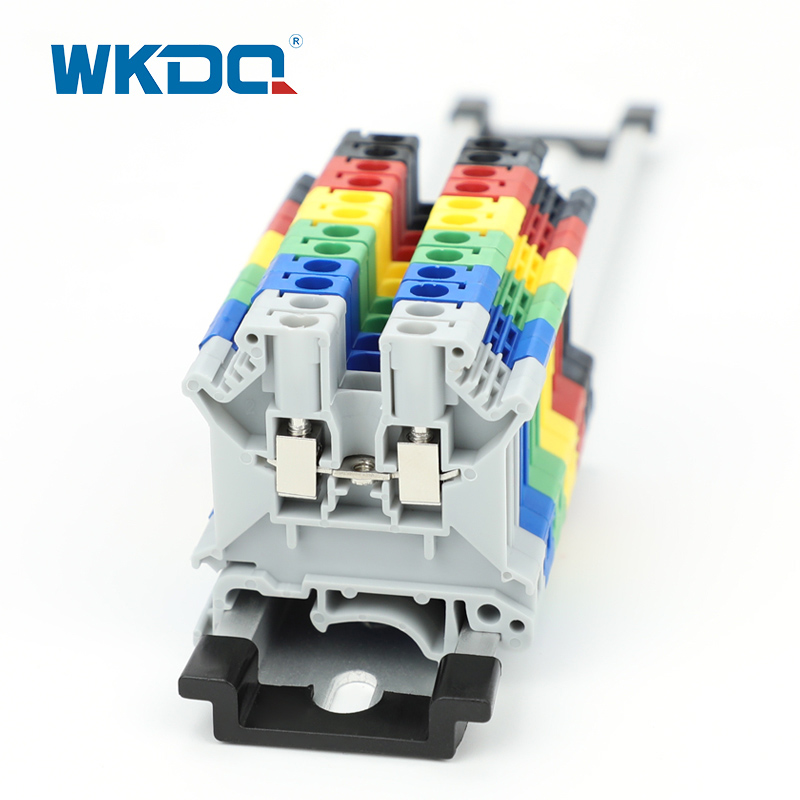

The WONKEDQ JUK universal terminal block is made of PA66 flame-retardant nylon material and is equipped with an anti-vibration and maintenance-free screw connection design. It supports centralized wiring of multiple lines of AC/DC positive and negative poles. The high contact force ensures stable conductivity. It is compatible with 35mm DIN rails and fixed/insertable bridge accessories, and is suitable for harsh scenarios such as solar combiner boxes and power distribution equipment. Achieve flexible wiring and long-term reliable connection.
| Part No. | JUK 3N |
| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 42.5/46.2/6.2 |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/41A |
| Cross section, solid/soft Cable | 0.2-6 mm / 0.2-4 mm |
| Conductor Dimension | 24-10 AWG |
| Mounting Type | DIN Rail 35mm |
| Standard | IEC 60947-7-1 |
| LOGO | OEM provided |
| Packing Detail | 8.45g/pc, 50PCS/box,3000PCS/Carton |
| Certification | CE/RoHS/CQC/ISO 9001 |
Hot Tags: Electrical Terminal Block, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
