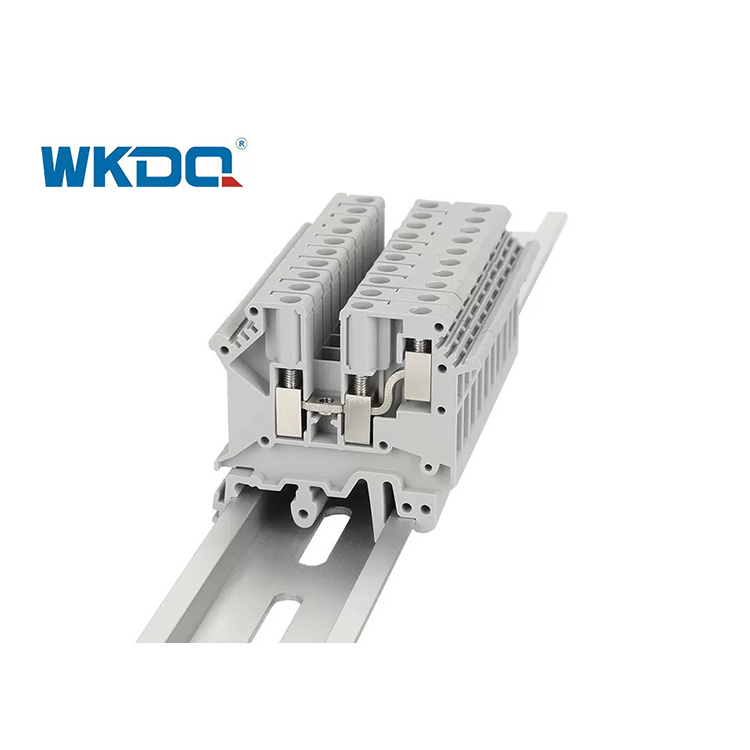

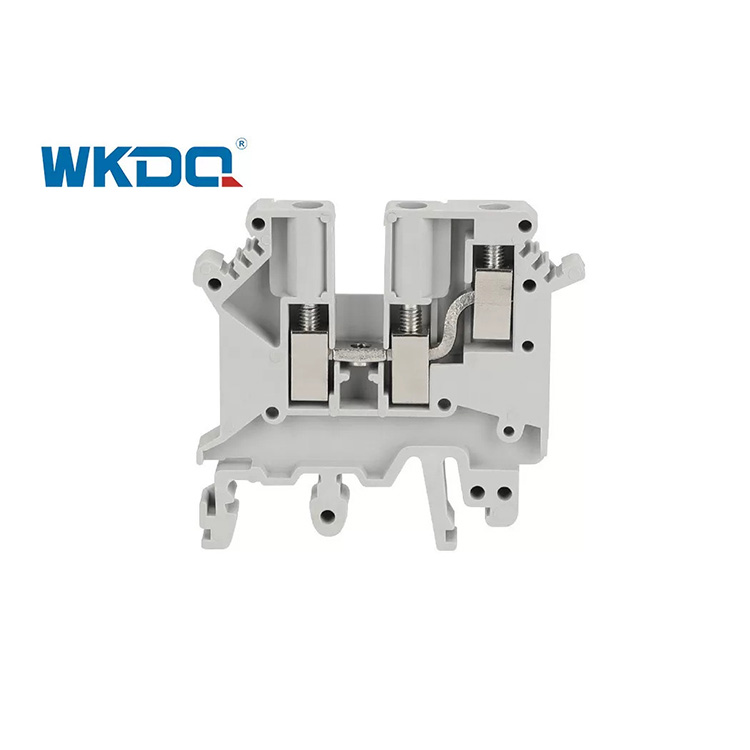

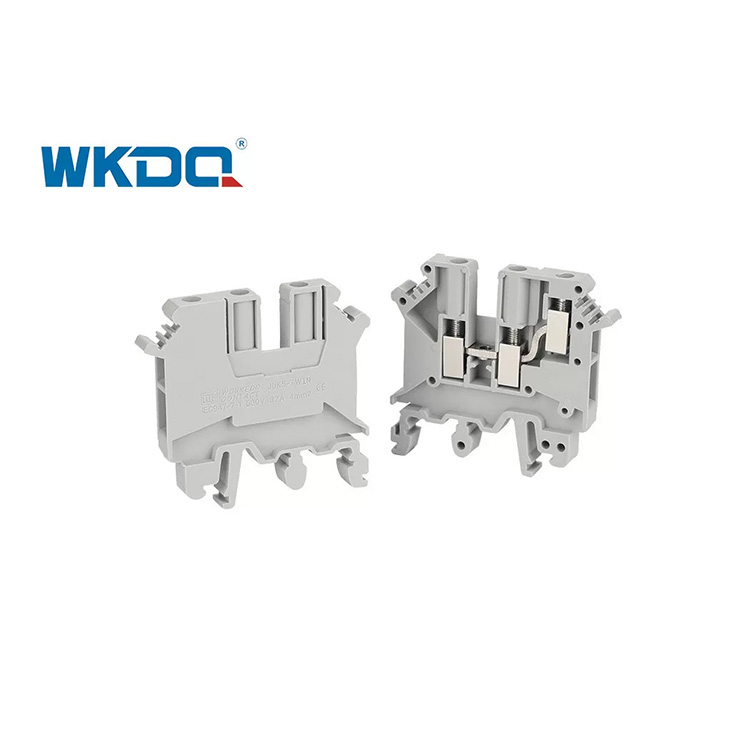

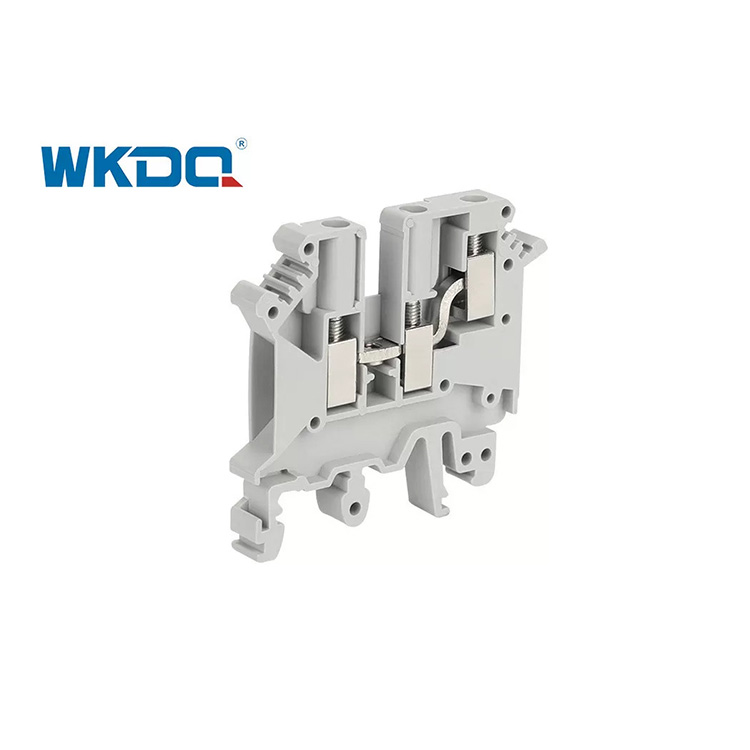

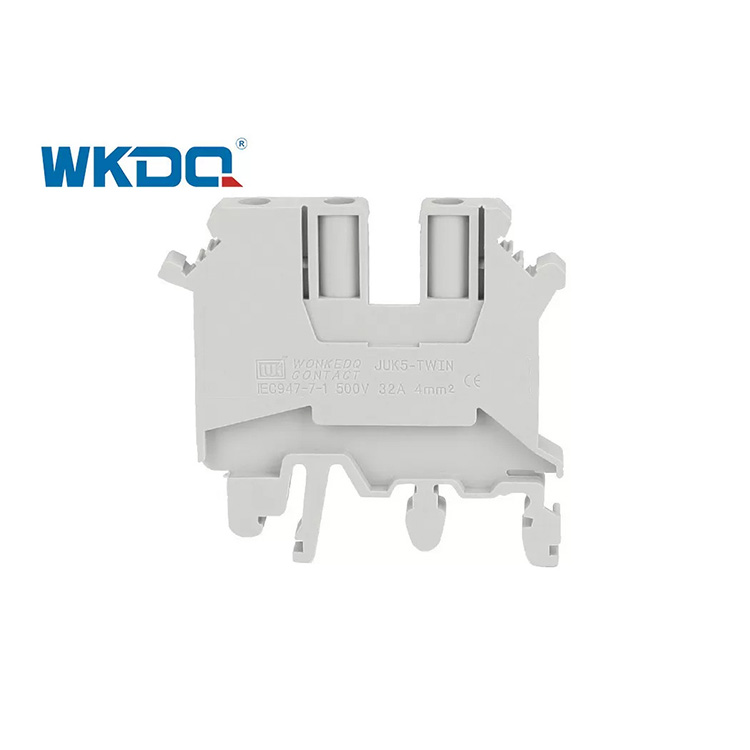

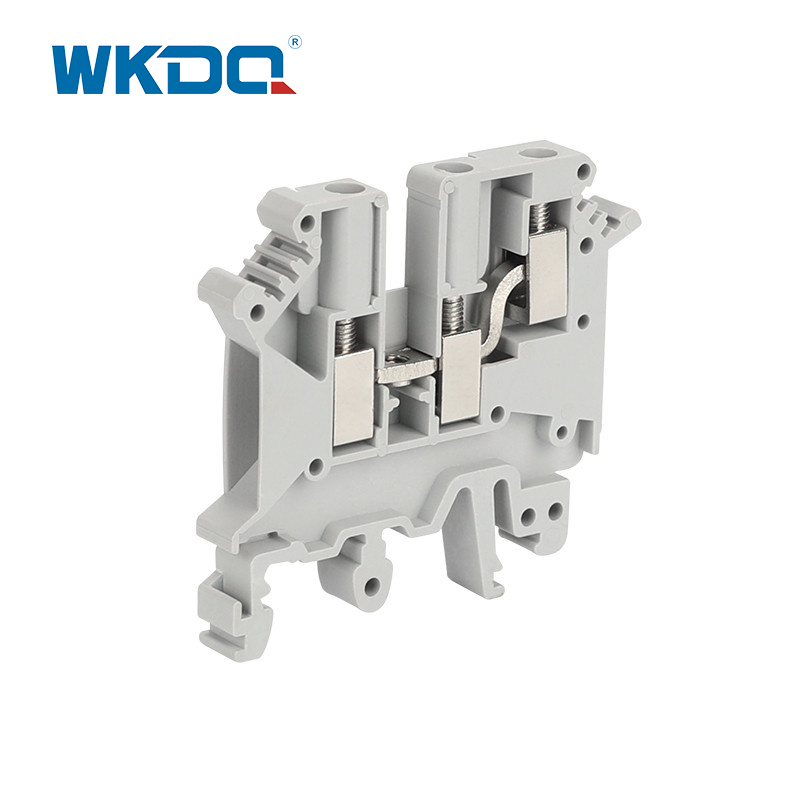

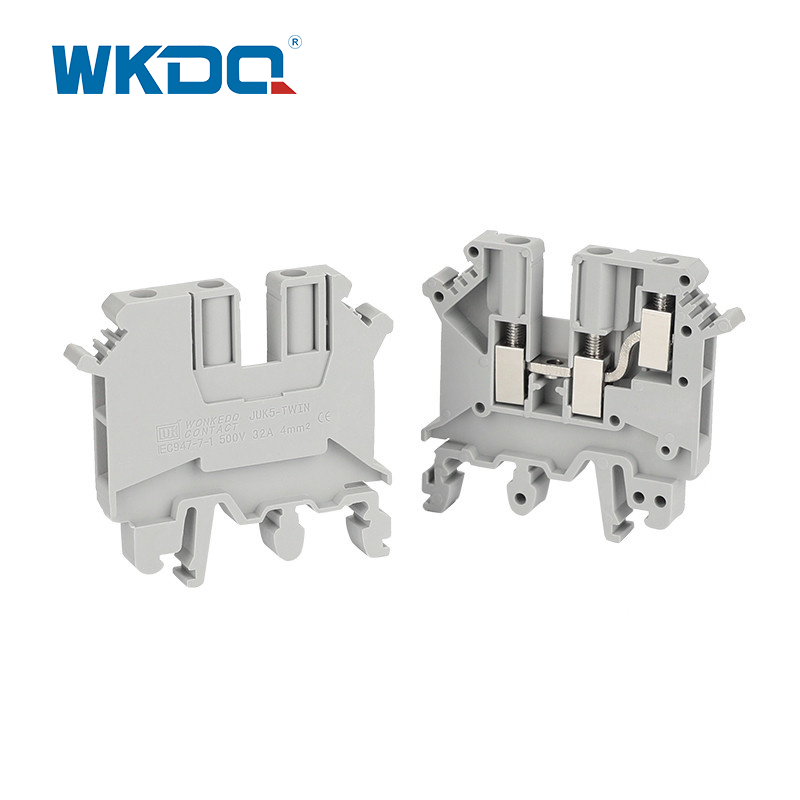

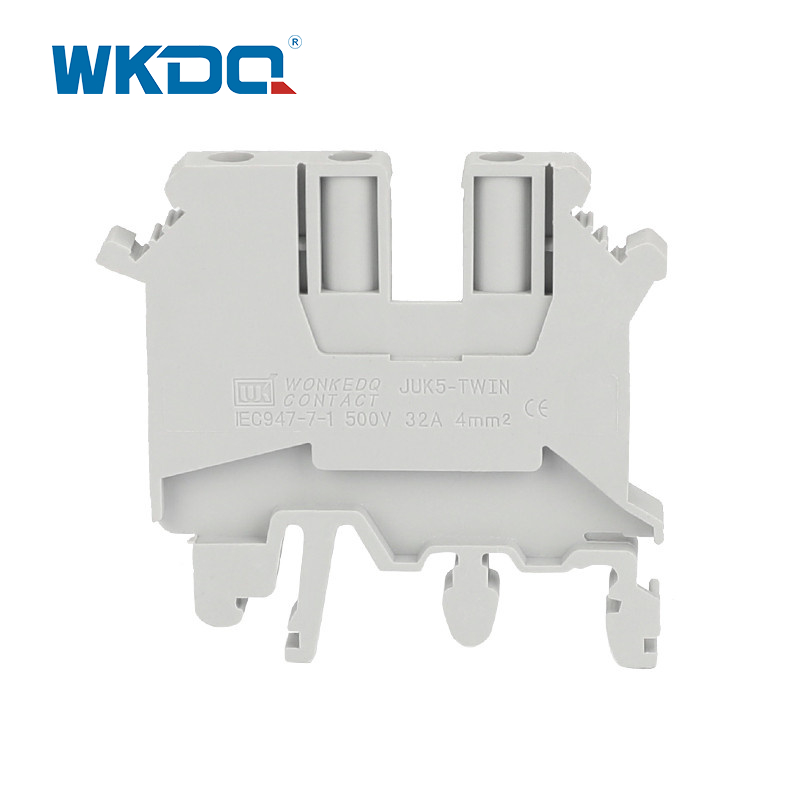

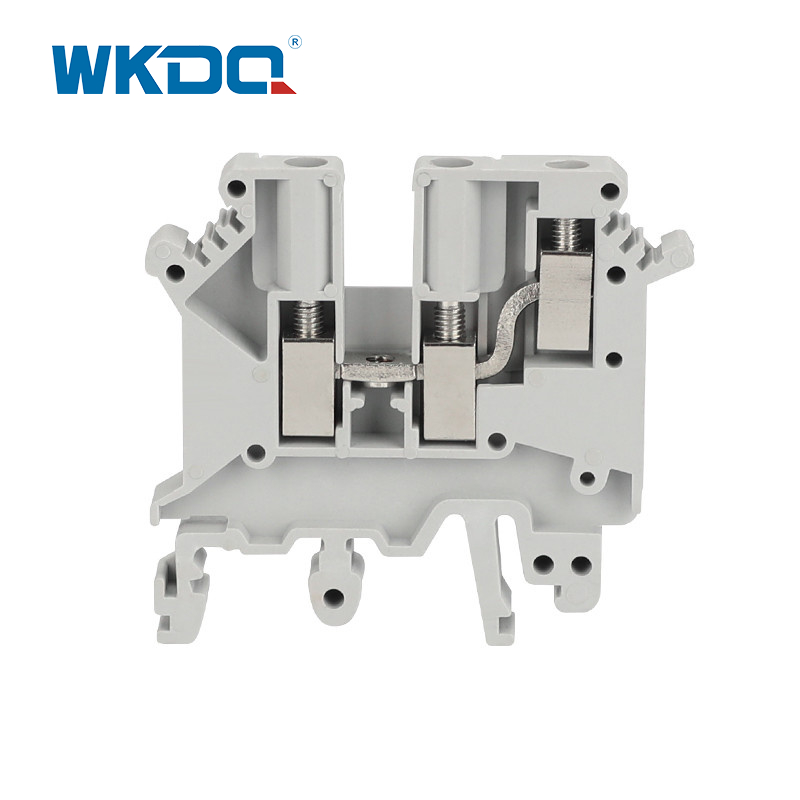

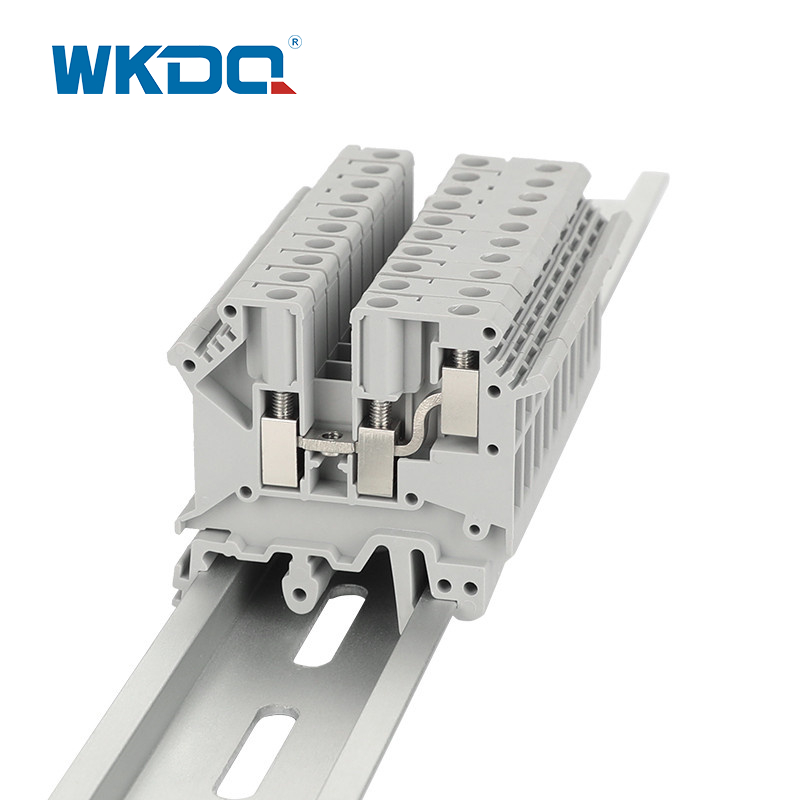

JUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal Material
  • JUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal MaterialJUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal Material
  • JUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal MaterialJUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal Material
  • JUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal MaterialJUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal Material
  • JUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal MaterialJUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal Material
  • JUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal MaterialJUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal Material

JUK5 TWIN Din Rail Power Terminal Block Brass And Steel Metal Material

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK5 TWIN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

The Twin Screw Terminal Blocks provide a compact and space-saving solution for high-density wiring applications. Here are the key features and benefits of these terminal blocks:

Space-saving Design: The twin terminal blocks offer a space-saving alternative to standard feed through terminal blocks, allowing for efficient high-density wiring configurations.

Multiple Connections: These terminal blocks enable multiple connections to be led to one terminal block, eliminating the need for additional terminal blocks or bridging.

Compact Power Distribution: The twin terminal blocks allow three wires to be connected to one potential, making them suitable for use as compact power distributors.

Easy to Operate: These terminal blocks are designed for ease of operation, simplifying installation and wiring processes.

Double In and Double Out Terminals: The terminal blocks feature double in and double out terminals, providing flexibility for connecting multiple conductors.

Long Durable Time: The terminal blocks are made from high-quality materials, ensuring long-lasting durability and reliable performance.

Corrosion-proof Contact Point: The contact points of the terminal blocks are corrosion-proof, ensuring a secure and reliable electrical connection.

Comprehensive Range of Accessories: The terminal blocks are accompanied by a comprehensive range of accessories, including plug-in bridges, marking strips, and marking holders, allowing for enhanced customization and organization.

High-Quality Materials: The terminal blocks are made from engineering nylon PA66 and corrosion-proof metals, guaranteeing quality and reliability.

Generously Sized Surface Areas for Labeling: The terminal blocks feature generously sized surface areas that can be easily labeled. The contents can be printed for clear identification and organization.

Easy Connection of Large Conductor Cross Sections: The terminal blocks are capable of connecting two conductors with ease, including large conductor cross sections.

Full Range of Accessories: The terminal blocks are accompanied by a full range of accessories, including end plates, brackets, partition plates, marking trips, bridges, and more, allowing for comprehensive customization and expansion.

In summary, the Twin Screw Terminal Blocks provide a space-saving and versatile solution for high-density wiring. With their easy operation, multiple connection capabilities, and durability, these terminal blocks offer reliable and efficient electrical connections. The range of accessories and high-quality materials further enhance their functionality and customization options.


TECHNICAL PARAMETERS

Model Number JUK 5 TWIN, Twin Modular Terminal Block
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 50.5/46.2/6.2
Connection method Screw connection
Material Nylon PA66
Rated Voltage/Current 500V/32A
Cross section, solid/soft Cable 0.2-4 mm² / 0.2-4 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 10.43g/pc, 50PCS/BOX,1500PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
