Screw-type Terminal Block

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUSLKG 10N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUSLKG 10N

Send Inquiry

Product Description

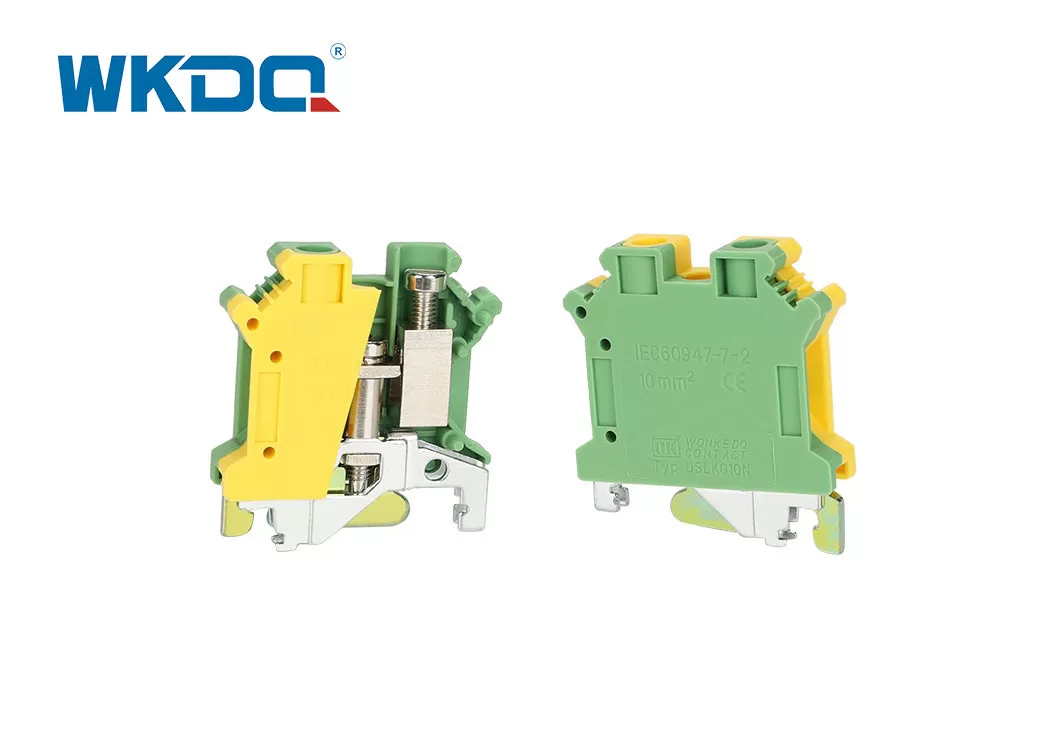

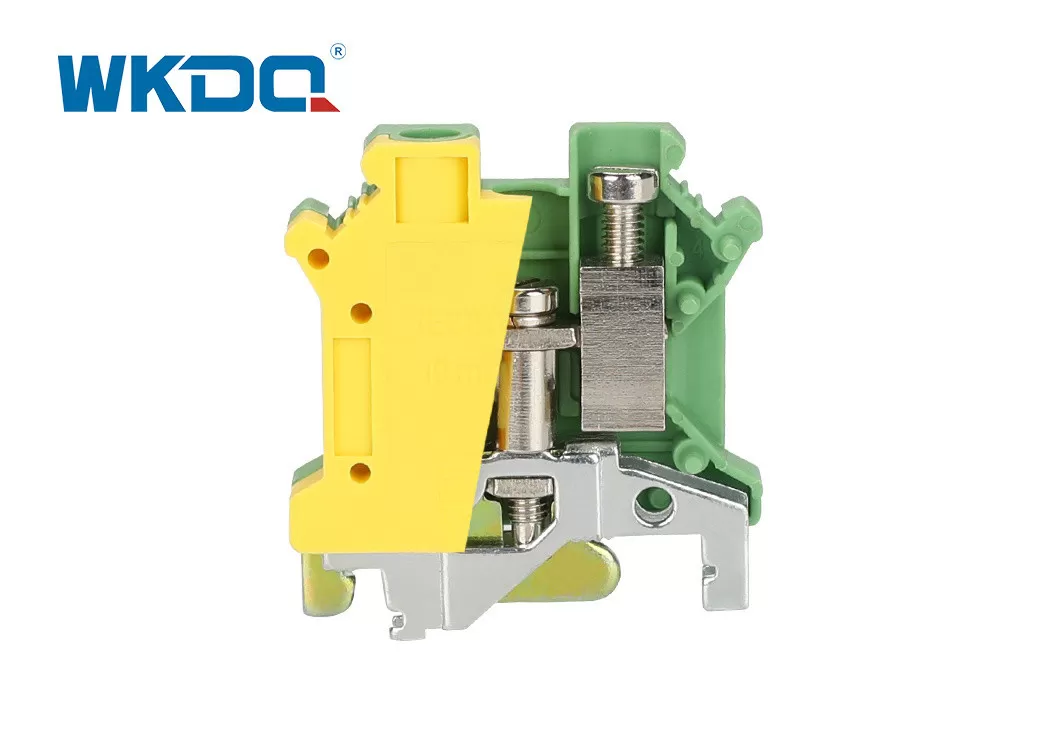

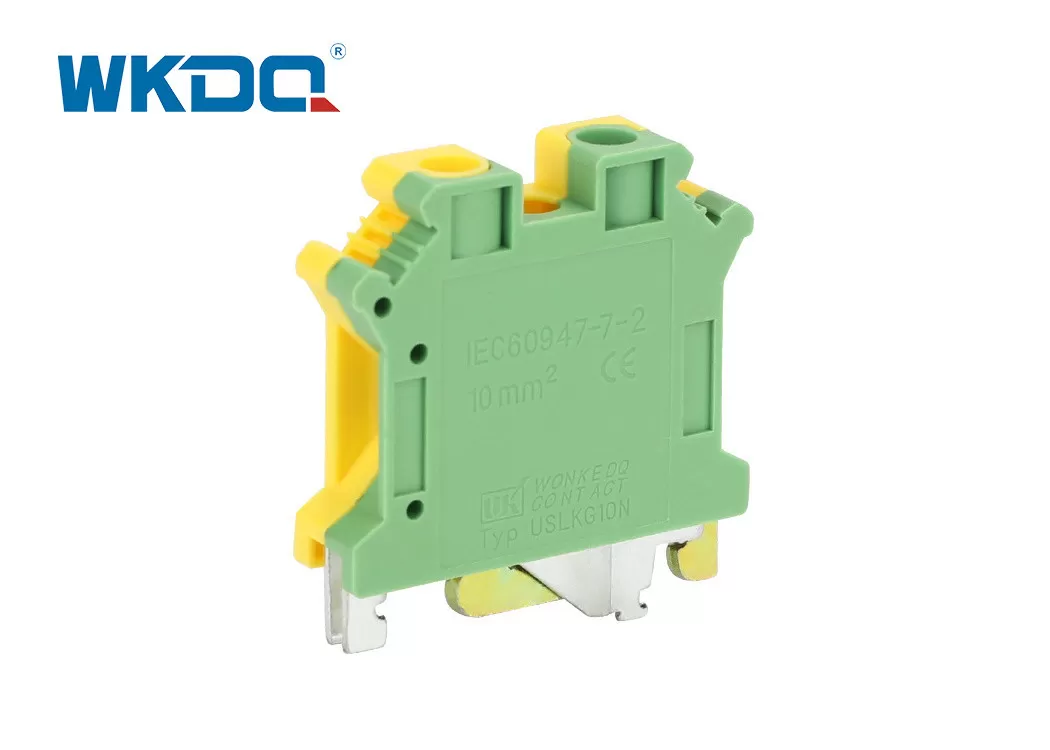

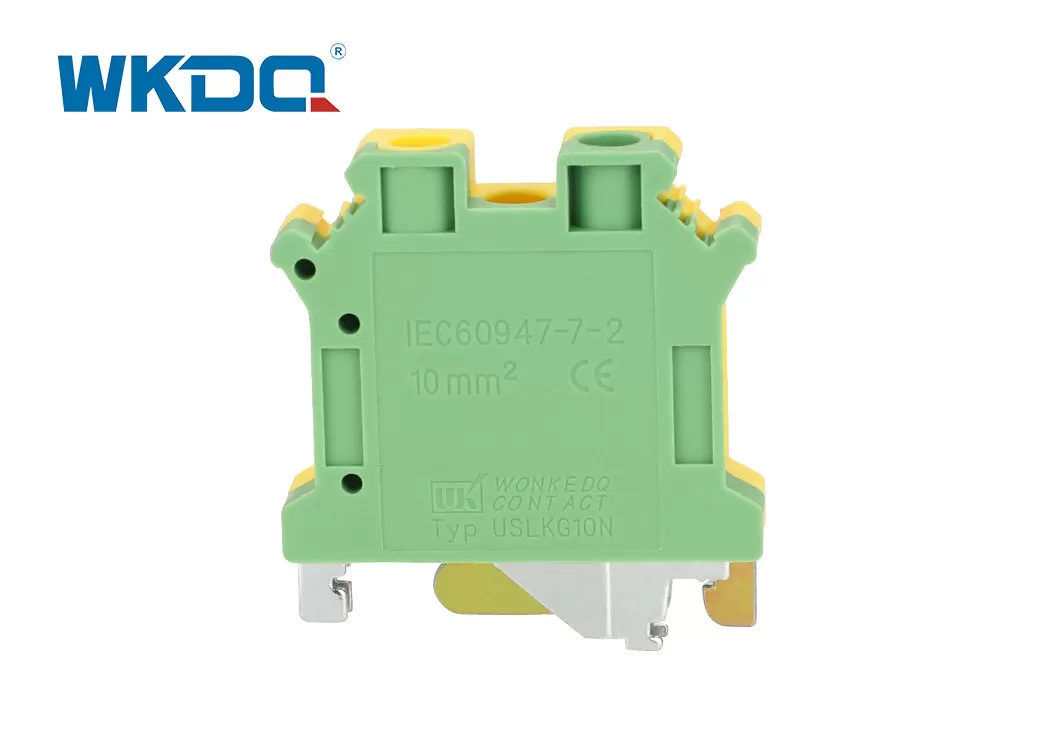

The WonkeDQ grounding terminal block adopts a PA66 flame-retardant housing and nickel-plated brass material, and is equipped with a snap-on PE grounding foot and anti-loosening screw structure, achieving anti-vibration, anti-corrosion and low contact resistance performance. The DIN rail instant installation design is compatible with the NS 35 rail, with an optimized spatial layout. It supports flexible connection of lead-free and lead-free wires. Combined with highly compatible accessories and OEM customization services, it meets the rapid deployment requirements of high-reliability scenarios such as control cabinets and rail transit.

Model No.	JUSLKG 10N, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/45/10.2
Connection	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/76A
Cross section, solid/soft Cable	0.5-16 mm² /0.5-10 mm²
Conductor dimension	20-6 AWG

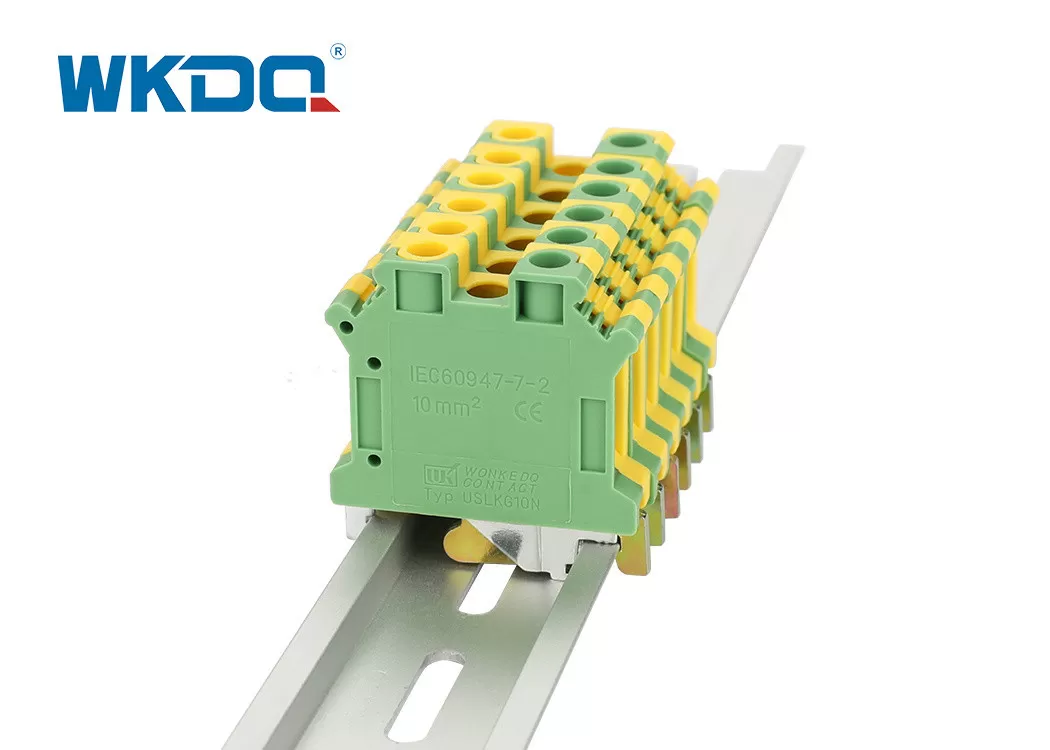

Mounting	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	27.81g/pc, 50PCS/BOX ,700PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
