Ground Terminal Block

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JUSLKG 16N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUSLKG 16N

Send Inquiry

Product Description

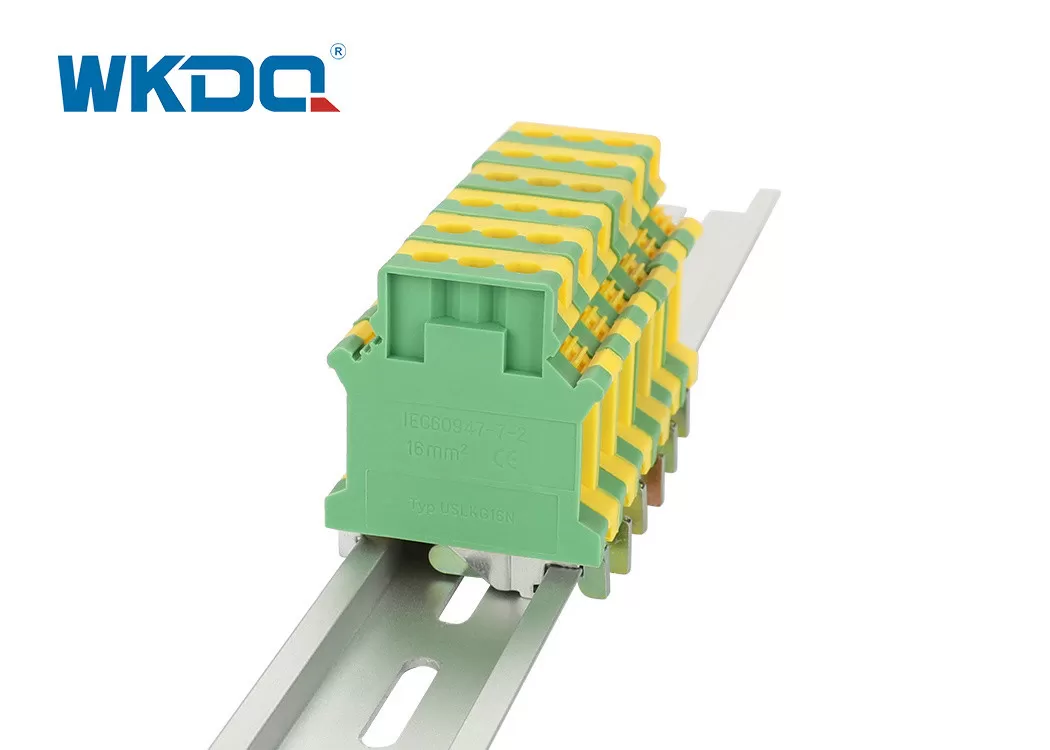

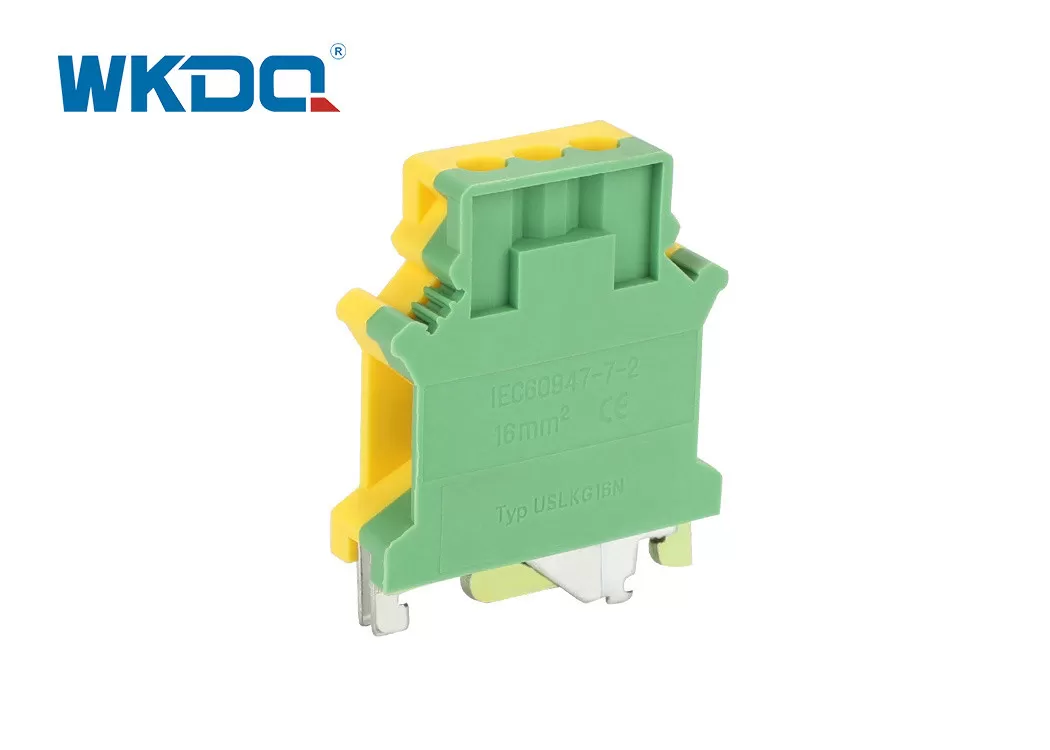

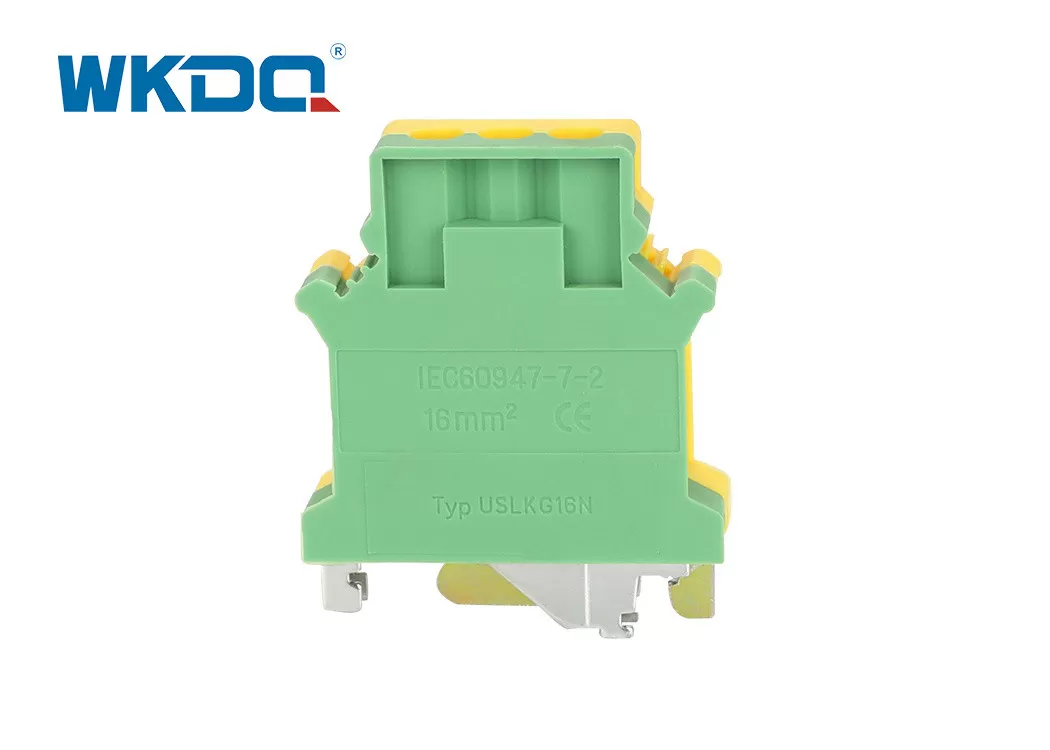

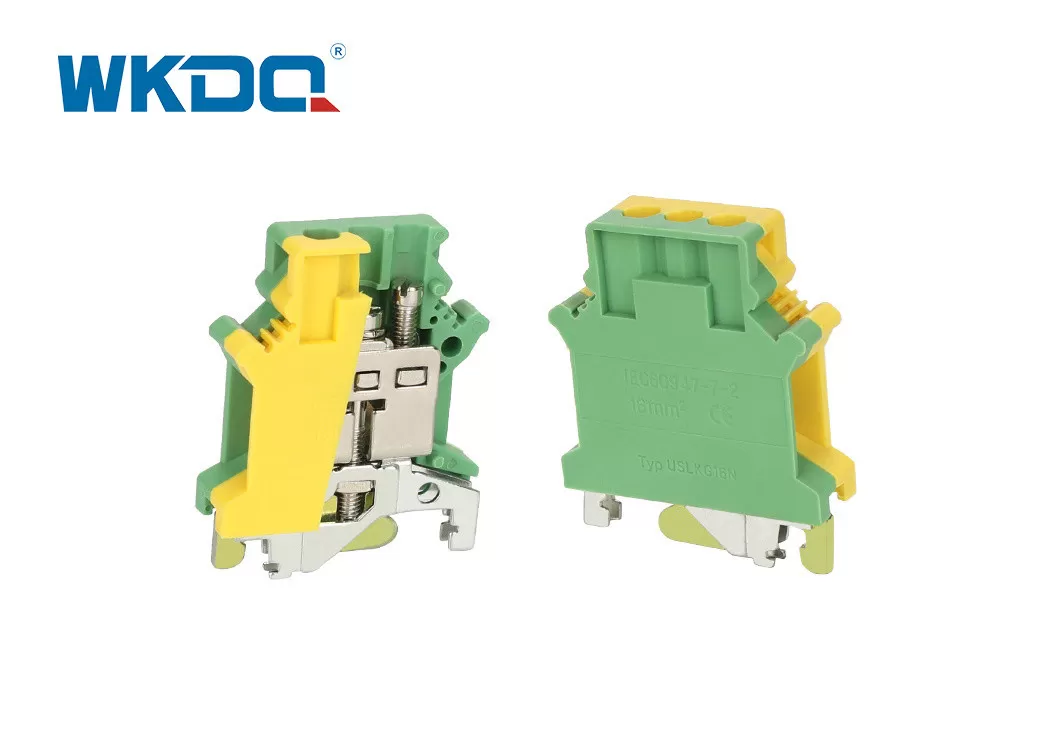

The JUSLKG 16N grounding modular terminal block adopts a flame-retardant PA66 housing and nickel-plated brass conductors. It supports a withstand voltage of 800V and a large current carrying capacity of 101A. It is compatible with solid wires ranging from 2.5 to 25mm² and flexible wires ranging from 4 to 16mm². The DIN rail NS35 second installation design enables shock-resistant and anti-loosening connections. The international standard color scheme of yellow and green labels supports LOGO customization. It complies with CE/RoHS/CQC/ISO certifications and is suitable for high-reliability grounding solutions in harsh environments such as industrial power distribution and heavy machinery.

Model No.	JUSLKG 16N, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/53/12.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	2.5-25 mm² /4-16 mm²
Conductor Size	12-4 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	36.25g/pc, 50PCS/BOX,600PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
