Standard Ground Terminal Blocks
  • Standard Ground Terminal BlocksStandard Ground Terminal Blocks
  • Standard Ground Terminal BlocksStandard Ground Terminal Blocks
  • Standard Ground Terminal BlocksStandard Ground Terminal Blocks
  • Standard Ground Terminal BlocksStandard Ground Terminal Blocks
  • Standard Ground Terminal BlocksStandard Ground Terminal Blocks

Standard Ground Terminal Blocks

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUSLKG 2.5N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUSLKG 2.5N

Send Inquiry

Product Description

     The WonkeDQ metal PE grounding terminal block adopts a one-button snap-on PE pin design, is compatible with 35mm DIN rail installation, and automatically establishes a reliable grounding connection. The flame-retardant PA66 housing and tin-plated brass conductors ensure anti-corrosion and low contact resistance (<0.1mΩ). The JUSLKG series supports cables ranging from 0.75 to 50mm². The high-strength clamping structure is suitable for vibrating environments. The yellow and green international standard color scheme, combined with modular accessories, achieves a safe and efficient grounding solution.

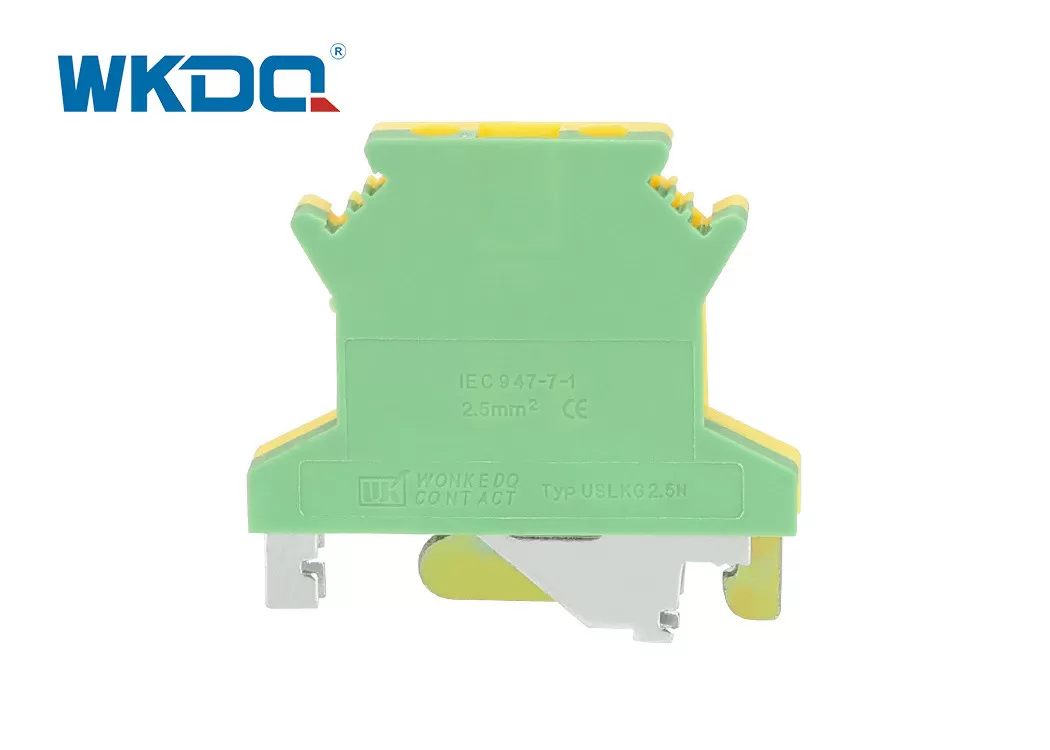

Model No. JUSLKG 2.5N, Ground modular terminal block
Color Yellow/Green, other color can be customized
Length/Height/Wide (mm) 42.5/41/6.2
Connection method Screw connection
Material Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current 800V/101A
Cross section, solid/soft Cable 0.2-4 mm² /0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 17.41g/pc, 50PCS/BOX,1800PCS/CTN
Certification CE/RoHS/CQC/ISO 9001

Hot Tags: Standard Ground Terminal Blocks, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
