Grounding Terminal Block

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUSLKG 35
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUSLKG 35

Send Inquiry

Product Description

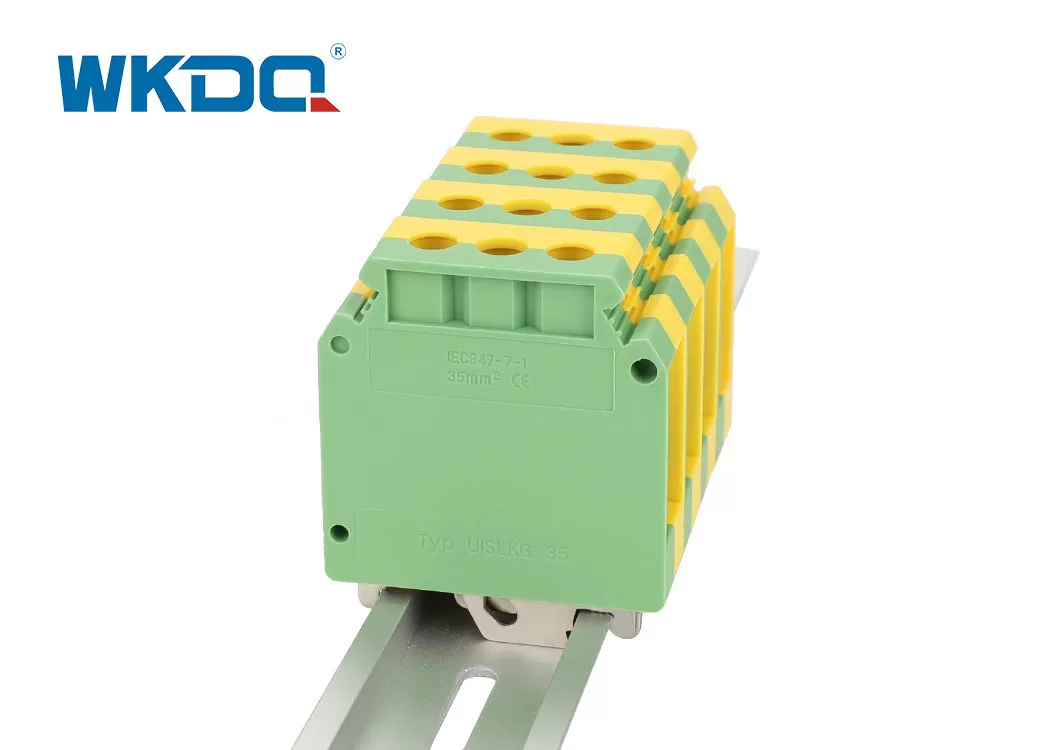

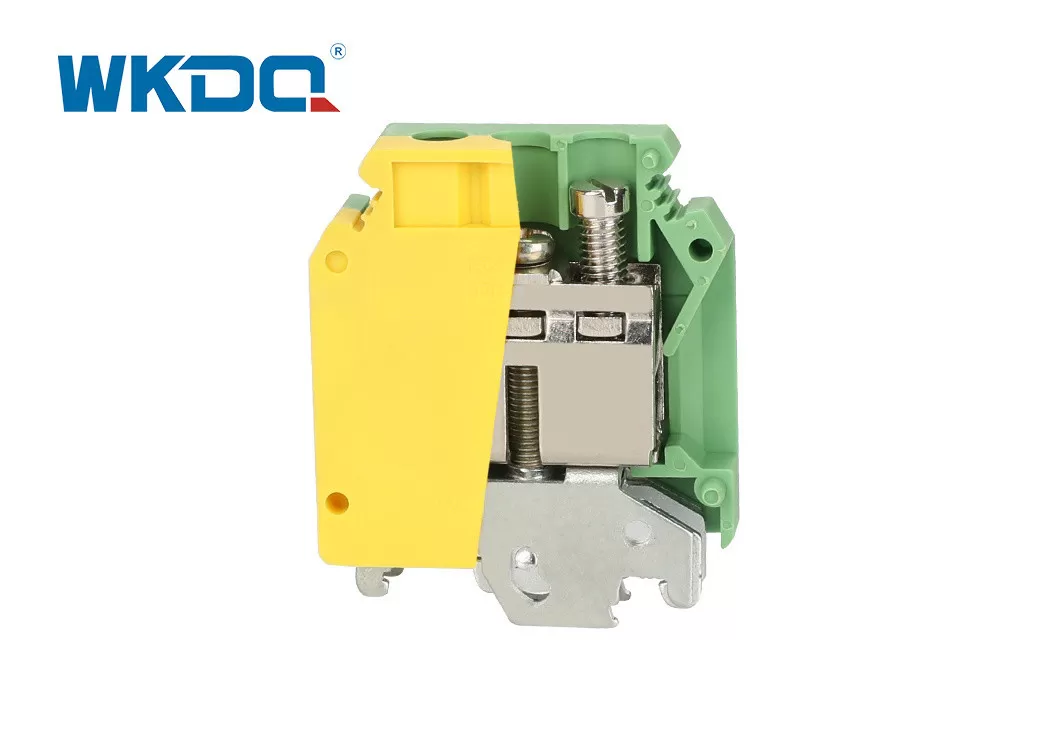

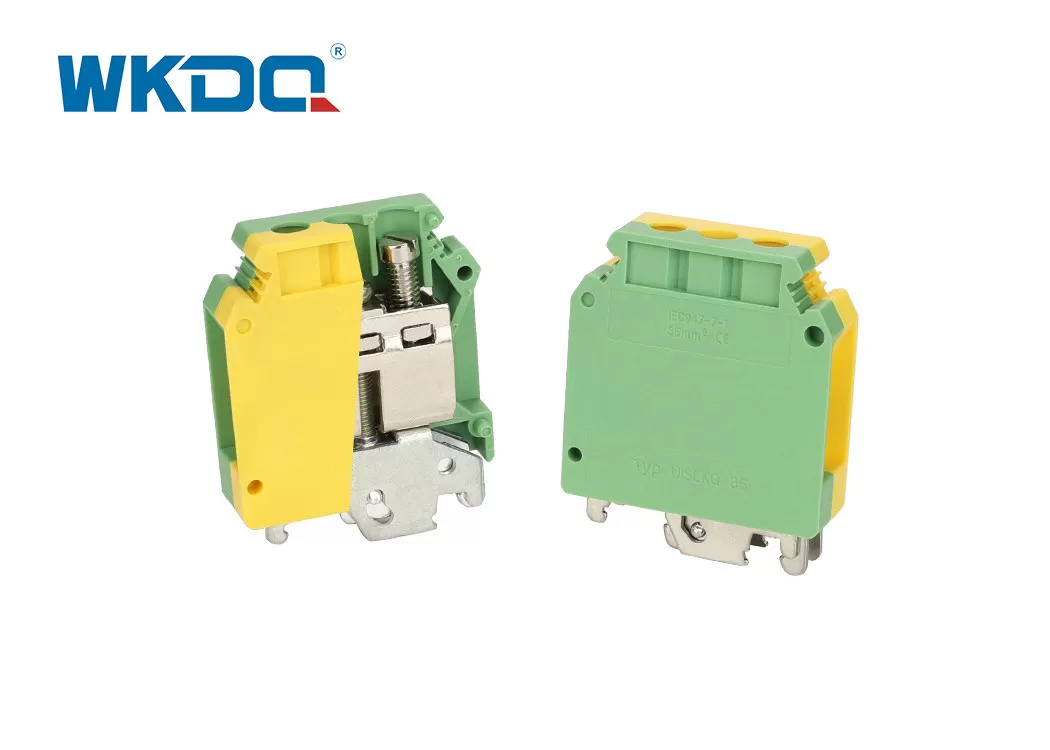

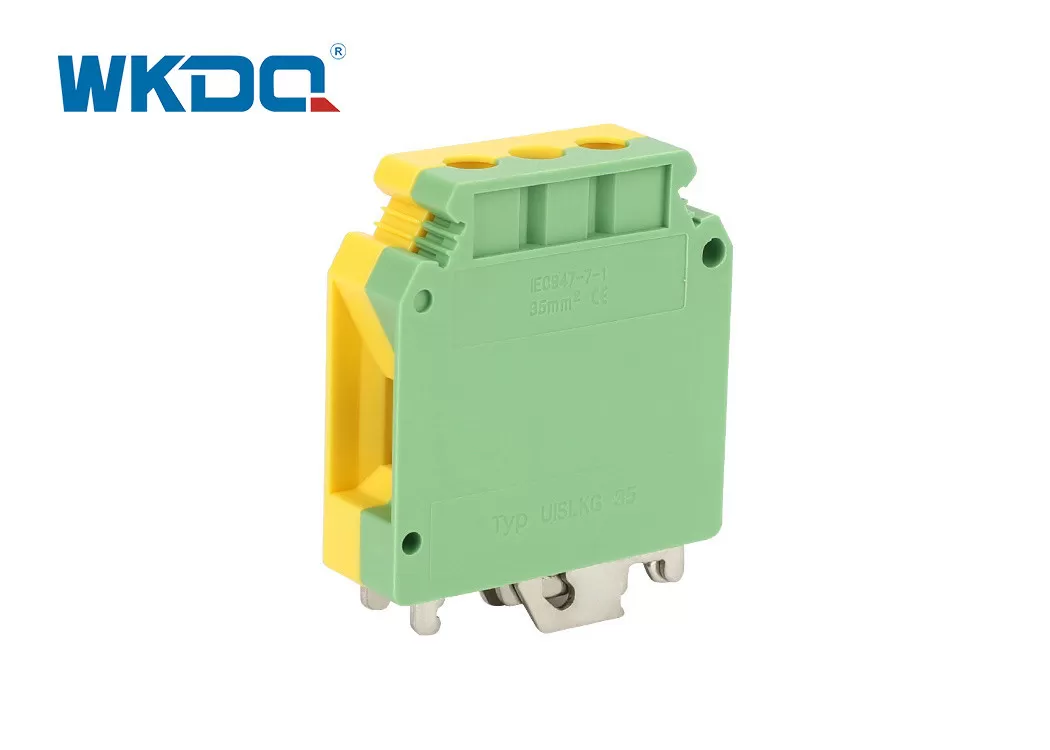

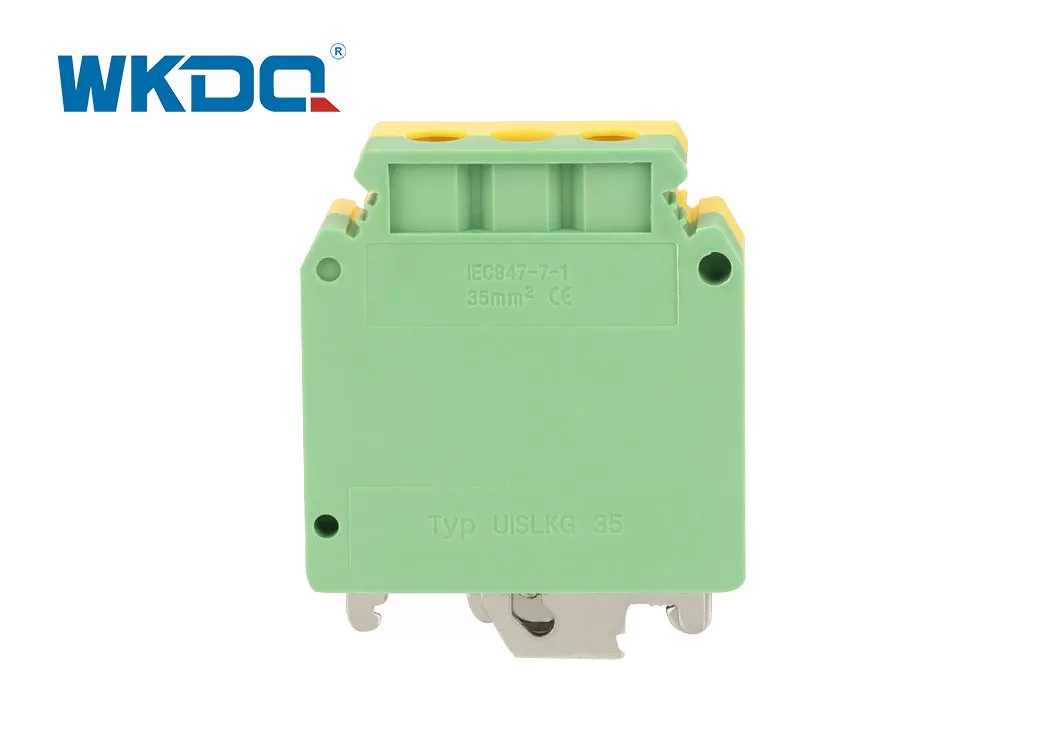

The JUSLKG 35 grounding modular terminal block adopts flame-retardant PA66 housing and nickel-plated brass conductors. It supports a withstand voltage of 1000V and a large current carrying capacity of 150A. It is compatible with solid wires ranging from 0.75 to 50mm² and flexible wires ranging from 0.75 to 35mm². The DIN rail NS35 second installation design enables shock-resistant and anti-loosening connection. The yellow and green international standard color scheme supports LOGO customization and complies with CE/RoHS/CQC/ISO certifications. It is suitable for high-reliability grounding scenarios such as industrial power distribution.

Model No.	JUSLKG 35, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	51/61/16.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	1000V/150A
Cross section, solid/soft Cable	0.75-50 mm² /0.75-35 mm²
Conductor Size	18-0 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	79.02g/pc, 20PCS/BOX,300PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
