Earth Screw Connector Block

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUSLKG 3N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUSLKG 3N

Send Inquiry

Product Description

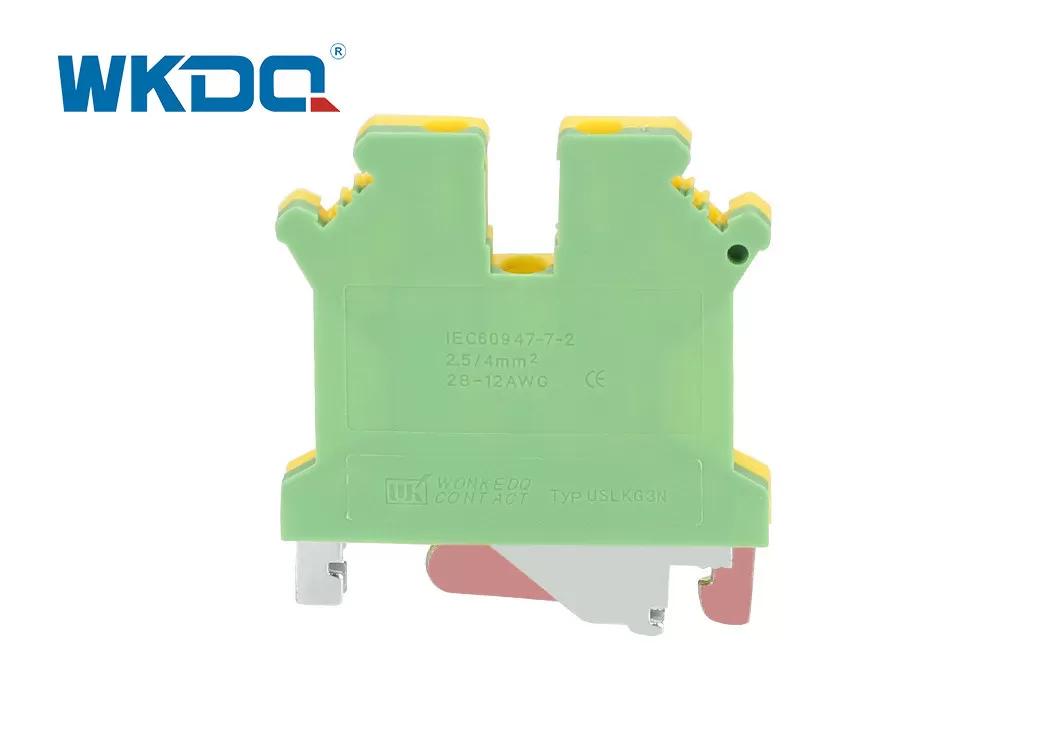

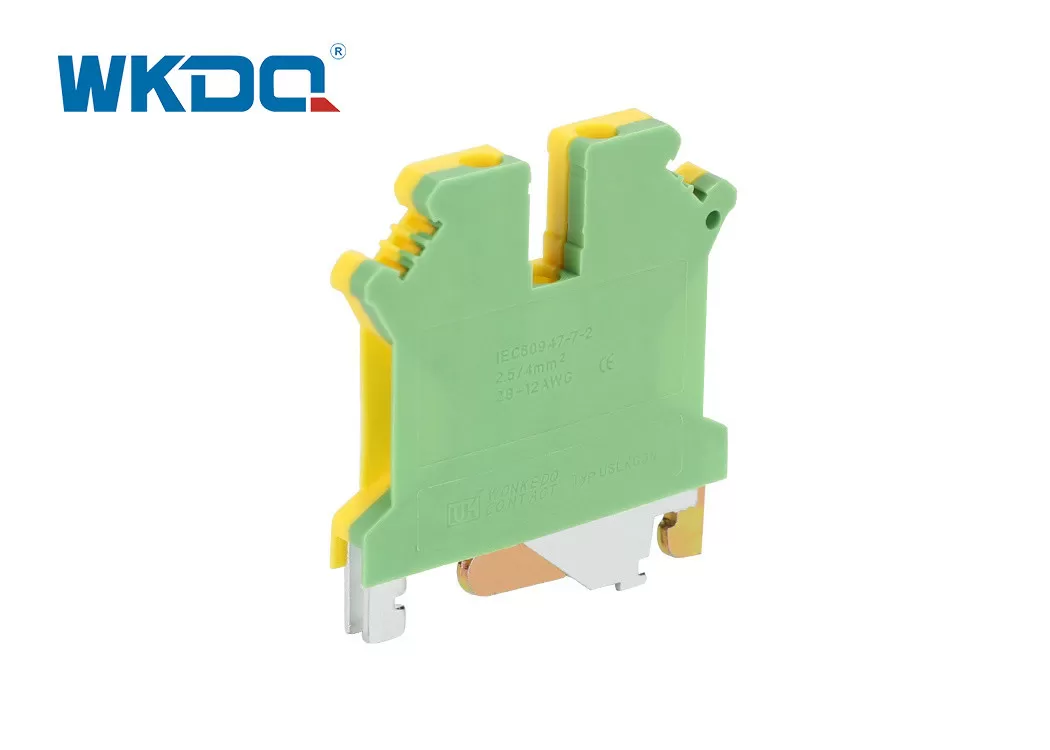

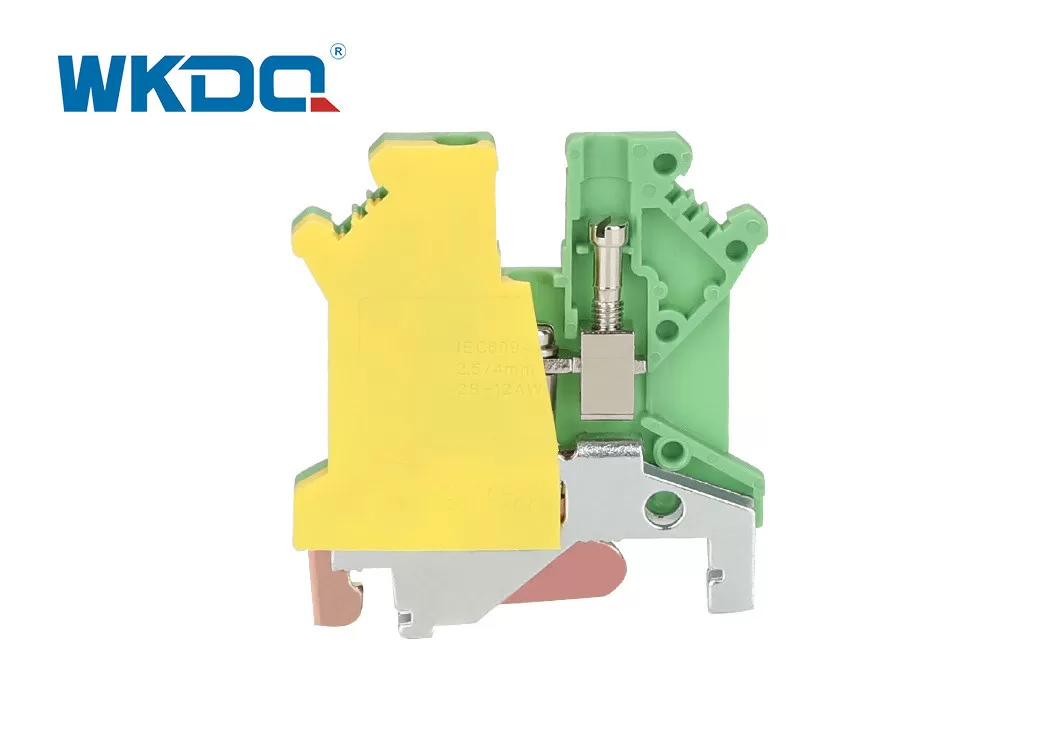

The green and yellow label international standard grounding terminal block adopts flame-retardant PA66 housing and high-strength copper parts. The anti-corrosion contact point provides strong conductivity. The low contact resistance design is suitable for large cross-section wires (including non-pre-insulated wires). The universal NS 35 rail can be installed in seconds. The compact space optimized layout, combined with highly compatible accessories, realizes a safe, reliable and space-saving grounding solution.

Model No.	JUSLKG 3, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/5.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	0.2-4 mm² /0.2-2.5 mm²
Conductor Size	24-12 AWG

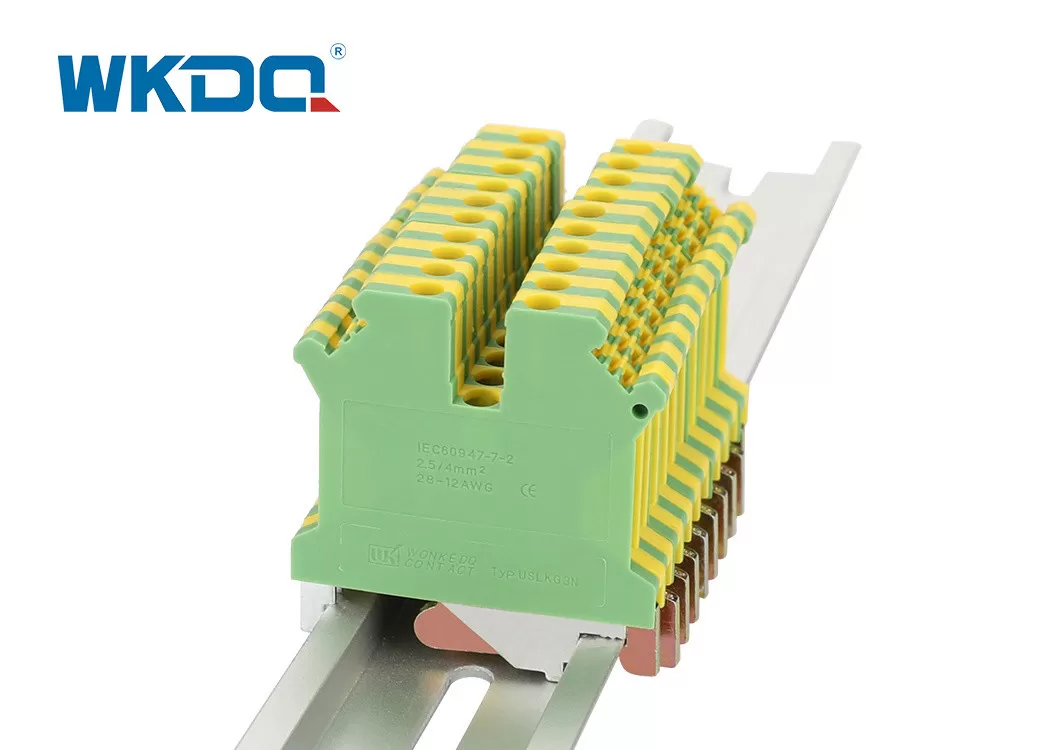

Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	16.13g/pc, 50PCS/BOX, 1300PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
