Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUSLKG 5N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etcSend Inquiry
ShareFacebookTwitterPinterestLinkedIn

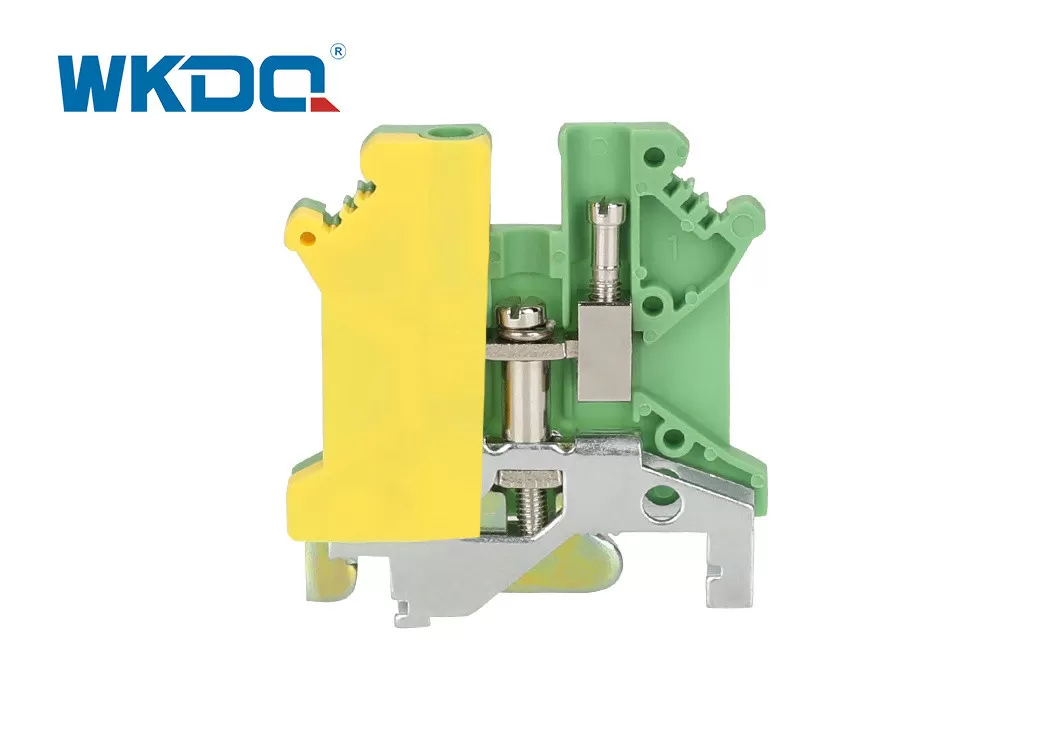

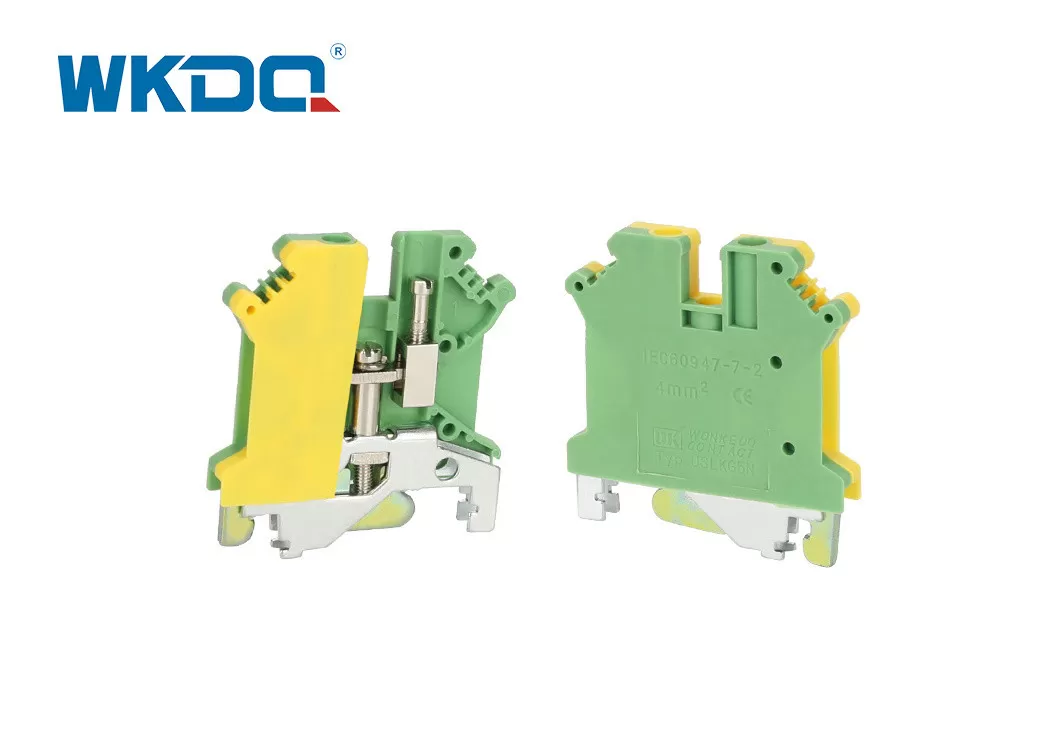

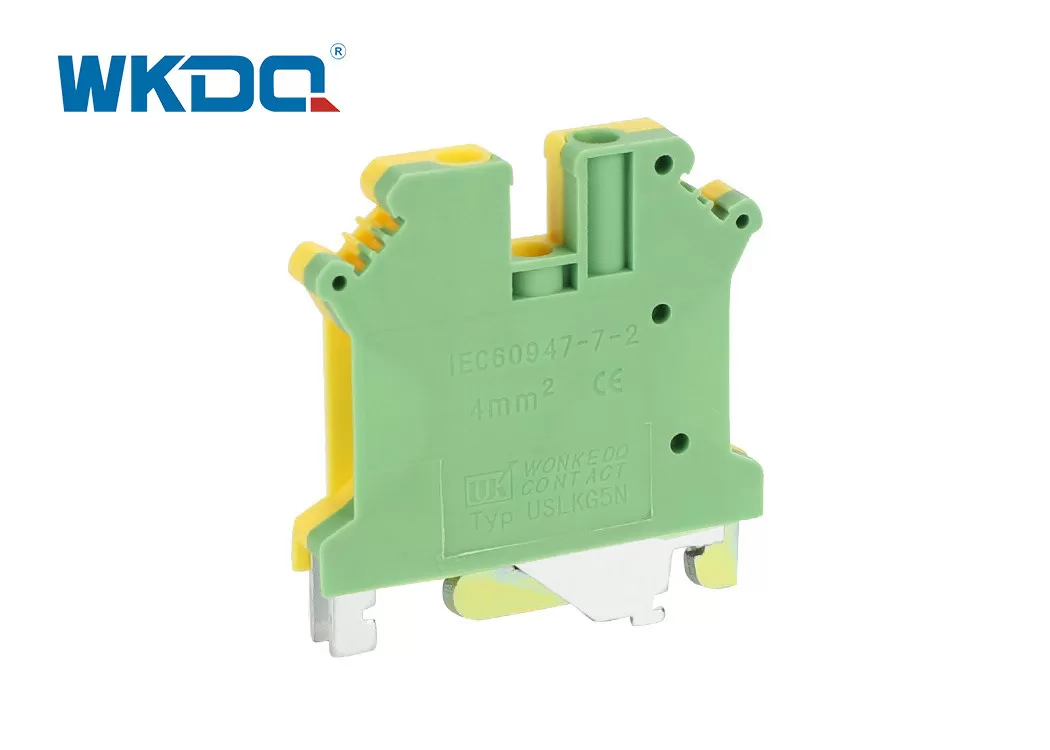

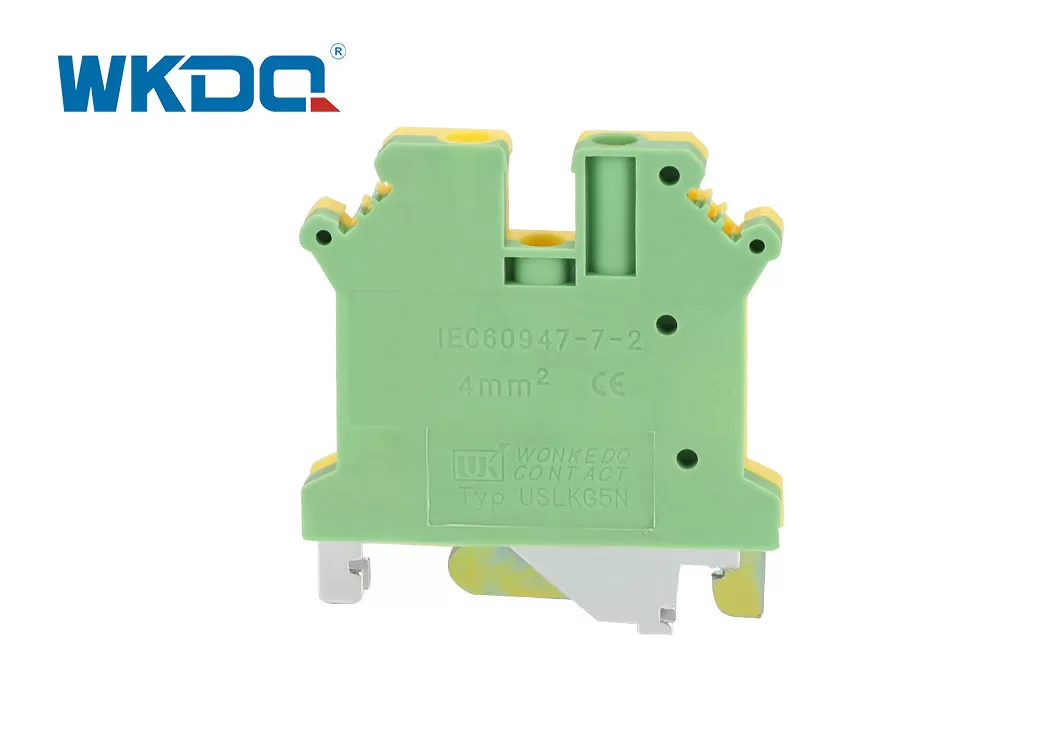

The JUK series screw terminal block adopts international standard screw connection, suitable for large cross-section wires, and is equipped with a PA66 flame-retardant nylon housing and brass metal components to ensure shock resistance, temperature difference resistance and anti-corrosion performance. The open clamp design simplifies the installation process. The universal NS 35 rail base supports rapid deployment. The strong contact force optimizes the efficiency of power transmission. Combined with modular accessories (end covers/partitions, etc.), flexible wiring is achieved. It is suitable for high-reliability scenarios such as industrial power distribution and mechanical control.
Model No. | JUSLKG 5N, Ground Modular Terminal Block |
Color | Yellow/Green, other color can be customized |
Length/Height/Wide (mm) | 42.5/46/6.2 |
Connection method | Screw connection |
Material | Flame resistant Nylon PA66, Nickel plated brass conductor |
Rated Voltage/Current | 800V/41A |
Cross section, solid/soft Cable | 0.2-6 mm² /0.2-4 mm² |
Conductor Size | 24-10 AWG |

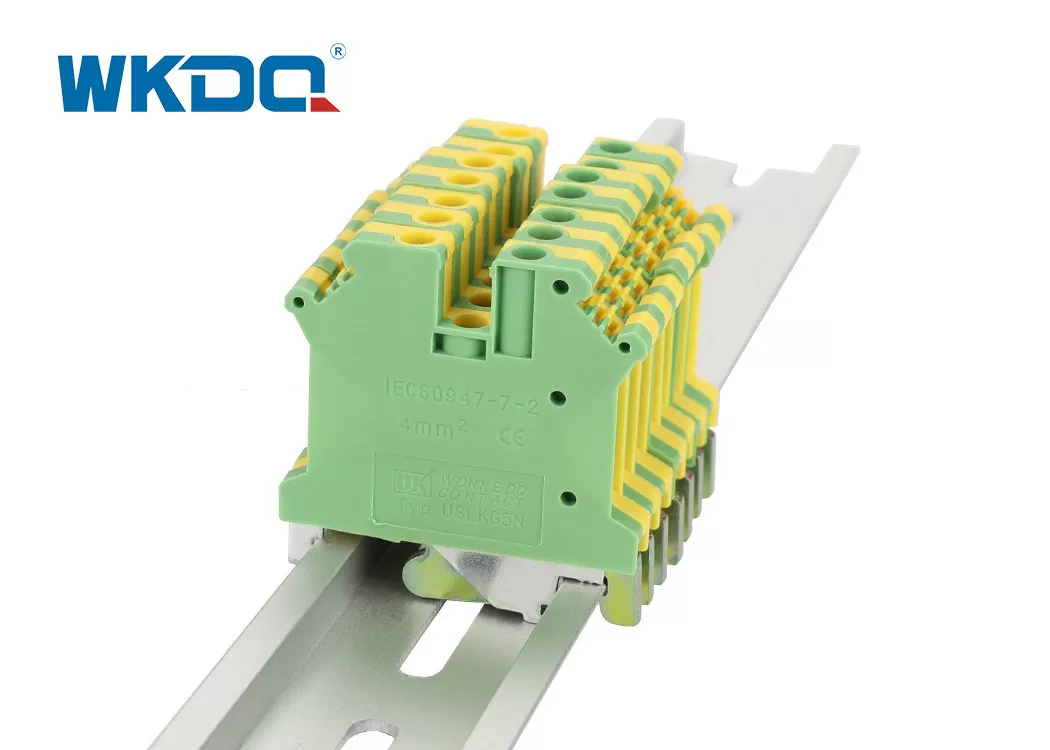

Mounting Type | DIN Rail NS 35 |
Standard | IEC 60947-7-1 |
LOGO | WonkeDQ, LOGO can be customized |
Packing Detail | 18.87g/pc, 50PCS/BOX, 1100PCS/CTN |
Certification | CE/RoHS/CQC/ISO 9001 |
