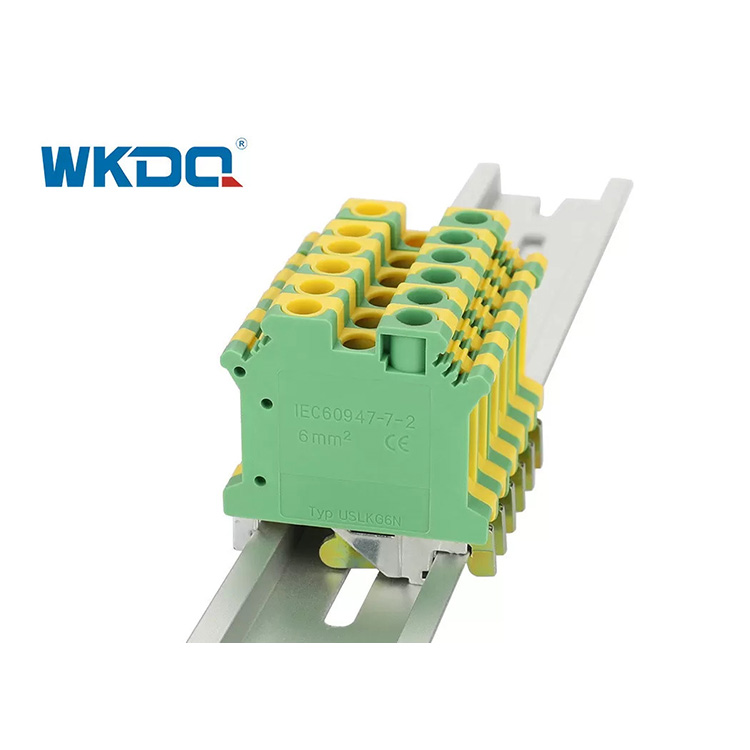

JUSLKG 6N General Electrical Terminal Connectors Universal Protective NS 35 Locking Type

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUSLKG 6N

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUSLKG 6N

Send Inquiry

Product Description

Quick-install PE feet and standardized bridging significantly reduce the production time of terminal blocks. The universal design meets the high requirements of multiple scenarios, and the maintenance-free multi-line connection is flexible and efficient. Flame-retardant PA66 material and anti-corrosion contacts ensure safety and durability. Anti-seismic and anti-loosening + high-strength materials for stable conductors; Steel feet are easy to install DIN 35 guide rails. It supports connection with or without terminals, which is practical and reliable.

Technical Parameters

Model No.	JUSLKG 6N, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/46/8.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/57A
Cross section, solid/soft Cable	0.2-10 mm² /0.2-6 mm²
Conductor Size	24-8 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	24.90g/pc, 50PCS/BOX, 900PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
