Screw Clamp Terminal Block Grounding

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUSLKG 6N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUSLKG 6N

Send Inquiry

Product Description

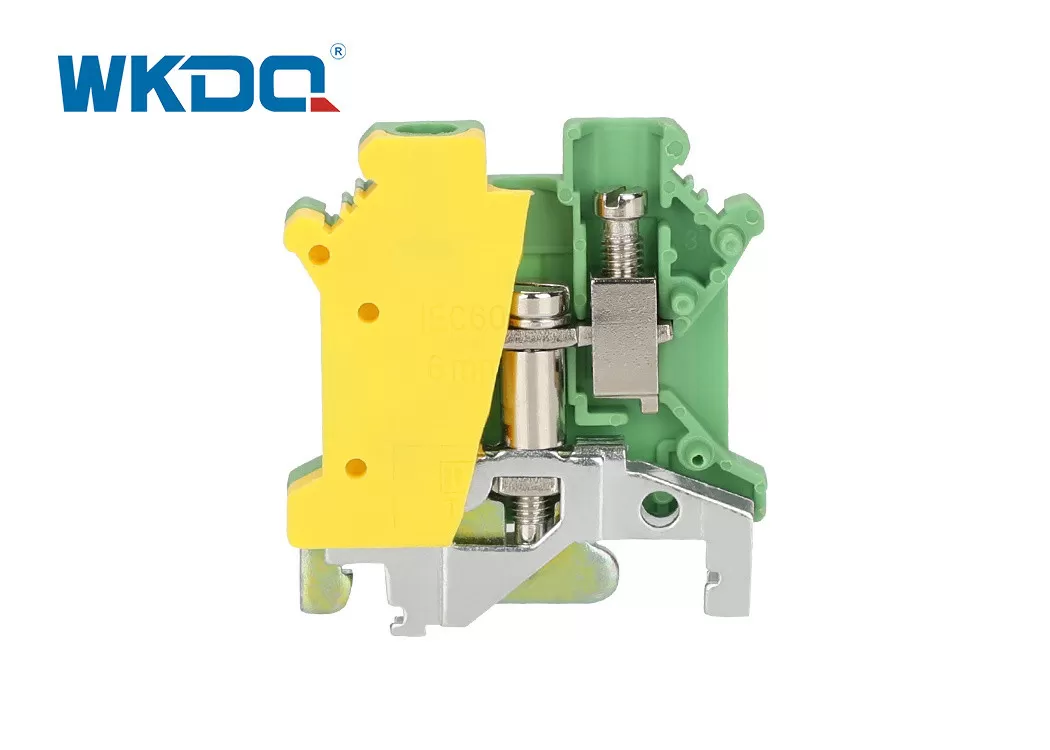

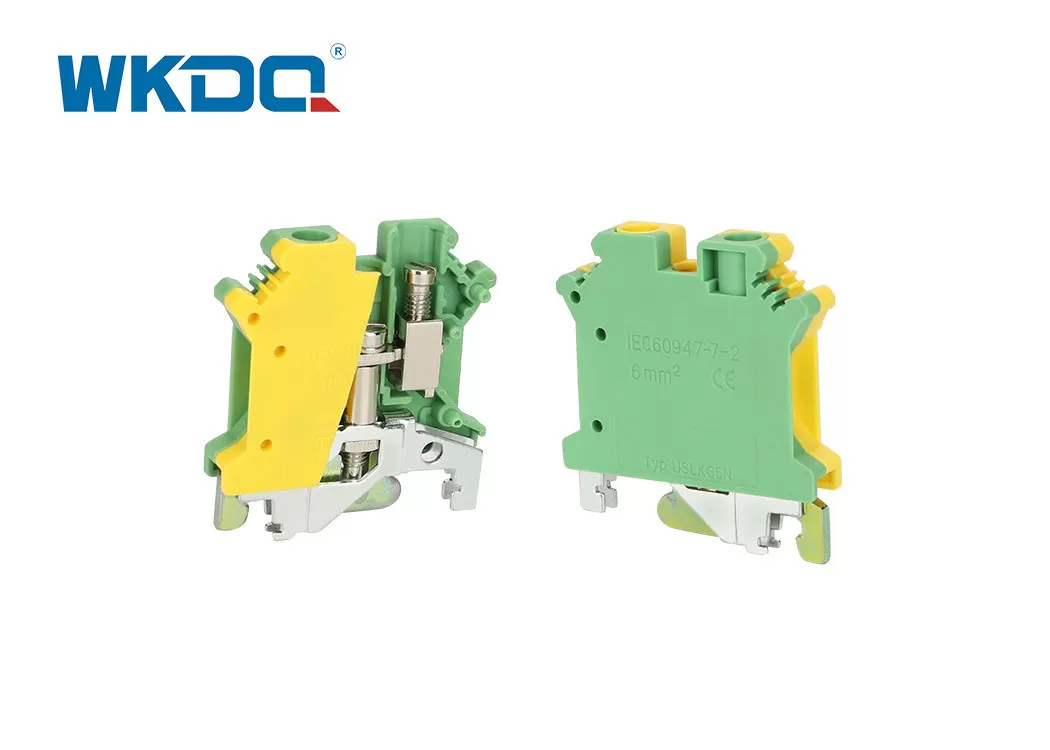

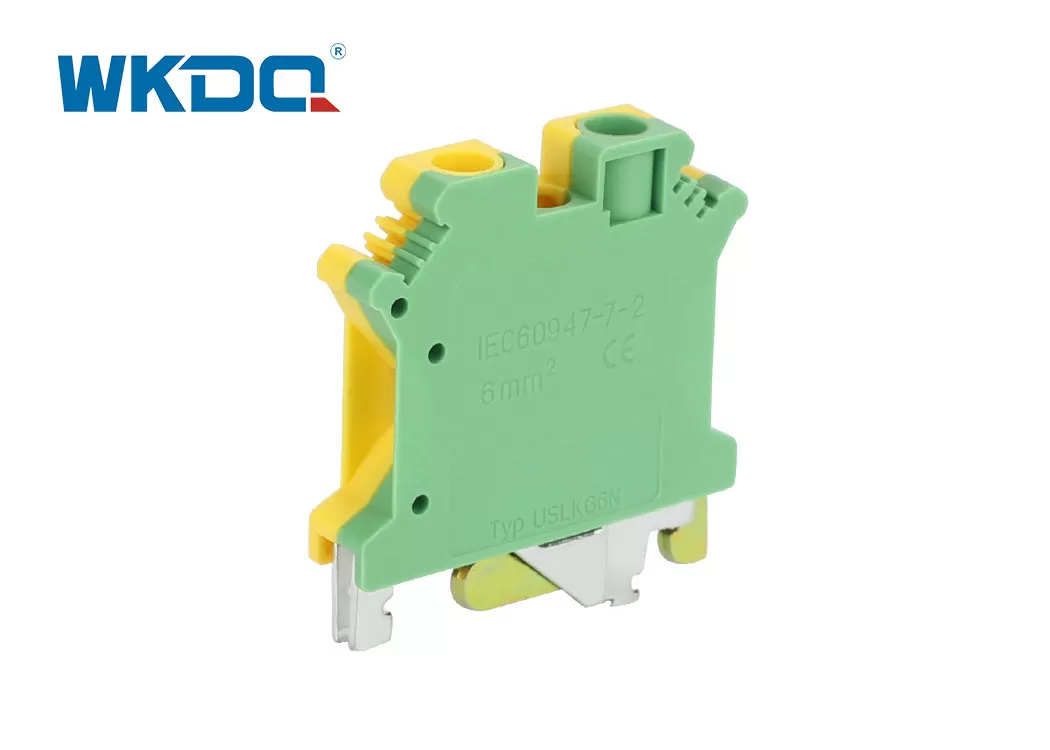

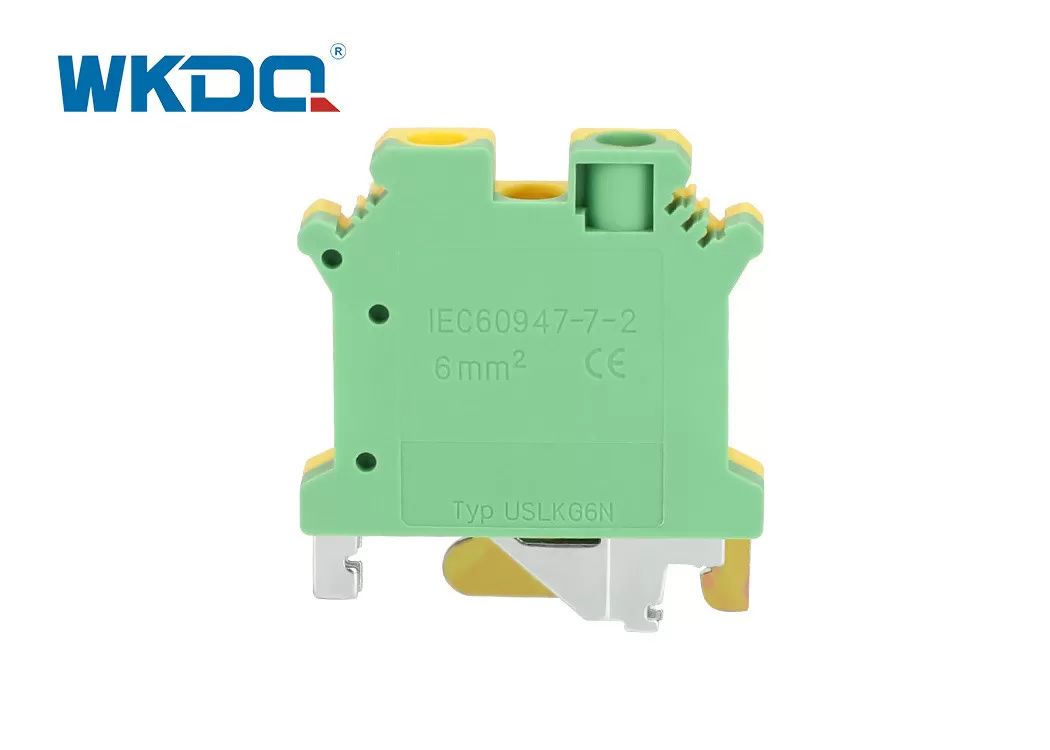

The WonkeDQ grounding terminal block adopts a snap-on PE grounding pin and a standardized bridge design, suitable for wires with and without terminals. The flame-retardant PA66 housing and anti-corrosion contact points ensure shock resistance and anti-loosening. The high-strength structure locks the conductor, and it is installed on a steel NS 35 rail, achieving an efficient, reliable and time-saving grounding terminal block configuration.

Model No.	JUSLKG 6N, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/46/8.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/57A
Cross section, solid/soft Cable	0.2-10 mm² /0.2-6 mm²
Conductor Size	24-8 AWG

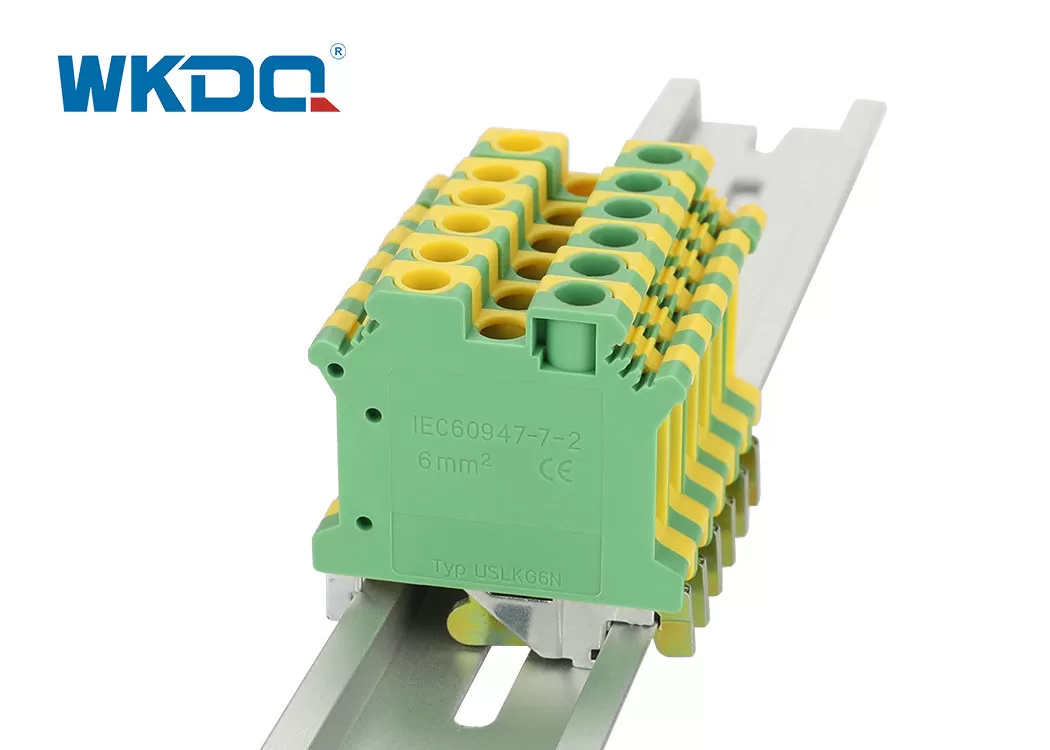

Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	24.90g/pc, 50PCS/BOX, 900PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
