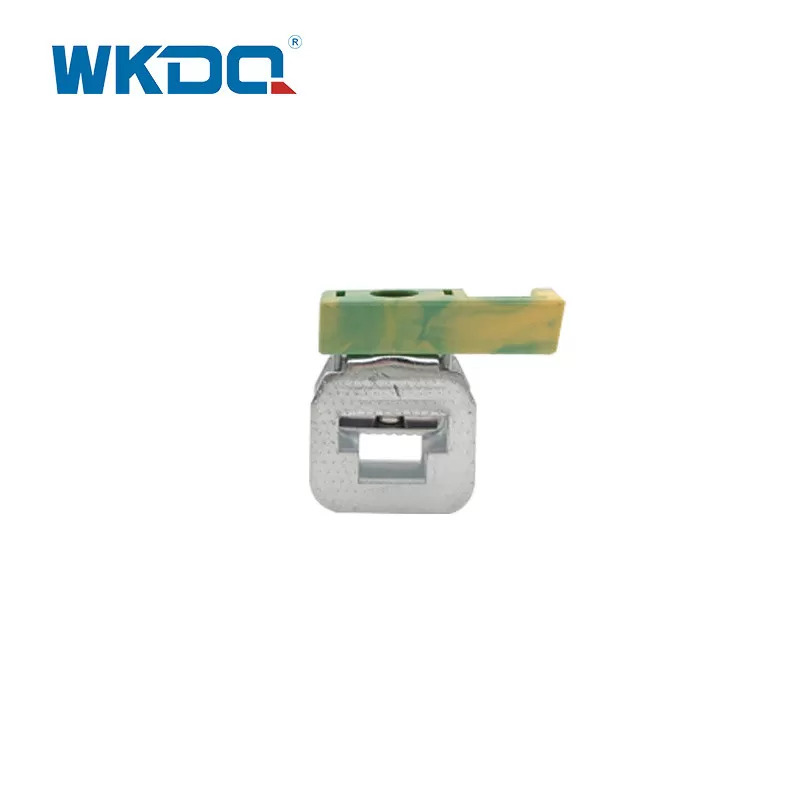

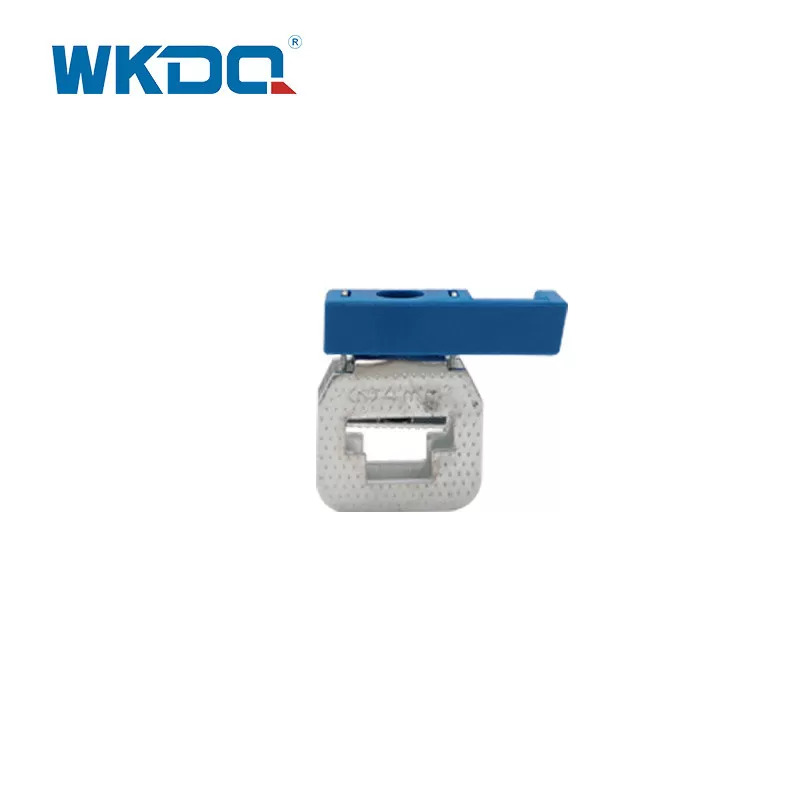

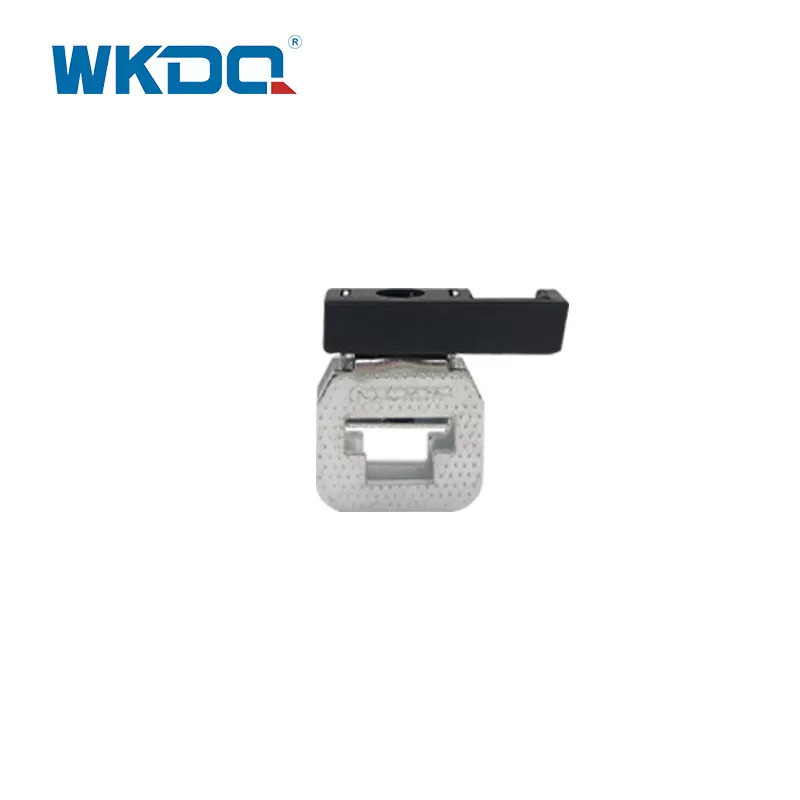

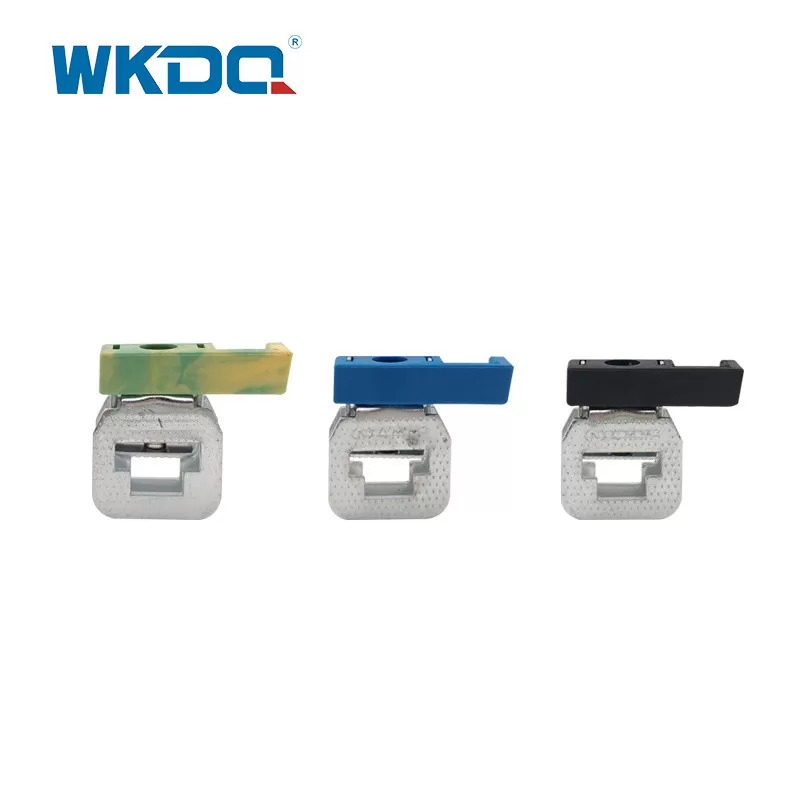

PA Nylon 300V 4mm2 AKG Busbar Terminal Block Screw Connection

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: AKG4
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Supply Ability: 1000000pcs/30days

Send Inquiry

Product Description

Nominal Voltage:	300V	Nominal Current:	41A
Nominal Cross Section:	4mm²	Material:	PA / Nylon And Brass
Color:	Blue, Black，Yellow/Green	Flammability Rating:	V2
High Light:	4mm2 Busbar Terminal Block , 300V Busbar Terminal Block , PA Nylon Busbar Terminal Block

The Busbar Connection Terminal Blocks utilize a screw connection method, which ensures a secure and reliable wiring connection. These terminal blocks play a crucial role in connecting various wiring components and are particularly well-suited for industrial and commercial applications.

With their robust construction and reliable connection mechanism, these terminal blocks provide a safe and secure solution for wiring needs. They are designed to meet the requirements of demanding environments and ensure the integrity of electrical connections. Whether in industrial facilities or commercial buildings, these terminal blocks are essential devices that contribute to the overall safety and efficiency of the electrical system.

TECHNICAL PARAMETERS

Part No.	Item	Details	Color
AKG 4	Busbar Connection Terminal Block Marker Strip: ZB 5	300V/41A 0.5-6mm²/0.5-4mm²	Blue,Black,Yellow/Green
AKG16	Busbar Connection Terminal Block Marker Strip: ZB 6	300V/76A 1.5-16mm²/1.5-16mm²	Blue,Black,Yellow/Green
AKG35	Busbar Connection Terminal Block Marker Strip: ZB 8	300V/125A 2.5-35mm²/2.5-35mm²	Blue,Black,Yellow/Green
