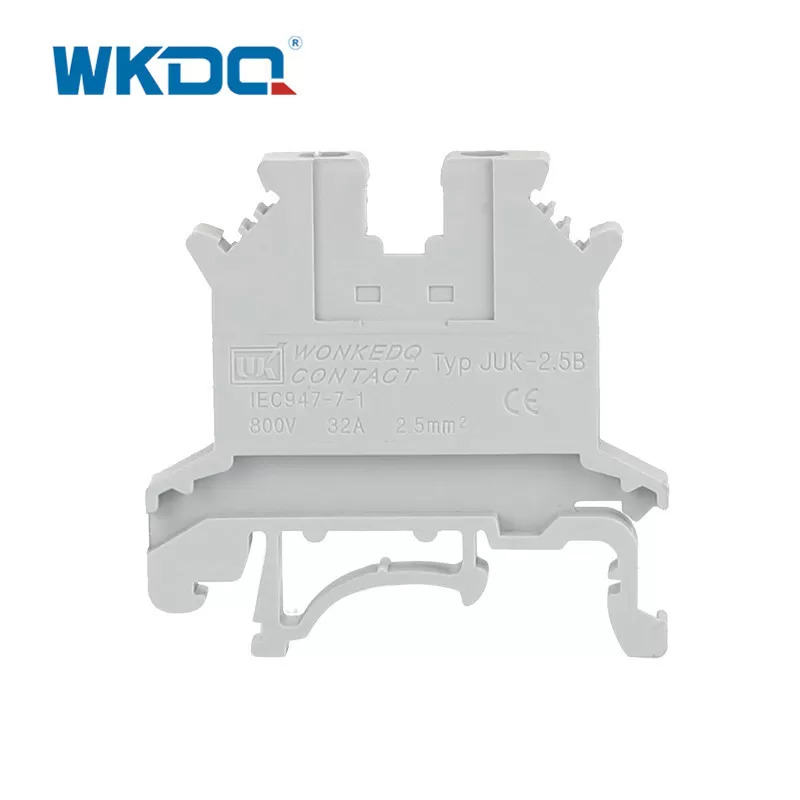

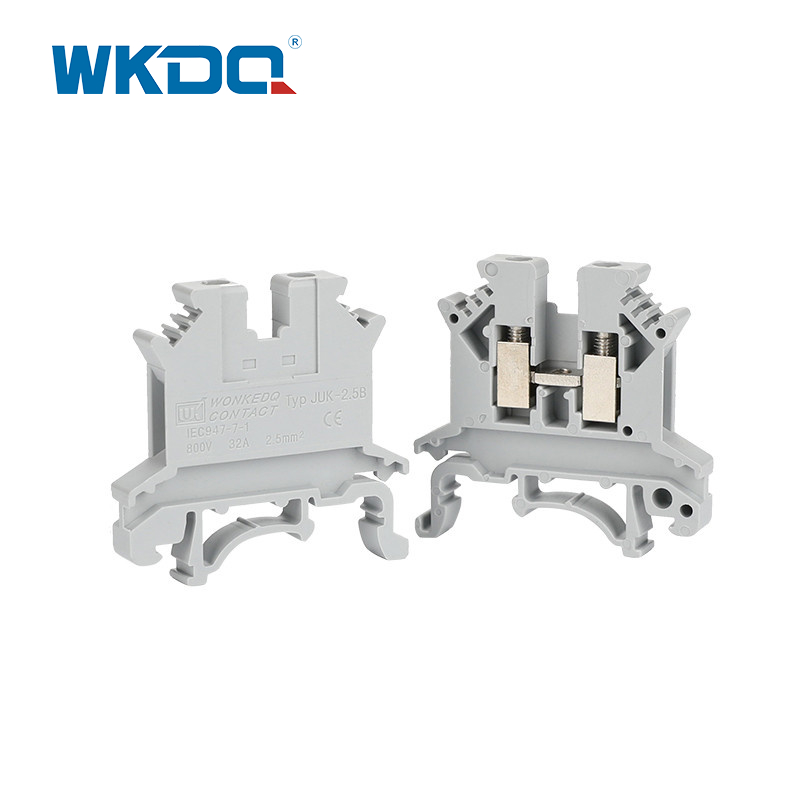

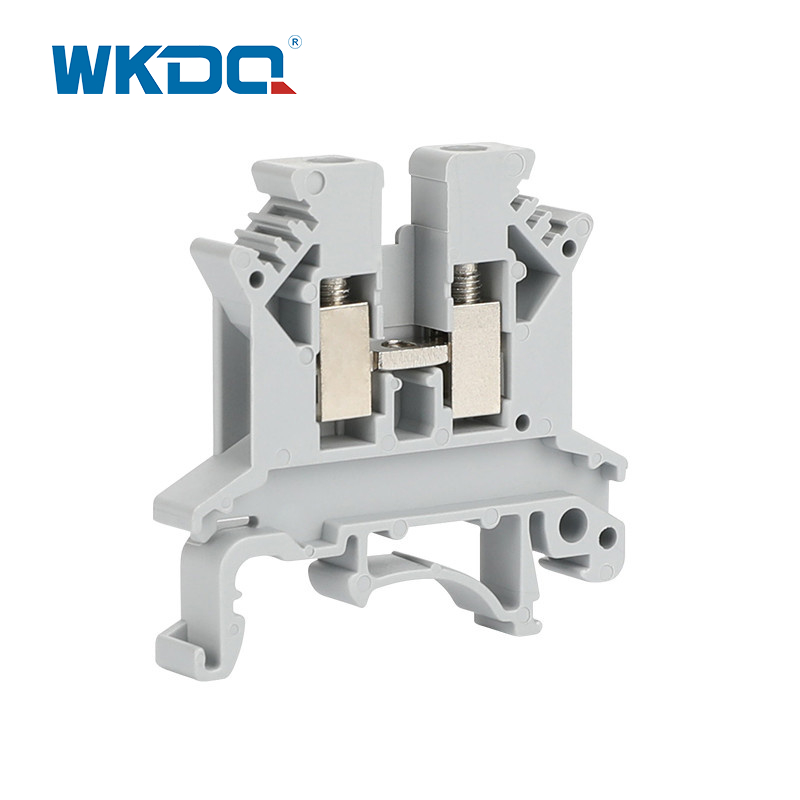

PA66 Din Rail Screw Terminal Block Flame Proof For Bridging
  • PA66 Din Rail Screw Terminal Block Flame Proof For BridgingPA66 Din Rail Screw Terminal Block Flame Proof For Bridging
  • PA66 Din Rail Screw Terminal Block Flame Proof For BridgingPA66 Din Rail Screw Terminal Block Flame Proof For Bridging

PA66 Din Rail Screw Terminal Block Flame Proof For Bridging

Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUK 2.5B

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

WonkeDQ's Terminal blocks are meticulously designed to meet the long-term demands of various conditions. The JUK Terminal Blocks provide a comprehensive lineup of terminal blocks that come equipped with a complete range of accessories. These accessories are compatible not only with the JUK series but also with the JST and JPT series, resulting in streamlined inventory management and reduced logistic costs. The Series Modular terminal blocks are intelligently engineered to optimize space utilization while providing maximum flexibility and effortless installation.

Our screw terminal blocks are crafted from high-grade brass, which possesses exceptional resistance to strain-cracking and corrosion. This premium brass material effectively safeguards against electrolytic corrosion and rusting, ensuring a reliable and durable terminal block. The metal surfaces are further protected with an environmentally friendly plated surface, adding an extra layer of defense against wear and tear.

The JUK universal screw terminal block series embodies the essential features necessary for practical applications. These terminal blocks are constructed using engineering flame retardant nylon PA66 with brass screw metal, combining excellent electrical insulation properties with robust connectivity. They deliver a strong contact force, facilitating excellent and secure connections. Additionally, these terminal blocks offer ease of handling, providing a smooth and hassle-free installation experience. These features contribute to reducing installation costs and accelerating wiring processes.

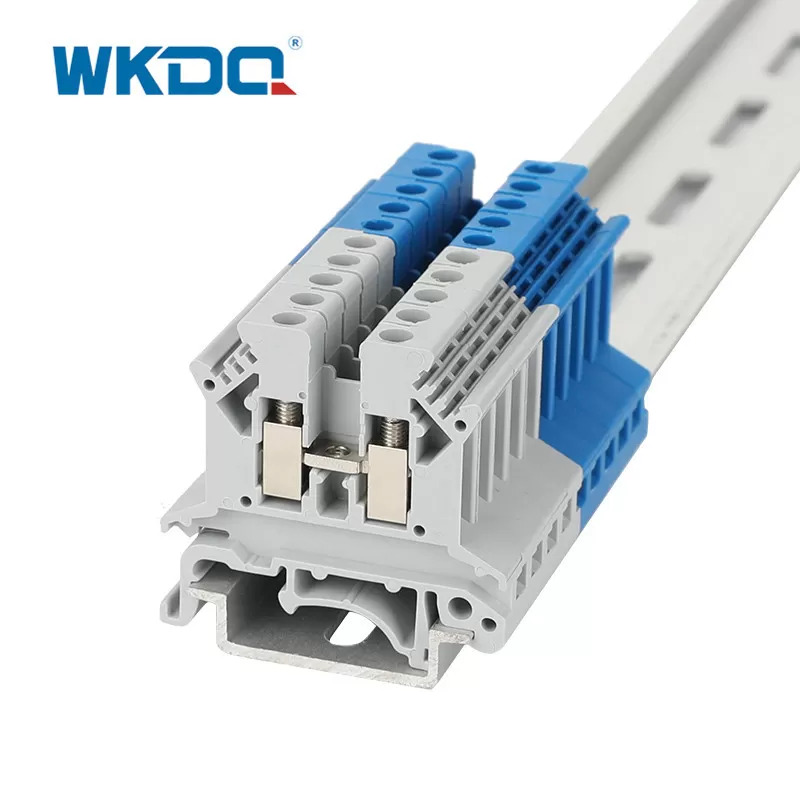

The terminal blocks are designed for easy mounting and can be conveniently installed on DIN Rail 35mm, whether it's made of steel or aluminum. They are compatible with various connection methods, including screw terminal blocks, spring cage clamping terminal blocks, feed-through terminal blocks, double-level terminal blocks, and more. This versatility ensures that there is a suitable option available for different wiring requirements. The series also includes innovative connection methods for feed-throughs and transformer connections, further expanding the range of applications and possibilities.

To complement the terminal blocks, a complete range of accessories is readily available, including end plates, end brackets, cross connectors for bridging, and marking strips. These high-quality accessories provide additional functionality and customization options, ensuring seamless integration and enhanced usability. The terminal blocks themselves are constructed using durable materials, guaranteeing long-lasting performance and enjoying a reputation for high quality. Moreover, they adhere to a uniform identification system, ZB, enabling standardized and efficient labeling practices.

In conclusion, WonkeDQ's Terminal blocks are specifically designed for long-term use, offering a comprehensive selection of options and accessories. With their high-grade brass construction, strong contact force, ease of handling, and compatibility with various connection methods, these terminal blocks provide reliable and efficient electrical connections. The availability of a wide range of accessories and adherence to a uniform identification system further enhance their practicality and quality.

Technical Parameters

Model Number JUK 2.5B
Color Grey, Blue
Length/Height/Wide (mm) 42.5/41/6.2
Connection method Screw connection
Material Nylon PA66
Rated Voltage/Current 800V/32A
Cross section, solid/soft Cable 0.2-4 mm / 0.2-2.5 mm
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 6.9g/pc, 50PCS/BOX,3000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
