Plug In Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 2.5/1P
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPT 2.5/1P

Send Inquiry

Product Description

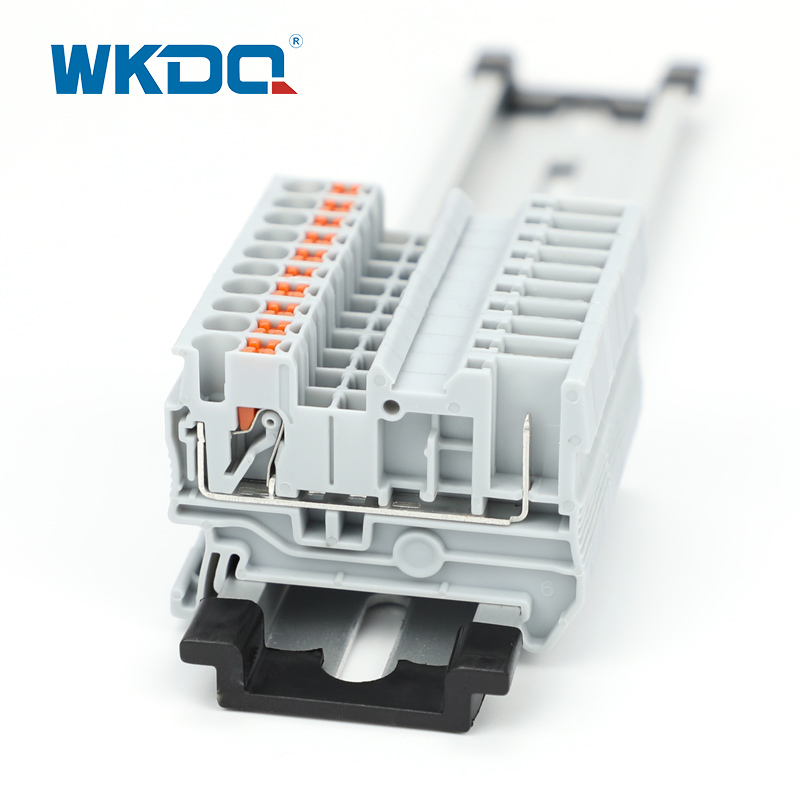

The Plug In terminal block is made of flame-retardant PA66 nylon housing, brass conductor and stainless steel spring. It supports push-in/spring/quick-connect/screw multi-mode mixing. The modular front outlet design is suitable for 35mm DIN rail high-density wiring.Built in bridging slots for potential distribution, matched with end caps/partitions/marking strips and other accessories, meet the flexible expansion and safe connection requirements of compact spaces in industrial electrical control cabinets, and have both corrosion resistance and long service life characteristics.

Model Number	JPT 2.5/1P
Color	Grey,other color can be customized
Length/Height/Wide (mm)	48.5/35.5/5.2
Connection method	Plug in connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	500V/24A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM serivce is supporting
Packing Detail	5.79g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
